Autoscaling GitHub Actions Runners Using Hetzner Cloud
Project description
- PyPi:
- License:
Autoscaling GitHub Actions Runners Using Hetzner Cloud
A simple alternative to Github’s Recommended autoscaling solutions.
- 🔍 Tip:
You can easily navigate this documentation page by clicking on any title to jump to the Table of Contents. Try it out, and remember, if you get lost, just click any title!
The github-runners service program starts and monitors queued up jobs for GitHub Actions workflows. When a new job is queued up, it creates a new Hetzner Cloud server instance that provides an ephemeral GitHub Actions runner. Each server instance is automatically powered off when the job completes, and then powered off servers are automatically deleted. Both x64 (x86) and arm64 (arm) runners are supported. See Features and Limitations for more details.
- ❗Warning:
This program is provided on “AS IS” basis without warranties or conditions of any kind. See LICENSE. Use it at your own risk. Manual monitoring is required to make sure server instances are cleaned up properly and costs are kept under control.
Costs depend on the server type, number of jobs, and execution time. For each job, a new server instance is created to avoid any cleanup. Server instances are not shared between jobs.
- ✋ Note:
Currently, Hetzner Cloud server instances are billed on an hourly basis. So a job that takes 1 min will be billed the same way as for a job that takes 59 minutes. Therefore, the minimal cost for any job, the cost of the server for 1 hour plus the cost of one public IPv4 address.
Table of Contents
Features
cost efficient on-demand runners using Hetzner Cloud
supports server recycling to minimize costs
simple configuration, no Webhooks, no need for AWS lambdas, and no need to setup any GitHub application
supports specifying custom runner server types, images, and locations using job labels
self-contained program that you can use to deploy, redeploy, and manage the service on a cloud instance
supports x64 (x86) and ARM64 (arm) runners
supports using any Hetzner Cloud server types
supports runners with pre-installed Docker
supports using any standard Hetzner Cloud images and applications
supports auto-replenishable fixed standby runner pools for jobs to be picked up immediately
supports limiting the maximum number of runners created for each workflow run
supports efficient GitHub API usage using HTTP caching and conditional requests
simpler alternative to what GitHub lists in Recommended autoscaling solutions
Limitations
- Group runners are not supported
✎ However, you can run individual services for each repository using different Hetzner Cloud projects.
- A unique Hetzner Cloud project must be used for each repository
✎ However, unique projects allow you to easily keep track of runner costs per repository.
Prerequisites
Python >= 3.7
Hetzner Cloud account
GitHub API token with admin privileges to manage self-hosted runners
Installation
pip3 install testflows.github.runnersCheck that the github-runners utility was installed correctly by executing the github-runners -v command.
github-runners -vThe github-runners utility is installed in to the ~/.local/bin/ folder. Please make sure that this folder is part of the PATH.
which github-runners~/.local/bin/github-runners
If your PATH is missing this folder, on Ubuntu, modify your ~/.profile and add the following section:
- ~/.profile:
# set PATH so it includes the user's private bin if it exists if [ -d "$HOME/.local/bin" ] ; then PATH="$HOME/.local/bin:$PATH" fi
Quick Start
Set environment variables corresponding to your GitHub repository and Hetzner Cloud project.
export GITHUB_TOKEN=ghp_...
export GITHUB_REPOSITORY=vzakaznikov/github-runners
export HETZNER_TOKEN=GJzdc...Then, start the github-runners program:
github-runners07/22/2023 08:20:37 PM INFO MainThread main 🍀 Logging in to Hetzner Cloud 07/22/2023 08:20:37 PM INFO MainThread main 🍀 Logging in to GitHub 07/22/2023 08:20:37 PM INFO MainThread main 🍀 Getting repository vzakaznikov/github-runners 07/22/2023 08:20:37 PM INFO MainThread main 🍀 Creating scale up service 07/22/2023 08:20:37 PM INFO MainThread main 🍀 Creating scale down service 07/22/2023 08:20:38 PM INFO worker_2 create_server 🍀 Create server ...
Alternatively, you can pass the required options using the command line as follows:
github-runners --github-token <GITHUB_TOKEN> --github-repository <GITHUB_REPOSITORY> --hetzner-token <HETZNER_TOKEN>Getting Started Tutorial
- ✅ Launch your first self-hosted runner in:
5 minutes
This tutorial will guide you on how to use the github-runners program to provide autoscaling GitHub Actions runners for a GitHub repository and a Hetzner Cloud project that you’ll create.
Installing TestFlows Github Runners
❶ Before we get started, you will need to install testflows.github.runners Python package. See the Installation section for more details.
pip3 install testflows.github.runners❷ Check that the github-runners utility was installed correctly by executing the github-runners -v command.
github-runners -v1.3.230731.1173142
- ✋ Note:
The github-runners utility is installed in to the ~/.local/bin/ folder. Please make sure that this folder is part of the PATH.
which github-runners~/.local/bin/github-runners
If your PATH is missing this folder, on Ubuntu, you can modify your ~/.profile and add the following section:
- ~/.profile:
# set PATH so it includes the user's private bin if it exists if [ -d "$HOME/.local/bin" ] ; then PATH="$HOME/.local/bin:$PATH" fi
In order to launch the github-runners program, we’ll need to specify the GitHub repository as well as GitHub and Hetzner Cloud tokens. So, let’s create these.

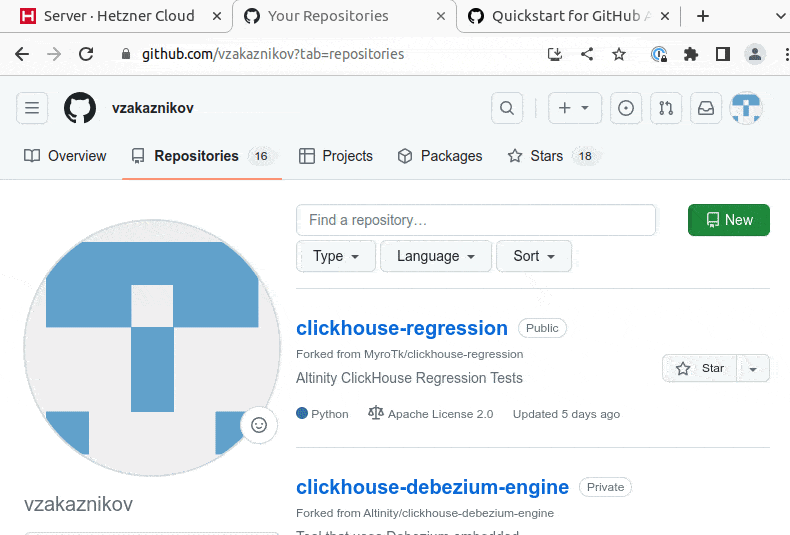

Creating GitHub Repository with Actions Workflow and Token
Before using the github-runners, you need a GitHub repository with a GitHub Actions workflow set up.
❶ First, create a GitHub Repository named demo-testflows-github-runners and note the repository name.
The repository name will have the following format:
<username>/demo-testflows-github-runners
For me, my GitHub repository is:
vzakaznikov/demo-testflows-github-runners
❷ Now, create an example GitHub Actions workflow as described in the Quickstart for GitHub Actions article. Note that we need to modify the example YAML configuration and specify that our job will run on a runner with the self-hosted and the type-cpx21 labels.
Explore-GitHub-Actions:
runs-on: [self-hosted, type-cpx21]So, the complete demo.yml that uses a self-hosted runner is as follows:
- demo.yml:
name: GitHub Actions Demo run-name: ${{ github.actor }} is testing out GitHub Actions 🚀 on: [push] jobs: Explore-GitHub-Actions: runs-on: [self-hosted, type-cpx21] steps: - run: echo "🎉 The job was automatically triggered by a ${{ github.event_name }} event." - run: echo "🐧 This job is now running on a ${{ runner.os }} server hosted by GitHub!" - run: echo "🔎 The name of your branch is ${{ github.ref }} and your repository is ${{ github.repository }}." - name: Check out repository code uses: actions/checkout@v3 - run: echo "💡 The ${{ github.repository }} repository has been cloned to the runner." - run: echo "🖥️ The workflow is now ready to test your code on the runner." - name: List files in the repository run: | ls ${{ github.workspace }} - run: echo "🍏 This job's status is ${{ job.status }}."
❸ Finally, you will need to create a GitHub API token with the workflow privileges. Make sure to save the token!
For me, my demo GitHub token is:
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
You should now have your GitHub repository ready.
See these steps in action:
Creating a Hetzner Cloud Project and Token
Next, you will need to create a Hetzner Cloud project and an API token that we can use to create and manage Hetzner Cloud server instances.
❶ Create a new Hetzner Cloud project Demo GitHub Runners.
❷ Now, create an API token and save it.
For me, the Hetzner Cloud token for my Demo GitHub Runners project is:
5Up04IHuY8mC7l0JxKwh3Aps4ghGIyL0NJ9rGlhyAmmkddzuRreR1YstTSTFCG0N
You should now have your Hetzner Cloud project ready.
See these steps in action:
Creating a Cloud Service
With the GitHub repository and GitHub and Hetzner Cloud tokens in hand, we can deploy the github-runners service to Hetzner Cloud instance. This way, the service is not running on your local machine.
The deployment, we’ll create a github-runners instance in your Hetzner Cloud project on which the service will be running. See the Running as a Cloud Service section for details.

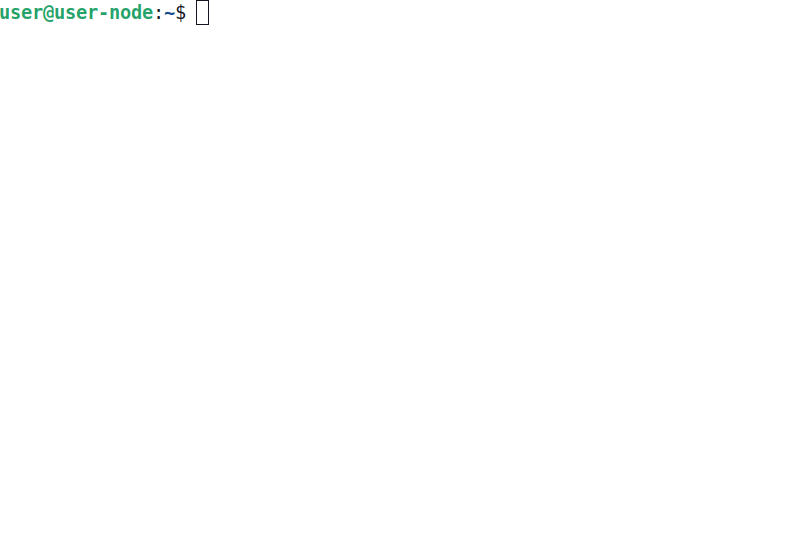

❶ To deploy the service run the github-runners cloud deploy command and specify your GitHub repository, GitHub and Hetzner Cloud tokens using GITHUB_REPOSITORY, GITHUB_TOKEN, and HETZNER_TOKEN environment variables.
export GITHUB_REPOSITORY=
export HETZNER_TOKEN=
export GITHUB_TOKEN=
github-runners cloud deployYou should now have the cloud service up and running.
See these steps in action:
Waiting for GitHub Actions Job to Complete
❶ The github-runners cloud service is now running. So, now you can just sit back and wait until github-runners spins up a new runner to complete any queued up GitHub Actions jobs in your GitHub repository.
See this step in action:
As you can see, our job was executed and completed using our own self-hosted runner!
- ✋ Note:
If you run into any issues, you can check the cloud service log using the github-runners cloud log -f command. For other cloud service commands, see the Running as a Cloud Service section.
github-runners cloud log -f
Installation From Sources
For development, you can install from sources as follows:
git clone https://github.com/testflows/Github-Runners.git
./package && ./installBasic Configuration
By default, the program uses the following environment variables:
GITHUB_TOKEN
GITHUB_REPOSITORY
HETZNER_TOKEN
or you can specify these values using the following options:
–github-token
–github-repository
–hetzner-token
Specifying the Maximum Number of Runners
The default maximum number of runners is 10. You can set a different value based on your Hetzner Cloud limits using the -m count, –max-runners count option. For example,
github-runners --max-runners 40Specifying the Maximum Number of Runners Used in Workflow Run
By default, the maximum number of runners that could be created for a single workflow run is not defined.
- ❗Warning:
In general, GitHub does not allow you to assign a job to a specific runner, and any available runner that matches the labels could be used. Therefore, one can’t control how runners are allocated to queued workflow run jobs, and this is why the –max-runners-in-workflow-run option will not behave as one would intuitively expect.
If you set the –max-runners-in-workflow-run to some value X, then github-runners will create the X * number of queued workflow runs runners. How these runners will be allocated by GitHub is out of our control. Therefore, the more runs queued up, the more runners will be created, up to the –max-runners limit, to try to complete the jobs faster. However, this does not mean that you will see exactly X number of jobs being executed in each queued workflow run.
For example,
github-runners --max-runners 40 --max-runners-in-workflow-run 5will create upto 5 runners for each queued up workflow run. If there is only one workflow running, then the maximum number of runners will be 5 unless more queued up workflow runs appear, which could then speed up the execution of the run in progress.
Recycling Powered-Off Servers
By default, recycling of powered-off servers that have completed executing a job is turned on.
Recycling allows for minimizing costs by allowing multiple runners to be brought up on the same server instance as Hetzner Cloud, which bills servers in 1 hour increments. Therefore, it is inefficient to delete a server if it only executed a job that runs for a few minutes. Instead, after completing a job, the server is powered off and if it can be recycled, it is rebuilt from scratch by reinstalling the image thus providing a clean environment for the next job.
Powered off servers are marked as recyclable by changing their name to github-runner-recycle-{uid}.
Recyclable servers are deleted when they reach their end of life period which is defined by the –end-of-life option, and by default is set to 50 minutes. The end of life is calculated on an hourly basis and must be greater than 0 and less than 60.
For example, with the default value of the –end-of-life option set to the 50 minutes, if the server is running for 2 hours and 50 minutes, then it will be considered to have reached its end of life and is deleted because it has only 10 minutes or less of useful life left in the current hour period. However, if the server is running for 2 hours and 30 minutes, then it could potentially has 30 minutes of life left, and it will be kept around to be available for recycling.
Sometimes a job might need a server that does not match any recyclable servers, if the maximum number of runners has been reached, then by default, one of the recyclable servers will be picked to be deleted to make room for a new server. By default, the recyclable server that is deleted is picked based on the server’s price per hour and its remaining useful life. The server with the lowest unused budget is deleted.
The unused budget is defined as follows:
- unused budget:
server_life = 60 - server_age.minutes price_per_minute = price_per_hour / 60 unused_budget = server_life * price_per_minute- ✋ Note:
You can also use the –delete-random option to randomly pick a recyclable server to be deleted. Deleting servers at random is a legacy feature.
A recyclable server is recycled for a new job if it matches the following:
server type matches exactly what the job requires or the default type
server location matches exactly if a job requests a runner in a specific location or the default location is specified
server has matching SSH keys
- ✋ Note:
Matching server type exactly means that even if a bigger, more expensive server type could be potentially recycled if it is not used, even though a job that actually requires that expensive server might not be queued before the server’s end of life.
This is intensional, as we can’t predict when a job that actually requires the more expensive server type could be queued. If the program would allow recycling of higher server types than actually requested by a job, then we could run into cases when a job that requires a smaller and less expensive server runs on a bigger and more expensive server instead. In this case, a job that actually requires a bigger server would force a new, expensive server to be created and thus causing more expensive servers to be created than are actually necessary.
If needed, you can turn recycling off using the –recycle {on,off} option.
github-runners --recycle offSkipping Jobs
By default, a runner will be created for any queued job.
If needed, you can skip creating runners if a job does not have a specified label using the –with-label option.
For example,
github-runners --with-label on-demandwill only create runners for jobs that contain on-demand label and skip any job that is missing that label.
Jobs That Require the Docker Engine
For jobs that require Docker to be installed, you can use the standard Hetzner Docker CE application which can be specified using the image- label. See Specifying the Runner Image for more details about specifying custom runner images.
For example
- x64:
job-name: runs-on: [self-hosted, type-cx11, image-x86-app-docker-ce]- ARM64:
job-name: runs-on: [self-hosted, type-cax11, image-arm-app-docker-ce]
Specifying the Runner Type
x64 Runners
The default server type is cx11 which is an Intel, 1 vCPU, 2GB RAM shared-cpu x64 instance.
- ✋ Note:
You can use –default-type option to set a different default server type.
You can specify different x64 server instance type by using the type-{name} runner label. The {name} must be a valid Hetzner Cloud server type name such as cx11, cpx21 etc.
For example, to use an AMD, 3 vCPU, 4GB RAM shared-cpu x64 instance, you can define the runs-on as follows:
job-name:
runs-on: [self-hosted, type-cpx21]ARM64 Runners
The default,server type is cx11, which is an Intel, 1 vCPU, 2GB RAM shared-cpu x64 instance. Therefore, in order to use ARM64 runners, you must specify the ARM64 server instance type by using the type-{name} runner label. The {name} must be a valid ARM64 Hetzner Cloud server type name such as cax11, cax21 etc. which correspond to the Ampere Altra, 2 vCPU, 4GB RAM and 4 vCPU, 8GB RAM shared-cpu ARM64 instances, respectively.
For example, to use Ampere Altra, 4 vCPU, 8GB RAM shared-cpu ARM64 instance, you must define the runs-on as follows:
job-name:
runs-on: [self-hosted, type-cax21]Specifying Runner Location
By default, the default location of the server where the runner will be running is not specified. You can use the –default-location option to force a specific default server location.
You can also use the in-{name} runner label to specify the server location for a specific job. Where {name} must be a valid Hetzner Cloud location name such as ash for US, Ashburn, VA or fsn1 for Germany, Falkenstein.
For example,
job-name:
runs-on: [self-hosted, type-cx11, in-ash]Specifying the Runner Image
By default, the default image of the server for the runner is ubuntu-22.04. You can use the –default-image option to force a specific default server image.
You can also use the image-{architecture}-{type}-{name} runner label to specify the server image for a specific job.
Where,
{architecture} is either x86 or arm
{type} is either system, snapshot, backup, or app
{name} must be a valid Hetzner Cloud image name, for system or app type, such as ubuntu-22.04, or a description, for backup or snapshot type.
For example,
- ubuntu-20.04:
job-name: runs-on: [self-hosted, type-cx11, in-ash, image-x86-system-ubuntu-20.04]- docker-ce app:
job-name: runs-on: [self-hosted, type-cx11, in-ash, image-x86-app-docker-ce]- snapshot:
For snapshots, specify description as the name. Snapshot descriptions must be unique.
job-name: runs-on: [self-hosted, type-cx11, in-ash, image-x86-snapshot-snapshot_description]
Specifying the Custom Runner Server Setup Script
You can specify a custom runner server setup script using the –setup-script option.
For example,
- custom_setup.sh:
#!/bin/bash set -x echo "Create and configure ubuntu user" adduser ubuntu --disabled-password --gecos "" echo "%wheel ALL=(ALL:ALL) NOPASSWD:ALL" >> /etc/sudoers addgroup wheel addgroup docker usermod -aG wheel ubuntu usermod -aG sudo ubuntu usermod -aG docker ubuntu # custom setup apt-get -y update apt-get -y install ca-certificates curl gnupg lsb-release python3-pip git unzip- command:
github-runners --setup-script ./custom_setup.sh
Specifying Standby Runners
You can define standby runner groups to always be ready to pick up your jobs using a custom configuration file.
- ✋ Note:
Standby runner groups can only be defined using a configuration file. See Using a Configuration File for more details.
Standby runners are always active and allow jobs to be picked up immediately.
More than one standby runner group can be specified in the standby_runners. Each group is defined using the standby_runner object that has labels, count, and replenish_immediately attributes.
- schema:
"standby_runners": { "type": "array", "items": { "type": "object", "properties": { "labels": { "type": "array", "items": { "type": "string" } }, "count": { "type": "integer" }, "replenish_immediately": { "type": "boolean" } } } }
where,
labels specifies an array of labels with which standby runners in this group should be created
count specifies the count of how many runners should be created for the group
replenish_immediately specifies if the sandby runners should be replenished as soon as they become busy after picking up a job, default: true
For example,
- config.yaml:
config: standby_runners: - labels: - type-cx21 count: 2 replenish_immediately: true
Specifying Logger Configuration
You can specify custom logger configuration using a configuration file.
- ✋ Note:
A custom logger configuration can only be specified using a configuration file. See Using a Configuration File for more details.
The logger configuration is specified in the configuration file using the logger_config object. For more information about the logger configuration, see Configuration dictionary schema in Python documentation.
Any custom logger configuration must at least define stdout and rotating_service_logfile handlers as well as configure testflows.github.runners in the loggers.
For example,
- config.yaml:
config: # logging module config logger_config: version: 1 disable_existing_loggers: false formatters: standard: format:"%(asctime)s%(levelname)s%(funcName)s%(message)s"datefmt:"%m/%d/%Y%I:%M:%S%p"handlers: stdout: level: INFO formatter: standard class: testflows.github.runners.logger.StdoutHandler stream:"ext://sys.stdout"rotating_service_logfile: level: DEBUG formatter: standard class: testflows.github.runners.logger.RotatingFileHandler filename: /tmp/github-runners.log maxBytes: 10485760 backupCount: 1 loggers: testflows.github.runners: level: INFO handlers: - stdout - rotating_service_logfile
If the logger configuration is using a custom format for the rotating_service_logfile, then a custom logger_format object must be defined to specify the format of the service’s rotating log file which is needed for the service log and cloud log commands.
For the example above, the custom logger_format is the following:
config:
# logger format
logger_format:
delimiter: " "
default:
- column: date
- column: time
- column: time_ampm
- column: level
- column: funcName
- column: message
columns:
- column: date
index: 0
width: 10
- column: time
index: 1
width: 8
- column: time_ampm
index: 2
width: 2
- column: level
index: 3
width: 8
- column: funcName
index: 4
width: 15
- column: message
index: 5
width: 80Note that the date, time, and time_ampm columns come from the datefmt definition, which defines the asctime as a three column field consisting of date, time, and time_ampm columns separated by a space.
datefmt: "%m/%d/%Y %I:%M:%S %p"Listing All Current Servers
You can list all currently created servers using the list command. This command will show all the servers that start with the github-runner prefix in their name.
For example,
github-runners listUsing config file: /home/user/.github-runners/config.yaml 11:40:40 🍀 Logging in to Hetzner Cloud 11:40:40 🍀 Getting a list of servers ❌ off github-runner-5811138574-15753659850 ❌ off github-runner-recycle-1691595565.5396028 ❌ off github-runner-recycle-1691595478.7024605 ❌ off github-runner-5811138574-15753660130 ❌ off github-runner-recycle-1691595481.196499
Opening SSH Client to the Server
For debugging, you can open an SSH client to the current server using the ssh command and specify the name of the server you would like to connect to. For the ssh command to work, you need to specify the –hetzner-token and have the correct private SSH key.
github-runners ssh <name>For example,
github-runners ssh github-runner-5811138574-15753659850Deleting All Runners And Their Servers
You can delete all runners, including standby runners, and their servers using the delete command.
- ✋ Note:
The delete command will not delete a cloud service server. If you also want to delete it, you also need to execute cloud delete command. For more information, see Deleting the Cloud Service section.
github-runners delete07/29/2023 07:43:16 PM INFO MainThread all 🍀 Logging in to Hetzner Cloud 07/29/2023 07:43:16 PM INFO MainThread all 🍀 Logging in to GitHub 07/29/2023 07:43:16 PM INFO MainThread all 🍀 Getting repository testflows/testflows-github-runners 07/29/2023 07:43:17 PM INFO MainThread all 🍀 Getting list of self-hosted runners 07/29/2023 07:43:17 PM INFO MainThread all 🍀 Getting list of servers
Using a Configuration File
Instead of passing configuration options using command line arguments, you can use configuration file. The configuration file uses YAML format, and it is usually named config.yaml. You can find the complete schema in schema.json.
- ✋ Note:
When you mix command line options with a custom configuration file, explicit command line options take precedence over the values that are defined for the same parameters in the configuration file.
You can specify the default configuration by placing the configuration in the ~/.github-runners/config.yaml file or pass the path to the configuration file explicitly using the -c path, –config path option.
The YAML configuration file supports special syntax to specify the value of a property as the value of the environment variable using the ${ENV_VAR_NAME} syntax.
For example,
github-runners -c config.yamlwhere,
- config.yaml:
config: github_token: ${GITHUB_TOKEN} github_repository: ${GITHUB_REPOSITORY} hetzner_token: ${HETZNER_TOKEN} default_server_type: cx11 cloud: server_name:"my-github-runners-service"standby_runners: - labels: - type-cx21 count: 2 replenish_immediately: true- ✋ Note:
This is a simple configuration file. You can find a complete example in the examples/config.yaml.
Specifying SSH Key
All server instances that are created are accessed via SSH using the ssh utility and therefore you must provide a valid SSH key using the –ssh-key option. If the –ssh-key option is not specified, then the ~/.ssh/id_rsa.pub default key path will be used.
The SSH key will be automatically added to your project using the MD5 hash of the public key as the SSH key name.
- ❗Warning:
Given that each new SSH key is automatically added to your Hetzner project, you must manually delete them when no longer needed.
Most GitHub users already have an SSH key associated with the account. If you want to know how to add an SSH key, see Adding a new SSH key to your GitHub account article.
Generating a New SSH Key
If you need to generate a new SSH key, see Generating a new SSH key and adding it to the ssh-agent article.
SSH Keys in Cloud Deployment
If you are deploying the github-runners program as a cloud service using the github-runners <options> cloud deploy command, then after provisioning a new cloud server instance that will host the github-runners service, a new SSH key will be auto-generated to access the runners. The auto-generated key will be placed in /home/runner/.ssh/id_rsa, where runner is the user under which the github-runners service runs on the cloud instance. The auto-generated SSH key will be automatically added to your project using the MD5 hash of the public key as the SSH key name.
Specifying Additional SSH Keys
In addition to the main SSH key specified by the –ssh-key option, which is used to connect to the servers, you can specify additional SSH keys using the additional_ssh_keys property in the configuration file. This is needed in cases where there is more than one user that should have access to the servers used for the runners.
- ✋ Note:
Additional SSH keys can only be defined using a configuration file. See Using a Configuration File for more details.
Note that the additional SSH keys are defined using only the public key. This enables additional users to hold the matching private key to connect to the servers.
For example,
- config.yaml:
config: additional_ssh_keys: - ssh-rsa AAAAB3Nza3... user@user-node - ssh-rsa AADDDFFFC1... another_user@another-node
Running as a Service
You can run github-runners as a service.
- ✋ Note:
In order to install the service, the user who installed the module must have sudo privileges.
Installing and Uninstalling
After installation, you can use service install and service uninstall commands to install and uninstall the service.
- ✋ Note:
The options that are passed to the github-runners <options> service install command will be the same options with which the service will be executed.
export GITHUB_TOKEN=ghp_...
export GITHUB_REPOSITORY=testflows/github-runners
export HETZNER_TOKEN=GJzdc...
github-runners service installThe /etc/systemd/system/github-runners.service file is created with the following content.
- ✋ Note:
The service will use the User and the Group of the user executing the program.
- /etc/systemd/system/github-runners.service:
[Unit] Description=Autoscaling GitHub Actions Runners After=multi-user.target [Service] User=1000 Group=1000 Type=simple Restart=always Environment=GITHUB_TOKEN=ghp_... Environment=GITHUB_REPOSITORY=testflows/github-runners Environment=HETZNER_TOKEN=GJ.. ExecStart=/home/user/.local/lib/python3.10/site-packages/testflows/github/runners/bin/github-runners --workers 10 --max-powered-off-time 20 --max-unused-runner-time 120 --max-runner-registration-time 60 --scale-up-interval 10 --scale-down-interval 10 [Install] WantedBy=multi-user.target
Modifying Program Options
If you want to modify service program options, you can stop the service, edit the /etc/systemd/system/github-runners.service file by hand, then reload the service daemon, and start the service back up.
github-runners service stop
sudo vim /etc/systemd/system/github-runners.service
sudo systemctl daemon-reload
github-runners service startsChecking Status
After installation, you can check the status of the service using the service status command.
github-runners service status:- service status:
● github-runners.service - Autoscaling GitHub Actions Runners Loaded: loaded (/etc/systemd/system/github-runners.service; enabled; vendor preset: enabled) Active: active (running) since Mon 2023-07-24 14:38:33 EDT; 1h 31min ago Main PID: 66188 (python3) Tasks: 3 (limit: 37566) Memory: 28.8M CPU: 8.274s CGroup: /system.slice/github-runners.service └─66188 python3 /usr/local/bin/github-runners --workers 10 --max-powered-off-time 20 --max-unused-runner-time 120 --max-> Jul 24 14:38:33 user-node systemd[1]: Started Autoscaling GitHub Actions Runners. Jul 24 14:38:33 user-node github-runners[66188]: 07/24/2023 02:38:33 PM INFO MainThread main 🍀 Logging in to Hetzner > Jul 24 14:38:33 user-node github-runners[66188]: 07/24/2023 02:38:33 PM INFO MainThread main 🍀 Logging in to GitHub Jul 24 14:38:33 user-node github-runners[66188]: 07/24/2023 02:38:33 PM INFO MainThread main 🍀 Getting repository vza> Jul 24 14:38:33 user-node github-runners[66188]: 07/24/2023 02:38:33 PM INFO MainThread main 🍀 Creating scale up serv> Jul 24 14:38:33 user-node github-runners[66188]: 07/24/2023 02:38:33 PM INFO MainThread main 🍀 Creating scale down se> lines 1-16/16 (END)
Manual Start and Stop
You can start and stop the service using the service start and service stop commands as follows:
github-runners service starts
github-runners service stopor using service system utility
sudo service github-runners start
sudo service github-runners stop- ✋ Note:
The service stop command will send the SIGINT signal to the github-runners process and will wait for the program to perform a clean shutdown, which includes stopping scale up and scale down loops. Given that the github-runners program might be in the middle of configuring servers, the service stop command might take sometime to complete.
Checking Log
You can get the log for the service using the service log command.
Following The Log
Use the -f, –follow option to follow the log journal. By default, the last 1000 lines will be shown and then the log will be followed, and the new messages will be displayed as they are added to the log.
github-runners service log -f- followed log:
github-runners service log -f Using config file: /home/user/.github-runners/config.yaml 18:11:49 api_watch INFO 🍀 Consumed 0 calls in 60 sec, 5000 calls left, reset in 3599 sec 18:12:49 api_watch INFO 🍀 Logging in to GitHub 18:12:49 api_watch INFO 🍀 Checking current API calls consumption rate 18:12:49 api_watch INFO 🍀 Consumed 0 calls in 60 sec, 5000 calls left, reset in 3599 sec 18:13:49 api_watch INFO 🍀 Logging in to GitHub 18:13:49 api_watch INFO 🍀 Checking current API calls consumption rate 18:13:50 api_watch INFO 🍀 Consumed 0 calls in 60 sec, 5000 calls left, reset in 3599 sec ...
You can dump the full log by omitting the -f, –follow option.
github-runners service log- full log:
Using config file: /home/user/.github-runners/config.yaml 09:44:28 http_cache INFO 🍀 Enabling HTTP cache at /tmp/tmp60wo30tc/http_cache 09:44:28 main INFO 🍀 Logging in to Hetzner Cloud 09:44:28 main INFO 🍀 Logging in to GitHub 09:44:28 main INFO 🍀 Getting repository testflows/testflows-github-runners 09:44:28 main INFO 🍀 Checking if default image exists 09:44:29 main INFO 🍀 Checking if default location exists 09:44:29 main INFO 🍀 Checking if default server type exists 09:44:29 main INFO 🍀 Getting server prices 09:44:30 main INFO 🍀 Checking if SSH key exists ...
Selecting Log Columns
You can use the -c name[:width][,…], –columns name[:width][,…] option to specify a comma separated list of columns to include in the output as well as their optional width.
For example,
github-runners service log -f -c time,message:50Using config file: /home/user/.github-runners/config.yaml
Using config file: /home/user/.github-runners/config.yaml
18:13:50 🍀 Consumed 0 calls in 60 sec, 5000 calls left,
reset in 3599 sec
18:14:50 🍀 Logging in to GitHub
18:14:50 🍀 Checking current API calls consumption rate
...
By default, the following columns are available unless you redefine the logger_format in your configuration file:
date
time
level
interval
funcName
threadName
run_id
job_id
server_name
message
Selecting the Number of Lines
You can select the number of lines you would like to output from the log using the -n [+]number, –lines [+]number option. With the –follow the default is 10.
You can use the + before the number to output a log starting with the specified line number.
For example,
github-runners service log -n 50
github-runners service log -n +100
github-runners service log -f -n 1Raw Log
By default, the log is processed and broken up into columns based on the logger_format configuration. You can output the raw log by specifying the –raw option.
Running as a Cloud Service
Instead of running github-runners program locally as a standalone application or as a service. You can easily deploy github-runners to run on a Hetzner Cloud instance.
See -h, –help for all the available commands.
- ✋ Note:
By default, the server name where the github-runners service will be running is github-runners. If you want to use a custom server name, then you must use the cloud –name option for any cloud commands.
github-runners cloud -hDeploying
You can deploy github-runners as a service to a new Hetzner Cloud server instance, that will be created for you automatically, using the cloud deploy command.
- ✋ Note:
The options that are passed to the github-runners <options> cloud deploy command will be the same options with which the service will be executed.
export GITHUB_TOKEN=ghp_...
export GITHUB_REPOSITORY=testflows/github-runners
export HETZNER_TOKEN=GJzdc...
github-runners deployYou can specify the version of the package to be installed using the –version option. By default, the current local package version will be installed on the cloud service server. You can also pass latest as the value to install the latest available version.
github-runners deploy --version latestThe deploy command will use the following default values:
- location:
ash
- type:
cpx11
- image:
ubuntu-22.04
The cloud deploy command uses the following setup script.
- setup script:
set -x apt-get update apt-get -y install python3-pip apt-get -y install openssh-client echo "Create and configure ubuntu user" adduser ubuntu --disabled-password --gecos "" echo "%wheel ALL=(ALL:ALL) NOPASSWD:ALL" >> /etc/sudoers addgroup wheel usermod -aG wheel ubuntu usermod -aG sudo ubuntu echo "Generate SSH Key" sudo -u ubuntu ssh-keygen -t rsa -q -f "/home/ubuntu/.ssh/id_rsa" -N ""
You can customize deployment server location, type, and image using the –location, –type, and –image options.
github-runners deploy --location nbg1 --type cx11 --image ubuntu-22.04The cloud instance that runs the github-runners service can either be x64 or ARM64 instance. By default, cpx11 AMD, 2 vCPU, 2GB RAM, shared-cpu x64 instance type is used.
Using an ARM64 Instance
If you want to deploy the github-runners service to an ARM64 instance, then you must specify the instance type using the –type option.
- ✋ Note:
Currently, Hetzner Cloud has ARM64 instances only available in Germany, Falkenstein (fsn1) location.
For example, to use an Ampere Altra, 4 vCPU, 8GB RAM shared-cpu ARM64 instance, you must specify cax21 as the value of the –type as follows:
github-runners deploy --location fsn1 --type cax21 --image ubuntu-22.04Using x64 Instance
By default, the cpx11 AMD, 2 vCPU, 2GB RAM, shared-cpu x64 instance type is used. If you want to use a different x64 instance, then specify the desired type using the –type option.
Redeploying Cloud Service
You can change the cloud service configuration or cloud service package version without deleting the existing cloud service server using the cloud redeploy command.
github-runners <options> cloud redeploy- ✋ Note:
The options that are passed to the github-runners <options> cloud redeploy command will be the same options with which the service will be executed.
You can specify the version of the package to be installed using the –version option.
Cloud Service Log
You can check the log for the github-runners service running on a cloud instance using the github-runners cloud log command. Specify -f, –follow if you want to follow the log journal.
For example,
- dump the full log:
github-runners cloud log- follow the log journal:
github-runners cloud log -f
You can also specify the –raw option to output the raw log as well as use the -c name[:width][,…], –columns name[:width][,…] option to specify a comma separated list of columns to include in the output and their optional width.
Cloud Service Status
You can check the status of the github-runners service running on a cloud instance using the github-runners cloud status command.
For example,
github-runners cloud statusStopping Cloud Service
You can manually stop the github-runners service running on a cloud instance using the github-runners cloud stop command.
github-runners cloud stopStarting Cloud Service
You can manually start the github-runners service running on a cloud instance after it was manually stopped using the github-runners cloud start command.
github-runners cloud startInstalling Cloud Service
You can manually force installation of the github-runners service running on a cloud instance using the github-runners cloud install command.
- ✋ Note:
Just like with the github-runners <options> service install command, the options that are passed to the github-runners <options> cloud install command will be the same options with which the service will be executed.
You can specify -f, –force option to force service reinstallation if it is already installed.
github-runners <options> cloud install -fUninstalling the Cloud Service
You can manually force the uninstallation of the github-runners service running on a cloud instance using the github-runners cloud uninstall command.
github-runners cloud uninstallUpgrading the Cloud Service Package
You can manually upgrade the github-runners service package running on a cloud instance using the github-runners cloud upgrade command.
If a specific ‘–version’ is specified, then the testflows.github.runners package is upgraded to the specified version, otherwise the version is upgraded to the latest available.
- ✋ Note:
The service is not reinstalled during the package upgrade process. Instead, it is stopped before the upgrade and then started back up after the package upgrade is complete.
github-runners cloud upgrade --version <version>The service is not reinstalled during the package upgrade process. Instead, it is stopped before the upgrade and then started back up
Changing Cloud Service Options
If you need to change cloud service options such as the –setup-script or the –max-runners etc., you can keep the existing server and use cloud redeploy command.
github-runners <options> cloud redeploy --version latestWhen needed, you can also SSH into the cloud service manually and perform changes manually.
You can do a complete service teardown using the cloud delete and then the cloud deploy commands.
github-runners cloud delete
github-runners <options> cloud deploy --version latest- ✋ Note:
A complete teardown will not affect any current jobs, as the service is designed to be restartable. However, some servers might be left in an unfinished state but they will be cleaned up when the service is restarted.
Deleting the Cloud Service
You can delete the github-runners cloud service and the cloud instance that is running on it using the github-runners cloud delete command.
The cloud delete command, deletes the cloud service by first stopping the service and then deleting the server instance.
- ❗Warning:
The default server name where the cloud service is deployed is github-runners. Please make sure to specify the cloud –name option if you have deployed the service to a server with a different name.
For example,
- default name:
github-runners cloud delete- custom name:
github-runners cloud --name <custom_name> delete
SSH in to Cloud Service
You can open an SSH client to the cloud service using the cloud ssh command. For example,
github-runners cloud sshYou can also manually SSH into the cloud service using the ssh utility. For convenience, you can retrieve the SSH client command using the cloud ssh command command. For example,
github-runners cloud ssh commandThe output will contain the full ssh command including the IP address of the cloud service server.
ssh -q -o "StrictHostKeyChecking no" root@5.161.87.21
Scaling Up Runners
The program scales up runners by looking for any jobs that have queued status. For each such job, a corresponding Hetzner Cloud server instance is created with the following name:
github-runner-{job.run_id}-{job.id}
The server is configured using the default setup and startup scripts. The runner’s name is set to be the same as the server name so that servers can be deleted for any unused runner that, for some reason does not pick up a job for which it was created within the max-unused-runner-time period.
- Note:
Given that the server name is fixed and specific for each job.id, if multiple github-runners are running in parallel, then only 1 server will be created for a given job and any other attempts to create a server with the same name will be rejected by the Hetzner Cloud.
Also,
- Note:
There is no guarantee that a given runner will pick the job with the exact job.id that caused it to be created. This is expected, and for each queued job a unique runner will be created the number of runners will be equal the number of jobs, and therefore, under normal conditions, all jobs will be executed as expected.
Maximum Number of Runners
By default, the maximum number of runners and, therefore the maximum number of server instances are not set and are therefore unlimited. You can set the maximum number of runners using the –max-runners option.
New Server
The new server is accessed using SSH. It boots up with the specified OS image and is configured using the setup and startup scripts.
- Server Type:
The default server type is cx11 which is an Intel, 1 vCPU, 2GB RAM shared-cpu x64 instance.
You can specify different x64 server instance type by using the type-{name} runner label. The {name} must be a valid Hetzner Cloud server type name such as cx11, cpx21 etc.
For example, to use an AMD, 3 vCPU, 4GB RAM shared-cpu x64 instance, you can define the runs-on as follows:
job-name: runs-on: [self-hosted, type-cpx21]- Server Location:
The server location can be specified by using the –default-location option or the in-<name> runner label. By default, location is not set, as some server types are not available in some locations.
- Image:
The server is configured to have the image specified by the –default-image option or the image-{architecture}-{type}-{name} runner label.
- SSH Access:
The server is configured to be accessed using ssh utility, and the SSH public key path is specified using the –ssh-key option.
- Image Configuration:
Each new server instance is configured using the setup and the startup scripts.
The Setup Script
The setup script creates and configures runner user that has sudo privileges.
- Setup:
set -x echo "Create and configure ubuntu user" adduser ubuntu --disabled-password --gecos "" echo "%wheel ALL=(ALL:ALL) NOPASSWD:ALL" >> /etc/sudoers addgroup wheel usermod -aG wheel ubuntu usermod -aG sudo ubuntu
The Start-up Script
The startup script installs the GitHub Actions runner. After installation, it configures the runner to start in an –ephemeral mode. The –ephemeral mode causes the runner to exit as soon as it completes a job. After the runner exits, the server is powered off.
- ✋ Note:
The startup script is executed as ubuntu user and therefore you must use sudo for any commands that need root privileges.
The x64 startup script installs and configures x64 version of the runner.
- x64:
set -x echo "Install runner" cd /home/ubuntu curl -o actions-runner-linux-x64-2.306.0.tar.gz -L https://github.com/actions/runner/releases/download/v2.306.0/actions-runner-linux-x64-2.306.0.tar.gz echo "b0a090336f0d0a439dac7505475a1fb822f61bbb36420c7b3b3fe6b1bdc4dbaa actions-runner-linux-x64-2.306.0.tar.gz" | shasum -a 256 -c tar xzf ./actions-runner-linux-x64-2.306.0.tar.gz echo "Configure runner" ./config.sh --unattended --replace --url https://github.com/${GITHUB_REPOSITORY} --token ${GITHUB_RUNNER_TOKEN} --name "$(hostname)" --runnergroup "${GITHUB_RUNNER_GROUP}" --labels "${GITHUB_RUNNER_LABELS}" --work _work --ephemeral echo "Start runner" bash -c "screen -d -m bash -c './run.sh; sudo poweroff'"
The ARM64 startup script is similar to the x64 script but installs an ARM64 version of the runner.
- ARM64:
set -x echo "Install runner" cd /home/ubuntu curl -o actions-runner-linux-arm64-2.306.0.tar.gz -L https://github.com/actions/runner/releases/download/v2.306.0/actions-runner-linux-arm64-2.306.0.tar.gz# Optional: Validate the hash echo "842a9046af8439aa9bcabfe096aacd998fc3af82b9afe2434ddd77b96f872a83 actions-runner-linux-arm64-2.306.0.tar.gz" | shasum -a 256 -c# Extract the installer tar xzf ./actions-runner-linux-arm64-2.306.0.tar.gz echo "Configure runner" ./config.sh --unattended --replace --url https://github.com/${GITHUB_REPOSITORY} --token ${GITHUB_RUNNER_TOKEN} --name "$(hostname)" --runnergroup "${GITHUB_RUNNER_GROUP}" --labels "${GITHUB_RUNNER_LABELS}" --work _work --ephemeral echo "Start runner" bash -c "screen -d -m bash -c './run.sh; sudo poweroff'"
Scaling Down Runners
Powered Off Servers
The program scales down runners by first cleaning up powered off servers. The scaled down service relies on the fact that the startup script starts an ephemeral runner that will pick up only 1 job and then power itself off after the job is complete.
The powered off servers are deleted after the max-powered-off-time interval which can be specified using the –max-powered-off-time option, which by default is set to 20 sec.
Unused Runners
The scale down service also monitors all the runners that have unused status and tries to delete any servers associated with such runners if the runner is unused for more than the max-unused-runner-time period. This is needed in case a runner never gets a job assigned to it, and the server will stay in the power on state. This cycle relies on the fact that the runner’s name is the same as server’s name. The max-unused-runner-time can be specified using the –max-unused-runner-time option, which by default is set to 180 sec.
Zombie Servers
The scale down service will delete any zombie servers. A zombie server is defined as any server that fails to register its runner within the max-runner-registration-time. The max-runner-registration-time can be specified using the –max-runner-registration-time option which by default is set to 180 sec.
Handling Failing Conditions
The program is designed to handle the following failing conditions:
- Server Never Registers a Runner:
The server will remain in running state and should be reclaimed by the scale down service when it checks the actual runners registered for current servers. If it finds a server that is running but no runner is active for it it will be deleted after the max-runner-registration-time period.
- The ./config.sh Command Fails:
The behavior will be the same as for the Server Never Registers a Runner case above.
- The ./run.sh Command Fails:
The server will be powered off by the startup script and deleted by the scale down service.
- Creating Server For Queued Job Fails:
If creation of the server fails for some reason, then the scale up service will retry the operation in the next interval as the job’s status will remain queued.
- Runner Never Gets a Job Assigned:
If the runner never gets a job assigned, then the scale down service will remove the runner and delete its server after the max-unused-runner-time period.
- Runner Created With a Mismatched Labels:
The behavior will be the same as for the Runner Never Gets a Job Assigned case above.
Program Options
The following options are supported:
-h, –help show this help message and exit
-v, –version show program’s version number and exit
–license show program’s license and exit
-r {on,off}, –recycle {on,off} turn on or off recycling of powered off servers, either ‘on’ or ‘off’, default: on
–end-of-life minutes number of minutes in 1 hour (60 minutes) period after which a recyclable server is considered to have reached its end of life and thus is deleted, default: 50
-c path, –config path program configuration file
–github-token GITHUB_TOKEN GitHub token, default: $GITHUB_TOKEN environment variable
–github-repository GITHUB_REPOSITORY GitHub repository, default: $GITHUB_REPOSITORY environment variable
–hetzner-token HETZNER_TOKEN Hetzner Cloud token, default: $HETZNER_TOKEN environment variable
–ssh-key path public SSH key file, default: ~/.ssh/id_rsa.pub
–default-type name default runner server type name, default: cx11
–default-location name default runner server location name, default: not specified
–default-image architecture:type:name_or_description default runner server image type and name or description, where the architecture is either: ‘x86’ or ‘arm’, and type is either: ‘system’,’snapshot’,’backup’,’app’, default: system:ubuntu-22.04
-m count, –max-runners count maximum number of active runners, default: 10
–delete-random delete random recyclable server when the maximum number of servers is reached, by default, server prices are used
–max-runners-in-workflow-run count maximum number of runners allowed to be created for a single workflow run, default: not set
–with-label label only create runners for jobs that have the specified label, by default, jobs are not skipped, and runners will be created for any queued job
–label-prefix prefix support type, image, and location job labels with the specified prefix
-w count, –workers count number of concurrent workers, default: 10
–setup-script path path to the custom server setup script
–startup-x64-script path path to the custom server startup script
–startup-arm64-script path path to the custom ARM64 server startup script
–max-powered-off-time sec maximum time after which a powered off server is deleted, default: 60 sec
–max-unused-runner-time sec maximum time after which an unused runner is removed and its server deleted, default: 180 sec
–max-runner-registration-time maximum time after which the server will be deleted if its runner is not registered with GitHub, default: 180 sec
–max-server-ready-time sec maximum time to wait for the server to be in the running state, default: 180 sec
–scale-up-interval sec scale up service interval, default: 15 sec
–scale-down-interval sec scale down service interval, default: 15 sec
–debug enable debugging mode, default: False
commands:
command
delete delete all servers
list list all servers
ssh ssh to a server
cloud cloud service commands
-n server, –name server deployment server name, default: github-runners
deploy deploy cloud service
-f, –force force deployment if it already exists
–version number|latest service package version to deploy, either a version number or ‘latest’, default: current package version
-l name, –location name deployment server location, default: ash
-t name, –type name deployment server type, default: cpx11
-i architecture:type:name_or_description, –image architecture:type:name_or_description deployment server image type and name or description, where the architecture is either: ‘x86’ or ‘arm’, and the type is either: ‘system’,’snapshot’,’backup’,’app’, default: system:ubuntu-22.04
–setup-script path path to custom deployment server setup script
redeploy redeploy on the same cloud service server
–version number|latest service package version to deploy, either a version number or ‘latest’, default: current package version
log get cloud service log
-c name[:width][,…], –columns name[:width][,…] comma separated list of columns to include and their optional width
–raw output raw log
-f, –follow follow log journal, default: False
-n [+]number, –lines [+]number output the last number of lines, with –follow the default is 10, use ‘+’ before the number to output the log, starting with the line number
command
delete delete log
status get cloud service status
start start cloud service
stop stop cloud service
install install cloud service
-f, –force force installation if service already exists
uninstall uninstall cloud service
upgrade upgrade cloud service
–version version package version, default: the latest
ssh ssh to cloud service
command print ssh command to cloud service
service service commands
install install service
-f, –force force installation if service already exists
uninstall uninstall service
status get service status
log get service log
-c name[:width][,…], –columns name[:width][,…] comma separated list of columns to include and their optional width
-f, –follow follow log journal, default: False
-n [+]number, –lines [+]number output the last number of lines, with –follow the default is 10, use ‘+’ before the number to output the log, starting with the line number
–raw output raw log
command
format format log
delete delete log
start start service
stop stop service
Release history Release notifications | RSS feed
Download files
Download the file for your platform. If you're not sure which to choose, learn more about installing packages.
Source Distribution
Hashes for testflows.github.runners-1.5.230811.1191910.tar.gz
| Algorithm | Hash digest | |
|---|---|---|
| SHA256 | 93f1ae162172121b7243f1721348ae5818af6268a845b595d1538faf460b3d84 |
|
| MD5 | e8fdf4ffb1bfe60cabfcf03ca4669fe0 |
|
| BLAKE2b-256 | b2ed8da244497fb4b0eccd790a9ae25b543ca501b250e963ac05932c0ed2c555 |
