texonomy 0.2.0

No project description provided

texonomy

texonomy* is a Python tool that facilitates the generation of entity-relationship diagrams in $\LaTeX$ using TikZ.

*An entity-relationship diagram is more of an ontology than a taxonomy, but when the shoe fits...

Overview

Writing $\LaTeX$ code can be tedious; texonomy makes it easier. This tool generates entity-relationship diagrams in $\LaTeX$ using a beginner-friendly Python interface, so you can spend less time wrestling with missing semicolons.

Prerequisites

To install texonomy, you'll need python3.8 or higher and pip.

In order to output as a PDF, you'll need to install some software that includes pdflatex, like TeX Live (recommended):

sudo apt install texlive
sudo apt-get install texlive-pictures # for TikZ
sudo apt-get install texlive-plain-generic # for ulem

Getting started

Install texonomy with the following command:

pip install texonomy

Example usage

Let's create a very simple program with texonomy. First, we'll create an Entity object to represent a fruit:

fruit = Entity("Fruit", ["SKU", "name", "price", "origin"])

The first argument is the entity's name, "Fruit". The second argument is a list of the entity's attributes.

Let's create a diagram that contains our fruit entity...

diag = ERDiagram(fruit)

...and output the generated $\LaTeX$ to a file!

with open("fruit.tex", "w") as er:
    er.write(diag.to_latex())

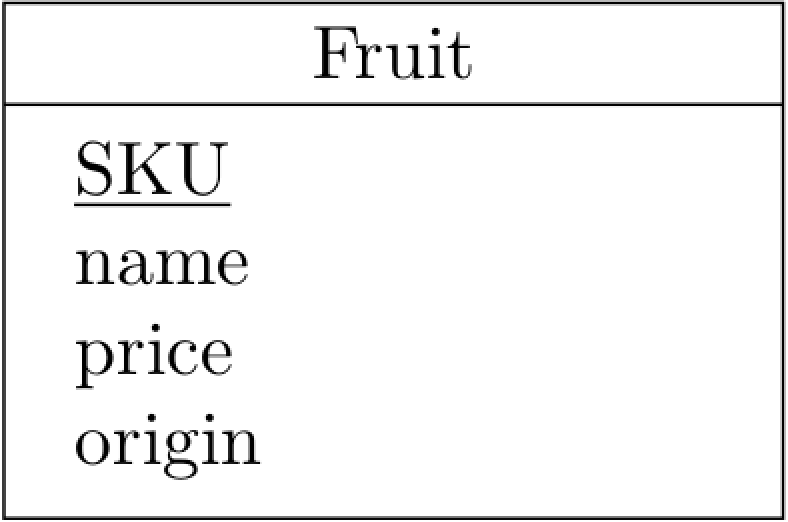

Then, you can run pdflatex (or something similar) on the command line to generate a PDF from this $\LaTeX$:

pdflatex fruit.tex

It's that simple! Take a look at the programs in texonomy/tests/integration_tests for more examples of API usage.
