TFchirp: Time Frequency Decomposition Toolbox for Chirp Signals
Project description
Time Frequency Transform for Chirp Signals
Step 1: Quadratic chirp signal
Generate a quadratic chirp signal from 10 Hz to 120 Hz in 1 second with 10,000 sampling points.
import numpy as np
import scipy
import matplotlib.pyplot as plt
# Generate a quadratic chirp signal
dt = 0.0001
rate = int(1/dt)
ts = np.linspace(0, 1, int(1/dt))
data = scipy.signal.chirp(ts, 10, 1, 120, method='quadratic')

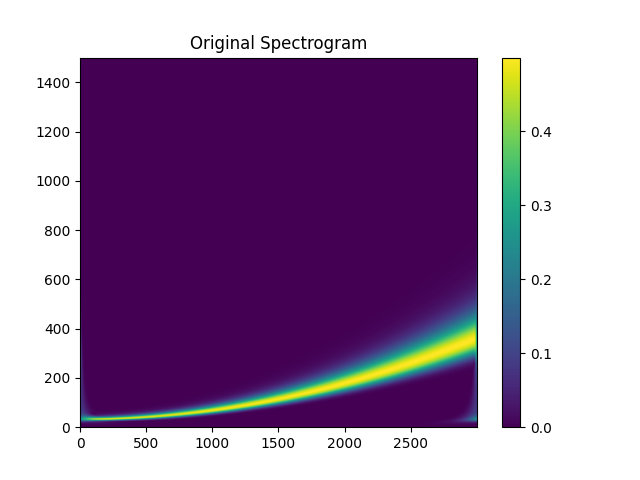

Step 2: S Transform Spectrogram
from s import *
# Compute S Transform Spectrogram
spectrogram = sTransform(data, sample_rate=rate)
plt.imshow(abs(spectrogram), origin='lower', aspect='auto')
plt.title('Original Spectrogram')
plt.show()
Step 3: Quick recovery of full ts from S transform * 0 frequency row*
(This recovered ts is computed based on the fact that the 0 frequency row always contain the full FFT result of the ts in this program by design.)
# Quick Recovery of ts from S Transform 0 frequency row
recovered_ts = recoverS(spectrogram)
plt.plot(recovered_ts-data)
plt.title('Time Series Reconstruction Error')
plt.show()
Step 4: Recovered spectrogram:
# Compute S Transform Spectrogram on the recovered time series
recoveredSpectrogram = sTransform(recovered_ts, sample_rate=rate, frange=[0,500])
plt.imshow(abs(recoveredSpectrogram), origin='lower', aspect='auto')
plt.title('Recovered Specctrogram')
plt.show()

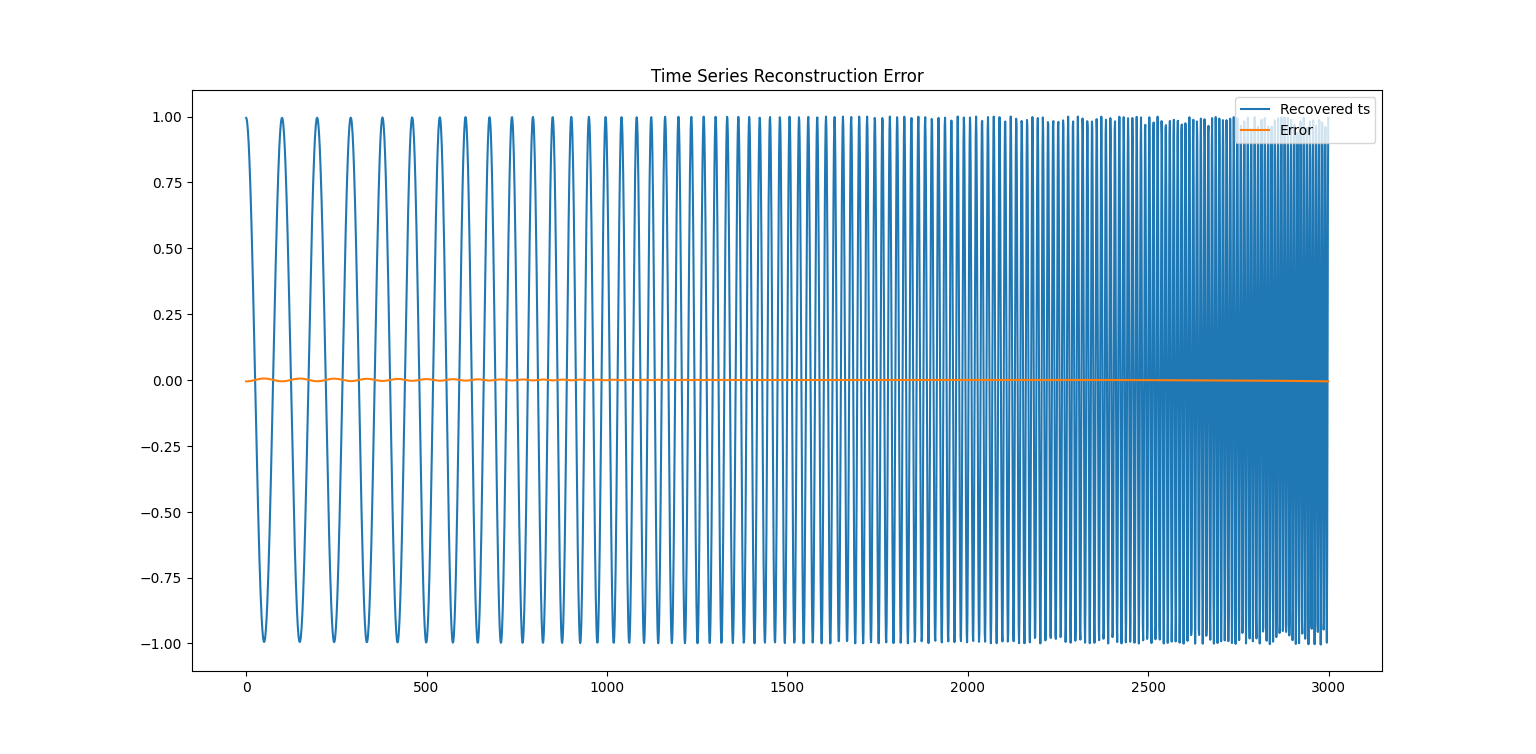

Step 5: The real inverse S transform
# Quick Inverse of ts from S Transform
inverse_ts, inverse_tsFFT = inverseS(spectrogram)
plt.plot(inverse_ts)
plt.plot(inverse_ts-data)
plt.title('Time Series Reconstruction Error')
plt.legend(['Recovered ts', 'Error'])
plt.show()
Step 6: Recovered spectrogram on the real inverse S transform ts
# Compute S Transform Spectrogram on the recovered time series
inverseSpectrogram = sTransform(inverse_ts, sample_rate=rate, frange=[0,500])
plt.imshow(abs(inverseSpectrogram), origin='lower', aspect='auto')
plt.title('Recovered Specctrogram')
plt.show()
