thresholdclustering 1.1

Community detection for directed, weighted networkX graphs with spectral thresholding.

threshold-clustering

Threshold Spectral Community Detection for NetworkX

NetworkX Community detection based on the algorithm proposed in Guzzi et. al. 2013 (*).

Developed for semantic similarity networks, this algorithm specifically targets weighted and directed graphs. This implementation adds a couple of options to the algorithm proposed in the paper, such as passing an arbitrary community detection function (e.g. python-louvain).

Similarity networks are typically dense, weighted and difficult to cluster. Experience shows that algorithms such as python-louvain have difficulty finding outliers and smaller partitions.

Given a networkX.DiGraph object, threshold-clustering will try to remove insignificant ties according to a local threshold. This threshold is refined until the network breaks into distinct components in a sparse, undirected network.

As a next step, either these components are taken communities directly, or, alternatively, another community detection (e.g. python-louvain) can be applied.

Example

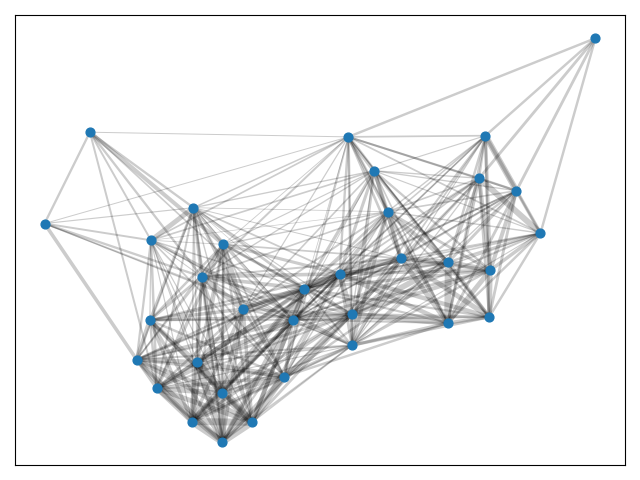

Consider the cosine similarities in the Karate Club Network. Although these similarities are not directed, they are rather dense.

import networkx as nx
import numpy as np
import matplotlib.cm as cm
import matplotlib.pyplot as plt
from sklearn.metrics.pairwise import cosine_similarity

# load graph
G = nx.karate_club_graph()

# Generate a similarity style weighted graph
Adj=nx.to_numpy_matrix(G)
cos_Adj=cosine_similarity(Adj.T)
G=nx.from_numpy_matrix(cos_Adj)

pos = nx.spring_layout(G)
weights = np.array([G[u][v]['weight'] for u,v in G.edges()])*5
nx.draw_networkx_nodes(G, pos, node_size=40)
nx.draw_networkx_edges(G, pos, alpha=0.2, width=weights)
plt.show()

Let's use python-louvain to find the best partition.

partition=community_louvain.best_partition(G.to_undirected())

cmap = cm.get_cmap('viridis', max(partition.values()) + 1)
nx.draw_networkx_nodes(G, pos, partition.keys(), node_size=40,
                       cmap=cmap, node_color=list(partition.values()))
nx.draw_networkx_edges(G, pos, alpha=0.2,width=weights)
plt.show()

We get three rather large partition and no sense of outliers.

Instead, we can use threshold-clustering's best_partition function to run python_louvain's community detection on a transformed network.

from thresholdclustering import best_partition

cluster_function = community_louvain.best_partition
partition, alpha = best_partition(G, cluster_function=cluster_function)



cmap = cm.get_cmap('viridis', max(partition.values()) + 1)
nx.draw_networkx_nodes(G, pos, partition.keys(), node_size=40,
                       cmap=cmap, node_color=list(partition.values()))
nx.draw_networkx_edges(G, pos, alpha=0.2,width=weights)
plt.show()

We can see that more communities of similarity can be identified. Note in particular outliers drawn in yellow.

Installation

(*) Guzzi, Pietro Hiram, Pierangelo Veltri, and Mario Cannataro. "Thresholding of semantic similarity networks using a spectral graph-based technique." International Workshop on New Frontiers in Mining Complex Patterns. Springer, Cham, 2013.

History

1.0

First release. Since this is a small, yet nifty add-on to python-louvain, it is a quick write. Please let me know if anything more should be added!
