TIMECOP

TIMECOP is a RESTful webservice engine that evaluates univariate and multivariate timeseries. It considerates that the time series has 3 stages: the current state of the time series as the last five points, the past state as all the previous points before the current state and the future state as the forecast of the next steps(custom number).

The aim of TIMECOP is to get insight on the behavior of the time series. To achieve this, the engine compares several time series forecasting algorithms and select the best one according to the MAE (mean absolute error) metric. The different algorithms that compounds the engine are: VAR, Holt-Winters, ARIMA, and Recurrent Neural Networks using LSTM cells.

In the end we will obtain:

1. The best of evaluated algos regarding the MAE metric.

2. Past anomalies. The past state points of the time series that have been considerated as anomalous.

3. Current anomalies. The engine returns a flag that tells you whether there are anomalies in the last 5 points or not and the current anomalous points if there were.

4. Future time series forecast of the next points.

Getting Started with the python API

This package gives you the ability to use Timecop from any python code, using the RESTful Web Server API for you.

UNIVARIATE

TS=[1,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9]

URL = 'URL_timecop_server'
output_json = timecop_univariate(URL,name='test_timeseries', TS,  train=True, restart=True)

MULTIVARIATE

TS_main=[1,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9]

TS_timeseries= []
temp = {}
temp['data'] = [1,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9]
TS_timeseries.append(temp)
temp2 = {}
temp2['data'] = [1,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9]
TS_timeseries.append(temp2)

URL = 'URL_timecop_server'
output_json = timecop_multivariate(URL,name='test_timeseries', TS_main,TS_timeseries,  train=True, restart=True)

Getting Started

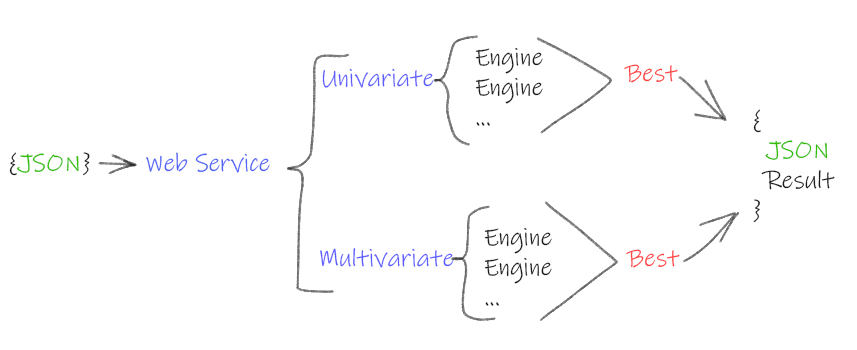

To use TIMECOP engine you will need to send a univariate or multivariate time series data points in a json format to the webservice. The only HTTP method created is POST. The service will then return you a json with the result of the analysis. The basic process is shown in the next figure:

Installation

To use timecop the easiest way is to deploy the docker image made with the last version. The steps to use the docker images are:

1. Install docker

2. Download timecop docker image:

   **docker pull trakuo/timecop:devel**


3. Execute a container with the timecop image:

   **docker run --name timecoprunning -p 3000:80 trakuo/timecop:devel**


4. Open web test page to test timecop is running

    **http://localhost:3000/static/index.html**


pip module

You can use this python module to invoke in any python program timecop forecasting features.

import timecop-timseseries as tc
test_ts=[1,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9,2,3,4,5,6,7,8,9]
URL = 'http://localhost:3000/'
result = tc.timecop_univariate(URL,'ts_name', True, test_ts)
print(result)

Web test page

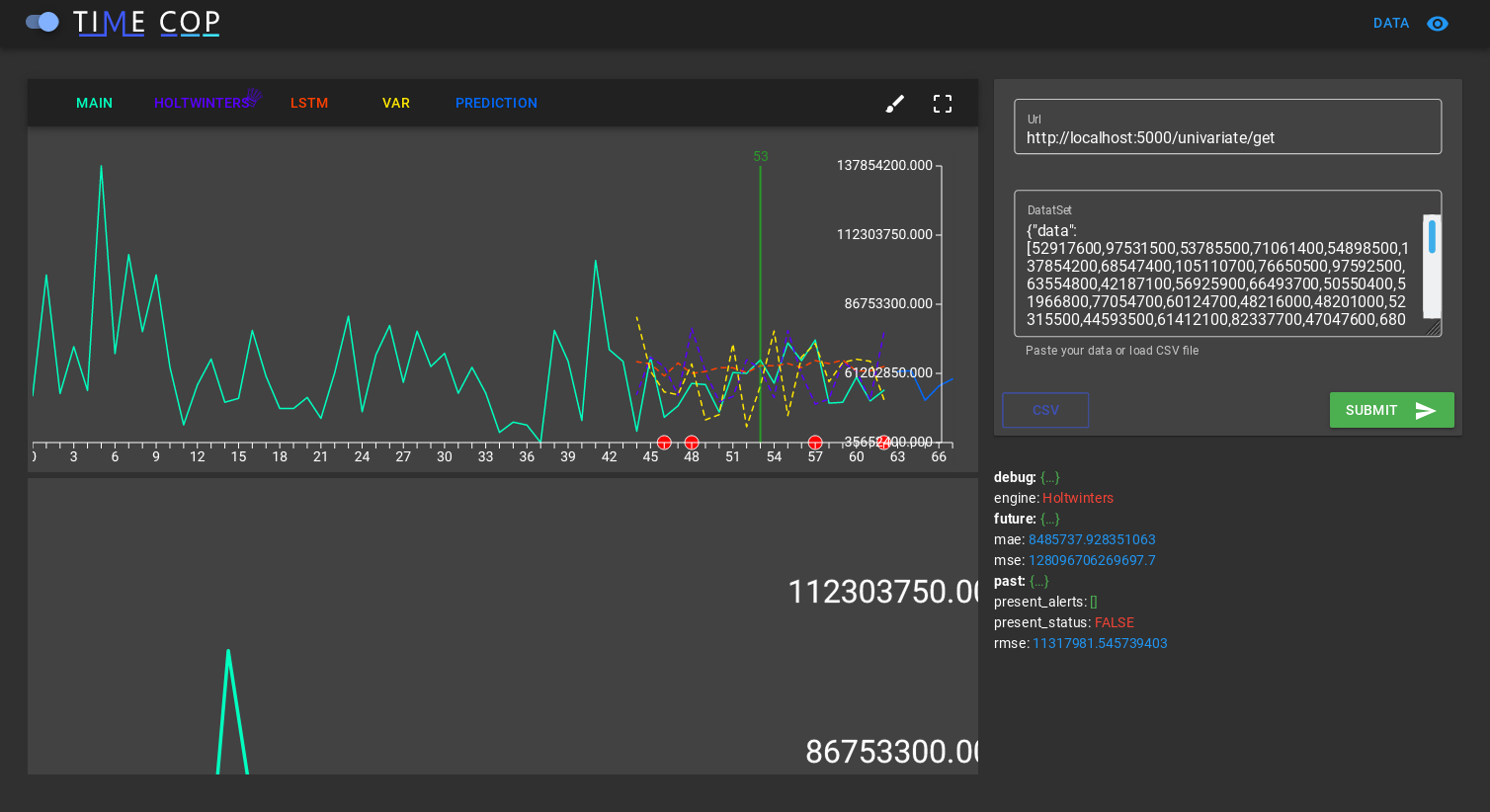

to use timecop there is another option, a web page that you can use locally and test timecop from CSV files before integrating it into any application

INVOKE

The way to invoke the webservice is to POST the data points in a json format providing the webservice URL.

In the case of univariate time series we will need to send a json with a key value pair in the following format:

Key name: "data".
Values of data: array representing the time series points.
Key name: "name".
Values of data: String with the name of the time series.
Key name: "train".
Values of data: Boolean. If True, timecop will find the best algo for this timeseries. If False, will use the last best model for this timeseries.
Key name: "desv_metric".
Values of data: Numeric. To detect anomalies, is the multiplier to MAE. Bigger less alerts.
Key name: "restart".
Values of data: Boolean. If True, delete all historical timeseries data. Only using the sending data.

In the case of multivariate time series we want to analyze and predict one time series with respect to the rest of time series. For example if we have 3 time series, we will need to specify the time series that we want to predict whit respect to the 2 others. The json has to meet the following format:

Key name: "timeseries".
Values of data: several key value pairs representing the time series that will help us to predict the target time series:
         Key name: "data".
         Values of data: array representing the time series points.
         ....

Key name: "main".
Values of data: array representing the target time series points that we want to analyze and predict.
Key name: "name".
Values of data: String with the name of the time series.
Key name: "train".
Values of data: Boolean. If True, timecop will find the best algo for this timeseries. If False, will use the last best model for this timeseries.

Here it is shown two examples invoking the webservice with a univariate time series and a multivariate one:

UNIVARIATE

curl -i -H "Content-Type: application/json" -X POST -d '
    {
        "data":[ 22125, 25817, 28779, 20960, 22254, 27392, 29945,16933, 17892,20533, 23569, 22417, 22084, 26580, 27454, 24081, 23451, 28991, 31386, 16896, 20045, 23471, 21747, 25621, 23859, 25500, 30998, 24475, 23145, 29701, 34365, 17556, 22077, 5702,22214,26886, 23191, 27831, 35406, 23195, 25110, 30009, 36242, 18450, 21845, 26488, 22394, 28057, 25451, 24872, 33424, 24052, 28449, 33533, 37351, 19969, 21701, 26249, 24493, 24603,26485, 30723, 34569, 26689, 26157, 32064, 38870, 21337, 19419, 23166, 28286, 24570, 24001, 33151, 24878, 26804, 28967, 33311, 40226, 20504, 23060, 23562, 27562, 23940, 24584,34303, 25517, 23494, 29095, 32903, 34379, 16991, 21109, 23740, 25552, 21752, 20294, 29009, 25500, 24166, 26960, 31222, 38641, 14672, 17543, 25453, 32683, 22449, 22316]

     }

' http://127.0.0.1:5000/univariate

MULTIVARIATE

curl -i -H "Content-Type: application/json" -X POST -d '
    {
        "timeseries":[
            {
                "data": [0.9500000476837158, 1.0, 1.0, 0.06666667014360428, 0.42222222685813904, 0.0833333358168602, 0.09444444626569748, 0.23333333432674408, 0.0833333358168602, 0.9833333492279053, 0.04444444552063942, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 0.08888889104127884, 1.0, 0.9277778267860413, 0.5166666507720947, 0.9666666984558105, 0.6666666865348816, 0.3333333432674408, 0.9055556058883667, 0.8277778029441833, 0.5777778029441833, 1.0, 1.0, 0.08888889104127884, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 0.05000000074505806, 0.5166666507720947, 1.0, 0.03888889029622078, 0.03888889029622078, 0.4166666865348816, 0.03888889029622078, 0.03888889029622078, 0.06666667014360428, 0.5777778029441833, 0.3055555522441864, 1.0] },
             {
                "data": [0.5, 1.0, 1.0, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 0.5, 1.0, 0.5, 0.5, 0.375, 0.5, 0.5, 0.5, 0.5, 0.5, 1.0, 1.0, 0.5, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 0.5, 0.5, 1.0, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 1.0]
             }],

        "main": [0.8571429252624512, 1.0, 1.0, 0.5714285969734192, 0.1428571492433548, 0.1428571492433548, 0.1428571492433548, 0.1428571492433548, 0.1428571492433548, 0.4285714626312256, 0.5714285969734192, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 0.8571429252624512, 1.0, 0.0, 0.1428571492433548, 0.2857142984867096, 0.1428571492433548, 0.1428571492433548, 0.1428571492433548, 0.1428571492433548, 0.1428571492433548, 1.0, 1.0, 0.8571429252624512, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 0.8571429252624512, 0.4285714626312256, 1.0, 0.0, 0.0, 0.1428571492433548, 0.0, 0.0, 0.0, 0.1428571492433548, 0.1428571492433548, 1.0]

   }
' http://127.0.0.1:5000/multivariate

RESPONSE

The response of the webservice will provide the info of the behaviour of the time series in a json format as explained previously.

An example response will be:

{
    "engine": "Holtwinters",

    "future": {
                  "126": 15136.0, "127": 16733.0, "128": 20016.0, "129": 17708.0, "130": 18019.0, "131": 19227.0, "132": 22893.0, "133":          23739.0, "134": 21133.0, "135": 22591.0 },

    "mae": 5994.289473684211,

    "mse": 50689736.39473684,

    "rmse": 7119.672492097992,

    "past": [ {
                  "anomaly_score": 0.0,
                  "expected value": 20016.0,
                  "mae": 5994.289473684211,
                  "mse": 50689736.39473684,
                  "real_value": 33151.0,
                  "rmse": 7119.672492097992,
                  "step": 90.0 },
               {
                  "anomaly_score": 1.0,
                  "expected value": 23739.0,
                  "mae": 5994.289473684211,
                  "mse": 50689736.39473684,
                  "real_value": 40226.0,
                  "rmse": 7119.672492097992,
                  "step": 95.0 },
               {
                  "anomaly_score": 0.3460620525059665,
                  "expected value": 20008.0,
                  "mae": 5994.289473684211,
                  "mse": 50689736.39473684,
                  "real_value": 34303.0,
                  "rmse": 7119.672492097992, "step": 102.0
               } ],

     "present_alerts": [],

     "present_status": "FALSE"
}

Response explained

Here it is explained each element of the response:

WINNER ENGINE : The best engine regarding the MSE metric

"engine": "Holtwinters",

FORECAST : The forecast of the time series next 5 points

"future": {
"126": 15136.0, "127": 16733.0, "128": 20016.0, "129": 17708.0, "130": 18019.0, "131": 19227.0, "132": 22893.0, "133": 23739.0, "134": 21133.0, "135": 22591.0 },

METRICS : Basic metrics of the winner engine

"mae": 5994.289473684211, "mse": 50689736.39473684, "rmse": 7119.672492097992,

ANOMALIES IN THE PAST : Previous anomalies and its metrics

"past": [ { "anomaly_score": 0.0, "expected value": 20016.0, "mae": 5994.289473684211, "mse": 50689736.39473684, "real_value": 33151.0, "rmse": 7119.672492097992, "step": 90.0 }, { "anomaly_score": 1.0, "expected value": 23739.0, "mae": 5994.289473684211, "mse": 50689736.39473684, "real_value": 40226.0, "rmse": 7119.672492097992, "step": 95.0 }, { "anomaly_score": 0.3460620525059665, "expected value": 20008.0, "mae": 5994.289473684211, "mse": 50689736.39473684, "real_value": 34303.0, "rmse": 7119.672492097992, "step": 102.0 } ],

PRESENT STATUS : Currently alert points and alert flag

"present_alerts": [], "present_status": "FALSE" }
