tkchart 1.0.5

Create Line Charts in tkinter Guis...!

---

tkchart - 1.0.5

---

you need to import package first

import tkchart

Mainly there are 2 objects.

• LineChart
• Line

To display data using LineChart you need to do 3 main tasks

1. Create LineChart
2. Create Line
3. Display data

1 . Create LineChart

Create a LineChart

linechart = tkchart.LineChart()

• Attributes & Types

  master : tkinter.widget (Frame, Canvas, Tk)
  width : int
  height : int
  bar_size : int


  y_sections_count : int
  x_sections_count : int
  y_labels_count : int
  x_labels_count : int


  y_data : str ,int, float
  x_data : str ,int, float
  y_data_max : int ,float
  x_data_min_max : touple(min ,max)
  y_values_decimals : int
  x_values_decimals : int


  sections_color : str
  y_values_color : str
  x_values_color : str
  y_data_text_color : str
  x_data_text_color : str
  bg_color : str
  chart_color : str
  bar_color : str


  x_y_data_font : tuple
  x_y_values_font : tuple
  line_width_auto : bool
  line_width : int


• Methods

  1. configure: use to change LineChart attributes

  support **kwargs

  width
  height
  bar_size
  y_sections_count
  x_sections_count
  y_labels_count
  x_labels_count
  y_data
  x_data
  y_data_max
  x_data_min_max
  y_values_decimals
  x_values_decimals
  sections_color
  y_values_color
  x_values_color
  y_data_text_color
  x_data_text_color
  bg_color
  chart_color
  bar_color
  x_y_data_font
  x_y_values_font
  line_width_auto
  line_width


  2. show_data : use to display data.


  support **kwargs

  data
  line


  3. place : use to place same as tkinter place method..!


  support **kwargs

  x
  y
  rely
  relx
  anchor


  4. pack : use to pack. same as tkinter pack method..!


  support **kwargs

  pady
  padx
  before
  after
  side
  ipadx
  ipady
  ancho


  5. grid : use to grid. same as tkinter grid method..!


  support **kwargs

  column
  columnspan
  ipadx
  ipady
  padx
  pady
  row
  rowspan
  sticky


  6. place_forget : use to place forget the chart


  7. pack_forget : use to pack forget the chart


  8. grid_forget : use to grid forget the chart


  9. place_back : use to place chart in the old location after place forget


  10. pack_back : use to pack chart in the old location after pack forget


  11. grid_back : use to grid chart in the old location after grid forget


  12. hide_all : use to hide all the lines


  support **kwargs

  state: Bool


  13. hide : use hide a specific line


  support **kwargs

  line: tkchart.Line
  state: bool


linechart = tkchart.LineChart(master=root,
                            width=1000,
                            height=600,
                            bar_size=5
                            )

linechart = tkchart.LineChart(master=root,
                            width=1000,
                            height=600,
                            bar_size=5,

                            y_sections_count=5,
                            x_sections_count=5,
                            y_labels_count=5,
                            x_labels_count=5
                            )

linechart = tkchart.LineChart(master=root, width=1000,
                            height=600,
                            bar_size=5,

                            y_sections_count=5,
                            x_sections_count=5,
                            y_labels_count=5,
                            x_labels_count=5,

                            y_data="GB",
                            x_data="S",
                            x_data_min_max=(20,60),
                            y_data_max=1000,
                            x_values_decimals=4,
                            y_values_decimals=5,
                            )

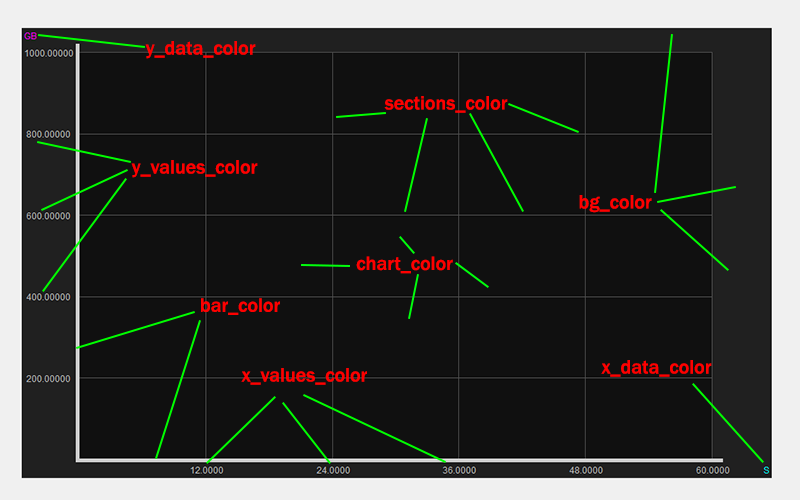

linechart = tkchart.LineChart(master=root, width=1000,
                            height=600,
                            bar_size=5,

                            y_sections_count=5,
                            x_sections_count=5,
                            y_labels_count=5,
                            x_labels_count=5,

                            y_data="GB",
                            x_data="S",
                            x_data_min_max=(20,60),
                            y_data_max=1000,
                            x_values_decimals=4,
                            y_values_decimals=5,

                            sections_color="#ffffff",
                            y_values_color="#ffffff",
                            x_values_color="#ffffff",
                            x_data_text_color="#00ffff",
                            y_data_text_color="#ff00ff",
                            bg_color="#202020",
                            chart_color="#101010",
                            bar_color="#909090"
                            )

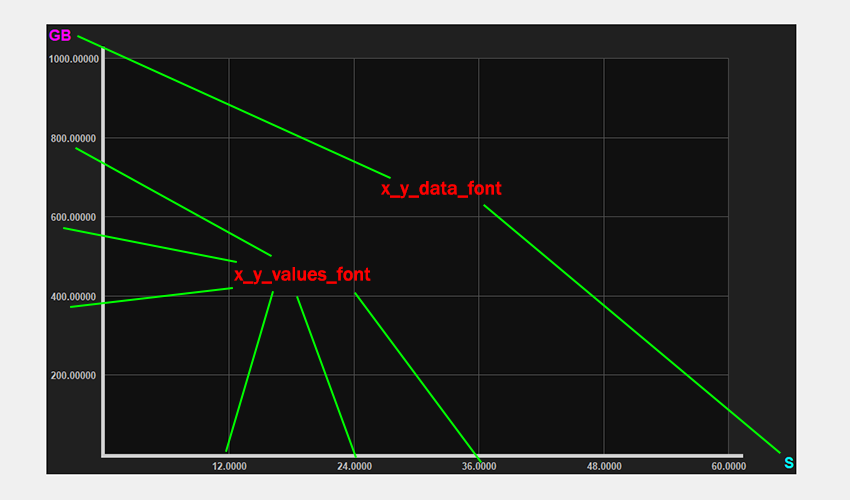

linechart = tkchart.LineChart(master=root,
                            width=1000,
                            height=600,
                            bar_size=5,

                            y_sections_count=5,
                            x_sections_count=5,
                            y_labels_count=5,
                            x_labels_count=5,

                            y_data="GB",
                            x_data="S",
                            x_data_min_max=(20,60),
                            y_data_max=1000,
                            x_values_decimals=4,
                            y_values_decimals=5,

                            sections_color="#505050",
                            y_values_color="#bbbbbb",
                            x_values_color="#bbbbbb",
                            x_data_color="#00ffff",
                            y_data_color="#ff00ff",
                            bg_color="#202020",
                            chart_color="#101010",
                            bar_color="#cccccc",

                            x_y_data_font = ("Arial", 15,"bold"),
                            x_y_values_font = ("Arial", 10,"bold")
                            )

1 . Create Line

Create a Line

line = tkchart.Line()

• Attributes & Types

  master : tkchart.LineChart
  color : str
  size : int


• Methods

  1. configure: use to change Line attributes

  size
  color

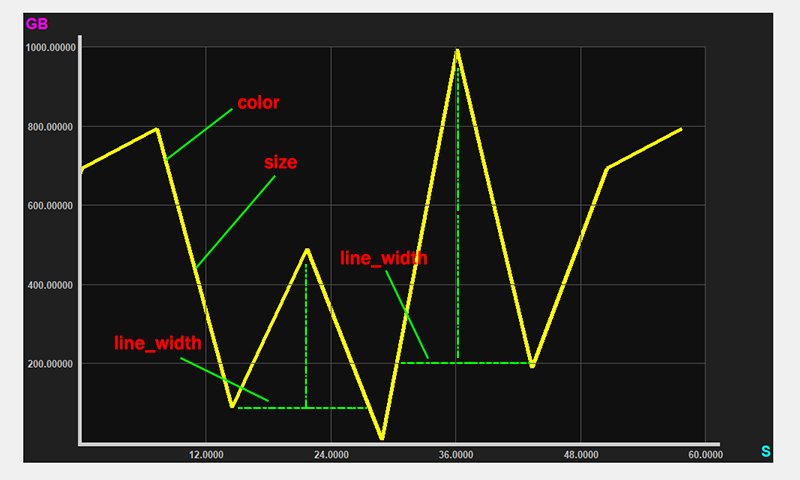

line = tkchart.Line(master=linechart,
                color="#ffff00",
                size=5)

line_width is not a attributes of Line. Its a attribute of LineChart object..!

1 . Display Data

import tkinter
import tkchart
import random #for get random value

#create root
root = tkinter.Tk()
root.minsize(1200,800)

#create LineChart
linechart = tkchart.LineChart(master=root,
                            width=1000,
                            height=400,
                            bar_size=5,

                            y_sections_count=5,
                            x_sections_count=5,
                            y_labels_count=5,
                            x_labels_count=5,

                            y_data="GB",
                            x_data="S",
                            x_data_min_max=(20,60),
                            y_data_max=1000,
                            x_values_decimals=4,
                            y_values_decimals=5,

                            sections_color="#707070",
                            y_values_color="#bbbbbb",
                            x_values_color="#bbbbbb",
                            x_data_color="#00ff00",
                            y_data_color="#00ff00",
                            bg_color="#202020",
                            chart_color="#101010",
                            bar_color="#cccccc",

                            x_y_data_font = ("Arial", 15,"bold"),
                            x_y_values_font = ("Arial", 10,"bold"),
                            )
#place LineChart
linechart.place(x=50 ,y=150)


#Create Line
line = tkchart.Line(master=linechart,
                color="#cccccc",
                size=3)

displayed = 0
max_support = 50 #60-50
data = [0,100,200,300,400,500,600,700,800,900,1000]
start = (20,60)
def loop():
    global displayed
    global start
    linechart.show_data(data=[random.choice(data)], line=line)
    displayed+=1
    if displayed>40:
        start = (start[0]+1,start[1]+1)
        linechart.configure(x_data_min_max=((start[0],start[1])))
    root.after(250,loop)
#calling to loop
loop()

root.mainloop()

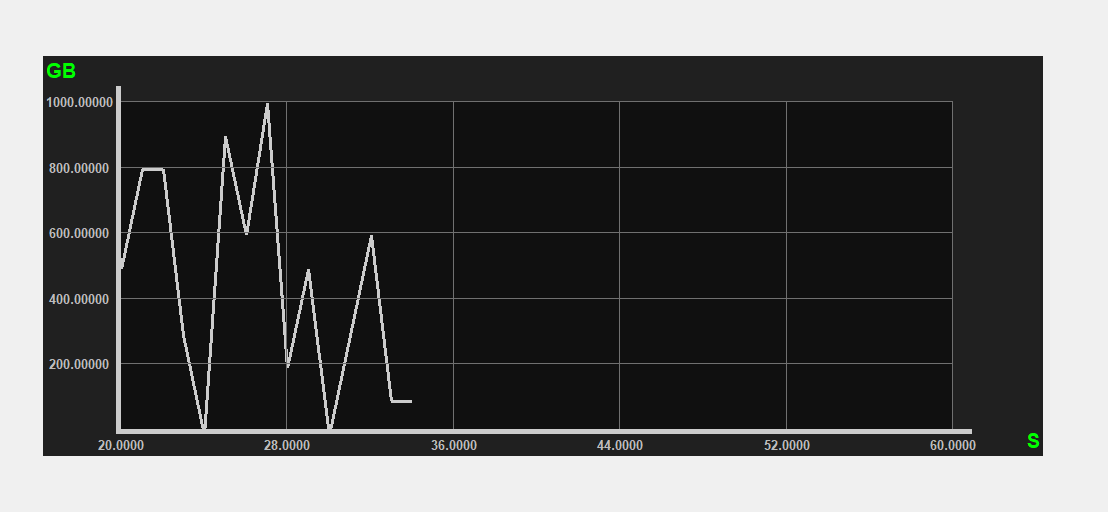

output

click to play

For more details

Github.com : tkchart
