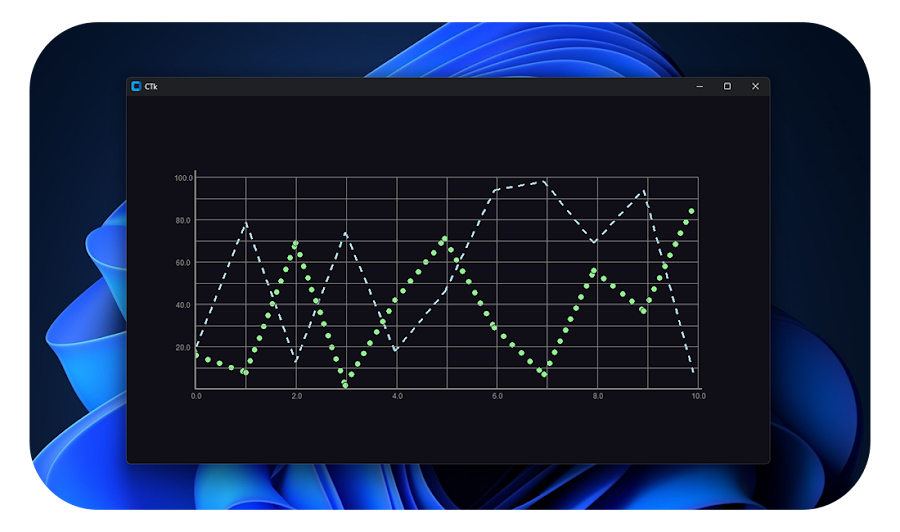

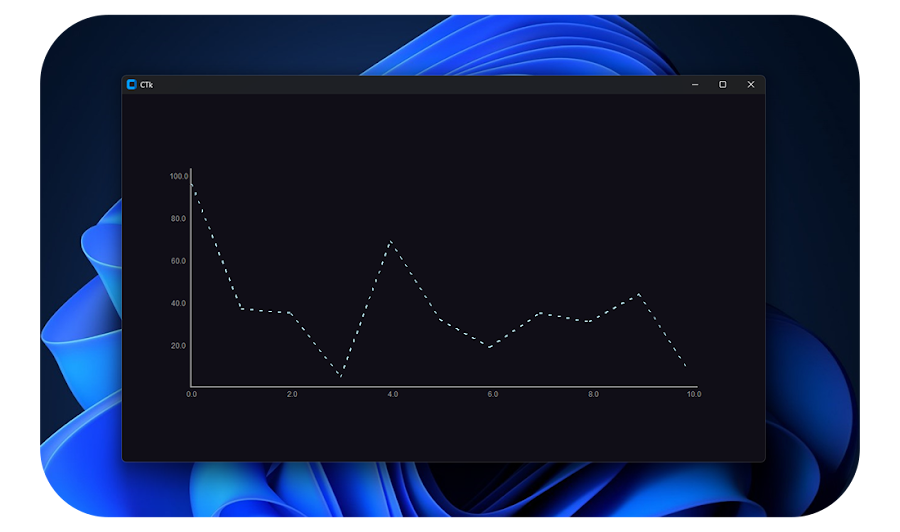

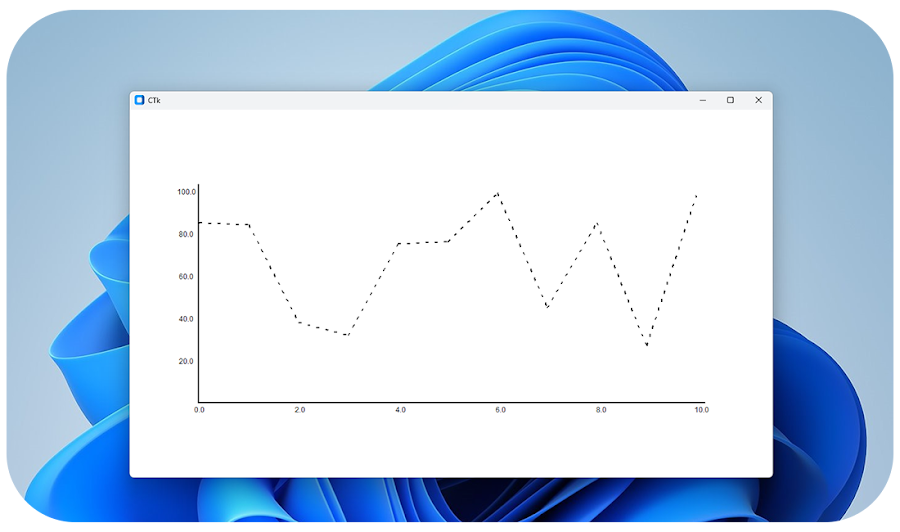

tkchart Library is a Python library that simplifies the process of creating line charts in tkinter GUI applications.

Examples

tkchart - 1.4.2

You need to install & import package first

• installation

  •   pip install tkchart


• importing

  •   import tkchart


objects

• LineChart
• Line

To display data using LineChart you need to do 3 main tasks

1. Creating a LineChart
2. Creating a Line
3. Display of data

1 . Creating a LineChart

linechart = tkchart.LineChart()

• Attributes & Types & Values

  Master Configuration

  • master : tkinter | customtkinter (Frame | Canvas | Tk) | any

  Dimensions

  • width : int
  • height : int
  • axis_size : int
  • x_space : int
  • y_space : int
  • line_width : int | str
    • "auto"
    • 10
  • pointer_size : int

  Value Configuration

  • x_axis_section_count : int
  • y_axis_section_count : int
  • x_axis_label_count : int
  • y_axis_label_count : int
  • x_axis_display_values_indices : tuple[int, ...]
  • x_axis_data : any
  • y_axis_data : any
  • x_axis_values : tuple[any, ...]
    • ("2020 Year", "2021 Year", "2022 Year", "2023 Year", "2024 Year")
    • (0.1, 0.2, 0.3, 0.4, 0.5)
  • y_axis_values : tuple[int | float, int | float]
    • (0 ,1000)
    • (-1000, 1000)
  • y_axis_precision : int
  • pointing_values_precision : int
  • y_axis_max_value : Deprecated

  Color Configuration

  • bg_color : str
  • fg_color : str
  • axis_color : str
  • x_axis_font_color : str
    • "#ffffff"
    • "white"
  • y_axis_font_color : str
  • x_axis_data_font_color : str
  • y_axis_data_font_color : str
  • y_axis_section_color : str
  • x_axis_section_color : str
  • pointer_color : str
  • section_color : Deprecated

  Font Configuration

  • data_font_style : tuple[str, int, str]
    • ("arial", 10, "bold")
    • ("arial", 20, "normal")
  • axis_font_style : tuple

  Style Configuration

  • x_axis_data_position : str
    • "top"
    • "side"
  • y_axis_data_position : str
  • x_axis_section_style : str
    • "normal"
    • "dashed"
  • y_axis_section_style : str
  • x_axis_section_style_type : tuple[int, int]
    • (50, 10)
    • (10, 10)
  • y_axis_section_style_type : tuple[int, int]

  Data Retrieval Configuration

  • pointing_callback_function : function
    • function_name(*args)
    • function_name(x: any, y: list)
  • pointer_state : str
    • "enabled"
    • "disabled"
  • pointer_lock : str
    • "enabled"
    • "disabled"

  Recent Changes

  • y_axis_max_value : int | float Deprecated

    • replaced with y_axis_values : tuple[int | float, int | float]

      The y_axis_values parameter is a tuple where the value at index 0 represents the starting value of the Y-axis, and the value at index 1 represents the ending value of the Y-axis.

  • section_color : str Deprecated

    • replaced with x_axis_section_color : str
    • replaced with y_axis_section_color : str

• Methods

  • configure : use to change LineChart attributes

    Support parameters

    • width
    • height
    • axis_size
    • x_space
    • y_space
    • line_width
    • pointer_size
    • x_axis_section_count
    • y_axis_section_count
    • x_axis_label_count
    • y_axis_label_count
    • x_axis_display_values_indices
    • x_axis_data
    • y_axis_data
    • x_axis_values
    • y_axis_values
    • y_axis_precision
    • pointing_values_precision
    • bg_color
    • fg_color
    • axis_color
    • x_axis_font_color
    • y_axis_font_color
    • x_axis_data_font_color
    • y_axis_data_font_color
    • y_axis_section_color
    • x_axis_section_color
    • pointer_color
    • data_font_style
    • axis_font_style
    • x_axis_data_position
    • y_axis_data_position
    • x_axis_section_style
    • y_axis_section_style
    • x_axis_section_style_type
    • y_axis_section_style_type
    • pointing_callback_function
    • pointer_state
    • pointer_lock
    • y_axis_max_value : Removed
    • section_color : Removed

  • show_data : use to display data

    Support parameters

    • data : list
    • line : tkchart.Line

  • place : use to place LineChart

    Support parameters

    • x : int
    • y : int
    • rely : float | int
    • relx : float | int
    • anchor : str

  • pack : use to pack LineChart

    Support parameters

    • pady : int
    • padx : int
    • before : widget
    • after : widget
    • side : str
    • anchor : str

  • grid : use to grid LineChart

    Support parameters

    • column : int
    • columnspan : int
    • padx : int
    • pady : int
    • row : int
    • rowspan : int
    • sticky : str

  • place_forget : use to place forget the chart

  • pack_forget : use to pack forget the chart

  • grid_forget : use to grid forget the chart

  • place_back : use to place chart in the old location after place forget

  • pack_back : use to pack chart in the old location after pack forget

  • grid_back : use to grid chart in the old location after grid forget

  • hide_all : use to hide all the lines

    Support parameters

    • state : bool

  • hide : use to hide a specific line

    Support parameters

    • line : tkchart.Line
    • state : bool

  • reset : use to reset chart

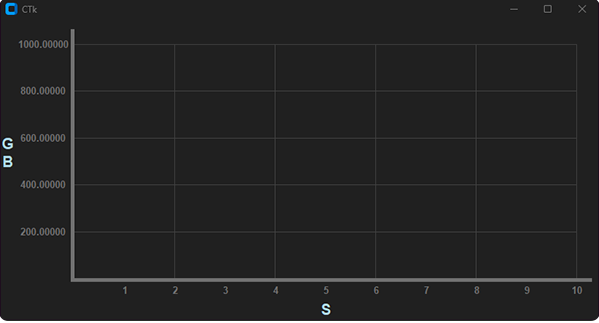

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5
                        )

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                        )

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                            x_axis_label_count=10,

                            y_axis_data="GB",
                            x_axis_data="S",
                            x_axis_values=(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                            y_axis__max_value=(0, 1000),
                            y_axis_precision=5
                        )

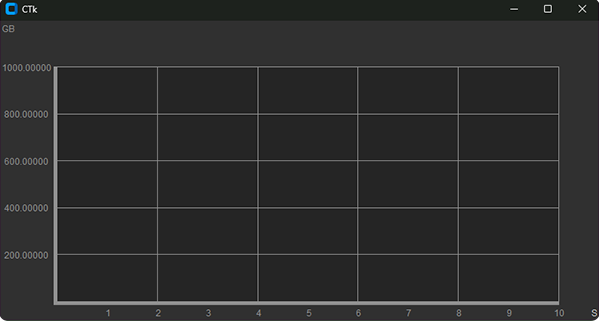

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                            x_axis_label_count=10,

                            y_axis_data="GB",
                            x_axis_data="S",
                            x_axis_values=(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                            y_axis__max_value=(0, 1000),
                            y_axis_precision=5

                            x_axis_section_color="#404040",
                            y_axis_section_color="#404040",
                            x_axis_font_color="#707070",
                            y_axis_font_color="#707070",
                            x_axis_data_font_color="lightblue",
                            y_axis_data_font_color="lightblue",
                            bg_color="#202020",
                            fg_color="#202020",
                            axis_color="#707070"
                        )

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                            x_axis_label_count=10,

                            y_axis_data="GB",
                            x_axis_data="S",
                            x_axis_values=(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                            y_axis__max_value=(0, 1000),
                            y_axis_precision=5

                            x_axis_section_color="#404040",
                            y_axis_section_color="#404040",
                            x_axis_font_color="#707070",
                            y_axis_font_color="#707070",
                            x_axis_data_font_color="lightblue",
                            y_axis_data_font_color="lightblue",
                            bg_color="#202020",
                            fg_color="#202020",
                            axis_color="#707070"

                            data_font_style=("Arial", 15, "bold"),
                            axis_font_style=("Arial", 10, "bold")
                        )

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                            x_axis_label_count=10,

                            y_axis_data="GB",
                            x_axis_data="S",
                            x_axis_values=(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                            y_axis__max_value=(0, 1000),
                            y_axis_precision=5

                            x_axis_section_color="#404040",
                            y_axis_section_color="#404040",
                            x_axis_font_color="#707070",
                            y_axis_font_color="#707070",
                            x_axis_data_font_color="lightblue",
                            y_axis_data_font_color="lightblue",
                            bg_color="#202020",
                            fg_color="#202020",
                            axis_color="#707070"

                            data_font_style=("Arial", 15, "bold"),
                            axis_font_style=("Arial", 10, "bold"),

                            x_space=20,
                            y_space=20
                        )

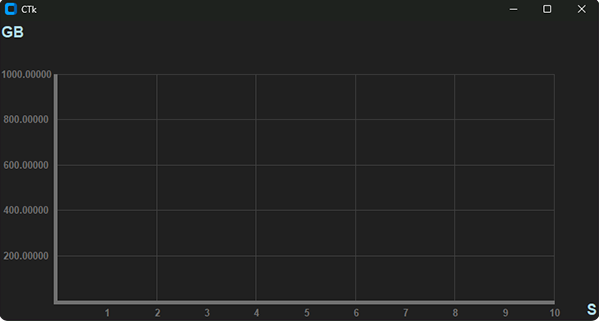

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                            x_axis_label_count=10,

                            y_axis_data="GB",
                            x_axis_data="S",
                            x_axis_values=(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                            y_axis__max_value=(0, 1000),
                            y_axis_precision=5

                            x_axis_section_color="#404040",
                            y_axis_section_color="#404040",
                            x_axis_font_color="#707070",
                            y_axis_font_color="#707070",
                            x_axis_data_font_color="lightblue",
                            y_axis_data_font_color="lightblue",
                            bg_color="#202020",
                            fg_color="#202020",
                            axis_color="#707070"

                            data_font_style=("Arial", 15, "bold"),
                            axis_font_style=("Arial", 10, "bold"),

                            x_space=20,
                            y_space=20,

                            x_axis_data_position="side",
                            y_axis_data_position="side"
                        )

linechart.pack()

---

2 . Creating a Line

line = tkchart.Line()

• Attributes & Types & Values

  • master : tkchart.LineChart
  • color : str
    • "white"
    • "#10f0f0"
  • size : int
  • style : str
    • "normal"
    • "dashed"
    • "dotted"
  • style_type : tuple[int, int]
    • (5,10)
    • (10,5)
  • point_highlight: str
    • "disabled"
    • "enabled"
  • point_highlight_size: int
  • point_highlight_color: str

• Methods

  • configure : use to change Line attributes

    Support parameters
    • size
    • color
    • style
    • style_type
    • point_highlight
    • point_highlight_size
    • point_highlight_color

line = tkchart.Line(master=linechart,
                color="lightblue",
                size=2,
                style="dashed",
                style_type=(4,10))

---

3 . Display of Data

import customtkinter
import tkchart
import random

root = customtkinter.CTk()

linechart = tkchart.LineChart(master=root,
                            width=800,
                            height=400,
                            axis_size=5,

                            y_axis_section_count=5,
                            x_axis_section_count=5,
                            y_axis_label_count=5,
                            x_axis_label_count=10,

                            y_axis_data="GB",
                            x_axis_data="S",
                            x_axis_values=(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                            y_axis_values=(0, 1000),
                            y_axis_precision=5,

                            x_axis_section_color="#404040",
                            y_axis_section_color="#404040",
                            x_axis_font_color="#707070",
                            y_axis_font_color="#707070",
                            x_axis_data_font_color="lightblue",
                            y_axis_data_font_color="lightblue",
                            bg_color="#202020",
                            fg_color="#202020",
                            axis_color="#707070",

                            data_font_style=("Arial", 15, "bold"),
                            axis_font_style=("Arial", 10, "bold"),

                            x_space=20,
                            y_space=20,

                            x_axis_data_position="side",
                            y_axis_data_position="side"
                        )
linechart.pack()


line = tkchart.Line(master=linechart,
                    color="lightblue",
                    size=2,
                    style="dashed",
                    style_type=(4, 10))

data = [0, 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000]
def loop():
    linechart.show_data(data=[random.choice(data)], line=line)
    root.after(250, loop)
loop()

root.mainloop()

click to play

https://github.com/Thisal-D/tkchart/assets/93121062/ec29a3f4-7eba-40c5-9f5c-cc7071ff40ff

---

Examples

•
•
•
•
•
•

---

Whats New ?

Go to top

Contributing to tkchart

Thank you for considering contributing to tkchart! Please follow these guidelines to contribute effectively.

Getting Started

1. Fork the repository.
2. Clone your forked repository: git clone https://github.com/Thisal-D/tkchart.git
3. Create a new branch for your changes: git checkout -b feature-branch

Making Changes

1. Make your changes and ensure they follow the project's coding standards.
2. Test your changes locally.
3. Commit your changes: git commit -m "Brief description of your changes"

Submitting Changes

1. Push your changes to your forked repository: git push origin feature-branch
2. Create a pull request on the main repository.

Code of Conduct

Please adhere to the Code of Conduct to maintain a respectful and inclusive community.

Issues and Discussions

If you encounter issues or have questions, please check the issue tracker or start a discussion in the GitHub Discussions section.

License

By contributing, you agree that your contributions will be licensed under the project's LICENSE.

Thank you for your contribution!

---

Contributing to tkchart

Go to top

Whats New ?

• Added new parameters to Line object

  • Try on :

    Tests/Main - Test.py

    • point_highlight: str
    • point_highlight_size: int
    • point_highlight_color: str

    :: before



    :: after

    • point_highlight = "enabled"
    • point_highlight_size = 10
    • point_highlight_color = "#00FFFF"


Enhancements to Error Handling

Some bug fixes

---

go to PyPi

• PyPi.org : tkchart

go to GitHub

• GitHub.com : tkchart
