topasgraphsim 17.0

GUI to plot the results of a topas simulation

topasgraphsim

Am interface to automatically plot and interpret the results of TOPAS simulations

This GUI can visualize and analyze percentage depth dose (pdd) and dose profiles (dp) simulations from TOPAS. Depth dose measurements are assumed to be in the z-direction, dose profiles in the x- or y-directions. Data read-in is handled by topas2numpy.

Features

• Reproducible graphing and analysis of TOPAS simulation for medical physics
• Simultaneous plotting and parameter calculation for up to 5 datasets
• Graph adjustment options
  • Normalization (On/Off)
  • Error bars (On/Off)
  • Difference plot between two datasets
  • Graph order and colors
  • Marker size
  • Line width
  • Zoom-in window
  • Half view of dose profiles
• Center axis deviation correction
• Import of EGS simulation results
• Import of custom measurements (as numpy .txt files)
• Import of PTW tbaScan (MEPHYSTO mc²) measurements
• Easy to use keyboard shortcuts (see manual below)
• German and english language support
• Dark mode

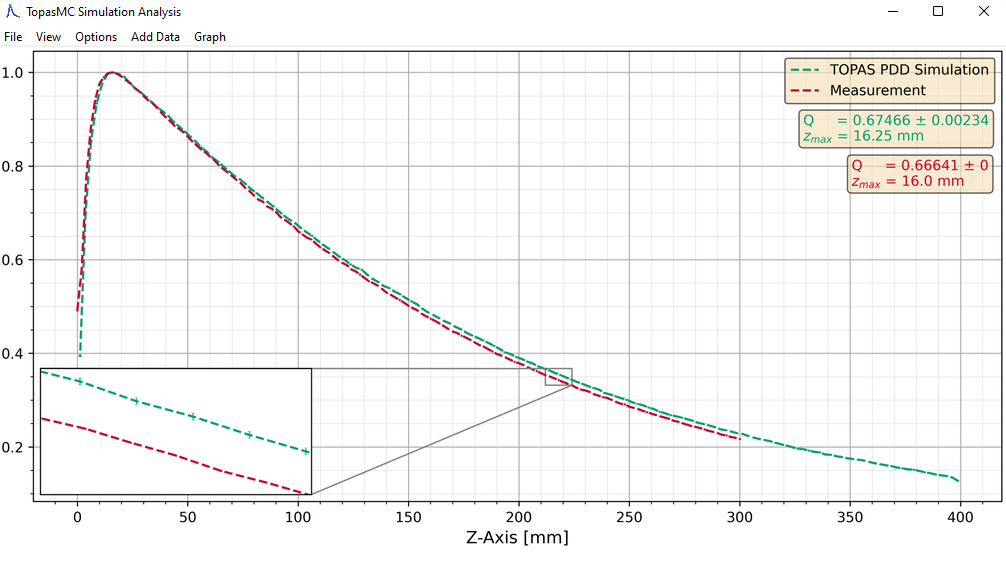

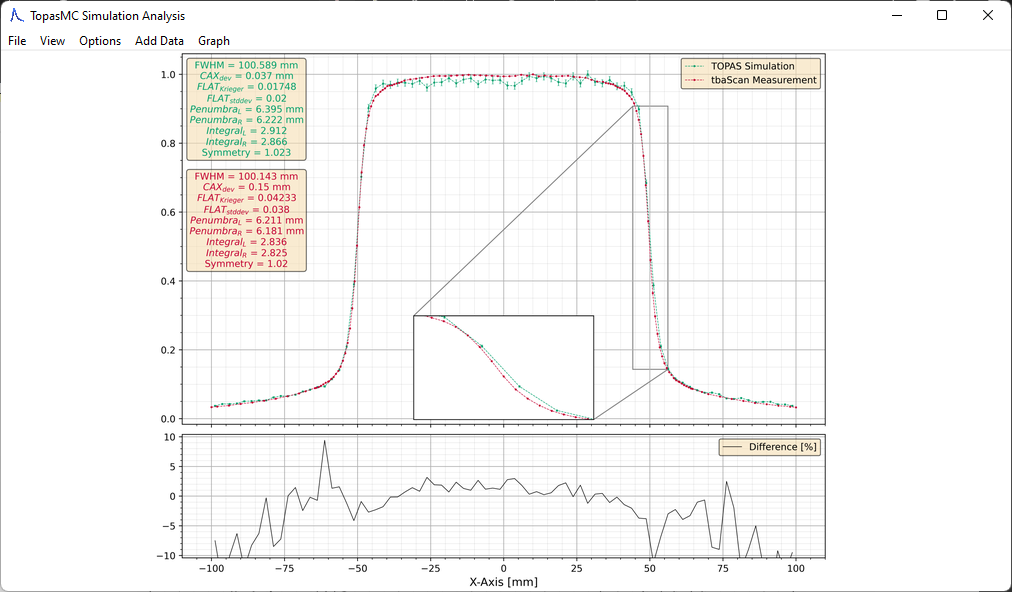

Screenshots

Manual

Most customization options are available via the menubar, however the workflow can be sped up greatly by using the included keyboard and mouse shortcuts documented below.

Loading and saving data

Keyboard Shortcut	Associated Function
Ctrl + O	Open a TOPAS simulation file [*.csv *.bin]
Ctrl + P	Open a PTW tbaScan file [*.mcc]
Ctrl + T	Open a PDD measurement file [*.txt]
Ctrl + D	Open a DP measurement file [*.txt]
Ctrl + S	Save the current graph [*.png *.jpg]
Ctrl + Z	Remove the last imported dataset
Escape	Close the current project

Adjusting the Graph Style

Mouse/Keyboard Shortcut	Associated Function
Ctrl + ↑ ↓	Increase/decrease the marker size
Ctrl + ← →	Increase/decrease the line width
Scrollwheel	Increase/decrease the X-axis limits
Ctrl + Alt + + -	Increase/decrease the error plot upper limits
Ctrl + Shift + + -	Increase/decrease the error plot lower limits
Double Left Click on Graph	Change zoom window location

Adjusting the Graph Legend

Mouse/Keyboard Shortcut	Associated Function
Hover over Graph Name + ↑ ↓	Change the graph order
Left Click on Graph Name	Rename the selected graph
Right Click on Graph Name	Change color of the selected graph

Installation

Install using pip:

$ pip install topasgraphsim

Then, start the GUI by running:

$ python -m topasgraphsim

Or, if your Python is added to $PATH, simply run:

$ topasgraphsim

Parameters

Depending on the imported measurement, the following parameters can be calculated:

Measurement type	Parameters
Depth dose	Q-Factor	zmax
Dose profile	FWHM	CAXdev	FLATKrieger	FLATstddev	Penumbra (L&R)	Integral (L&R)

• Q-Factor : Radiation Quality Factor

• z_max : Depth at Maximum

• FWHM : Full-Width at Half-Maximum

• CAX_dev : Centre Axis Deviation

• FLAT_Krieger : Flatness of Dose Plateau (Definition by Krieger)

• FLAT_stddev : Flatness of Dose Plateau (Standard Deviation)

• Penumbra (L&R) : Width of Left and Right Penumbra

• Integral (L&R) : Integral below Left and Right Penumbra

Dependencies

Built using the beautiful Azure-ttk theme by @rdbende. Requires python3, numpy, scipy, matplotlib, Pillow, python-opencv, pynput, topas2numpy and tkinter.

Note: Linux users need to have python3-tk installed. If it isnt installed yet, use:

sudo apt-get install python3-tk
