torch-dreams 4.0.0

Making neural networks more interpretable, for research and art

Torch-Dreams

Making neural networks more interpretable, for research and art.

pip install torch-dreams

Contents:

• Minimal example
• Not so minimal example
• Visualizing individual channels with custom_func
• Caricatures
• Visualize features from multiple models simultaneously
• Use custom transforms
• Feedback loops
• Custom images
• Working on models with different image normalizations
• Masked image parametrs
• Other conveniences
• Development

Minimal example

Make sure you also check out the quick start colab notebook

import matplotlib.pyplot as plt
import torchvision.models as models
from torch_dreams import Dreamer

model = models.inception_v3(pretrained=True)
dreamy_boi = Dreamer(model, device = 'cuda')

image_param = dreamy_boi.render(
    layers = [model.Mixed_5b],
)

plt.imshow(image_param)
plt.show()

Not so minimal example

model = models.inception_v3(pretrained=True)
dreamy_boi = Dreamer(model, device = 'cuda', quiet = False)

image_param = dreamy_boi.render(
    layers = [model.Mixed_5b],
    width = 256,
    height = 256,
    iters = 150,
    lr = 9e-3,
    rotate_degrees = 15,
    scale_max = 1.2,
    scale_min =  0.5,
    translate_x = 0.2,
    translate_y = 0.2,
    custom_func = None,
    weight_decay = 1e-2,
    grad_clip = 1.,
)

plt.imshow(image_param)
plt.show()

Visualizing individual channels with custom_func

model = models.inception_v3(pretrained=True)
dreamy_boi = Dreamer(model, device = 'cuda')

layers_to_use = [model.Mixed_6b.branch1x1.conv]

def make_custom_func(layer_number = 0, channel_number= 0):
    def custom_func(layer_outputs):
        loss = layer_outputs[layer_number][:, channel_number].mean()
        return -loss
    return custom_func

my_custom_func = make_custom_func(layer_number= 0, channel_number = 119)

image_param = dreamy_boi.render(
    layers = layers_to_use,
    custom_func = my_custom_func,
)
plt.imshow(image_param)
plt.show()

Batched generation for large scale experiments

The BatchedAutoImageParam paired with the BatchedObjective can be used to generate multiple feature visualizations in parallel. This takes up more memory based on the batch size, but is also faster than generating one visualization at a time.

from torch_dreams import Dreamer
import torchvision.models as models
from torch_dreams.batched_objective import BatchedObjective
from torch_dreams.batched_image_param import BatchedAutoImageParam

model = models.inception_v3(pretrained=True)
dreamy_boi = Dreamer(model, device="cuda")

## specify list of neuron indices to visualize
batch_neuron_indices = [i for i in range(10,20)]

## set up a batch of trainable image parameters
bap = BatchedAutoImageParam(
    batch_size=len(batch_neuron_indices),
    width=256,
    height=256,
    standard_deviation=0.01
)

## objective generator for each neuron
def make_custom_func(layer_number=0, channel_number=0):
    def custom_func(layer_outputs):
        loss = layer_outputs[layer_number][:, channel_number].norm()
        return -loss

    return custom_func

## prepare objective functions for each neuron index
batched_objective = BatchedObjective(
    objectives=[make_custom_func(channel_number=i) for i in batch_neuron_indices]
)

## render activation maximization signals
result_batch = dreamy_boi.render(
    layers=[model.Mixed_5b],
    image_parameter=bap,
    iters=120,
    custom_func=batched_objective,
)

## save results in a folder
for i in batch_neuron_indices:
    result_batch[batch_neuron_indices.index(i)].save(f"results/{i}.jpg")

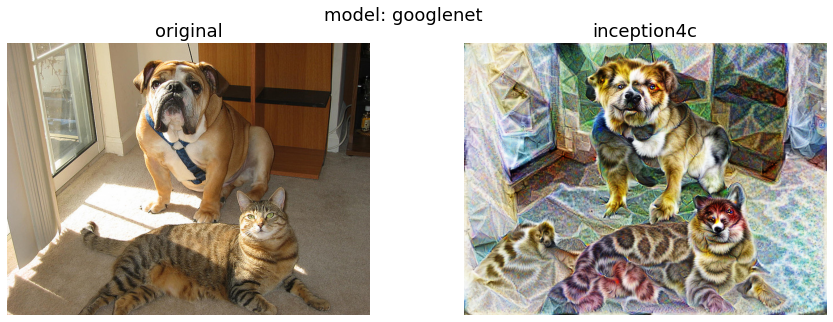

Caricatures

Caricatures create a new image that has a similar but more extreme activation pattern to the input image at a given layer (or multiple layers at a time). It's inspired from this issue

In this case, let's use googlenet

model = models.googlenet(pretrained = True)
dreamy_boi = Dreamer(model = model, quiet= False, device= 'cuda')

image_param = dreamy_boi.caricature(
    input_tensor = image_tensor,
    layers = [model.inception4c],   ## feel free to append more layers for more interesting caricatures
    power= 1.2,                     ## higher -> more "exaggerated" features
)

plt.imshow(image_param)
plt.show()

Visualize features from multiple models simultaneously

First, let's pick 2 models and specify which layers we'd want to work with

from torch_dreams.model_bunch import ModelBunch

bunch = ModelBunch(
    model_dict = {
        'inception': models.inception_v3(pretrained=True).eval(),
        'resnet':    models.resnet18(pretrained= True).eval()
    }
)

layers_to_use = [
            bunch.model_dict['inception'].Mixed_6a,
            bunch.model_dict['resnet'].layer2[0].conv1
        ]

dreamy_boi = Dreamer(model = bunch, quiet= False, device= 'cuda')

Then define a custom_func which determines which exact activations of the models we have to optimize

def custom_func(layer_outputs):
    loss =   layer_outputs[0].mean()*2.0 + layer_outputs[1][:, 89].mean()
    return -loss

Run the optimization

image_param = dreamy_boi.render(
    layers = layers_to_use,
    custom_func= custom_func,
    iters= 100
)

plt.imshow(image_param)
plt.show()

Using custom transforms:

import torchvision.transforms as transforms

model = models.inception_v3(pretrained=True)
dreamy_boi = Dreamer(model,  device = 'cuda', quiet =  False)

my_transforms = transforms.Compose([
    transforms.RandomAffine(degrees = 10, translate = (0.5,0.5)),
    transforms.RandomHorizontalFlip(p = 0.3)
])

dreamy_boi.set_custom_transforms(transforms = my_transforms)

image_param = dreamy_boi.render(
    layers = [model.Mixed_5b],
)

plt.imshow(image_param)
plt.show()

You can also use outputs of one render() as the input of another to create feedback loops.

import matplotlib.pyplot as plt
import torchvision.models as models
from torch_dreams import Dreamer

model = models.inception_v3(pretrained=True)
dreamy_boi = Dreamer(model,  device = 'cuda', quiet =  False)

image_param = dreamy_boi.render(
    layers = [model.Mixed_6c],
)

image_param = dreamy_boi.render(
    image_parameter= image_param,
    layers = [model.Mixed_5b],
    iters = 20
)

plt.imshow(image_param)
plt.show()

Using custom images

Note that you might have to use smaller values for certain hyperparameters like lr and grad_clip.

from torch_dreams.custom_image_param import CustomImageParam
param = CustomImageParam(image = 'images/sample_small.jpg', device= 'cuda')  ## image could either be a filename or a torch.tensor of shape NCHW

image_param = dreamy_boi.render(
    image_parameter= param,
    layers = [model.Mixed_6c],
    lr = 2e-4,
    grad_clip = 0.1,
    weight_decay= 1e-1,
    iters = 120
)

Working on models with different image normalizations

torch-dreams generally works with models trained on images normalized with imagenet mean and std, but that can be easily overriden to support any other normalization. For example, if you have a model with mean = [0.5, 0.5, 0.5] and std = [0.5, 0.5, 0.5]:

t = torchvision.transforms.Normalize(
                mean = [0.5, 0.5, 0.5],
                std =  [0.5, 0.5, 0.5]
            )

dreamy_boi.set_custom_normalization(normalization_transform = t) ## normalization_transform could be any instance of torch.nn.Module

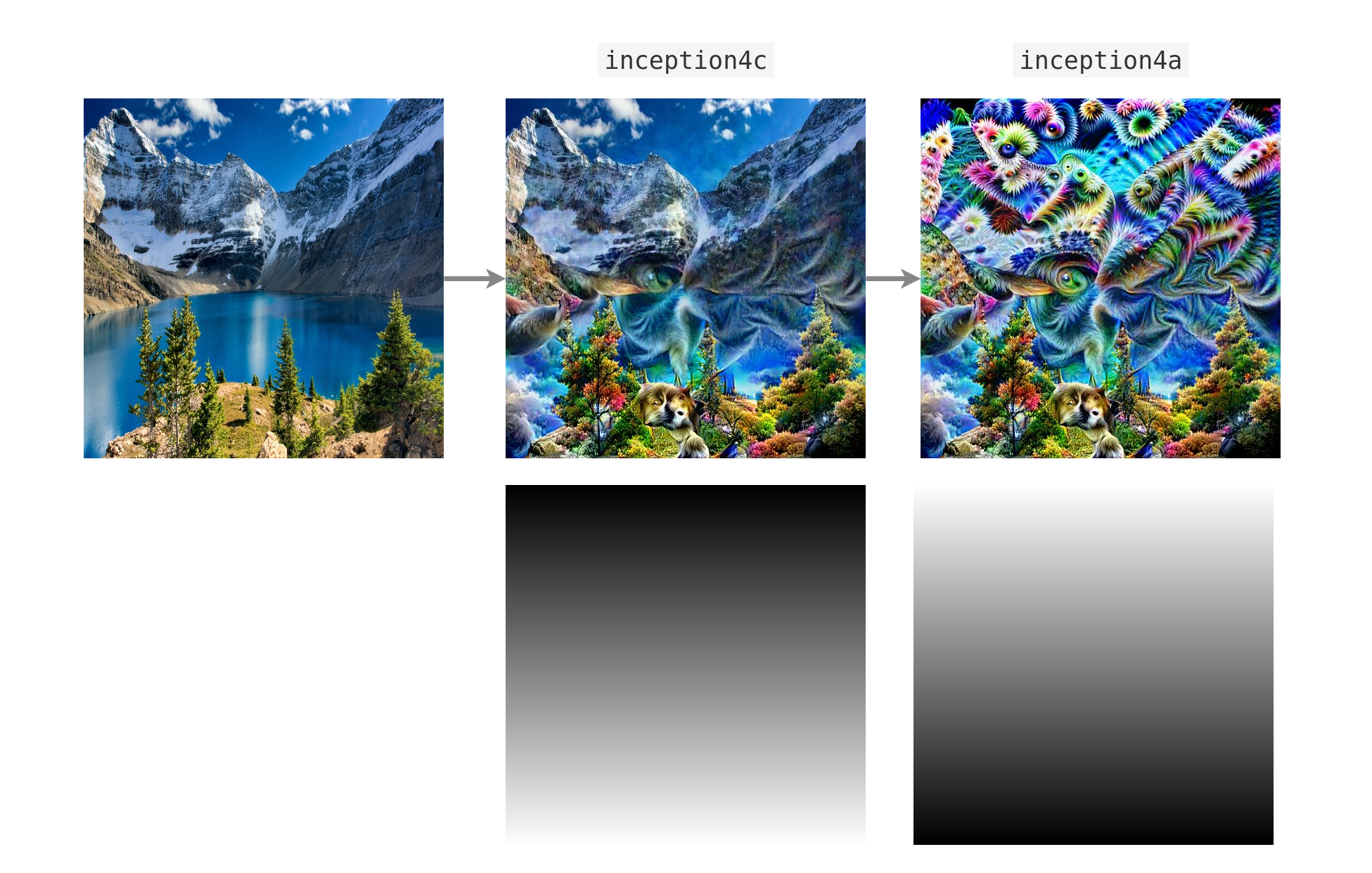

Masked Image parameters

Can be used to optimize only certain parts of the image using a mask whose values are clipped between [0,1].

Here's an example with a vertical gradient

from torch_dreams.masked_image_param import MaskedImageParam

mask = torch.ones(1,1,512,512)

for i in range(0, 512, 1):  ## vertical gradient
    mask[:,:,i,:] = (i/512)

param = MaskedImageParam(
    image= 'images/sample_small.jpg',  ## optional
    mask_tensor = mask,
    device = 'cuda'
)

param = dreamy_boi.render(
    layers = [model.inception4c],
    image_parameter= param,
    lr = 1e-4,
    grad_clip= 0.1,
    weight_decay= 1e-1,
    iters= 200,
)

param.save('masked_param_output.jpg')

It's also possible to update the mask on the fly with param.update_mask(some_mask)

param.update_mask(mask = torch.flip(mask, dims = (2,)))

param = dreamy_boi.render(
    layers = [model.inception4a],
    image_parameter= param,
    lr = 1e-4,
    grad_clip= 0.1,
    weight_decay= 1e-1,
    iters= 200,
)

param.save('masked_param_output_2.jpg')

Other conveniences

The following methods are handy for an auto_image_param instance:

1. Saving outputs as images:

image_param.save('output.jpg')

2. Torch Tensor of dimensions (height, width, color_channels)

torch_image = image_param.to_hwc_tensor(device = 'cpu')

3. Torch Tensor of dimensions (color_channels, height, width)

torch_image_chw = image_param.to_chw_tensor(device = 'cpu')

4. Displaying outputs on matplotlib.

plt.imshow(image_param)
plt.show()

5. For instances of custom_image_param, you can set any NCHW tensor as the image parameter:

image_tensor = image_param.to_nchw_tensor()

## do some stuff with image_tensor
t = transforms.Compose([
    transforms.RandomRotation(5)
])
transformed_image_tensor = t(image_tensor)

image_param.set_param(tensor = transformed_image_tensor)

Args for render()

• layers (iterable): List of the layers of model(s)'s layers to work on. [model.layer1, model.layer2...]

• image_parameter (auto_image_param, optional): Instance of torch_dreams.auto_image_param.auto_image_param

• width (int, optional): Width of image to be optimized

• height (int, optional): Height of image to be optimized

• iters (int, optional): Number of iterations, higher -> stronger visualization

• lr (float, optional): Learning rate

• rotate_degrees (int, optional): Max rotation in default transforms

• scale_max (float, optional): Max image size factor. Defaults to 1.1.

• scale_min (float, optional): Minimum image size factor. Defaults to 0.5.

• translate_x (float, optional): Maximum translation factor in x direction

• translate_y (float, optional): Maximum translation factor in y direction

• custom_func (function, optional): Can be used to define custom optimiziation conditions to render(). Defaults to None.

• weight_decay (float, optional): Weight decay for default optimizer. Helps prevent high frequency noise. Defaults to 0.

• grad_clip (float, optional): Maximum value of the norm of gradient. Defaults to 1.

Args for Dreamer.__init__()

• model (nn.Module or torch_dreams.model_bunch.Modelbunch): Almost any PyTorch model which was trained on imagenet mean and std, and supports variable sized images as inputs. You can pass multiple models into this argument as a torch_dreams.model_bunch.Modelbunch instance.
• quiet (bool): Set to True if you want to disable any progress bars
• device (str): cuda or cpu depending on your runtime

Development

1. Clone the repo and navigate into the folder

git clone [e-mail]:Mayukhdeb/torch-dreams.git
cd torch-dreams/

2. Install dependencies

pip install -r requirements.txt

3. Install torch-dreams as an editable module

python3 setup.py develop

Citation

@misc{mayukhdebtorchdreams,
  title={Feature Visualization library for PyTorch},
  author={Mayukh Deb},
  year={2021},
  publisher={GitHub},
  howpublished={\url{https://github.com/Mayukhdeb/torch-dreams}},
}

Acknowledgements

• amFOSS
• Gene Kogan

Recommended Reading

• Feature Visualization
• Google AI blog on Deepdreams
