Tornado-Profiler

A profiler measures endpoints defined in your tornado application.

Screenshots

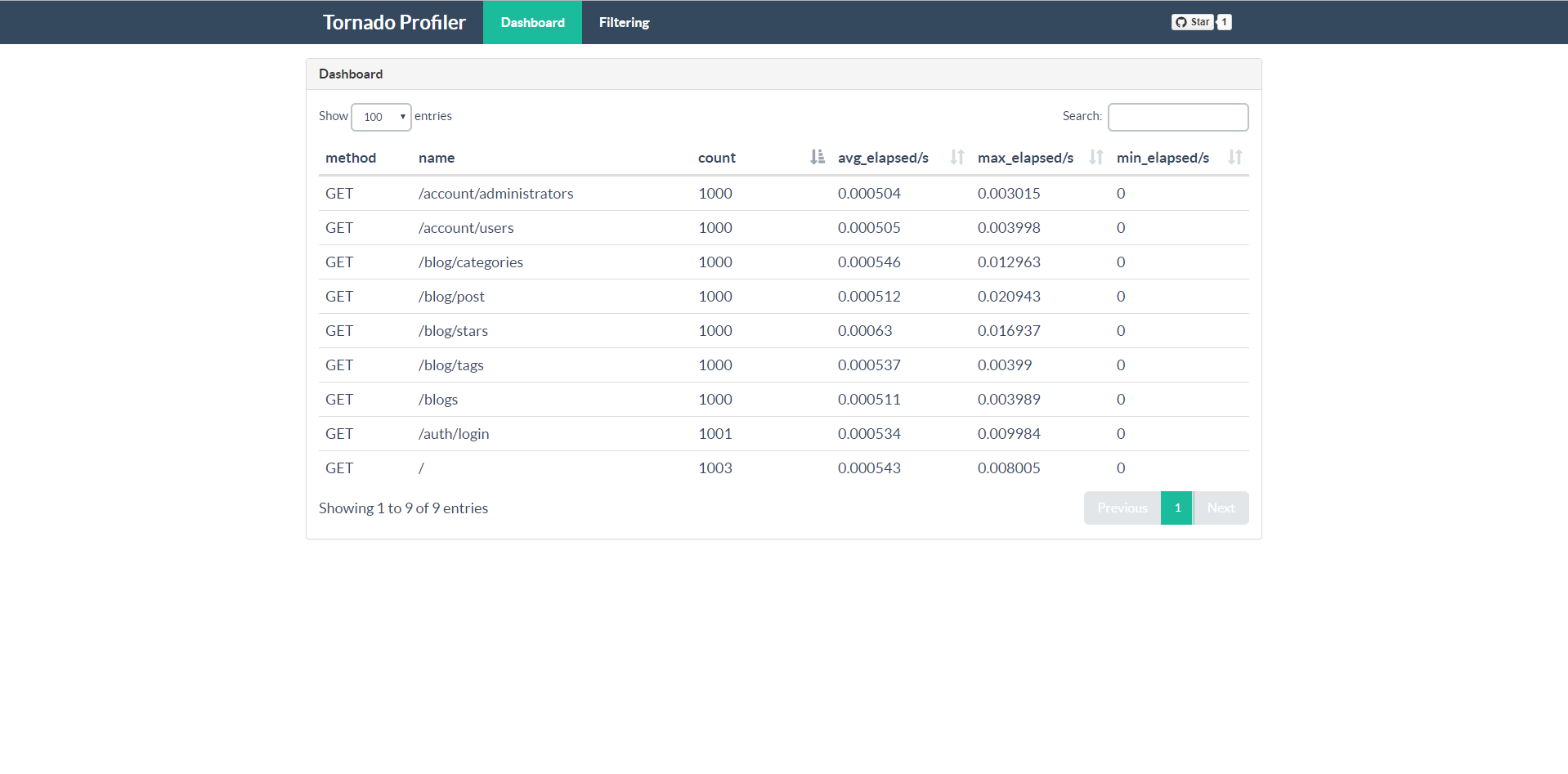

Dashboard: Give a summary of all datas

If an endpoint has been accessed before, you can see its summary data as follows.

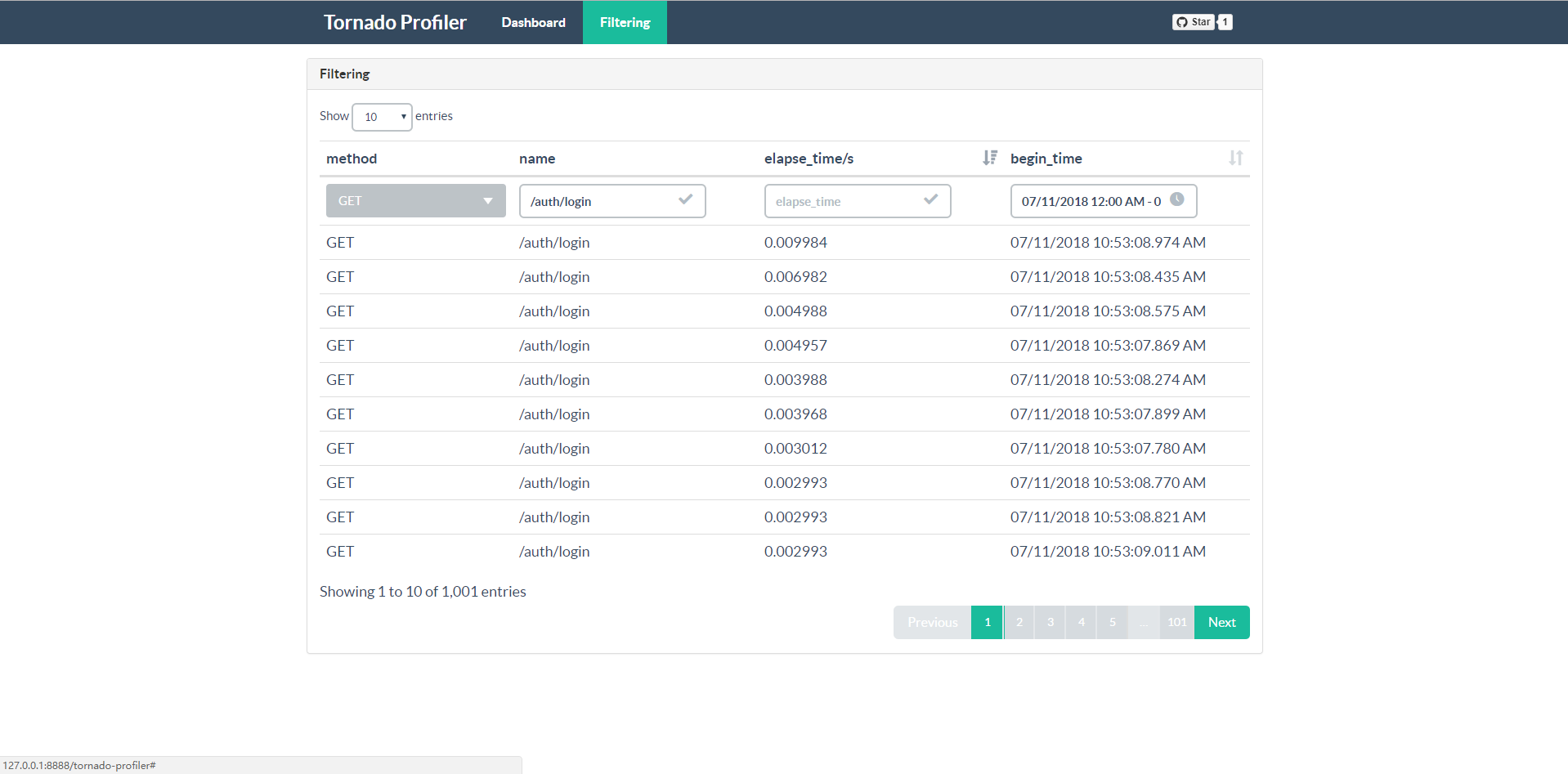

Filtering: Give filtered datas

You can create filters to get datas that meet the criterias.

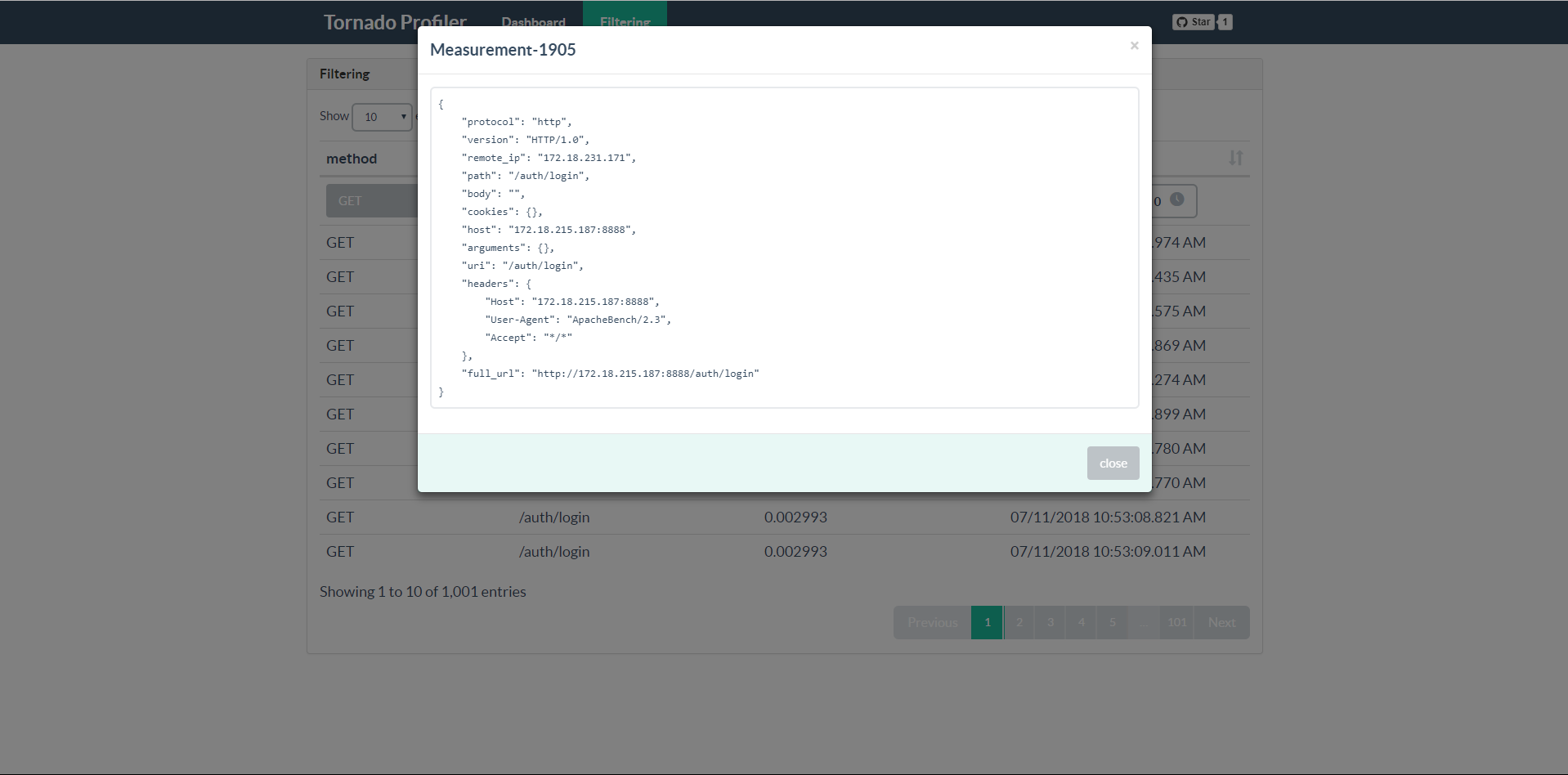

Context: Give all details of a request

You can get all details of a request as you wish.

Installation

PyPI version:

$ pip install tornado-profiler

Development version:

$ pip install https://github.com/garenchan/tornado-profiler/zipball/master

Quick Start

Just add a few lines to you codes:

# demo.py
import tornado.ioloop
import tornado.web

from tornado_profiler import Profiler


class MainHandler(tornado.web.RequestHandler):
    def get(self):
        self.write("main")

class HelloHandler(tornado.web.RequestHandler):
    def get(self):
        self.write("Hello, world")

def make_app():
    app = tornado.web.Application([
        (r"/", MainHandler),
    ])

    # use to store measurement datas
    backend = {
        "engine": "sqlalchemy",
    }
    # instantiate profiler
    profiler = Profiler(backend)
    # do something to your app
    profiler.init_app(app)

    # you can add some rules that won't be profiled here
    app.add_handlers(r".*", [
        (r"/hello", HelloHandler),
    ])

    return app

if __name__ == "__main__":
    app = make_app()
    app.listen(8888)
    tornado.ioloop.IOLoop.current().start()

Now run your demo.py and make some requests as follows:

$ curl http://127.0.0.1:8888/
$ curl http://127.0.0.1:8888/hello

If everything is ok, tornado-profiler will measure these requests. You can see the result heading to http://127.0.0.1:8888/tornado-profiler or get results as JSON http://127.0.0.1:8888/tornado-profiler/api/measurements

Data Storage Backend

You can use some databases to store your measurement data, such as SQLite, Mysql. The drivers we support are shown as follows:

SQLAlchemy

In order to use SQLAlchemy, just specify backend's engine as "sqlalchemy". This will use SQLite by default and save it to tornado_profiler.db in your working directory.

backend = {
    "engine": "sqlalchemy",
}

If your want to change default sqlite database filename or use other databases, you need to set db_url manually:

backend = {
    "engine": "sqlalchemy",
    "db_url": "sqlite:///dbname.db",
}

backend = {
    "engine": "sqlalchemy",
    "db_url": "mysql+<driver-name>://user:password@<host>[:<port>]/<dbname>",
}

Setting some attributes of SQLAlchemy is also necessary, you just need to pass them into the backend dict:

backend = {
    "engine": "sqlalchemy",
    "db_url": "mysql+<driver-name>://user:password@<host>[:<port>]/<dbname>",
    # attributes
    "pool_recycle": 3600,
    "pool_timeout": 30,
    "pool_size": 30,
    "max_overflow": 20,
}

In some scenarios, we do not want to persist measurement datas, we can use the in-memory database of SQLite and datas will be lost when your web server stops or restarts:

backend = {
    "engine": "sqlalchemy",
    "db_url": "sqlite://",
}

Other Drivers

coming soon!

Comment

If you have any other requirements, please submit PR or issues. I will reply to you as soon as possible.
