trachet 1.0.9

Step-by-step/realtime terminal debugger. It tell you what is happening on your terminal.

What is This?

trachet = tracer + ratchet(step-by-step debugging service)

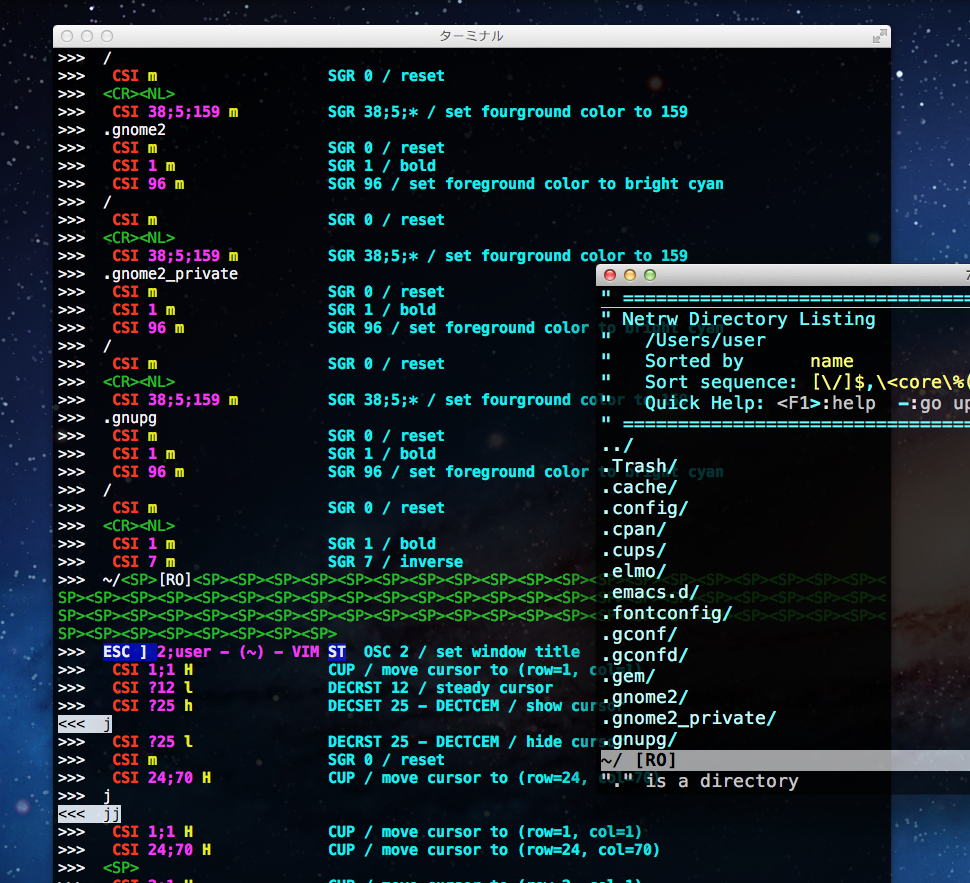

This Program runs as a terminal filter process, between Terminals and Applications. It provides step-by-step debugging and formatted sequence tracing service. You can look terminal I/O sequence on realtime, and it enables you to do step-by-step execution.

http://saitoha.github.io/trachet/

Install

via github

$ git clone --recursive https://github.com/saitoha/trachet.git
$ cd trachet
$ python setup.py install

or via pip

$ pip install trachet

Usage

$ trachet [options] command

• Options:

  -h, --help                  show this help message and exit
  -o OUTPUT, --output=OUTPUT  specify output device or file
  -b, --break                 "break" the program at the startup time
  -m, --monochrome            don't use color in output terminal"
  --version                   show version

• Sequense Tracing

  If you specified TTY device by -o option, you can look I/O sequence tracing on realtime.

• Step by Step debugging

• <F6> Toggle trace state ON/OFF.

• <F7> Toggle break state ON/OFF.

• <F8> Step to next char or control sequence.

• <F9> Step to next ESC or CSI sequence.

QuickStart

• STEP1

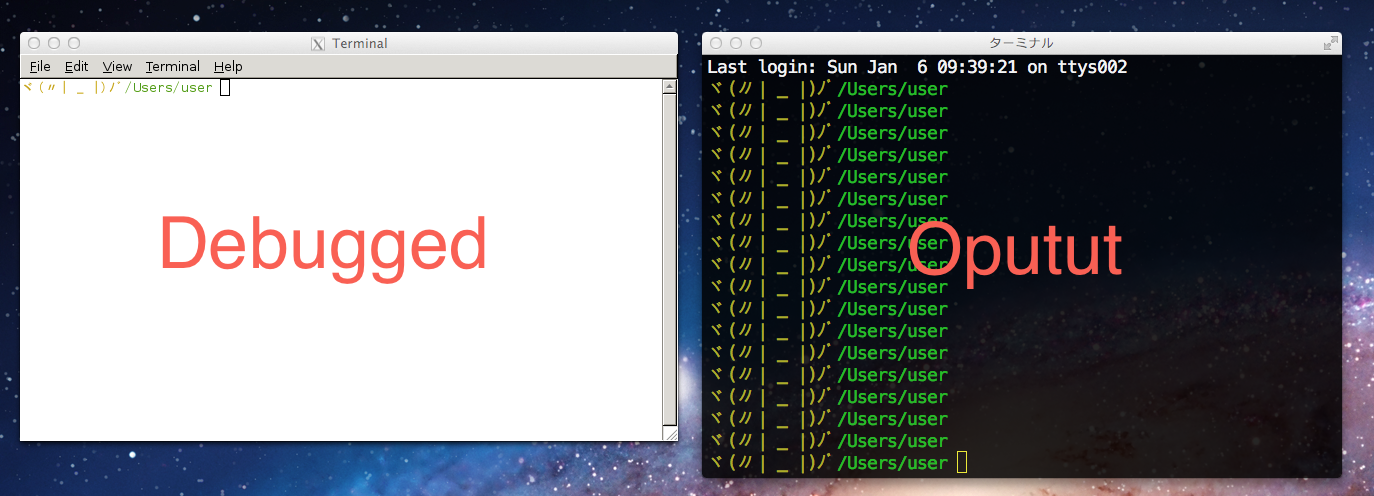

  First, You need to prepare two terminal windows, debugged terminal and output terminal.



• STEP2

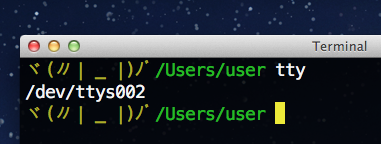

  At the output terminal, type “tty” command.

  $ tty
  /dev/ttys002

  Now you get output terminal’s TTY device name(=/dev/ttys002).



• STEP3

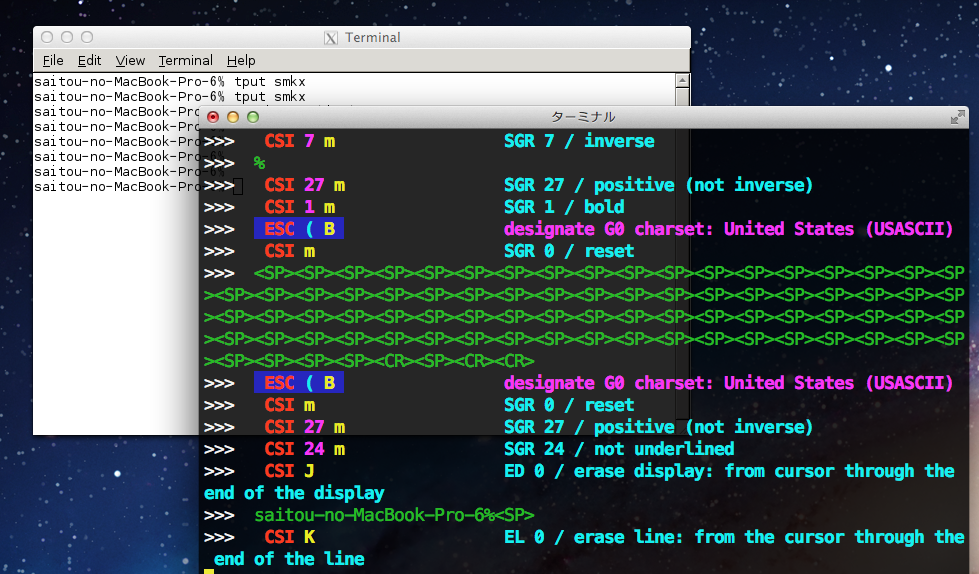

  At the debugged terminal, launch trachet.



  Run default shell and send formatted I/O sequences to output terminal

  $ trachet -o/dev/ttys002

  Run default shell and write non-colored formatted I/O sequences to a text file.

  $ trachet -o log.txt

  Run vim and send formatted I/O sequences to output terminal.

  $ trachet -o/dev/ttys002 vim

  Run emacs and send formatted I/O sequences to output terminal, and “break” emacs on startup time

  $ trachet -b -o/dev/ttys002 emacs -nw

  Replay output log created by script(1) step by step.

  $ trachet -b -o/dev/ttys002 cat ~/typescript -

How It Works

• PTY and Normal Terminal/Application:

  +---------------------------------------------+
  |                  Terminal                   |
  +---------+-----------------------------------+
            |
  +---------|-----------------------------------+
  |  +------+-------+        +---------------+  |
  |  |    Master    |========|     Slave     |  |
  |  +--------------+        +-------+-------+  |
  +----------------------------------|----------+
                                     |
  +----------------------------------+----------+
  |                Application                  |
  +---------------------------------------------+

• TFF (Terminal Filter Framework):

                      Scanner                    Event Driven Parser         Event Dispatcher
                      +-----+                         +-----+                     +-----+
    << I/O Stream >>  |     | << CodePoint Stream >>  |     | << Event Stream >>  |     |      << I/O Stream >>
  ------------------->|     |------------------------>|     |-------------------->|     |---||-------------------->
    (Raw Sequences)   |     |    (Unicode Points)     |     |   (Function Call)   |     |       (Raw Sequences)
                      +-----+                         +-----+                     +--+--+
                                                 ISO-2022 ISO-6429                   |
                                                 Compatible Parsing                  |
                                                                                     v
                                                                                  +-----+
                                                                   Event Observer |     |      << I/O Stream >>
                                                                    (I/O Handler) |     |---||-------------------->
                                                                                  |     |       (Raw Sequences)
                                                                                  +-----+

• With Trachet…

  +----------------------------------------------------------+   +------------------------+
  |                                                          |   |                        |
  |                        Terminal                          |   |  Other Device or File  |
  |                                                          |   |                        |
  +----------------------------------------------------------+   +------------------------+
                       |                       ^                              ^
                       |                       |                              |
                   < input >               < output >                         |
                       |                       |                              |
                       |      +----------------+                              |
                       |      |                      [ PTY 1 ]                |
                +------|------|-------------------------------+               |
                |      v      |                               |               |
                |  +----------+---+       +----------------+  |               |
                |  |    Master    |=======|      Slave     |  |               |
                |  +--------------+       +--+-------------+  |               |
                |                            |        ^       |               |
                +----------------------------|--------|-------+               |
                                             |        |                       |
                                         < input >    |                       |
                                             |        |                   < trace >
                             +---------------+    < output >                  |
                             |                        |                       |
     [ Trachet Process ]     |                        |                       |
  +--------------------------|------------------------|---------------+       |
  |                          |                        |               |       |
  |              +-----------|-------<< TFF >>--------|------------+  |       |
  |              |           v                        |            |  |       |
  |  < control > |  +-----------------+     +---------+---------+  |  |       |
  |       +----->|  |  InputHandler   |     |   OutputHandler   |  |  |       |
  |       |      |  +--+-----+----+---+     +--+----------------+  |  |       |
  |       |      |     |     |    |            |      ^            |  |       |
  |       |      +-----|-----|----|------------|------|------------+  |       |
  |       |            |     |    |            |      |               |       |
  |       |            |     |    |            |      |               |       |
  |       |            v     |    v            v      |               |       |
  |  +----+---------------+  |  +----------------+    |               |       |
  |  |  ActionController  |  |  |     Tracer     |----------------------------+
  |  +--------------------+  |  +----------------+    |               |
  |                          |                        |               |
  +--------------------------|------------------------|---------------+
                             |                        |
                         < input >                < output >
                             |                        |
                             |       +----------------+
                             |       |
                             |       | [ PTY 2 ]
                     +-------|-------|-----------------------------+
                     |       v       |                             |
                     |  +------------+--+       +---------------+  |
                     |  |    Master     |=======|     Slave     |  |
                     |  +---------------+       +----+----------+  |
                     |                               |      ^      |
                     +-------------------------------|------|------+
                                                     |      |
                                +--------------------+      |
                                |                           |
                            < input >                   < output >
                                |                           |
                                v                           |
  +---------------------------------------------------------+-----------------------------+
  |                                                                                       |
  |                                  Target Application                                   |
  |                                                                                       |
  +---------------------------------------------------------------------------------------+

Dependency

• TFF - Terminal Filter Framework https://github.com/saitoha/tff

Reference

• vt100.net http://vt100.net/

• Private Control Functions used by DEC http://vt100.net/emu/ctrlfunc_dec.html

• Xterm Control Sequences http://invisible-island.net/xterm/ctlseqs/ctlseqs.html

• TeraTerm / Supported Control Functions http://ttssh2.sourceforge.jp/manual/en/about/ctrlseq.html

• MinTTY / Mintty-specific control sequences http://code.google.com/p/mintty/wiki/CtrlSeqs

• RLogin / Supported control codes http://nanno.dip.jp/softlib/man/rlogin/ctrlcode.html

License

GNU GENERAL PUBLIC LICENSE Version 3
