Documentation

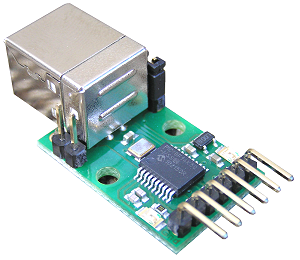

USB-ISS hardware module:

https://www.robot-electronics.co.uk/htm/usb_iss_tech.htm

USB-ISS Python library (this project):

https://usb-iss.readthedocs.io

Features

• Supports all USB-ISS functions (I2C, IO, SPI, Serial)

• Cross-platform (Windows, Linux, MacOS, BSD)

• Supports Python 2.7 & 3.5+

• Comprehensive documentation and unit test suite

Usage Example

from usb_iss import UsbIss, defs

# Configure I2C mode

iss = UsbIss()
iss.open("COM3")
iss.setup_i2c()

# Write and read back some data
# NOTE: I2C methods use 7-bit device addresses (0x00 - 0x7F)

iss.i2c.write(0x62, 0, [0, 1, 2]);
data = iss.i2c.read(0x62, 0, 3)

print(data)
# [0, 1, 2]

Installing

pip install usb-iss

This package was created with Cookiecutter and the audreyr/cookiecutter-pypackage project template.

2.0.1 (2021-01-21)

• Add serial+I2C operating modes to read_iss_mode()

2.0.0 (2019-11-04)

• BREAKING CHANGE: Use 7-bit I2C device addresses

1.0.0 (2019-10-16)

• BREAKING CHANGE: Remember the previous IO state in the setup_* methods (thanks SamP20)

• BREAKING CHANGE: Improve the serial mode API

• Add verbose logging option

0.3.1 (2018-07-02)

• Fix Python2 serial interface

0.3.0 (2018-05-28)

• Add SPI support

• Add Serial UART support

• Improve test coverage

0.2.4 (2018-05-23)

• Add SPI, Serial and IO setup methods

0.2.3 (2018-05-22)

• Fix and test Travis PyPI auto-deploy

0.2.0 (2018-05-21)

• Generate documentation

• Add dummy driver option for test purposes

• Configure I/O as input by default

• Add i2c.read/write aliases for read_ad1/write_ad1

• Update setup_i2c to split out clk_khz and use_i2c_hardware parameters

0.1.0 (2018-04-19)

• Initial release
