vardbg
A simple Python debugger and profiler that generates animated visualizations of program flow.
Python 3.6 or newer is required due to the use of f-strings.
This project was created during Google Code-in 2019 for CCExtractor Development.
Features
- Tracking the history of each variable and its contents
- Tracking elements within containers (lists, sets, dicts, etc.)
- Ignoring specific variables
- Profiling the execution of each line
- Summarizing all variables and execution times after execution
- Passing arguments to debugged programs
- Exporting execution history in JSON format and replaying (including program output)
- Creating videos that show program flow, execution times, variables (with relationships), and output
- Writing videos in MP4, GIF, and WebP formats

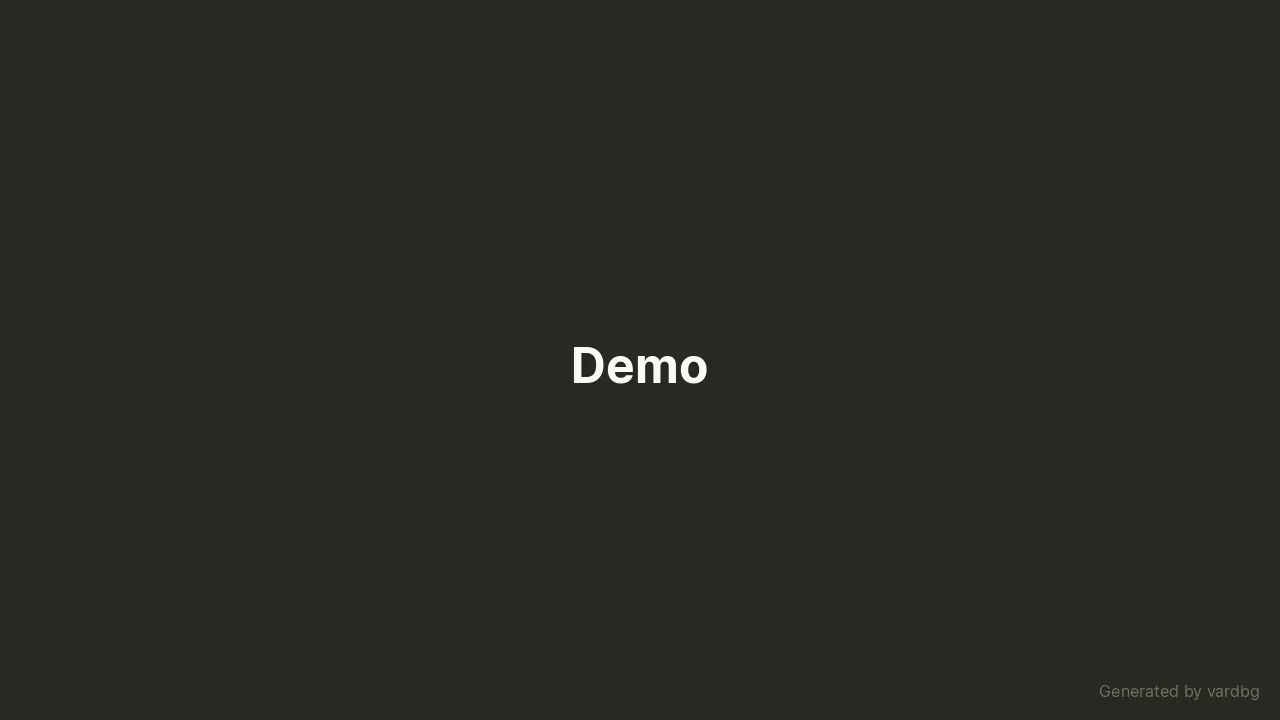

Demo
Installation
The latest tagged version can be obtained from PyPI:
pip install vardbg
Usage
All of the program's options are documented in the usage help:
$ vardbg --help
usage: vardbg [-h] [-f [FILE]] [-n [FUNCTION]] [-o [OUTPUT_FILE]] [-v [PATH]] [-c [CONFIG]]
[-a [ARGS [ARGS ...]]] [-p] [-P]
A simple debugger that traces local variable changes, lines, and times.
optional arguments:
-h, --help show this help message and exit
-f [FILE], --file [FILE]
Python file to debug, or JSON result file to read
-n [FUNCTION], --function [FUNCTION]
function to run from the given file (if applicable)
-o [OUTPUT_FILE], --output-file [OUTPUT_FILE]
path to write JSON output file to, default debug_results.json (will be truncated if it
already exists and created otherwise)
-v [PATH], --video [PATH]
path to write a video representation of the program execution to (MP4 and GIF formats
are supported, depending on file extension)
-c [CONFIG], --video-config [CONFIG]
path to the TOML config for the video output format, default video.toml
-a [ARGS [ARGS ...]], --args [ARGS [ARGS ...]]
list of arguments to pass to the running program
-p, --absolute-paths use absolute paths instead of relative ones
-P, --disable-live-profiler
disable live profiler output during execution
For example, this command will debug the function quick_sort
from the file sort.py
with the arguments 9 3 5 1
and create a JSON file called sort1.json
:
vardbg -f sort.py -n quick_sort -o sort1.json -a 9 3 5 1
A video can then be generated from the above JSON:
vardbg -f sort1.json -v sort_vis.mp4
It is possible to generate videos live while running the debugged program, but this is discouraged because the overhead of video creation inflates execution times greatly and thus ruins profiler results. However, if profiling is not important to you, it is a valid use case.
Comments
Special comments can be added to lines of code that define variables to control how vardbg handles said variable:
# vardbg: ignore
— do not display this variable or track its values# vardbg: ref lst[i]
— treat variablei
as the index/key of an element in containerlst
(only shown in videos)
Contributing
Feel free to contribute to this project! You can add features, fix bugs, or make any other improvements you see fit. We just ask that you follow the code style guidelines to keep the code consistent and coherent. Once your contribution meets the guidelines, open a pull request to make things official.
