vaspvis 1.2.17

A highly flexible and customizable library for visualizing electronic structure data from VASP calculations

vaspvis

A highly flexible and customizable library for visualizing electronic structure data from VASP calculations.

Find the full documentation here or by clicking the docs icon below.

Usage

This package was designed to give VASP users a flexible and easy to understand method for generating a wide variaty of band structures and density of states plots. There are four main modules in this package:

• Band
• Dos
• standard
• utils

The Band and Dos modules allow for the highest level of flexibility because the user needs to pass in their own matplotlib axis, letting the user completely design the external appearence of their plot. The Band and Dos modules will then parse the VASP output data and append the it to the axis.

The standard module uses the Band and Dos modules internally and was designed for those people who are not familiar with matplotlib or don't need to completely customize their own figure. There are a total of 48 different styles of plots to choose from in this module. It gives the user the capability to project onto any orbital, any atom, or any element in their structure, as well as individual orbitals on any atom or element. There are also options for spin polarized band structures and density of states as well, letting the user make intricate plots with only a few lines of code.

The utils module is used to generate files for band unfolding calculations.

Installation

pip install vaspvis

How to Cite

To cite VaspVis please reference the following paper:

https://link.aps.org/doi/10.1103/PhysRevMaterials.5.064606

Loading Data

from vaspvis import Band, Dos

# Non-HSE Calculation (plain band structure)
bs = Band(folder='path to vasp output folder')


# Band Calculation (projected band structure)
bs_projected = Band(folder='path to vasp output folder', projected=True)


# Density of states (projected or non-projected)
dos = Dos(folder='path to vasp output folder')

Important Note: This package parses the EIGENVAL, PROCAR, KPOINTS, POSCAR, and INCAR files, be sure that they are in the folder you load into vaspvis.

Important Note: For spin projected orbitals you must load the spin up and spin down chanels separately using the spin = 'up' or spin = 'down' options with loading data. Default is spin = 'up'.

Band Unfolding

Band unfolding is useful for visualizing band structures of supercells and slab structures. The method used for calculating the band unfolded structure requires an integer transformation matrix from the bulk structure. To convert the slab structure so it has an integer matrix, the convert_slab function can be used to generate the new slab structure and also return the transformation matrix (M). More information about the band unfolding method can be found here

from vaspvis.utils import convert_slab

# This function returns and prints out the transformation matrix (M)
M = convert_slab(
    bulk_path='POSCAR_bulk', # POSCAR of the primitive bulk structure
    slab_path='POSCAR_slab', # POSCAR of the slab structure
    index=[1,1,1], # Miller index of the given slab structure
)

To generate the KPOINTS file for the band unfolded calculation the generate_kpoints function can be used

from vaspvis.utils import generate_kpoints

high_symmetry_points = [
    [0.5,0.0,0.5], # X
    [0.0,0.0,0.0], # Gamma
    [0.5,0.0,0.5], # X
]

generate_kpoints(
    M=M, # M can be generated with the convert slab function
    high_symmetry_points=high_symmetry_points, # Special points
    n=50, # Number of segments between each special point
)

To plot the band structure the Band or standard module can be used. An example using the standard module is shown below.

from vaspvis import standard as st

band_folder = 'PATH_TO_VASP_FOLDER'

# Transformation matrix generated from convert_slab
M = [
    [0,1,-1],
    [1,-1,0],
    [-8,-8,-8]
]

high_symm_points = [
    [0.5, 0.0, 0.5], # X
    [0.0, 0.0, 0.0], # Gamma
    [0.5, 0.0, 0.5]  # X
]

# All other functions in the standard library work with band unfolding too.
st.band_plain(
    folder=band_folder,
    erange=[-4,0],
    unfold=True,
    kpath='XGX',
    high_symm_points=high_symm_points,
    n=50,
    M=M,
)

Examples

Band Structures

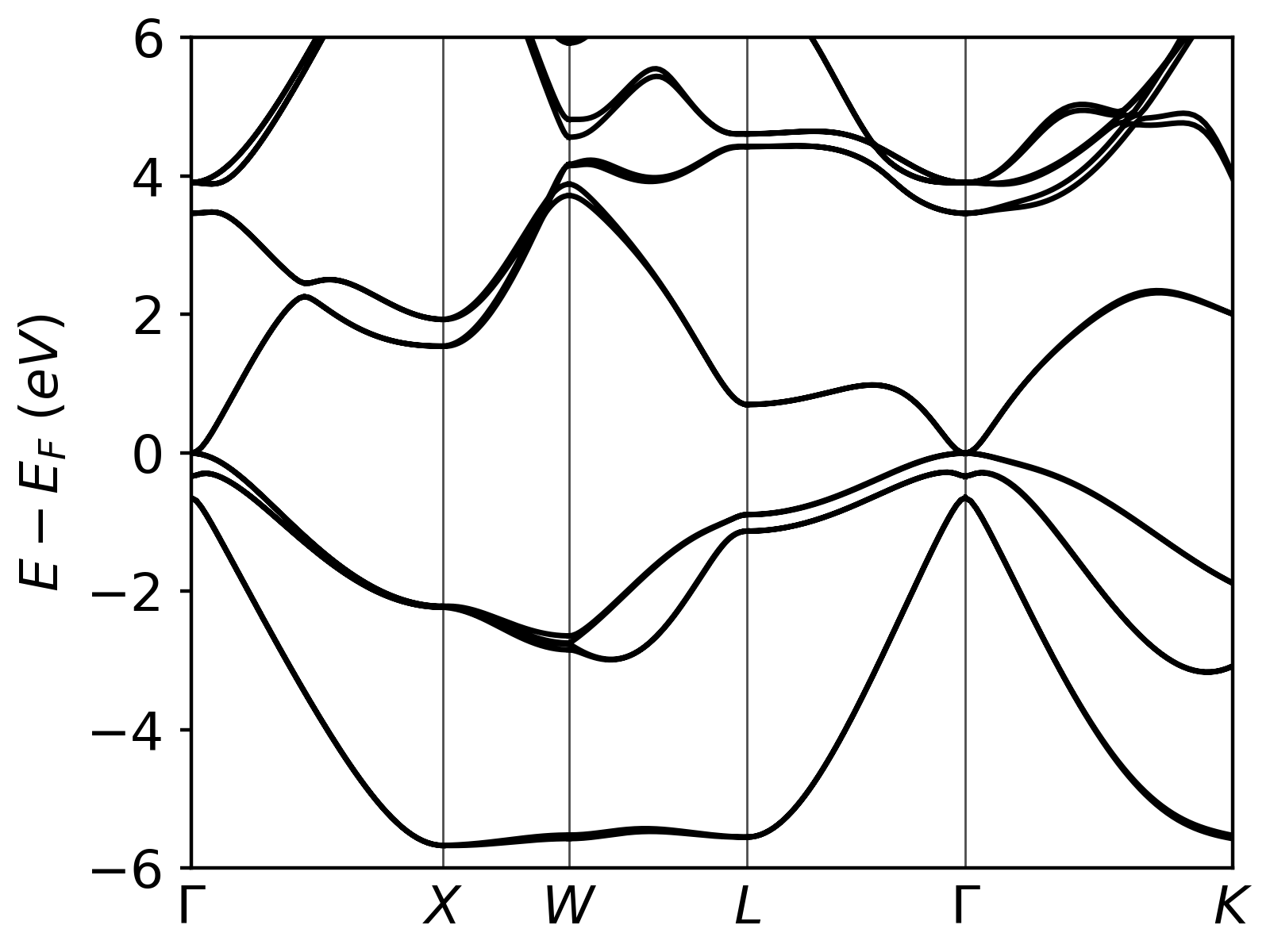

Plain Band Structure

from vaspvis import standard

standard.band_plain(
    folder=band_folder
)

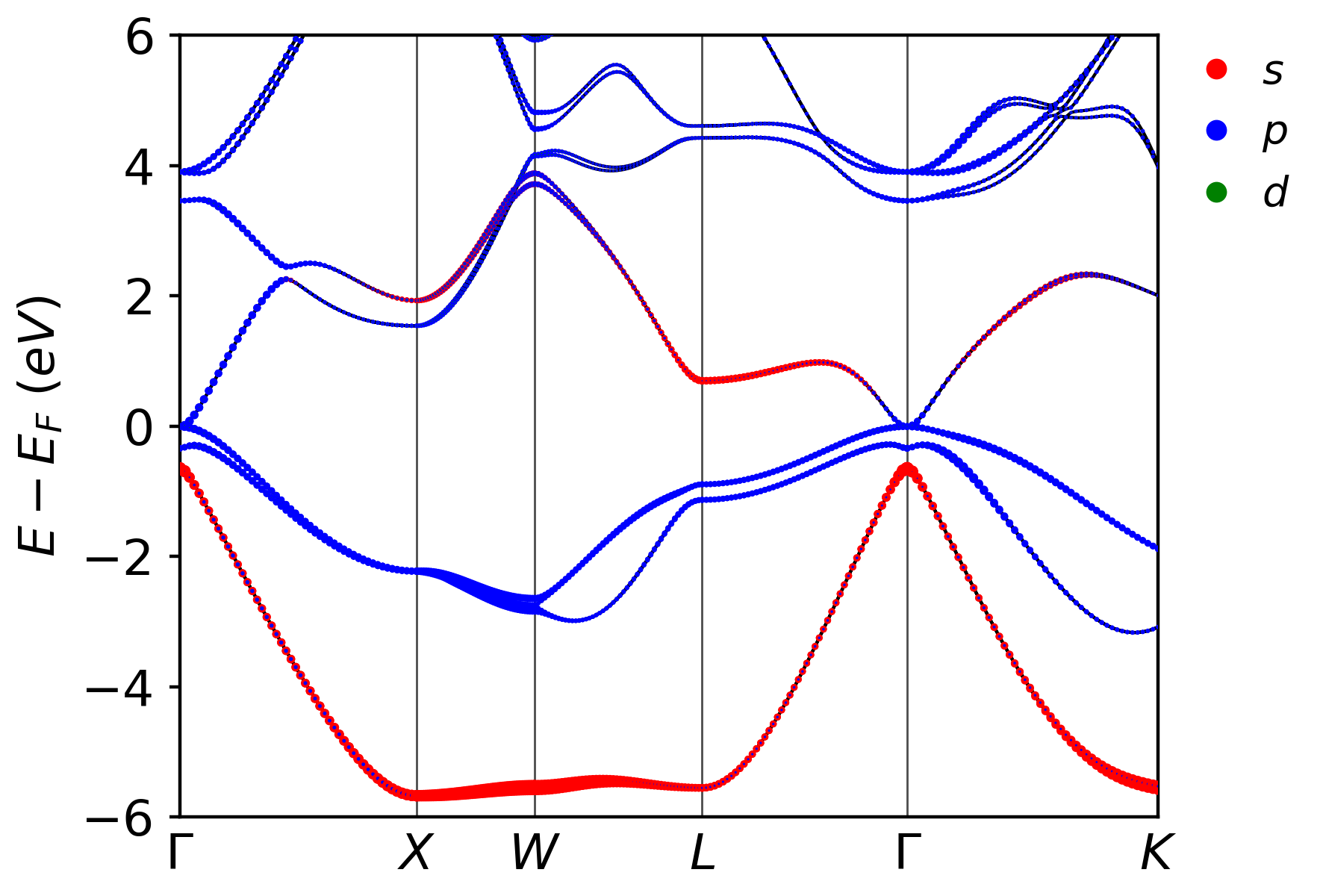

s, p, d Projected Band Structure

from vaspvis import standard

standard.band_spd(
    folder=band_folder
)

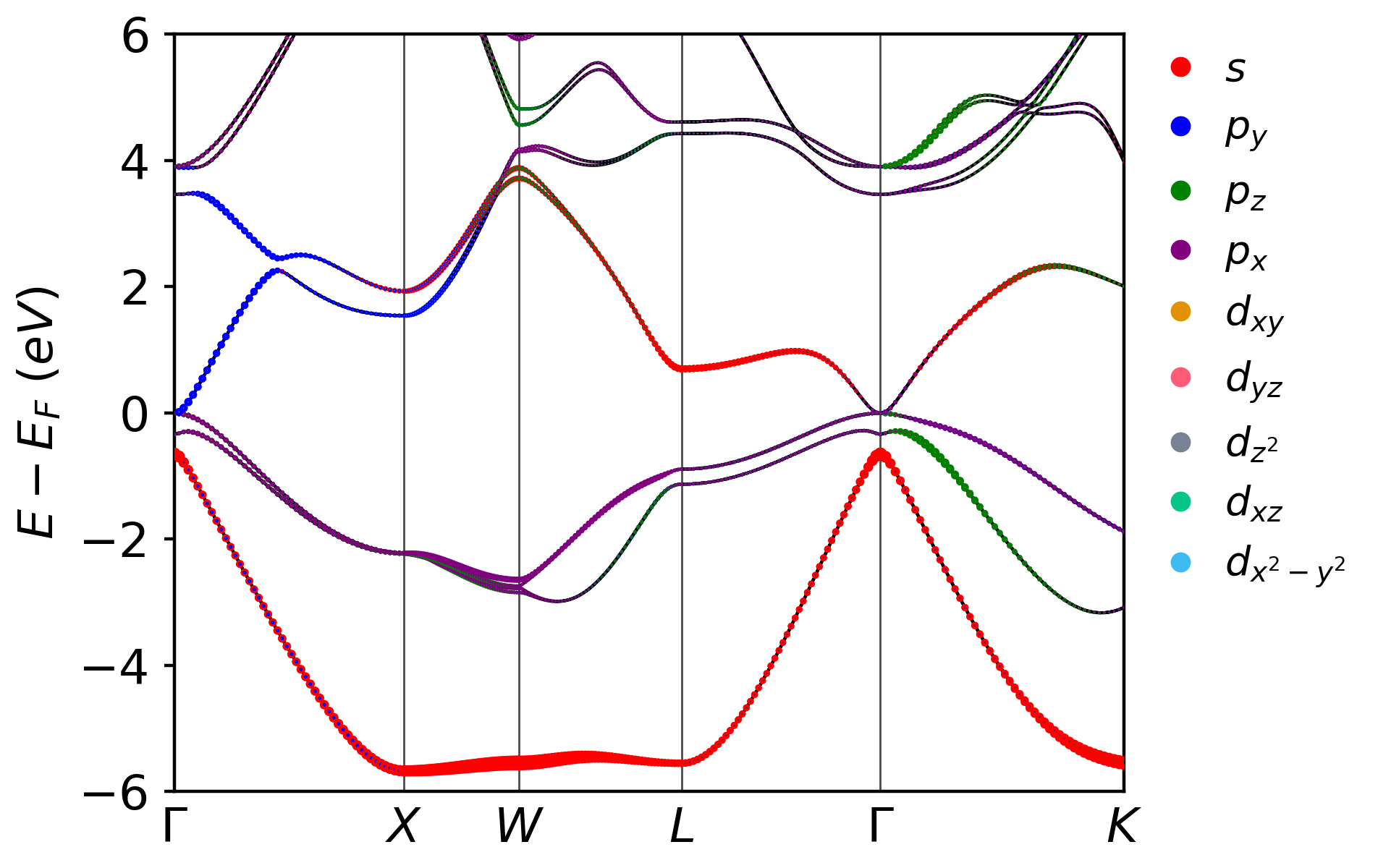

Orbital Projected Band Structure

from vaspvis import standard

standard.band_orbitals(
    folder=band_folder,
    orbitals=[0, 1, 2, 3, 4, 5, 6, 7, 8],
)

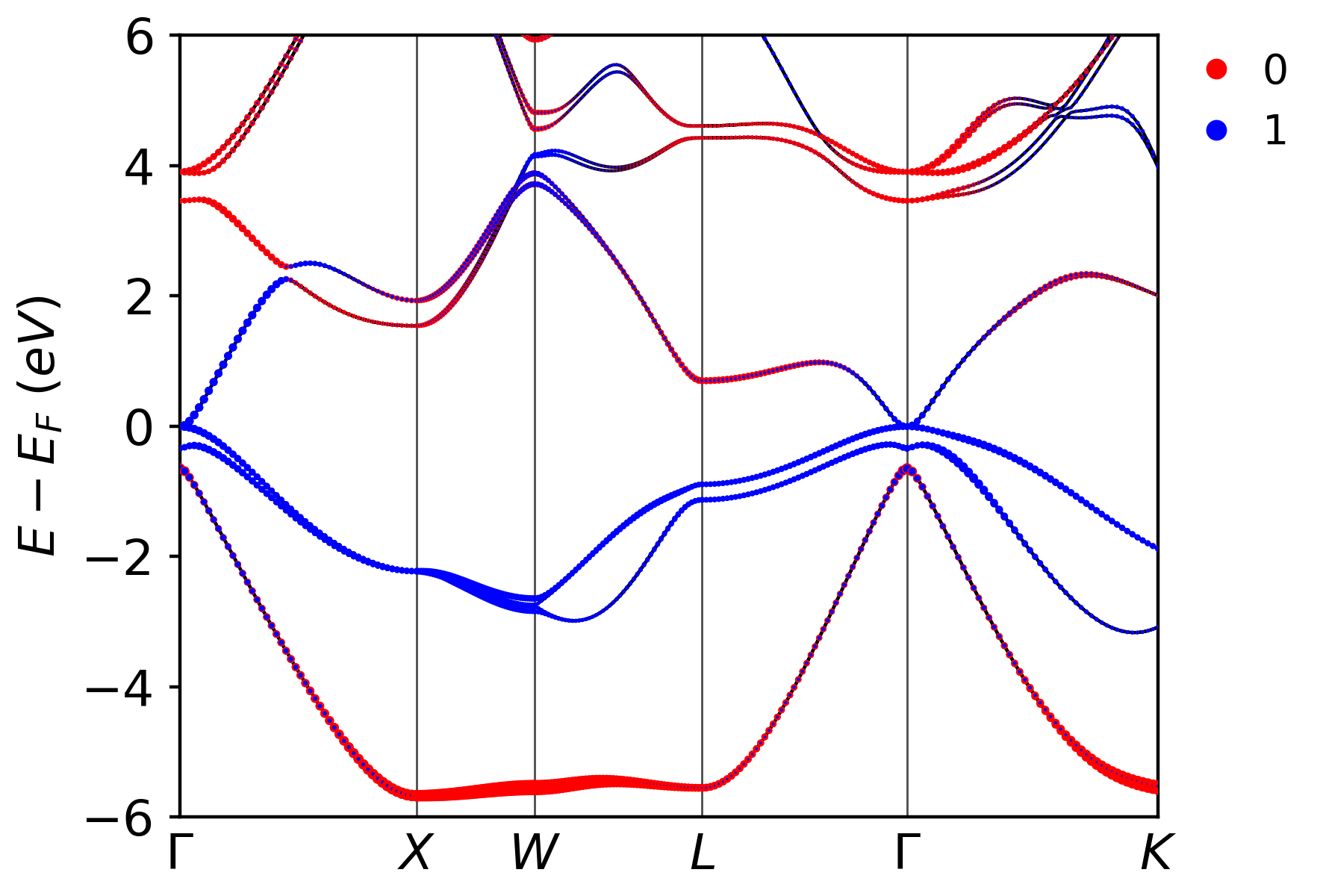

Atom Projected Band Structure

from vaspvis import standard

standard.band_atoms(
    folder=band_folder,
    atoms=[0, 1],
)

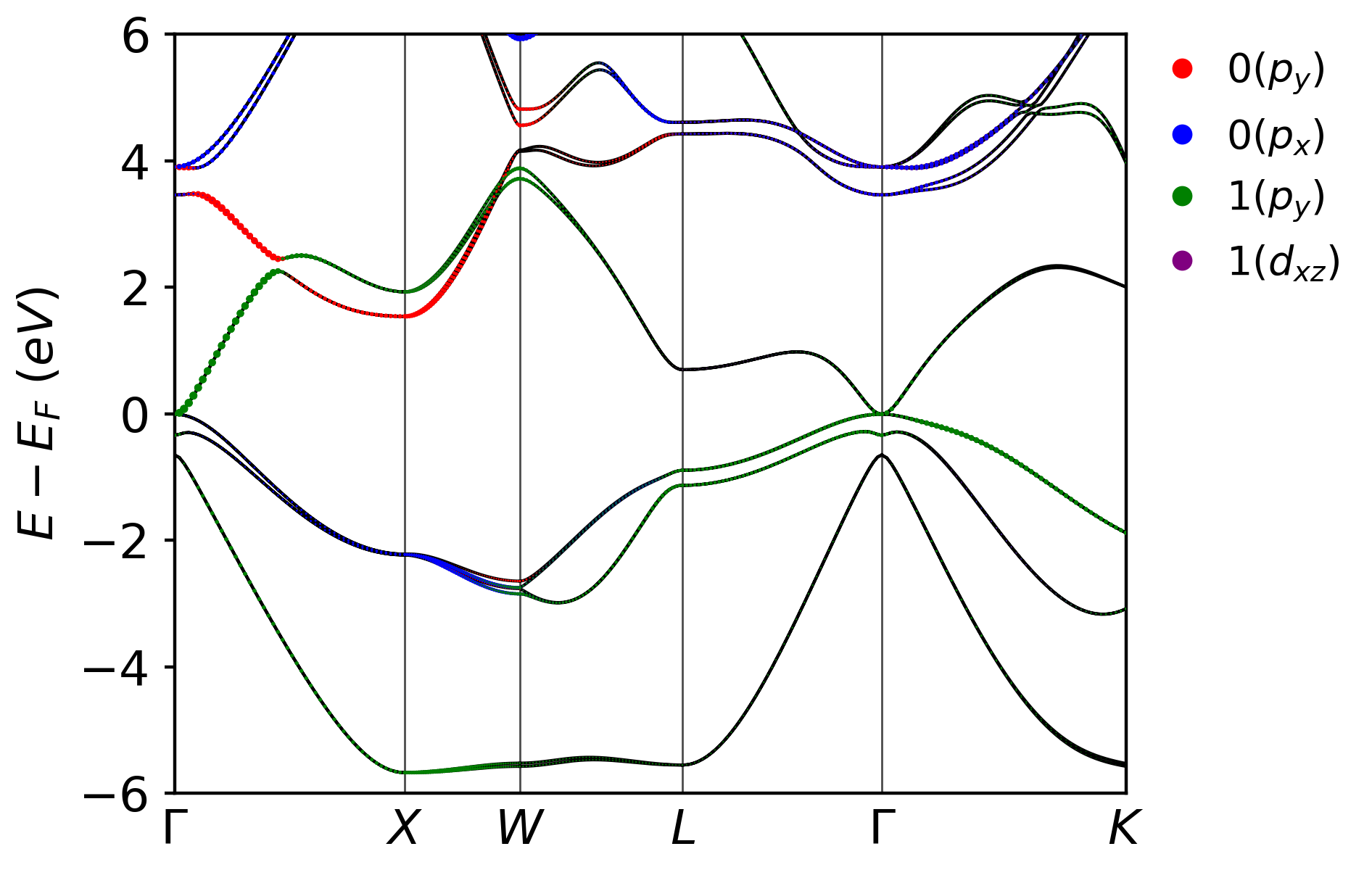

Atom-Orbtial Projected Band Structure

from vaspvis import standard

standard.band_atom_orbitals(
    folder=band_folder,
    atom_orbital_dict = {0:[1,3], 1:[1,7]}
)

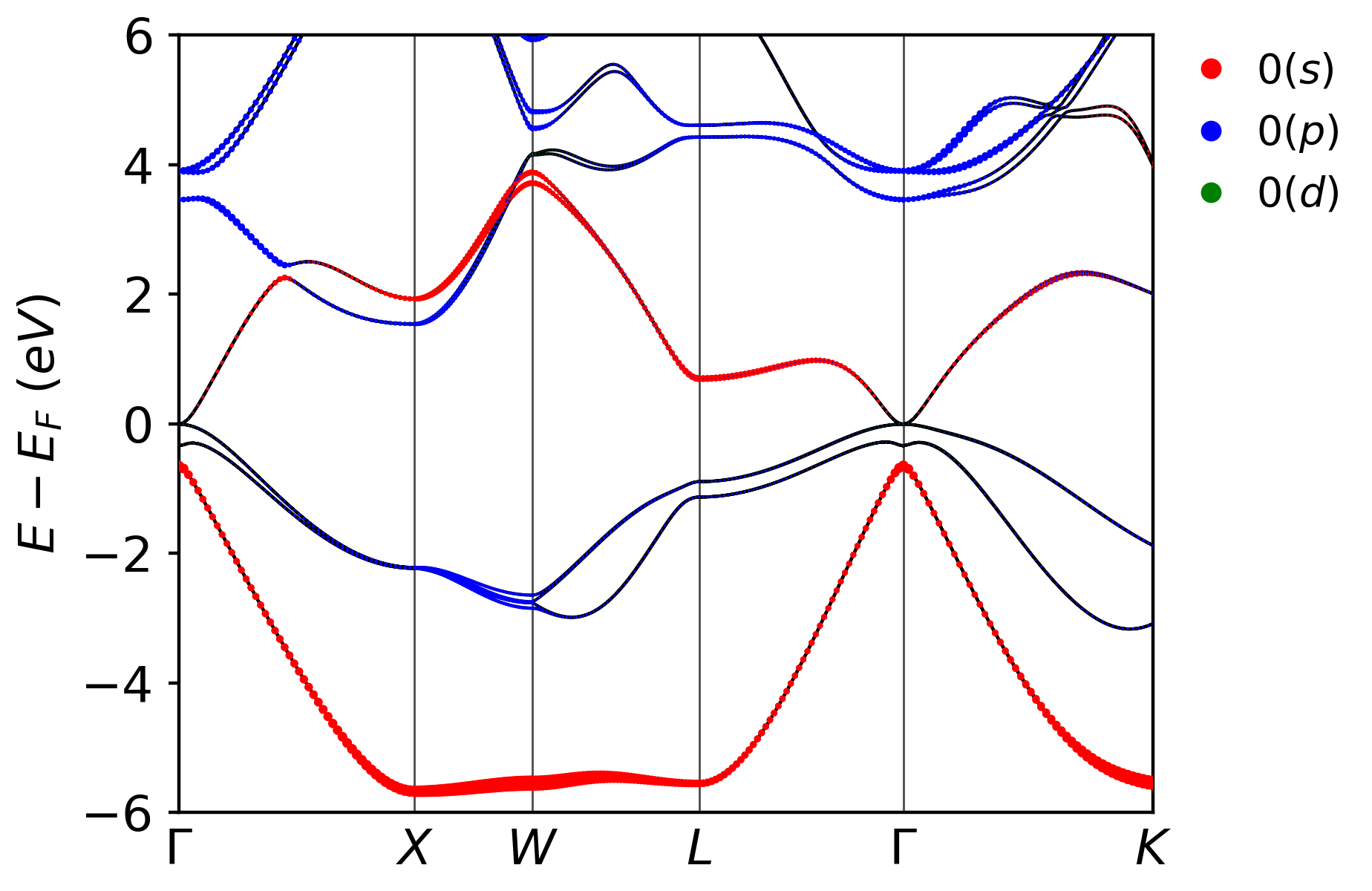

Atom s, p, d Projected Band Structure

from vaspvis import standard

standard.band_atom_spd(
    folder=band_folder,
    atom_spd_dict={0:'spd'},
)

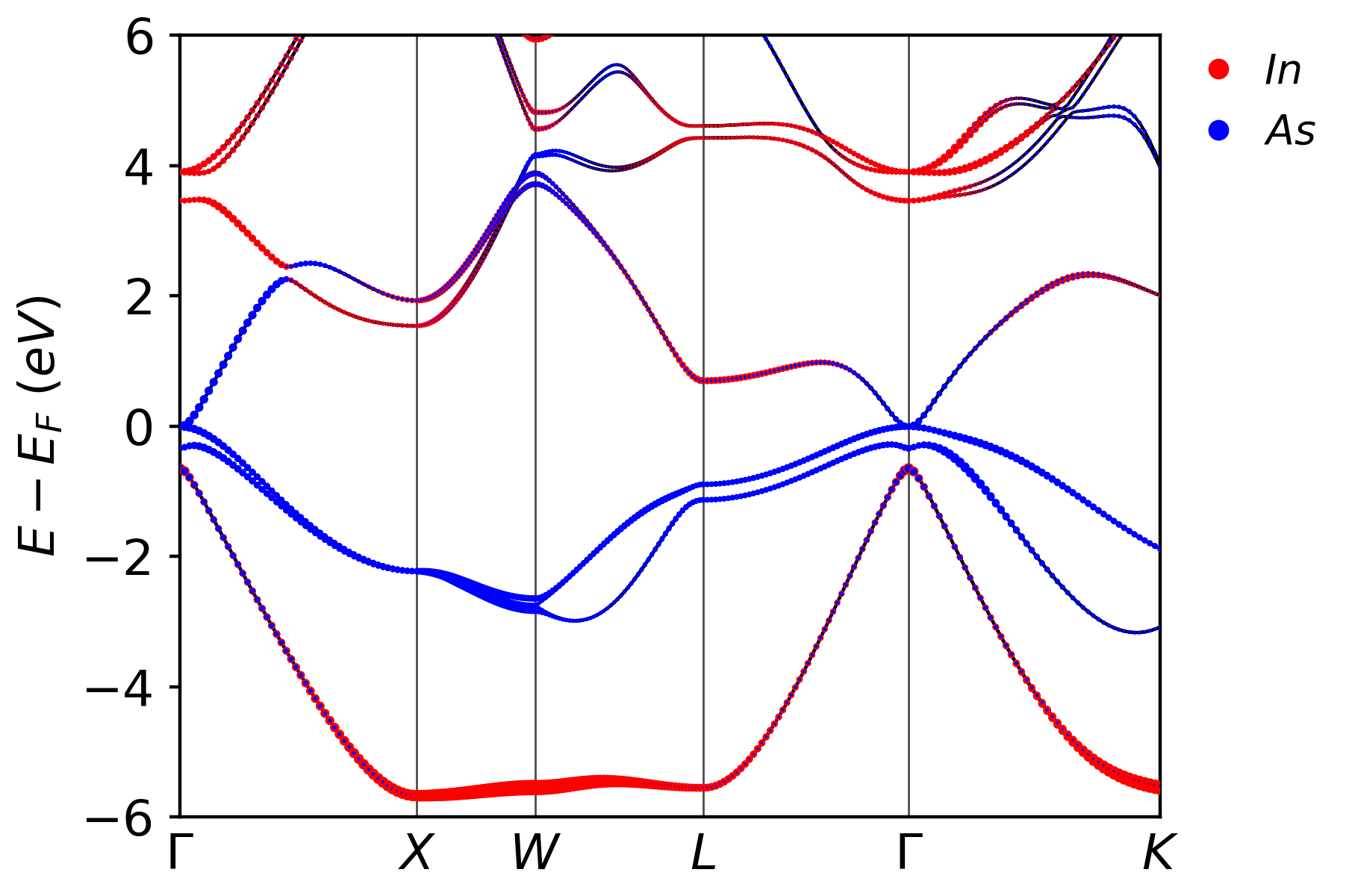

Element Projected Band Structure

from vaspvis import standard

standard.band_elements(
    folder=band_folder,
    elements=['In', 'As'],
)

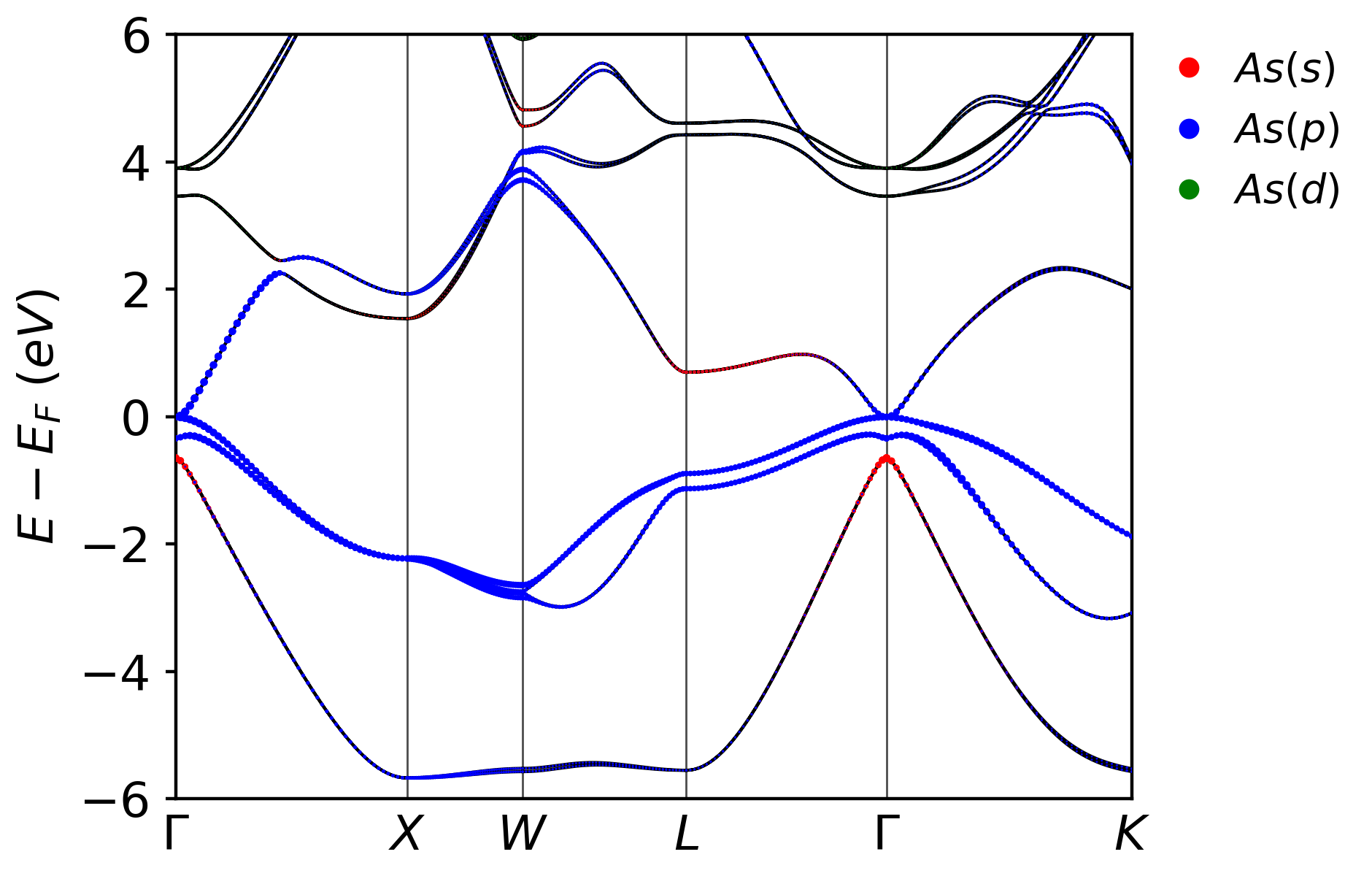

Element s, p, d Projected Band Structure

from vaspvis import standard

standard.band_element_spd(
    folder=band_folder,
    element_spd_dict={'As':'spd'},
)

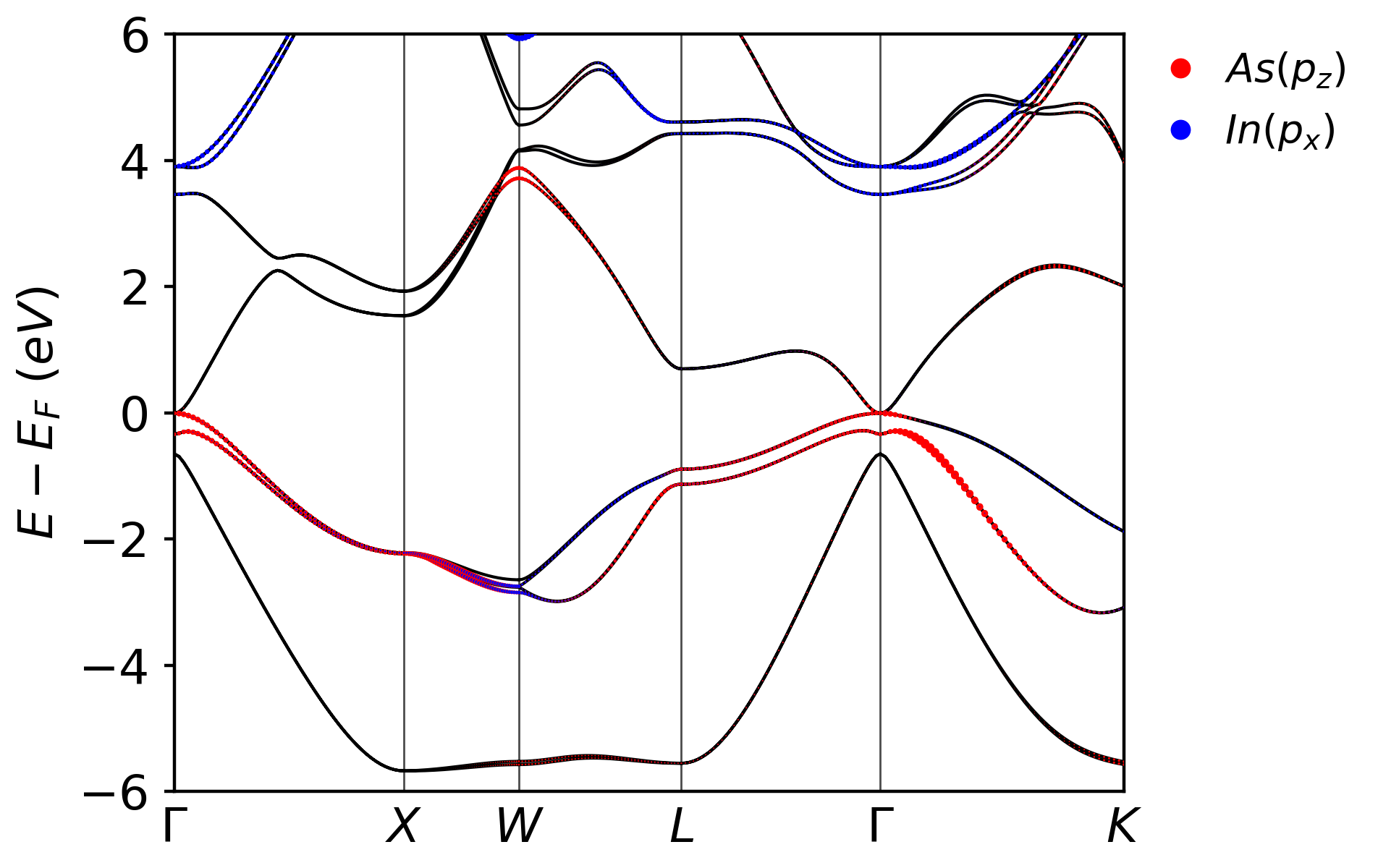

Element Orbital Projected Band Structure

from vaspvis import standard

standard.band_element_orbitals(
    folder=band_folder,
    element_orbital_dict={'As':[2], 'In':[3]},
)

Density of Statess

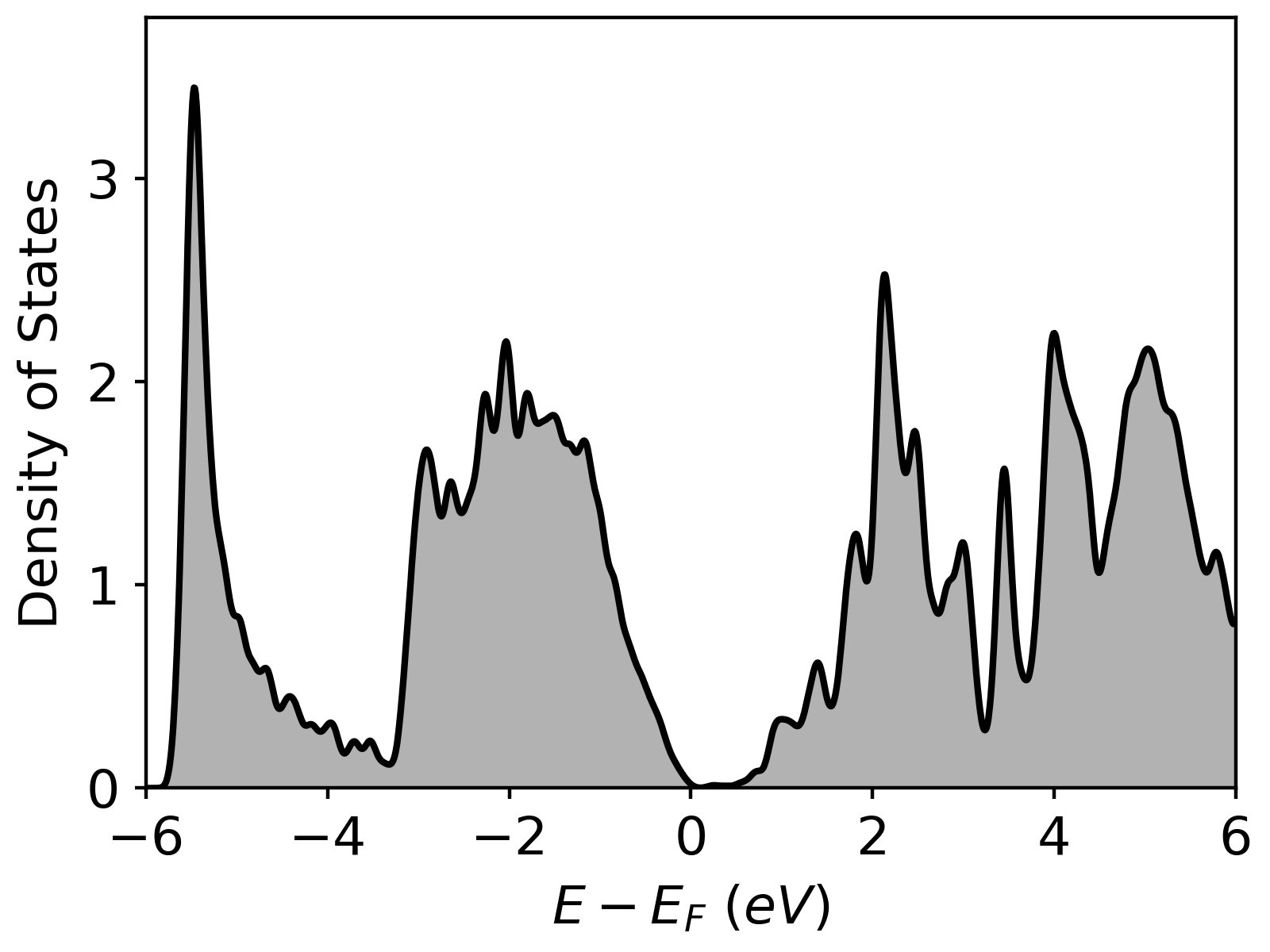

Plain Density of States

from vaspvis import standard

standard.dos_plain(
    folder=dos_folder,
    energyaxis='x',
)

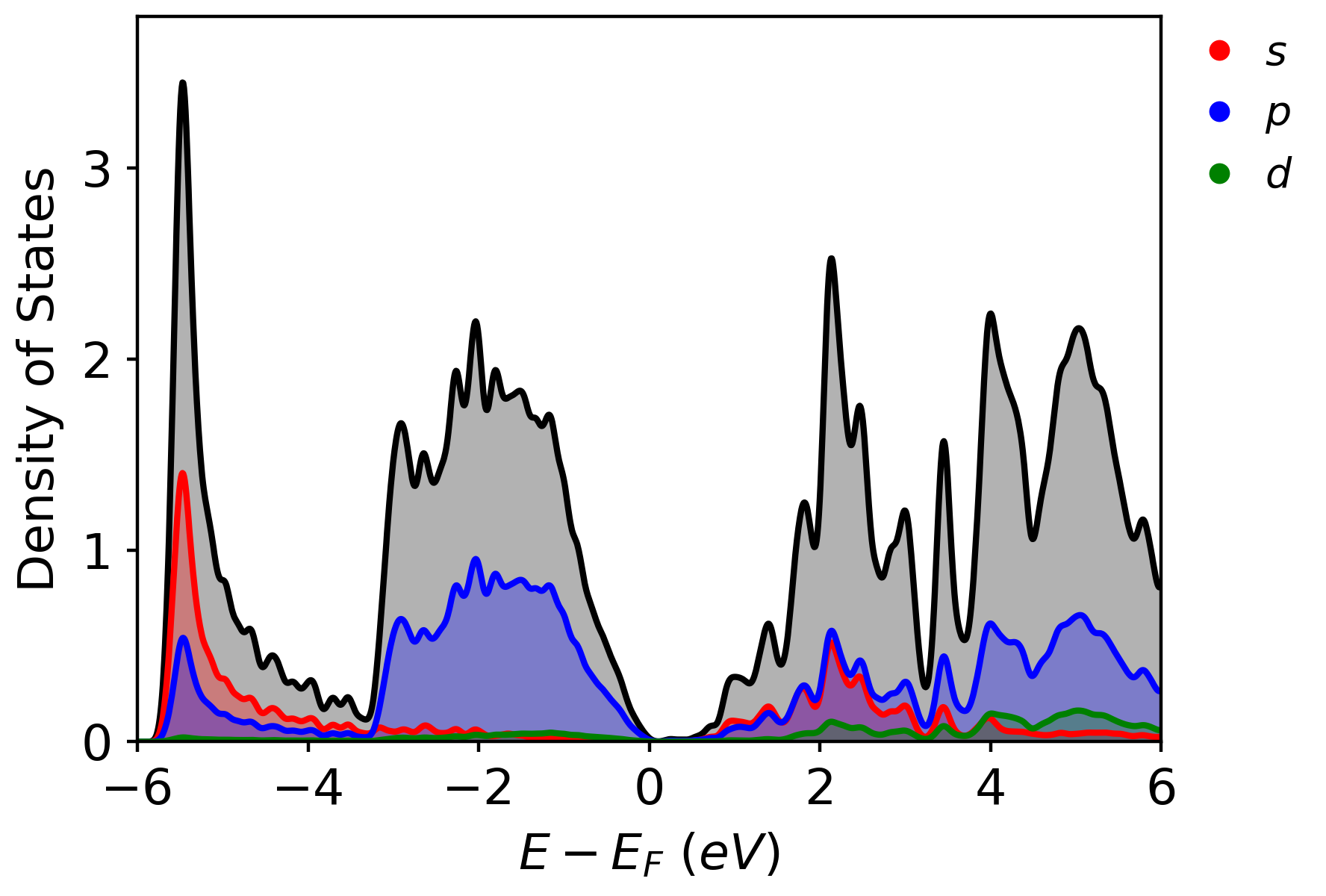

s, p, d Projected Density of States

from vaspvis import standard

standard.dos_spd(
    folder=dos_folder,
    energyaxis='x',
)

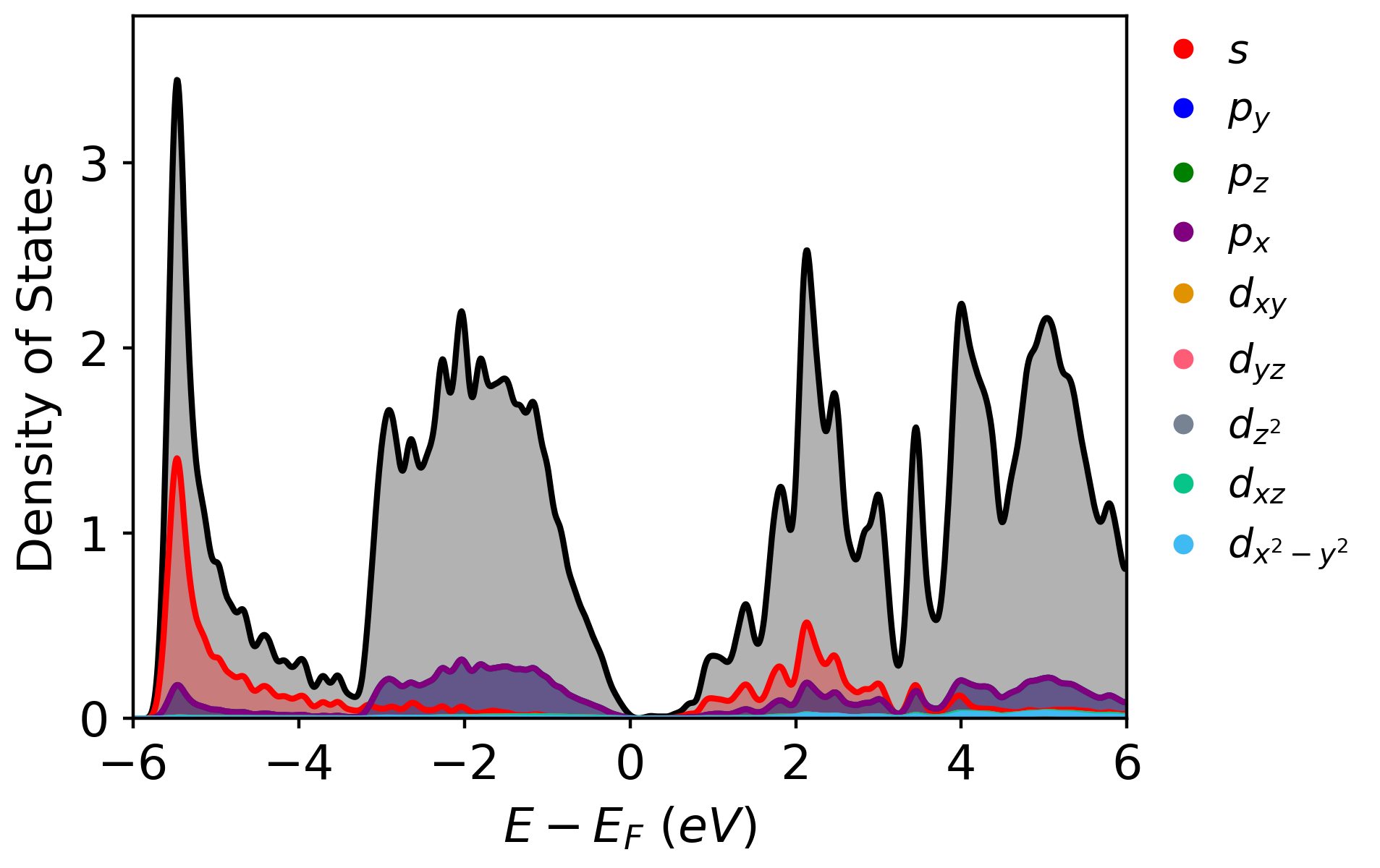

Orbital Projected Density of States

from vaspvis import standard

standard.dos_orbitals(
    folder=dos_folder,
    orbitals=[0, 1, 2, 3, 4, 5, 6, 7, 8],
    energyaxis='x',
)

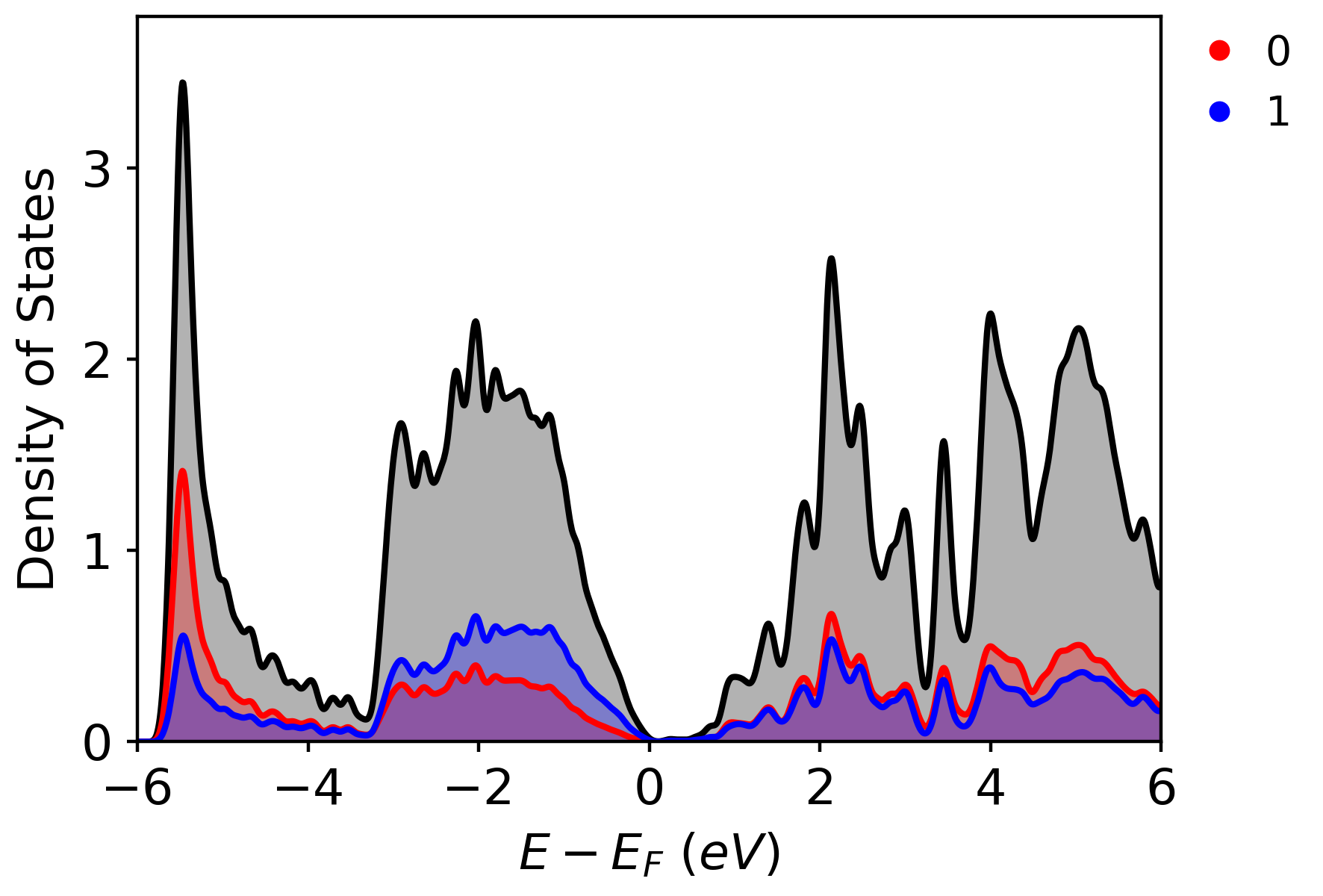

Atom Projected Density of States

from vaspvis import standard

standard.dos_atoms(
    folder=dos_folder,
    atoms=[0, 1],
    energyaxis='x',
)

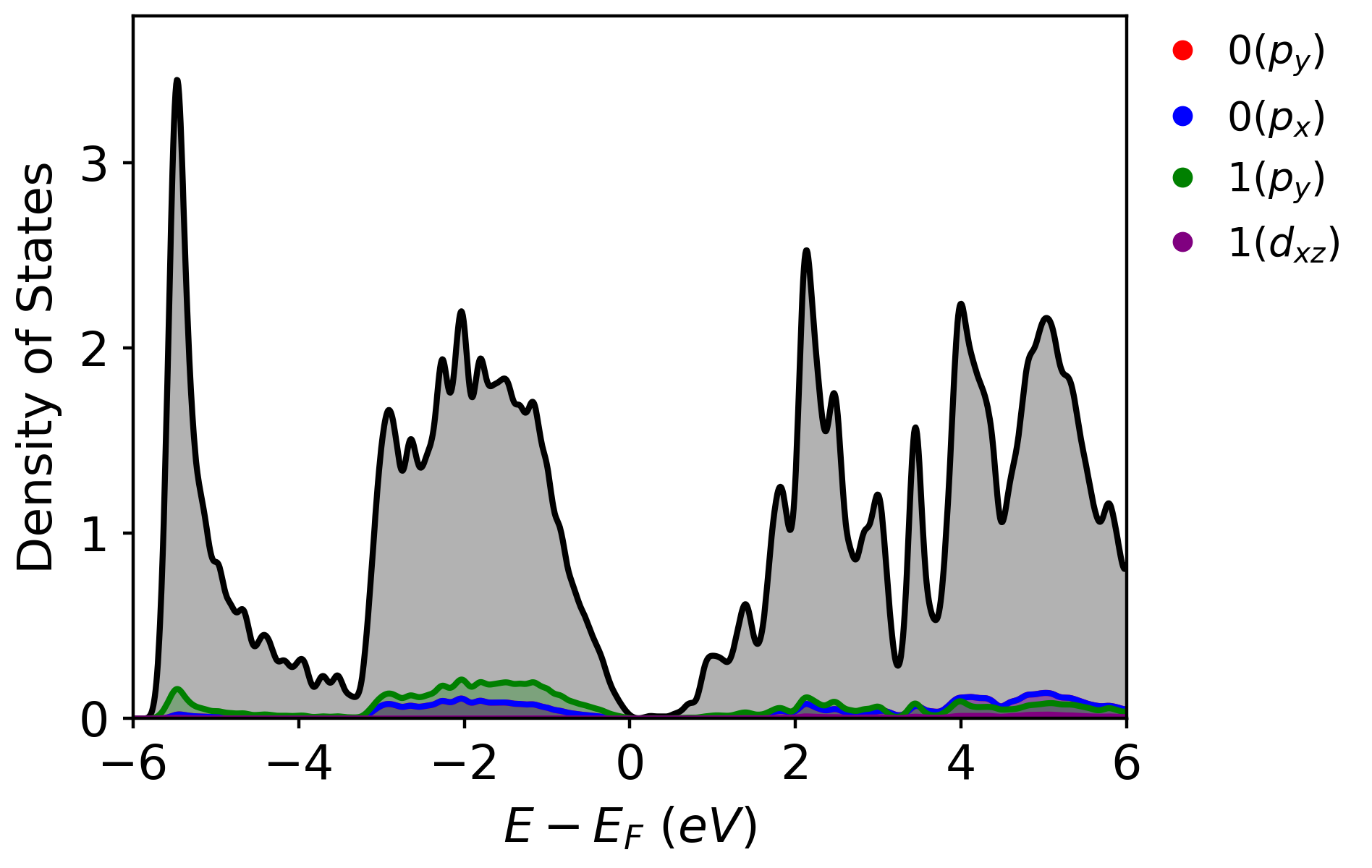

Atom-Orbtial Projected Density of States

from vaspvis import standard

standard.dos_atom_orbital(
    folder=dos_folder,
    atom_orbital_pairs=[[0,1], [0,3], [1, 1], [1,7]],
    energyaxis='x',
)

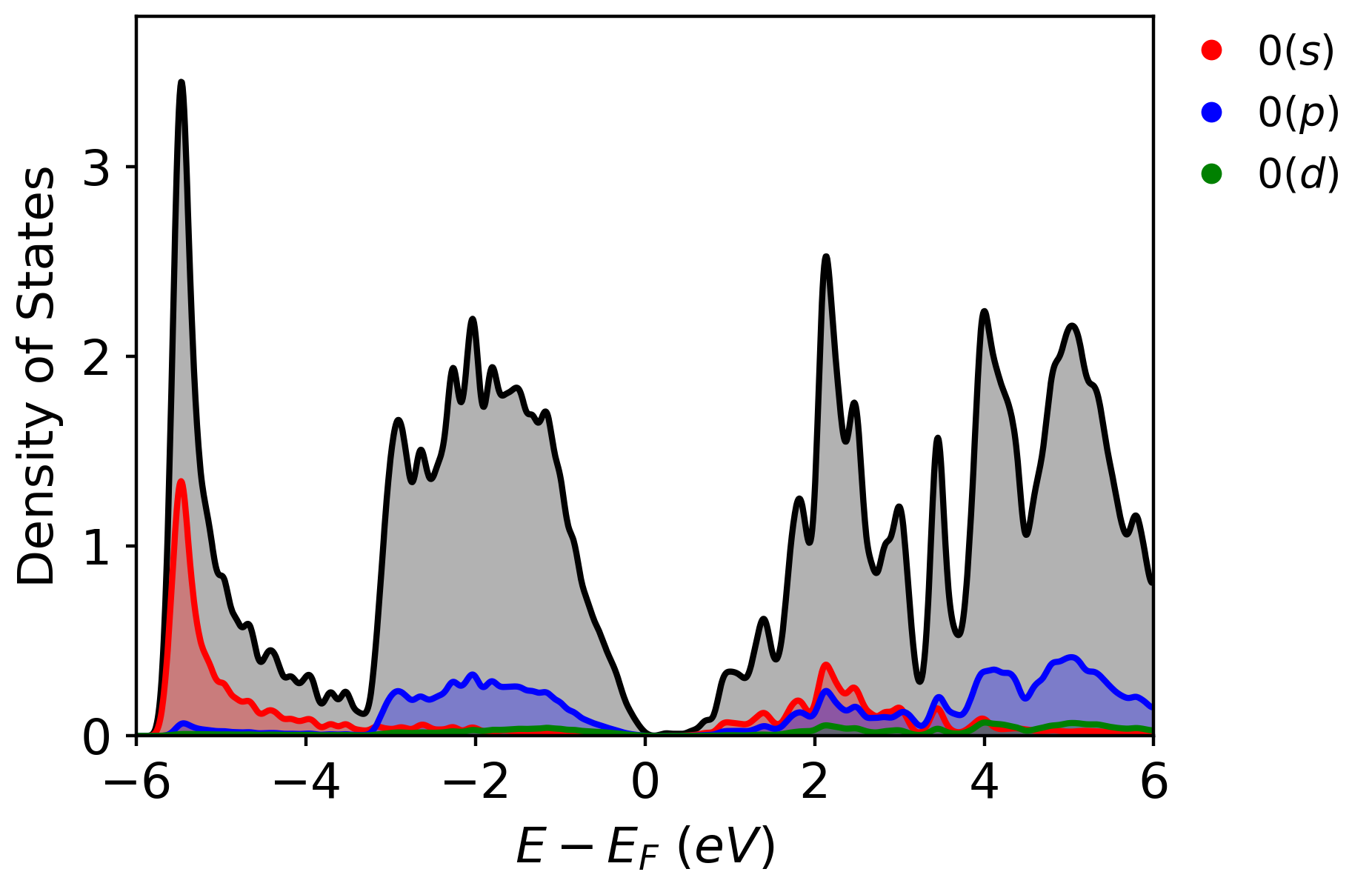

Atom s, p, d Projected Density of States

from vaspvis import standard

standard.dos_atom_orbital(
    folder=dos_folder,
    atom_orbital_pairs=[[0,1], [0,3], [1, 1], [1,7]],
    energyaxis='x',
)

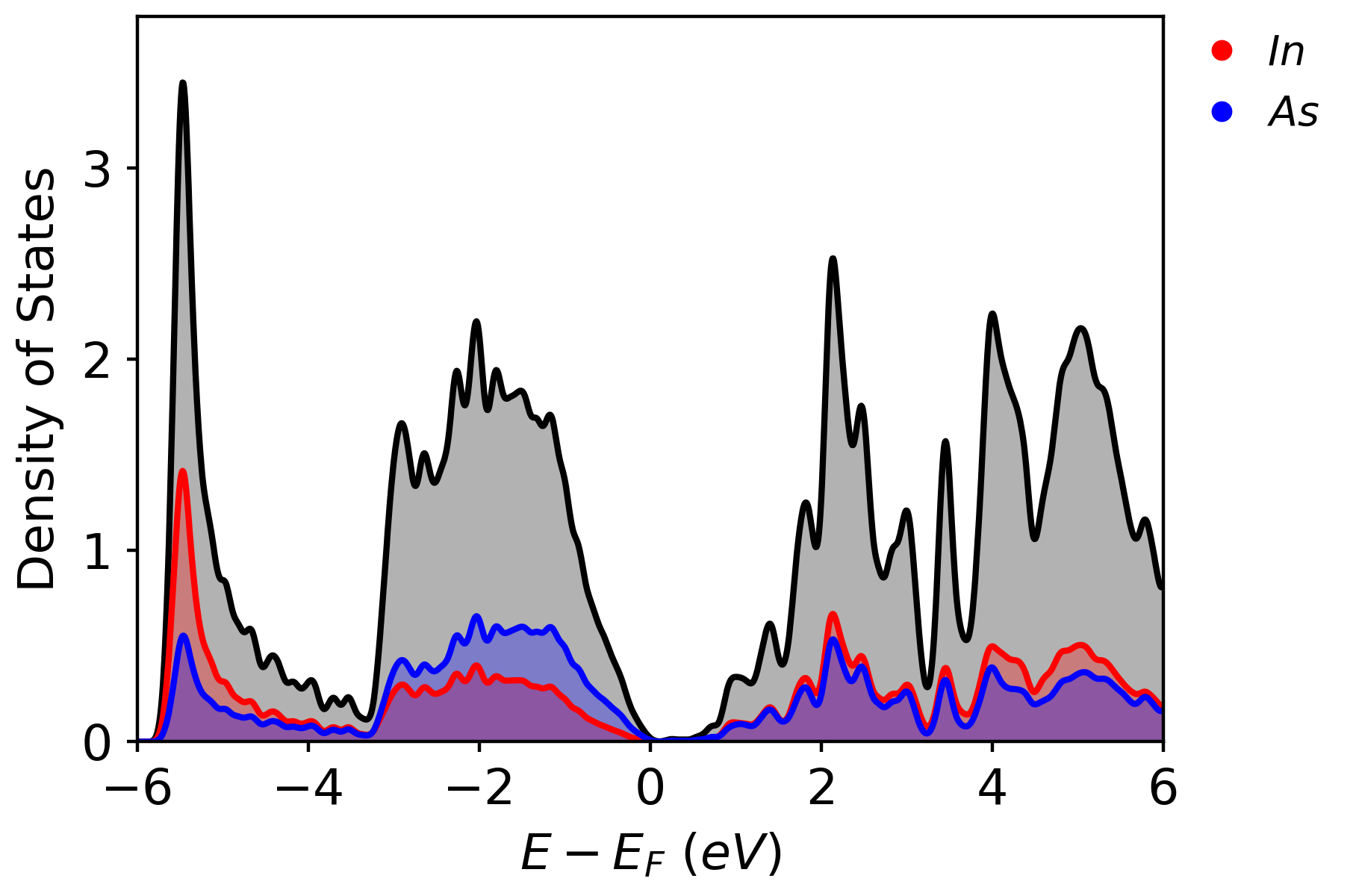

Element Projected Density of States

from vaspvis import standard

standard.dos_elements(
    folder=dos_folder,
    elements=['In', 'As'],
    energyaxis='x',
)

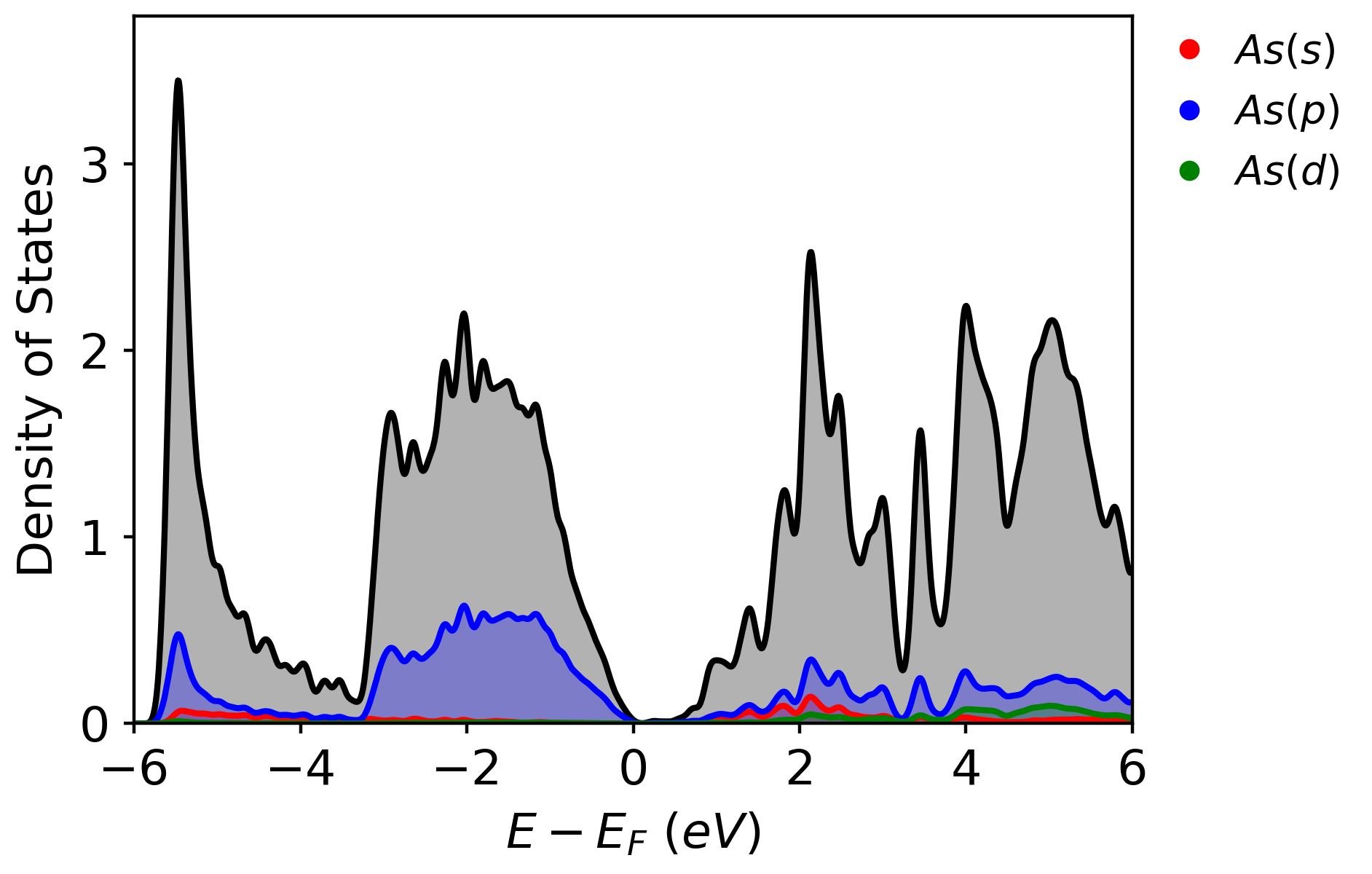

Element s, p, d Projected Density of States

from vaspvis import standard

standard.dos_element_spd(
    folder=dos_folder,
    elements=['As'],
    energyaxis='x',
)

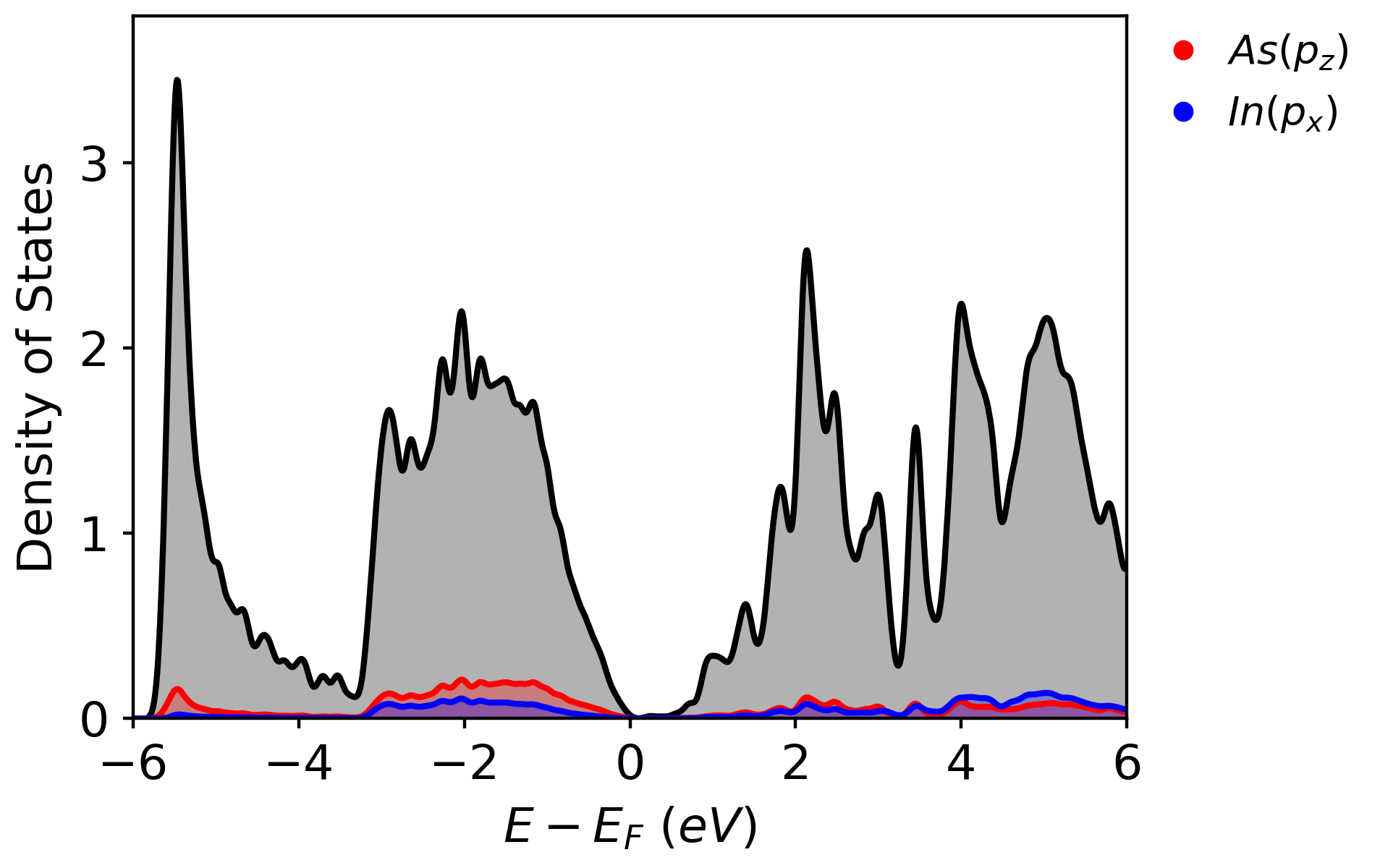

Element Orbital Projected Density of States

from vaspvis import standard

standard.dos_element_orbitals(
    folder=dos_folder,
    element_orbital_pairs=[['As', 2], ['In', 3]],
    energyaxis='x',
)

Band Structure / Density of Statess

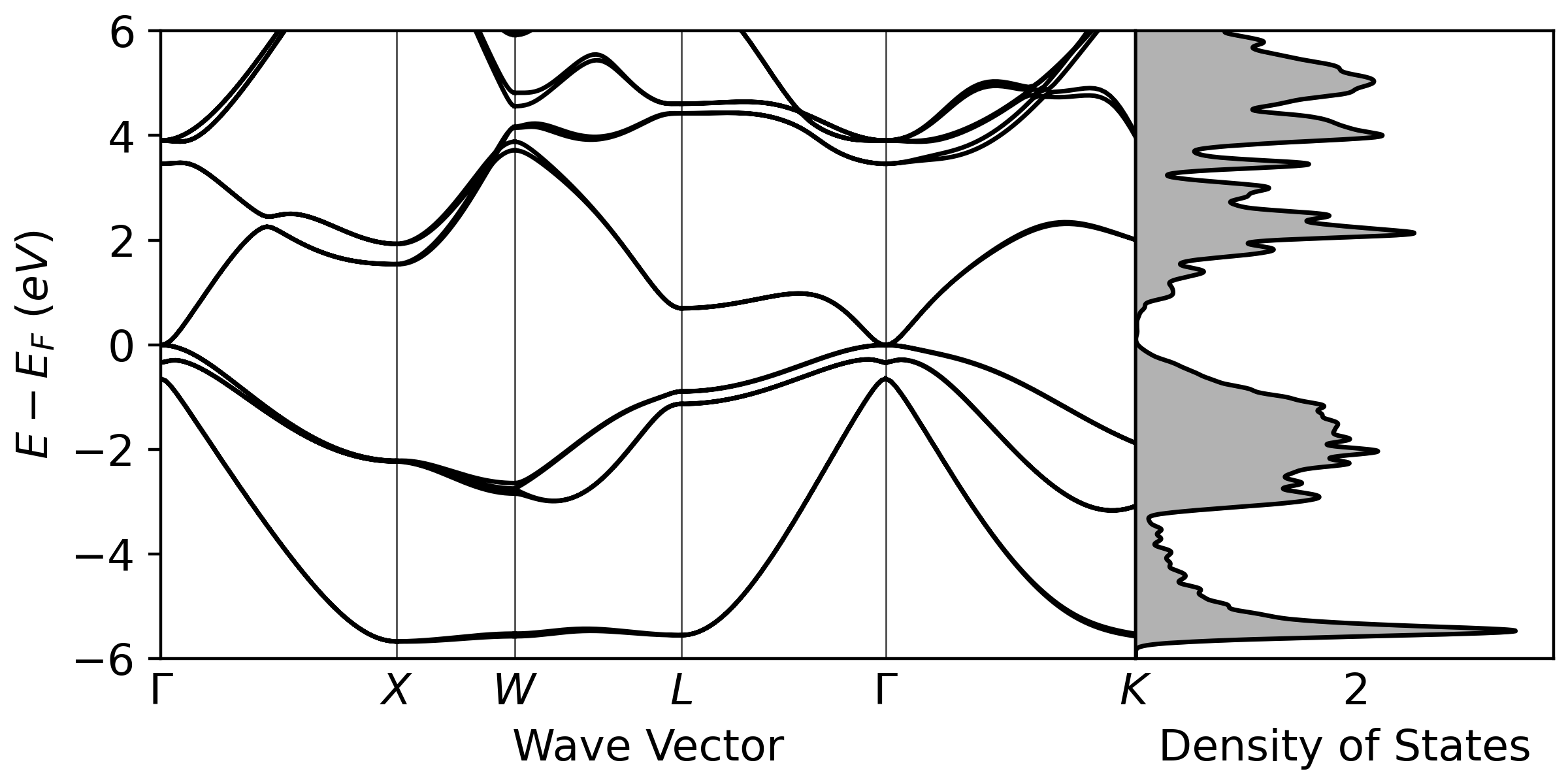

Plain Band Structure / Density of States

from vaspvis import standard

standard.band_dos_plain(
    band_folder=band_folder,
    dos_folder=dos_folder,
)

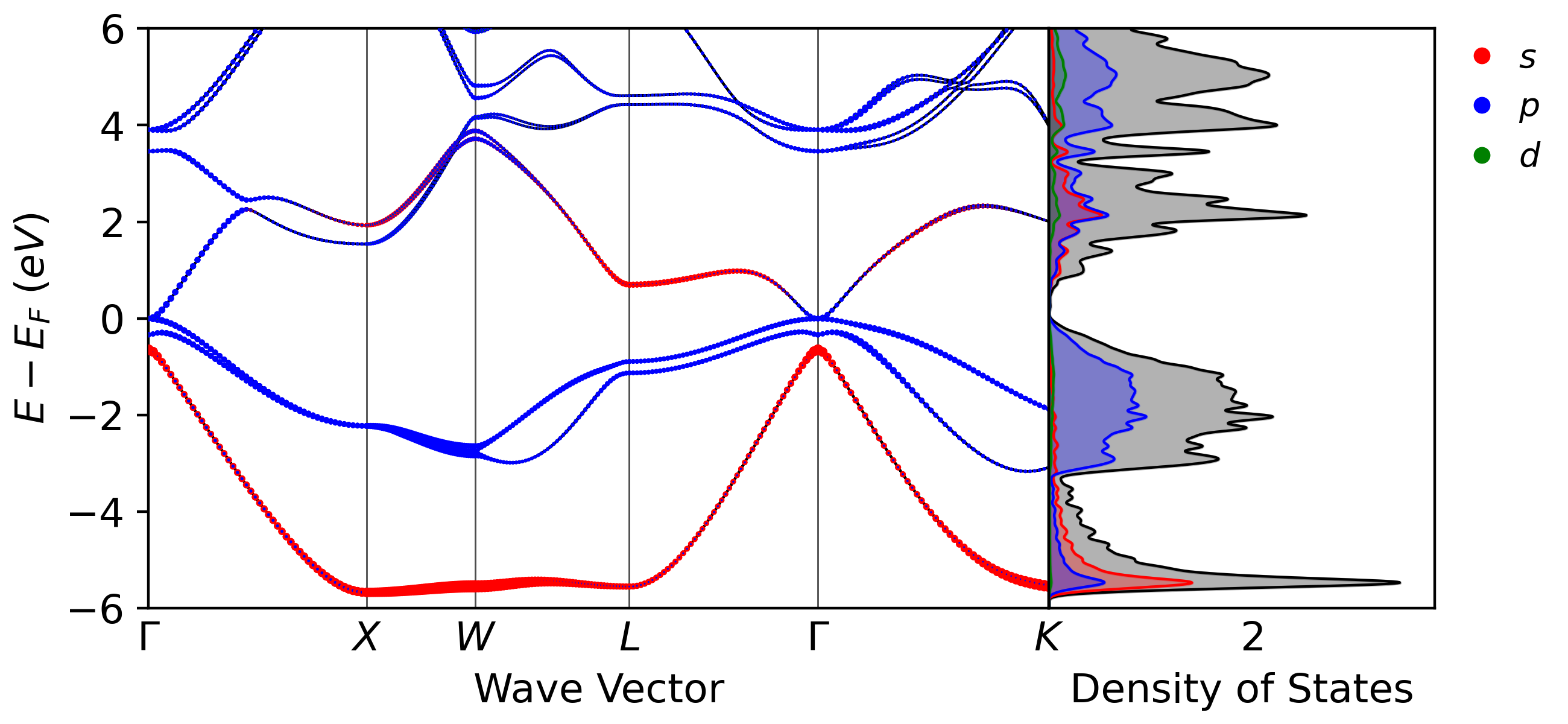

s, p, d Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_spd(
    band_folder=band_folder,
    dos_folder=dos_folder,
)

Orbital Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_orbitals(
    band_folder=band_folder,
    dos_folder=dos_folder,
    orbitals=[0, 1, 2, 3, 4, 5, 6, 7, 8],
)

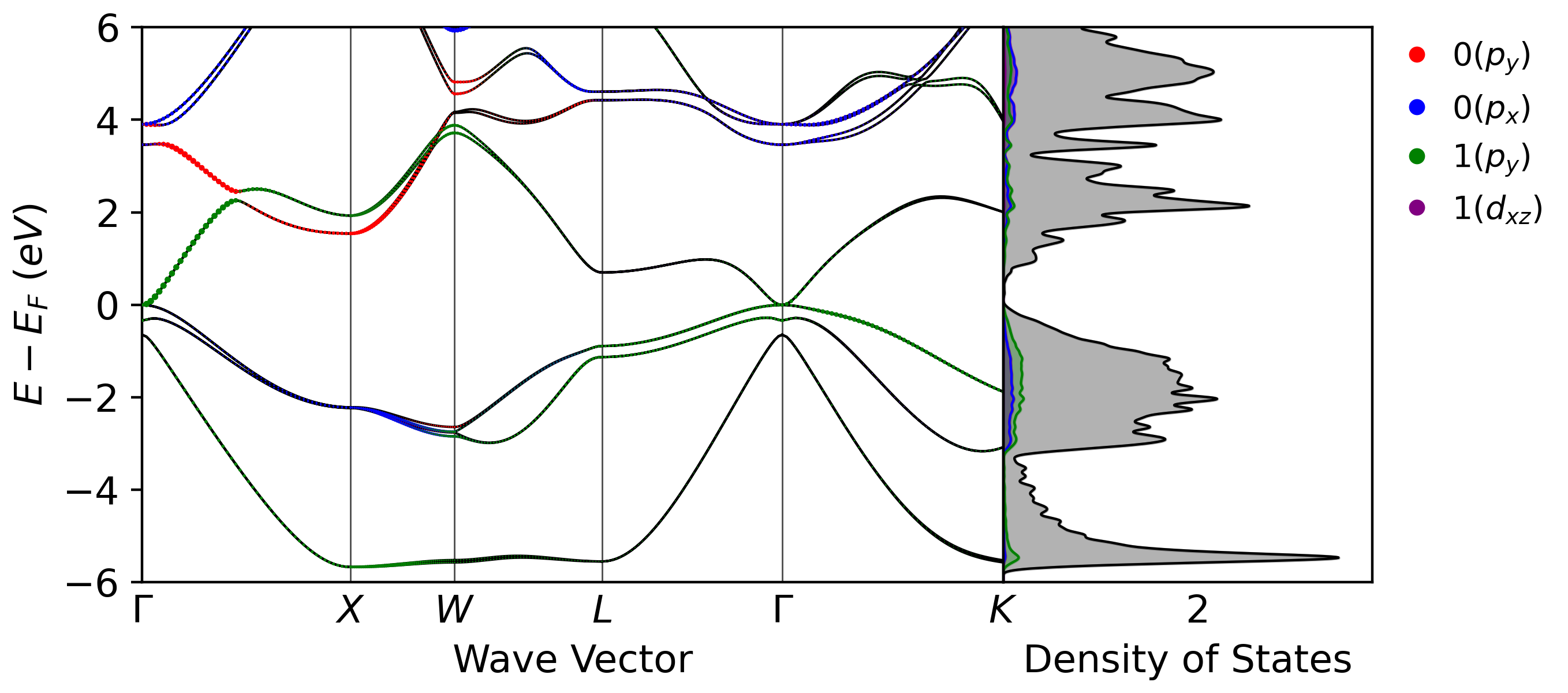

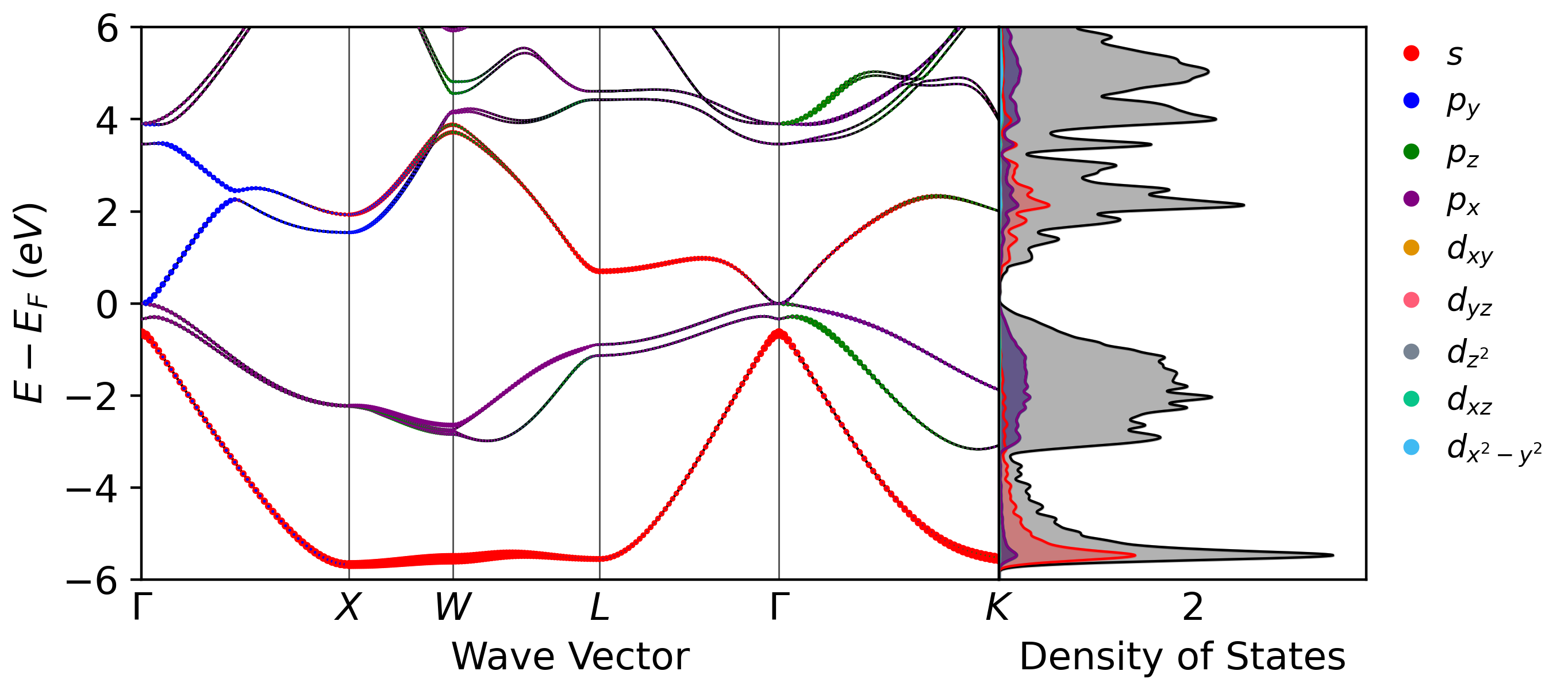

Atom-Orbtial Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_atom_orbital(
    band_folder=band_folder,
    dos_folder=dos_folder,
    atom_orbital_pairs=[[0,1], [0,3], [1, 1], [1,7]]
)

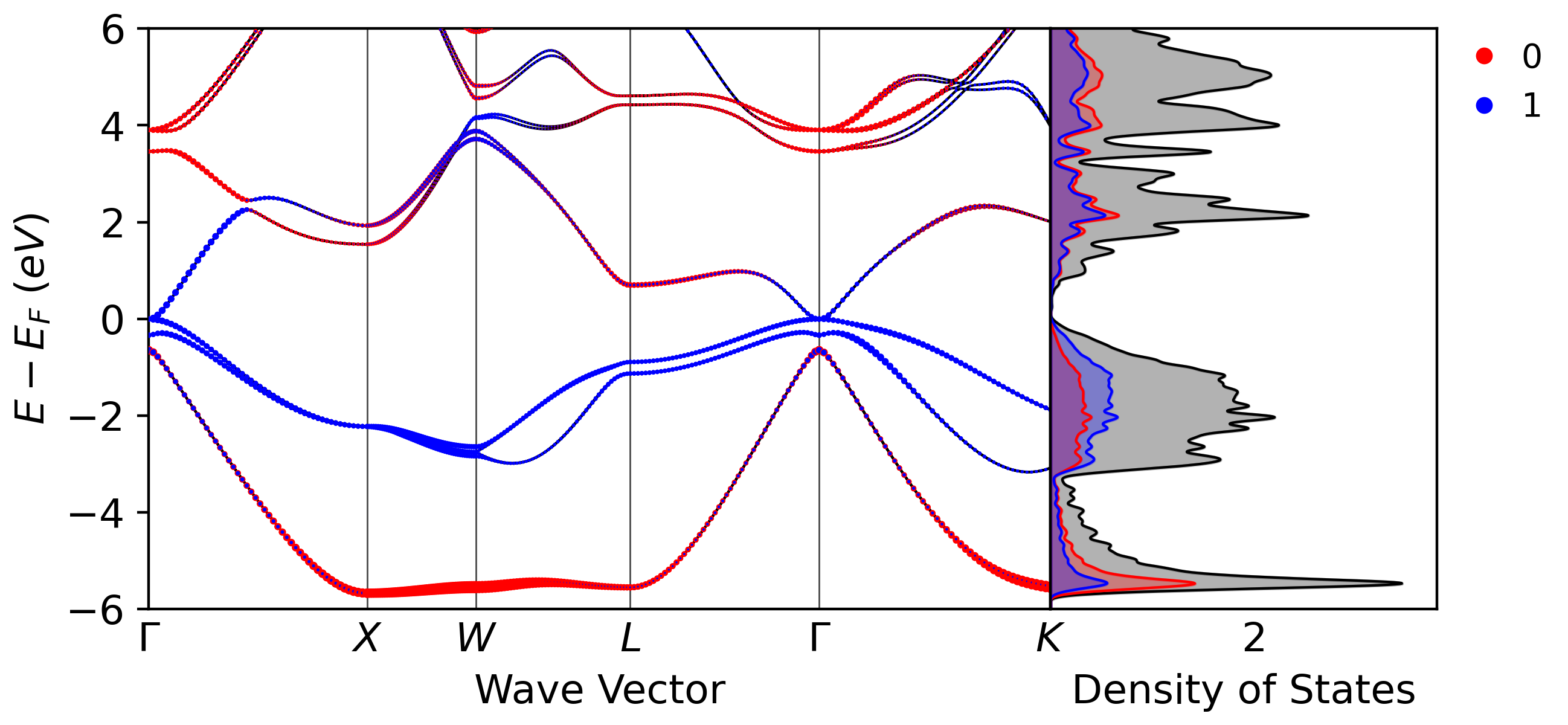

Atom Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_atoms(
    band_folder=band_folder,
    dos_folder=dos_folder,
    atoms=[0, 1],
)

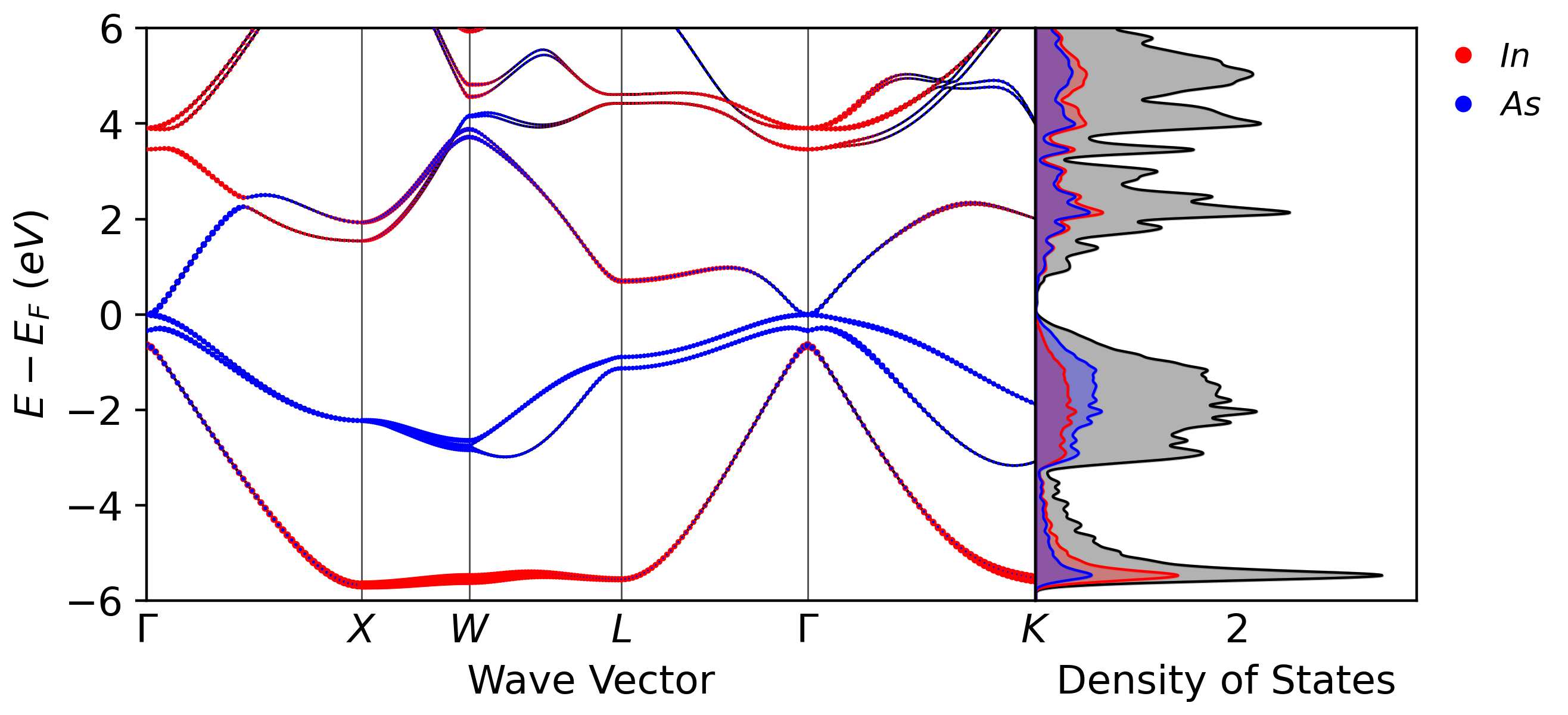

Element Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_elements(
    band_folder=band_folder,
    dos_folder=dos_folder,
    elements=['In', 'As'],
)

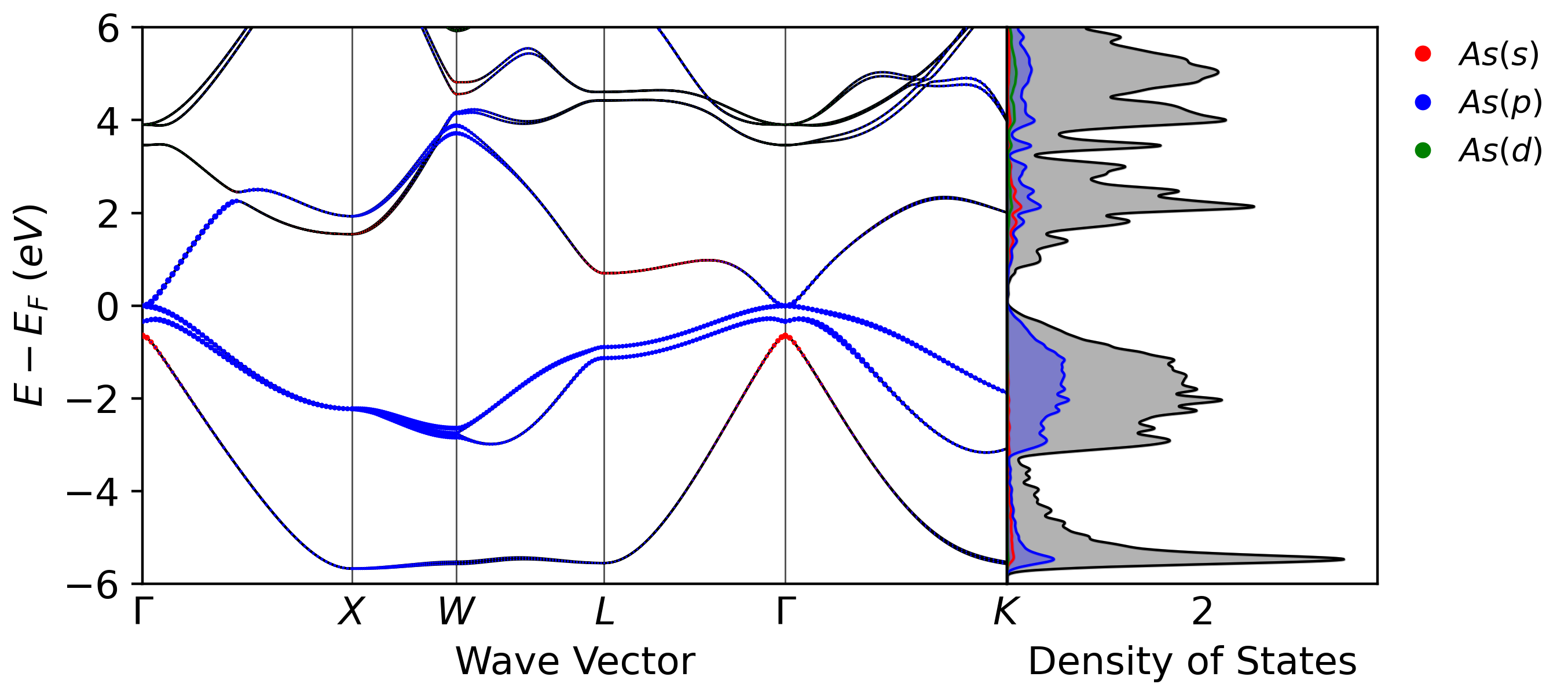

Element s, p, d Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_element_spd(
    band_folder=band_folder,
    dos_folder=dos_folder,
    elements=['As'],
)

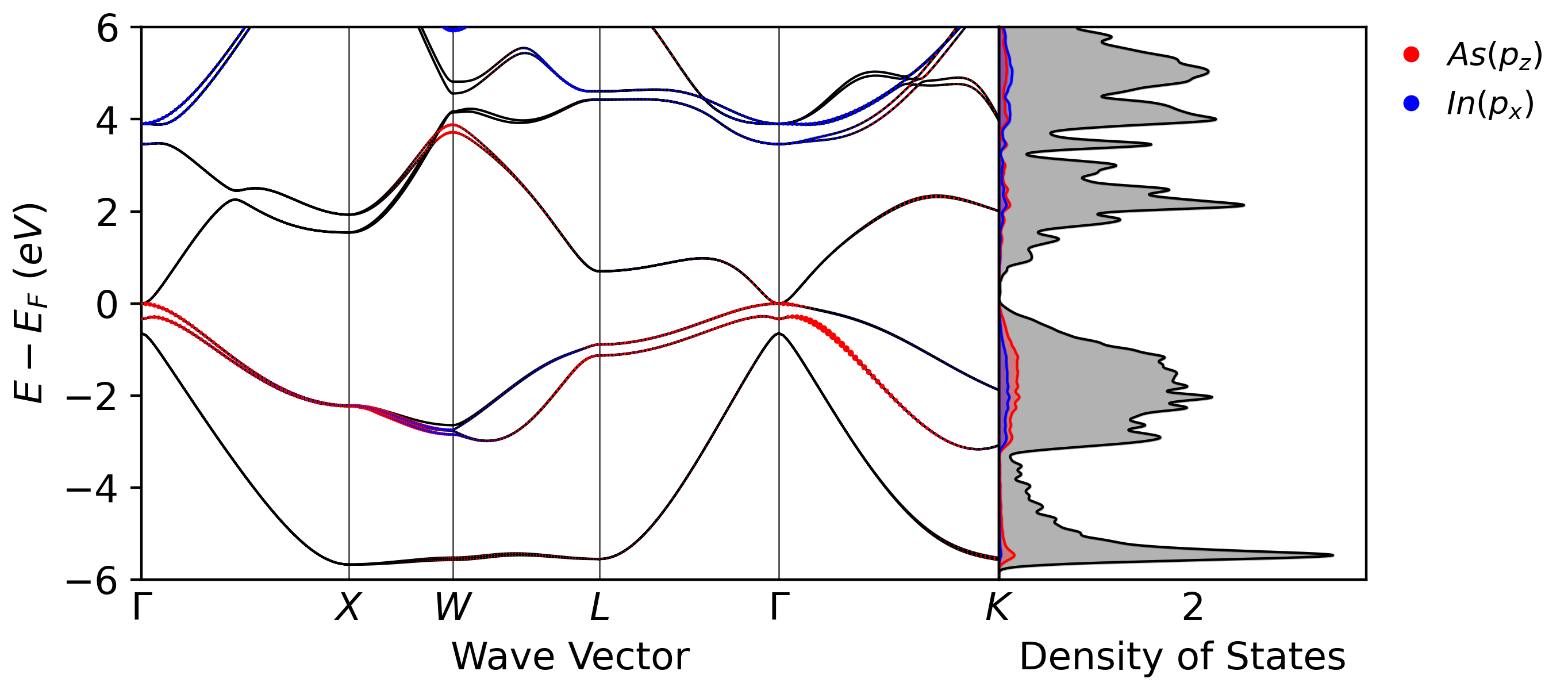

Element Orbital Projected Band Structure / Density of States

from vaspvis import standard

standard.band_dos_element_orbitals(
    band_folder=band_folder,
    dos_folder=dos_folder,
    element_orbital_pairs=[['As', 2], ['In', 3]],
)
