Batch plot the log files exported from VisualDL using Matplotlib.

Project description

VDLdraw

Batch plot the log files exported from VisualDL using Matplotlib.

VisualDL VDLdraw

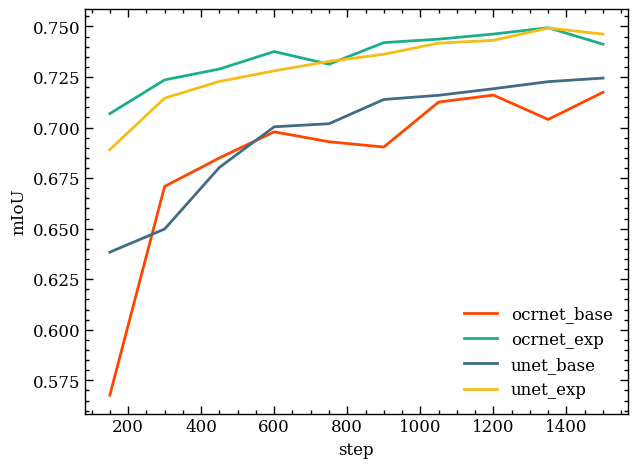

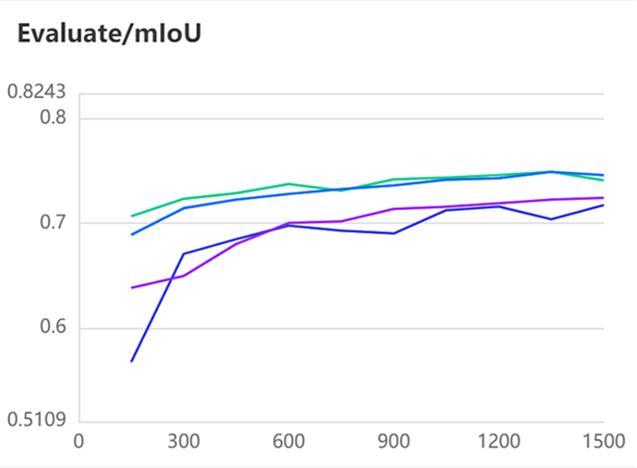

vdlmiou Evaluate@mIoU

How to install

It can be installed through pip:

pip install vdldraw

How to use

Online experiences in AI Studio (Chinese).

from vdldraw import get_tags, vdl_draw_folder


## 1.View available tags
get_tags(log_folder)
# Output like this:
# ['Evaluate/F1', 'Train/loss', 'Evaluate/mIoU', 'Evaluate/Acc']

## 2.Make up tags to be displayed
tag_list = ['Evaluate/mIoU', 'Evaluate/Acc']

## 3.Save image
vdl_draw_folder(log_folder, tag_list, save_folder="output", mplstyle=None)
# Args:
# 	 log_folder (str): Folder path where logs are saved.
# 	 tag_list (list): List of tags to be displayed.
# 	 save_folder (str, option): Folder path to save pictures. Default: "output".
# 	 mplstyle (str/path): Matplotlib style system. Default: None(Styles defined using VDLdraw).

Colormap

Colormap reference antv's contrasting orange, 20 colors in total.

colors

Style

If you need use some styles, you could use SciencePlots. This repo has Matplotlib styles to format your figures for scientific papers, presentations and theses.
