vinmap 1.1.4

Multithreaded scanner using nmap for scanning allowing you to use python 3.13 with gil disabled,that provides XML Merging and html/json output options.

ViNmap

Table of Contents

• Introduction
• Features
• Prerequisites
  • Optional Prerequisites for enhanced performance:
• Configuration
  • Example Configuration
• Installation
  • Install Nmap
  • Install ViNmap
  • To Install ViNmap in an editable mode
• Usage
  • Command-Line Arguments
  • Parameters
  • Examples
• Screenshots
• Optional Python 3.13 Beta (Advanced)
  • About Setting up Python 3.13 with GIL disabled
• Contributing
• Feature Requests and Bug Reports
  • Formatting Guidelines
• License
• Contact

Introduction

PLEASE run with sudo or as root to avoid permission issues, it will NOT copy to ~/NMAP folder if you do not run as root or with sudo since zenmap requires root priviledges

ViNmap is a powerful, multithreaded Nmap scanner designed to enhance your network scanning experience. Built with Python 3.13, ViNmap leverages concurrent processing to execute multiple scans in parallel, significantly reducing the time required to analyze large IP ranges. Additionally, it offers robust XML merging capabilities, ensuring that your scan results are consolidated into a single, comprehensive report.

To achieve true multithreading performance, ViNmap utilizes a Python build with the Global Interpreter Lock (GIL) disabled, enabling real concurrent execution of threads. This setup drastically speeds up scans, making ViNmap an efficient tool for network administrators, security professionals, and enthusiasts.

Additionally allows conversion to html or json from the merged xml file.

Features

• Real Multithreading: Utilizes a Python 3.13 build with the GIL disabled, allowing true multithreading and significantly speeding up scans.
• Customizable Scan Options: Tailor your scans with additional Nmap flags to suit your specific requirements.
• XML Merging: Automatically merge multiple XML scan results into a single, unified report.
• Graceful Shutdown: Handles interrupt signals (e.g., Ctrl+C) gracefully, ensuring that active scans are terminated properly without data loss.
• Dynamic Filename Handling: Generates unique filenames for merged results to prevent accidental overwriting.
• Error Handling: Robust mechanisms to handle scan failures, XML parsing issues, and file cleanup errors without halting the entire scanning process.
• Flexible IP Range Parsing: Supports CIDR notation and dash-separated IP ranges for versatile scanning targets.
• Output Formatting: Choose between XML and HTML, XML and JSON, or just XML for the final scan report.

Prerequisites

Before installing ViNmap, ensure that you have the following prerequisites:

• Minimum Python Version: Python 3.6 or higher is required to run ViNmap.
• Nmap: ViNmap relies on Nmap for network scanning. Install it using the instructions below based on your operating system.

Optional Prerequisites for enhanced performance:

• Python 3.13: ViNmap is built and tested with Python 3.13. This version is fully optional, but allows disabling the GIL, enabling true multithreading performance. You can use the latest stable Python version if you prefer not to disable the GIL. You can read more about Python 3.13 here.
• Python with Disabled GIL: For real multithreading capabilities, it's recommended to use a Python build with the Global Interpreter Lock (GIL) disabled.

Configuration

ViNmap allows you to customize various aspects of the scanning process. You can modify the script or use command-line arguments to tailor scans according to your needs.

Example Configuration

python vinmap.py -ip 10.0.0.0/16 -n 8 -t 8 -s "-sV -O --script vuln" -o comprehensive_scan.xml

This command scans the 10.0.0.0/16 subnet, splitting the scan into 8 chunks and using 8 threads. It includes version detection, OS detection, and runs vulnerability scripts, saving the merged XML to comprehensive_scan.xml.

Installation

Follow these steps to set up ViNmap on your system:

1. Install Nmap

macOS (Using Homebrew):

brew install nmap

Linux (Debian/Ubuntu):

sudo apt-get update
sudo apt-get install nmap

Windows:

Download and install Nmap from the official Nmap website.

2. Install ViNmap

pip install --upgrade pip
pip install vinmap

3. Verify the Installation

Check if ViNmap is installed correctly with pip, which will show the package details such as version, location, and dependencies:

pip show vinmap

Check if the vinmap command is available in your terminal and show the help message:

vinmap --help

To Install ViNmap in an editable mode

Clone the Repository or Create a Fork to Contribute

A. Clone the ViNmap repository to your local machine:

git clone https://github.com/VinnyVanGogh/ViNmap_custom_nmap_scanner.git
cd ViNmap_custom_nmap_scanner

B. Fork the repository and clone your fork:

gh repo fork VinnyVanGogh/ViNmap_custom_nmap_scanner
cd ViNmap_custom_nmap_scanner

Create a Virtual Environment

Create a virtual environment to isolate the dependencies:

python -m venv venv

Activate the Virtual Environment

Activate the virtual environment based on your operating system:

• macOS/Linux:

  source venv/bin/activate


• Windows:

  venv\Scripts\activate


Upgrade Pip

Ensure you have the latest version of pip:

pip install --upgrade pip

Install Dependencies

Install the required Python packages:

pip install -r requirements.txt

Install ViNmap in Editable mode

Make sure you are in the root directory of the cloned repository and run the following command: This will install the package in editable mode, allowing you to make changes to the code and see the changes reflected immediately.

pip install -e .

Usage

ViNmap is designed to be user-friendly and flexible. Below are some examples to help you get started.

The easiest way to install is to use pip, and download the latest stable release from pypi.

pip install vinmap

Alternatively, you can clone the repository and install it locally here.

Command-Line Arguments

ViNmap supports various command-line arguments to customize your scans. Here are the available options:

vinmap -ip <ip_range> [-n <num_chunks>] [-t <threads>] [-s <scan_type>] [-l] [-o <path/to/output>] [-f <format>]

Parameters:

• -ip or --ip_range: (Required) The IP range or subnet to scan.
• -n or --num_chunks: (Optional) Number of chunks to split the IP range into (default: half of the CPU cores).
• -t or --threads: (Optional) Number of concurrent threads (default: half of the CPU cores).
• -s or --scan_type: (Optional) Additional Nmap scan options (e.g., -sV -O for version and OS detection).
• -l or --list_scan_types: (Optional) List available scan types, can be ran with or without -s \ --scan_type argument, and will combine with the -s \ --scan_type if ran together.
• -o or --output: (Optional) Final output XML file name (default: nmap_<ip_range>_merged.xml).
• -f or --format: (Optional) Output format (html, json or xml; default: xml). does not delete the xml file after conversion to html or json

Examples:

Below are some examples of how to use ViNmap with different command-line arguments.

Basic Scan

Perform a basic scan on a single IP or an IP range.

vinmap -ip/--ip_range scanme.nmap.org

Basic Scan with custom output path and html or json format

Perform a basic scan on a single IP or an IP range and specify the output file and format.

This still saves an XML file, but also converts it to html or json

• The json or html file will be saved in the same directory as the xml file, and with the same base name as the xml file.

vinmap -ip/--ip_range 10.0.0.0/24 -o/--output custom_output.xml -f/--format html

Advanced Scan with Custom Options

Execute a scan with additional Nmap flags, specify the number of chunks, threads, and output file.

• Default chunks and threads are half of the CPU cores, and default output file is nmap_<ip_range>_merged.xml

vinmap -ip 192.168.1.0/24 -n/--num_chunks 8 -t/--threads 8 -s/--scan_type "-sV -O --script vuln" -o/--output comprehensive_scan.xml

List scan options

List scan options and select a number to use that as a scan type.

• Can be ran with or without -s argument and will combine with the -s/--scan_type argument if ran together

vinmap --list_scan_types -s/--scan_type "-sV -O --script vuln "

or

vinmap --list_scan_types

Screenshots

Example Terminal Output:

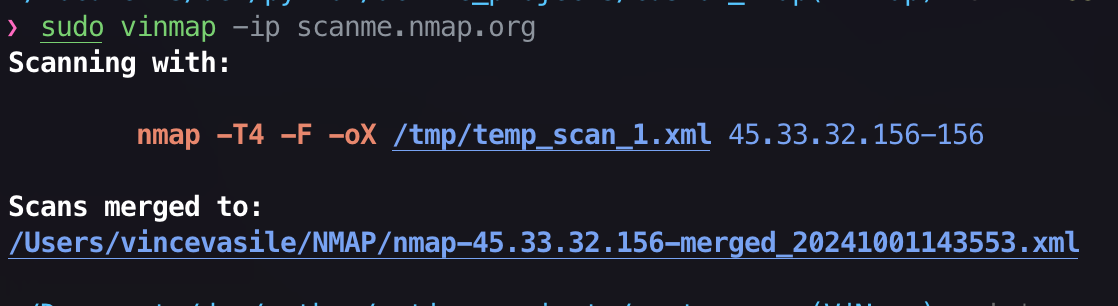

• Basic Scan ran with default options:

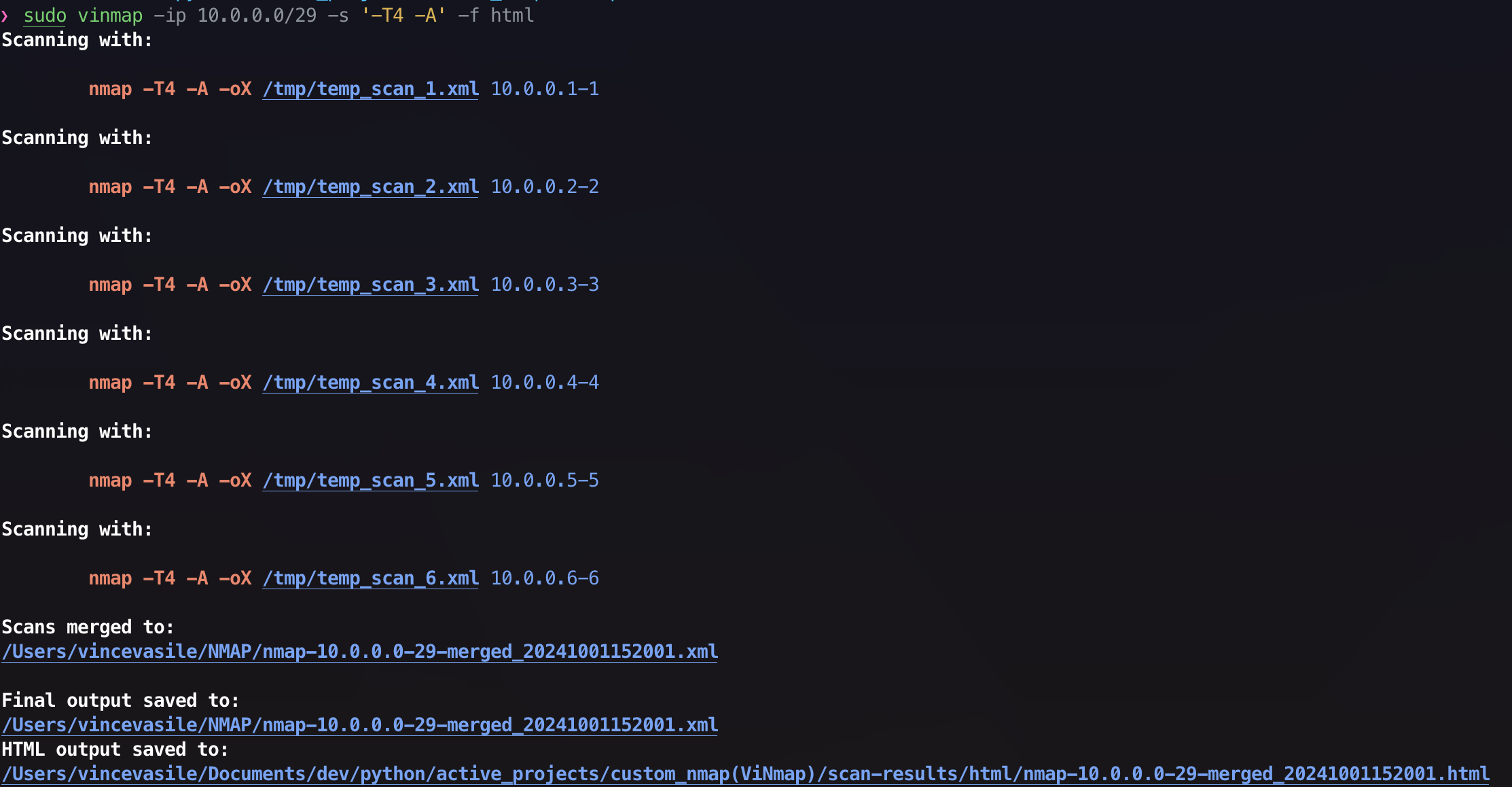

• Aggressive Scan ran with --format html:

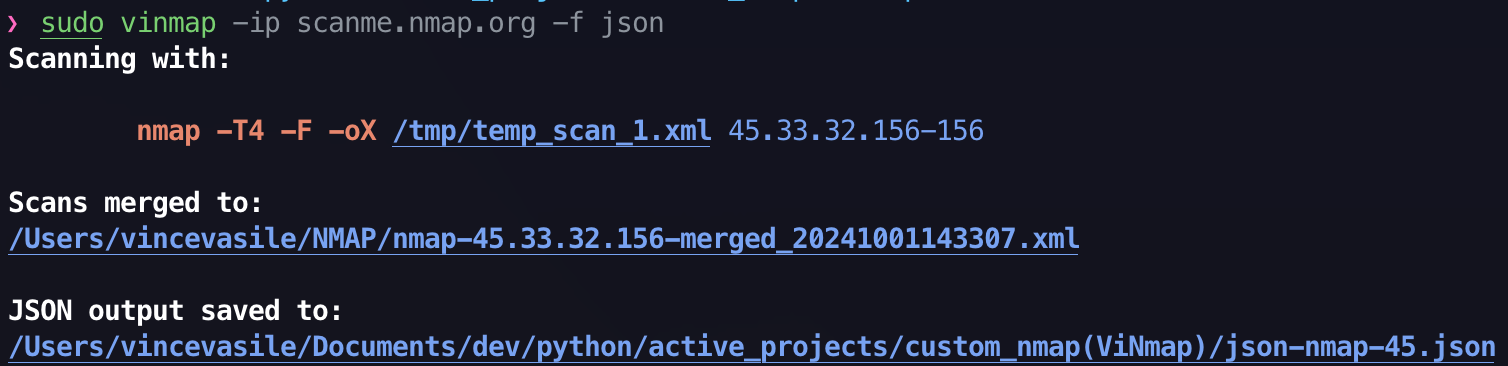

• Basic Scan ran with --format json:

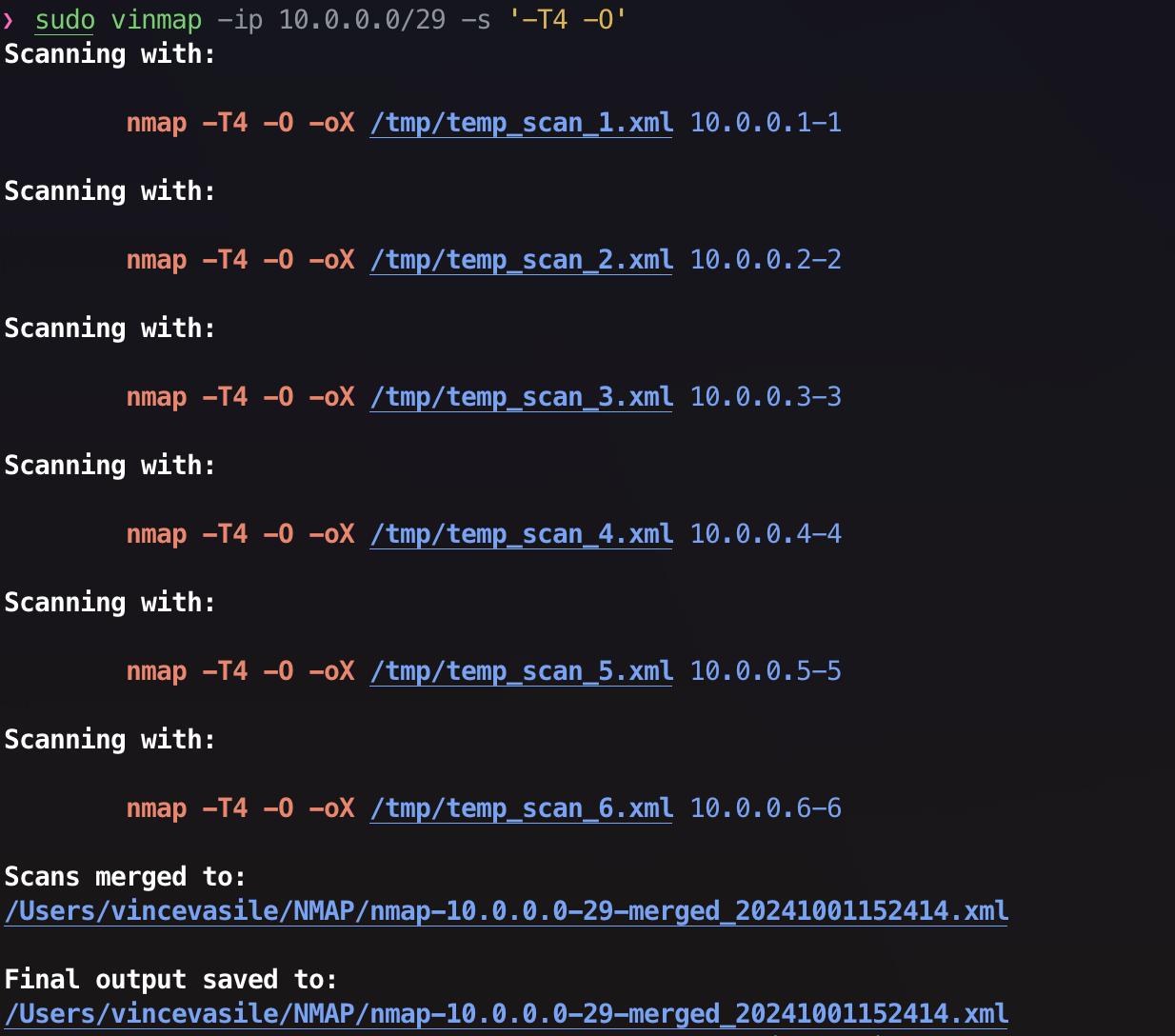

• OS Detection Scan ran with default options:

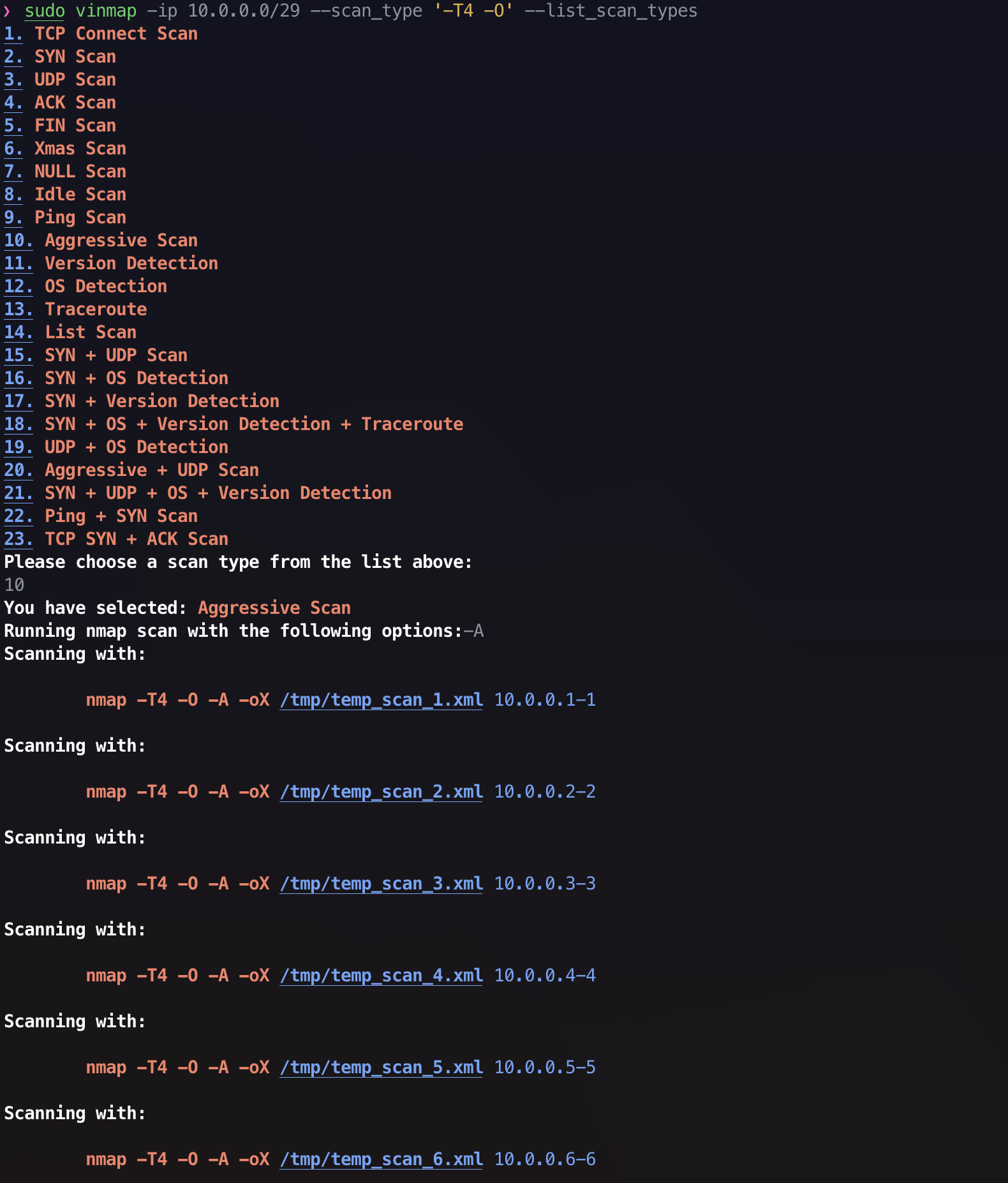

• List Scan Types ran with scan types as an argument:

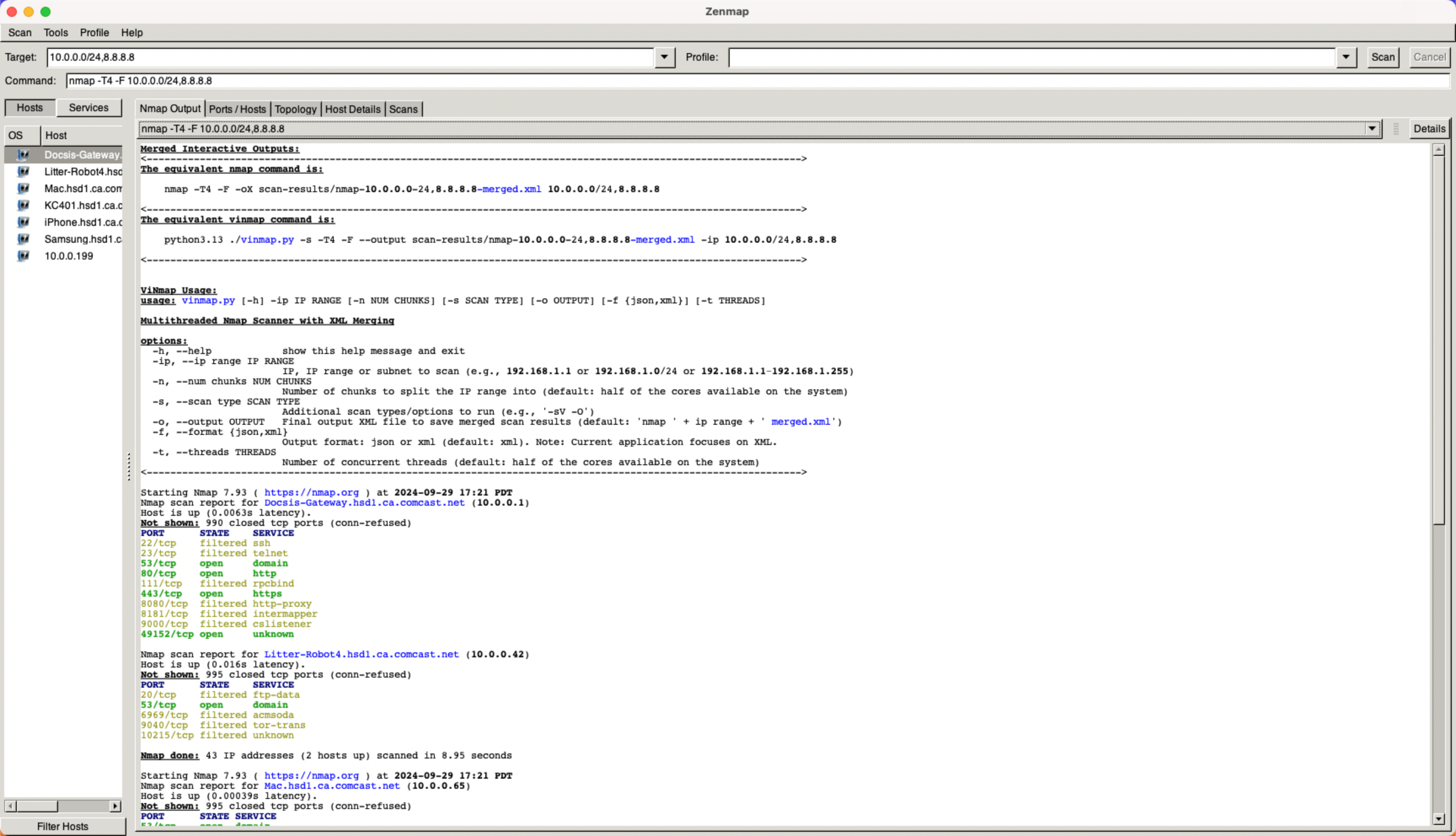

The following screenshots showcase the Zenmap interface and the merged XML report generated by ViNmap.

Optional Python 3.13 Beta

ViNmap is optimized for Python 3.13, which is currently in beta. To use the latest features and enhancements, you can set up Python 3.13 on your system.

About setting up Python 3.13 with Disabled GIL

WARNING: Disabling the Global Interpreter Lock (GIL) can lead to instability and unexpected behavior in Python. Use this feature at your own risk.

ViNmap requires a Python 3.13 build with the Global Interpreter Lock (GIL) disabled to achieve real multithreading performance. Follow these steps to set it up:

Note: These instructions are for advanced users who are comfortable with building Python from source and modifying the GIL settings.

Download and Extract Python 3.13 Beta

wget https://www.python.org/ftp/python/3.13.0/Python-3.13.0rc2.tar.xz
tar -xf Python-3.13.0rc2.tar.xz
cd Python-3.13.0rc2

Modify the Source and Configure the Build

Configure the GIL:

./configure --disable-gil

Configure the Build:

./configure --prefix=/usr/local/python-3.13-no-gil

Build and Install Python

make -j$(nproc)
sudo make install
# or you can do `make altinstall` to avoid overwriting the system Python
# sudo make altinstall

Update the PATH Environment Variable (Optional)

Update the PATH Environment Variable if you want to use the new Python installation by default.

Add the new Python installation to your PATH:

export PATH=/usr/local/python-3.13-no-gil/bin:$PATH

Verify the Python Build and Run ViNmap with Python 3.13

Verify the Python Build and Installation:

Ensure that your custom Python build is correctly installed:

check_python=$(which python3.13)
$check_python --version

Run ViNmap with python3.13

python3.13 vinmap.py --help

Contributing

Feature Requests and Bug Reports

We welcome your feedback!

If you have any feature requests or encounter bugs while using ViNmap, please open an issue on the GitHub repository.

• Feature Requests: Suggest new features or enhancements to improve ViNmap.

• Bug Reports: Report any issues or unexpected behavior you encounter while using ViNmap.

• General Feedback: Share your thoughts, suggestions, or comments about ViNmap.

Please follow the guidelines and submit detailed information to help us address your requests effectively.

We appreciate your feedback and contributions!

Formatting Guidelines

When submitting feature requests, please follow these guidelines:

• Title: Format like "Feature Request: [Short Description]".
• Description: Provide a detailed description of the feature you'd like to see implemented.

When submitting bug reports, please follow these guidelines:

• Title: Format like "Bug Report: [Short Description]".
• Description: Provide a clear and concise description of the bug, including steps to reproduce it.

When providing general feedback, please follow these guidelines:

• Title: Format like "Feedback: [Short Description]".
• Description: Share your thoughts, suggestions, or comments about ViNmap.

License

This project is licensed under the MIT License. You are free to use, modify, and distribute it as per the terms of the license.

Contact

For any inquiries or support, please reach out to:

• Author: Vince Vasile
• Email: [e-mail]
• GitHub: VinnyVanGogh

---

Additional Notes

• Caution: Disabling the GIL is an advanced modification and may lead to instability. It is recommended only for users who are comfortable with building Python from source and handling potential issues.
• Performance Benefits: With the GIL disabled, ViNmap can execute multiple threads truly concurrently, significantly speeding up scans, especially when dealing with large IP ranges.
• Alternative Solutions: If modifying the GIL is not feasible, consider using process-based concurrency (e.g., multiprocessing) to achieve parallelism.

---

Explanation of the Updates:

1. Python 3.13 Compatibility:

   • Added to the Prerequisites section to specify the required Python version.
   • Updated the Installation section to guide users on setting up Python 3.13.

2. Disabled GIL for Real Multithreading:

   • Introduced in both the Features and Prerequisites sections.
   • Detailed instructions in the Installation section under Python 3.13 with Disabled GIL.
   • Emphasized the performance benefits in the Additional Notes section.

3. Emphasis on Speed Improvements:

   • Highlighted how disabling the GIL drastically speeds up scans in the Features and Additional Notes sections.

4. Cautionary Notes:

   • Added warnings about the complexity and potential instability when disabling the GIL to inform users of the risks involved.
