voxel-world 0.2.1

Delicious Voxel worlds in Python

VoxelWorld

Create delicious Voxel worlds in Python

Live demo on Py.Cafe ☕

Install

From PyPi

pip3 install voxel_world

From source

git clone https://github.com/jackparmer/VoxelWorld.git
cd VoxelWorld
python3 -m pip install .

from voxel_world import VoxelWorld

About

For physics simulation, games, art, and fun

Inspo: https://github.com/wwwtyro/vixel

Features!

• Automatic GIF generation
• Numpy 3d ones array in -> Voxel world out
• Fast-ish (as fast as rendering on the CPU can be)
• Portable! Outputs simple image files
• Notebooks! Works well in the Jupyter notebook ecosystem
• Eye candy! Ambient occlusion, specularity, etc

Known issues (TODO)

• Speed: Need to migrate to a GPU-based renderer while maintaining portability (suggestions?)
• Illumination: Light source ray tracing is wonky - but you can fake it (see light_source.py example)
• Cut offs: The bottom of some voxel cubes are cut off - I'm not sure why
• Likely much more...

---

Examples

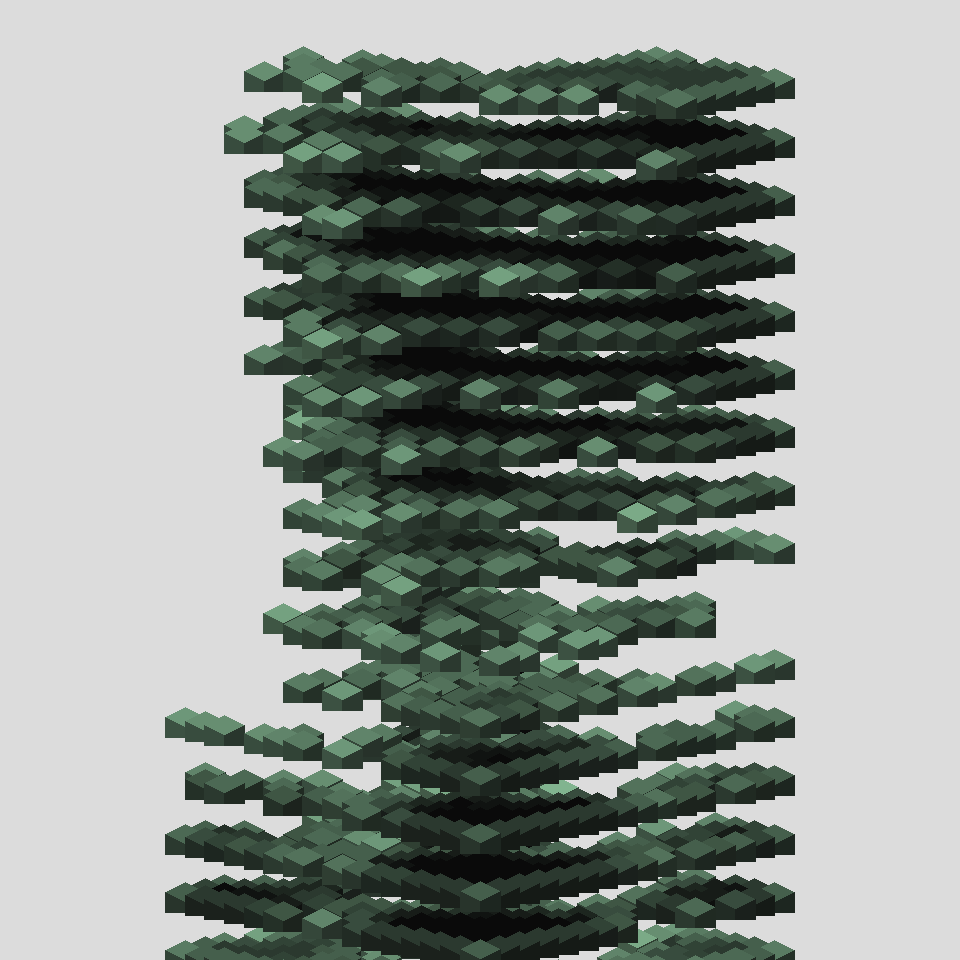

Animations

from voxel_world import Volume, Surface, Agent, Sequence

volume = Volume(Volume.purlin_matrix(64));
surf = Surface(volume);
agents = [Agent(surf, mask) for mask in Sequence.snake(grid_size=64, num_steps=1000)];
seq = Sequence(agents);

seq2 = seq.apply_bg(volume)

seq2.save('voxel_animation64_v2.gif')

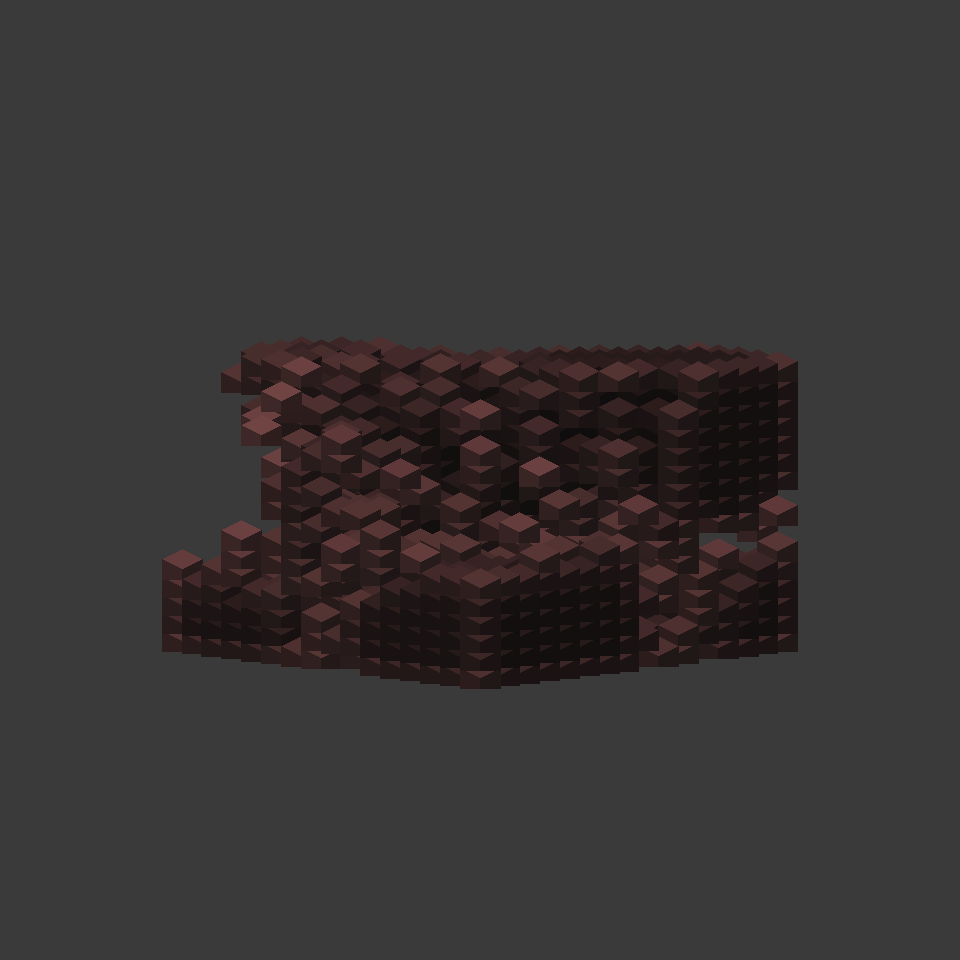

Surfaces API

from voxel_world import Volume, Surface;
volume = Volume(Volume.purlin_matrix(32)); surf = Surface(volume)
surf.color = (255,0,0)
volume.add(surf).show()

Randomly generated worlds

Live demo on Py.Cafe ☕

import random; import vnoise
from IPython.display import display, Image as IPImage
from voxel_world import Volume

noise = vnoise.Noise()

# Display in Juypter
display(IPImage(Volume(
    np.array([[[1 if noise.noise3(x / 10.0, y / 10.0, z / 10.0) > random.uniform(-0.2, 0.2) else 0 for z in range(16)] for y in range(16)] for x in range(16)], dtype=np.uint8),
    theme=random.choice(list(Volume.themes.keys())),
    resolution=10,
    viewing_angle=(random.randint(0, 90), random.randint(0, 90)),
    zoom=2.0,
    show_light_source=False,
    dark_bg=False
).byte_stream().getvalue()))

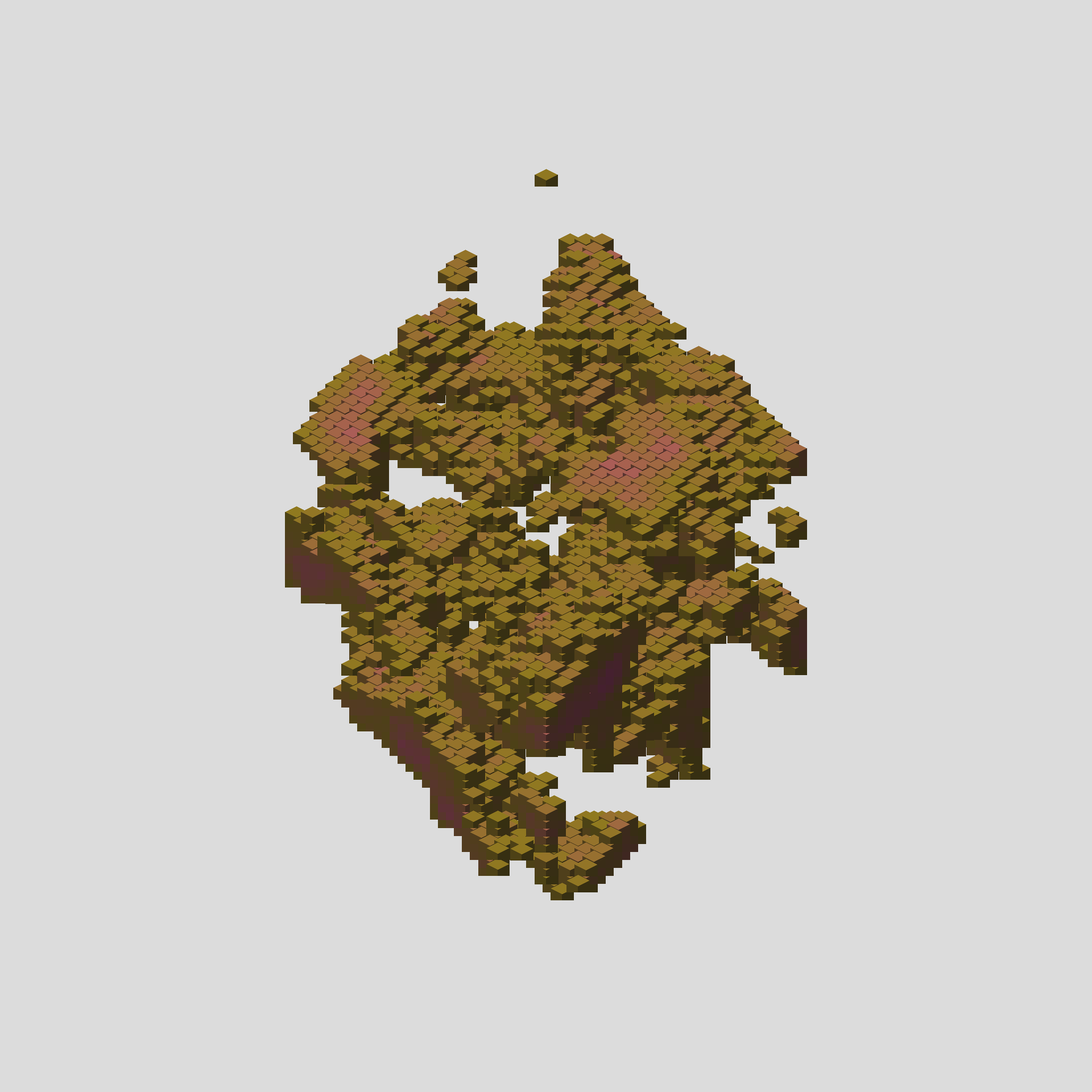

examples/color_matrix/sand_world.py

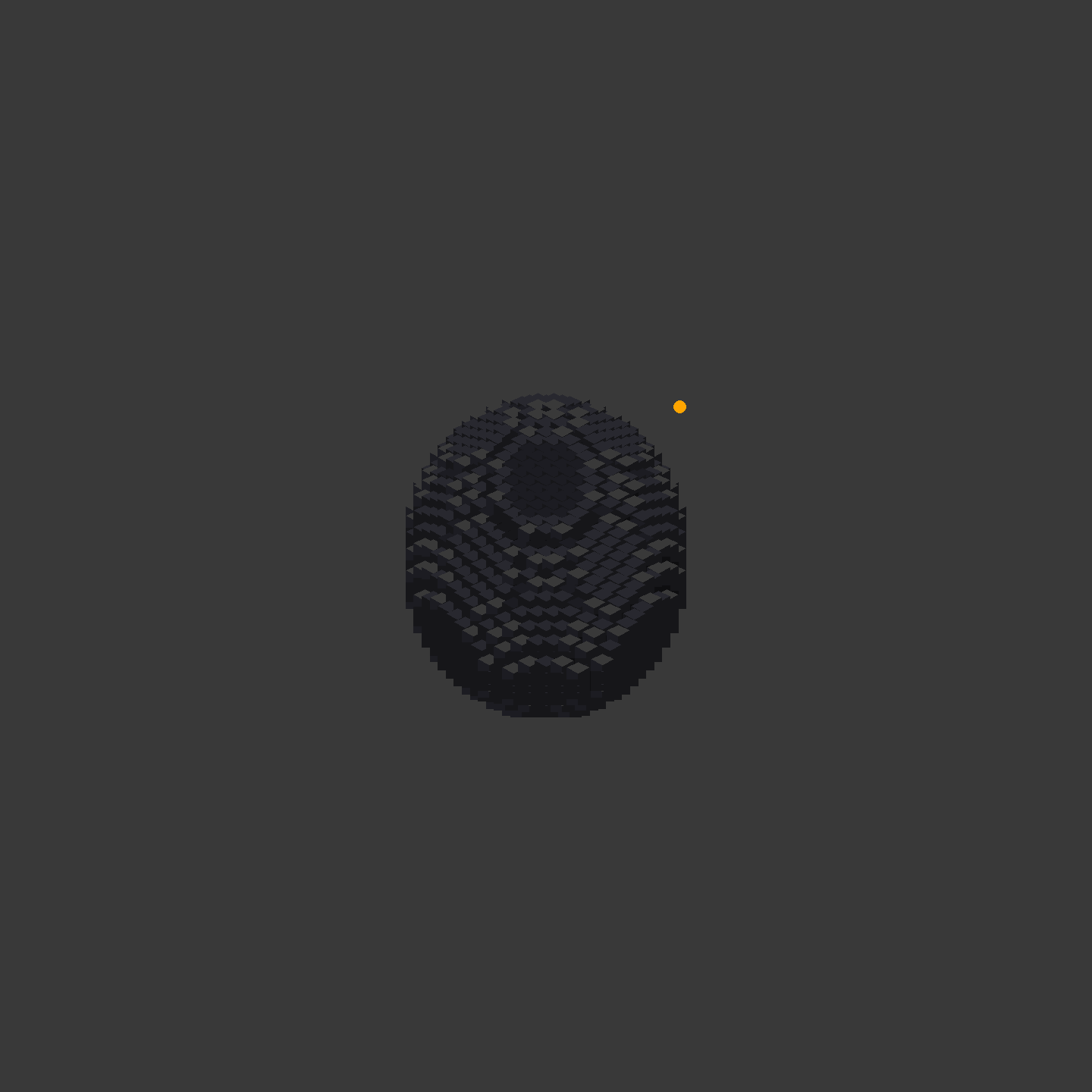

examples/lighting/light_source.py

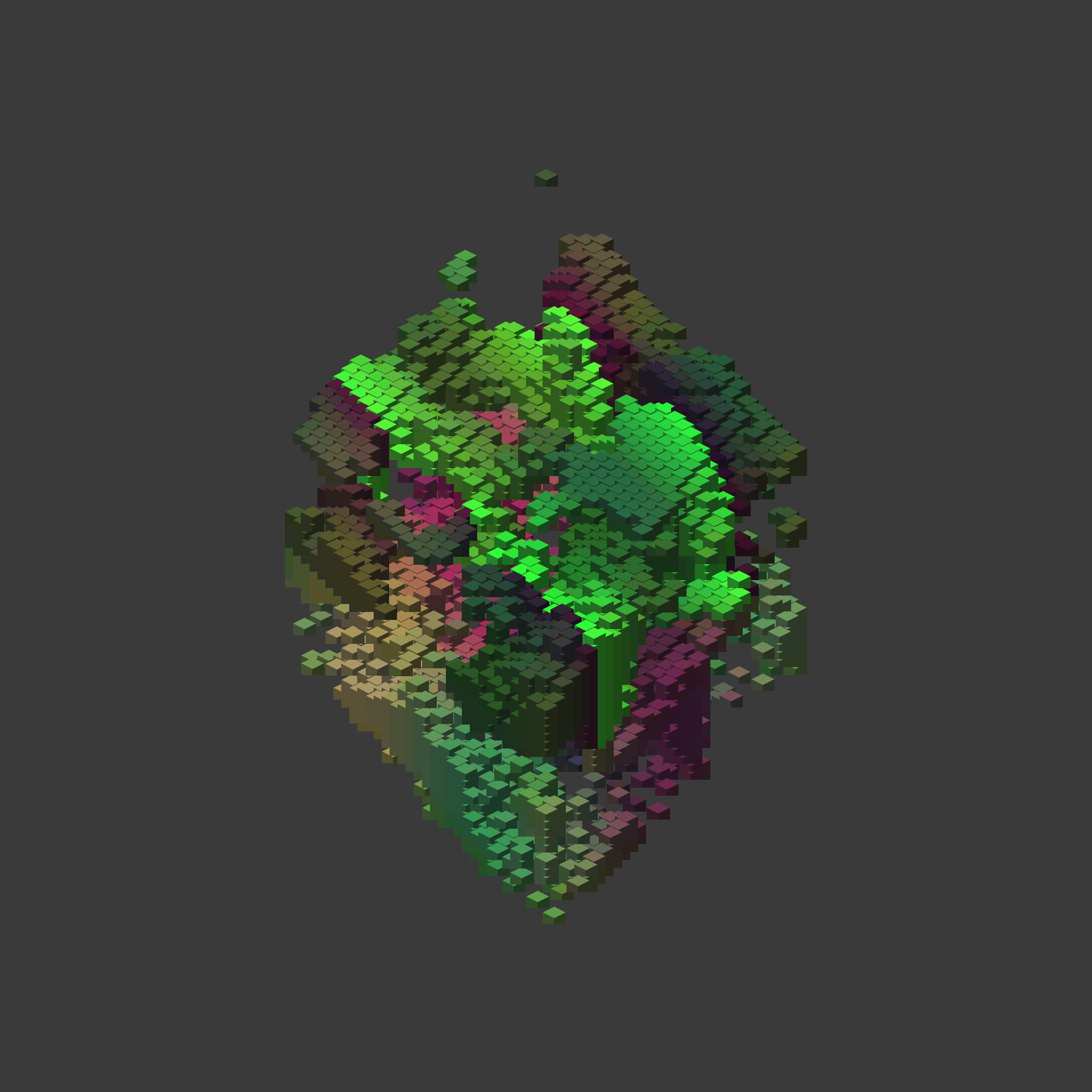

examples/color_matrix/jill_of_the_jungle.py

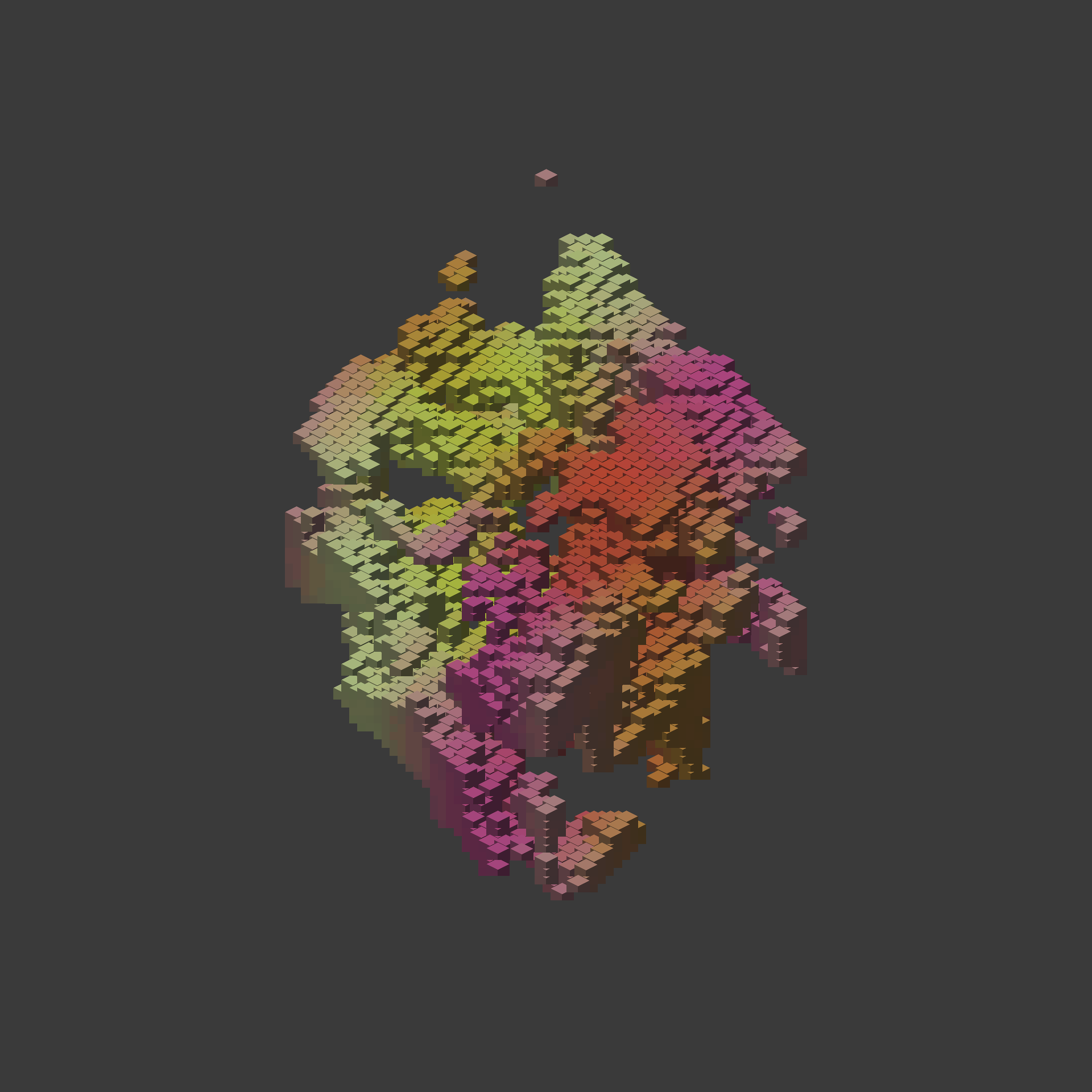

examples/color_matrix/earth_tones.py

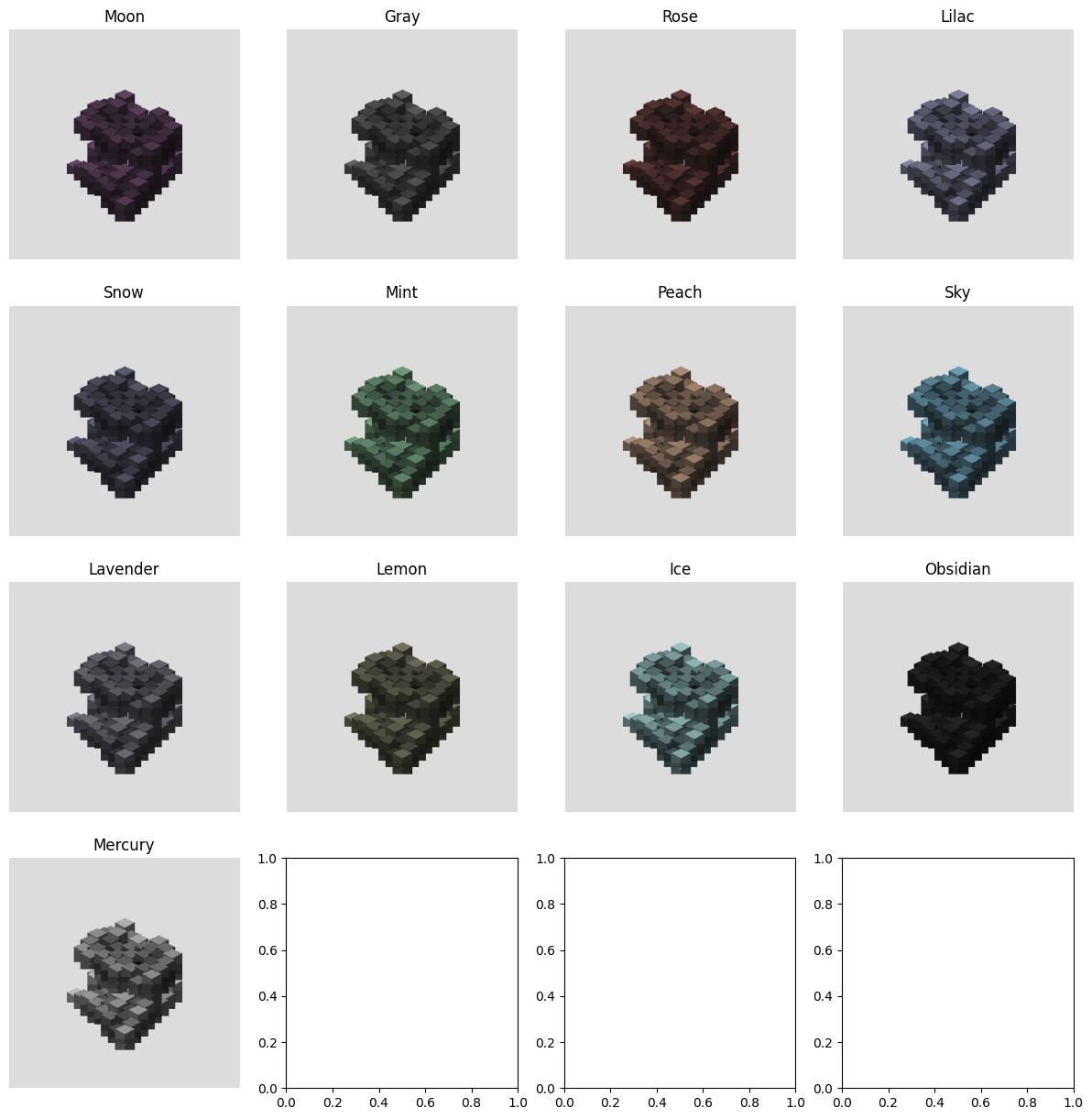

Mono-color themes

from voxel_world import Volume

world = Volume.show_themes() # Jupyter notebook only
