web2sdk 0.0.3

Reverse engineer third party APIs into python SDKs

🦊 web2sdk

Automatically turn third party APIs into Python SDKs

Web2sdk is a set of tools for reverse engineering APIs by intercepting network requests. It processes HAR files exported from Chrome devtools into an OpenAPI schema, then automatically generates a python SDK based on the schema. Each method in the python SDK corresponds to an endpoint, and includes strongly typed arguments, requests, and responses.

https://github.com/user-attachments/assets/5a7f477d-76ab-46f2-9884-62dfc9f2715b

Features

• Generates an OpenAPI/Swagger yaml schema from any web-based flow
• Automatically merges requests to the same endpoint
• Generates pydantic classes based on OpenAPI request and response schemas
• Supports basic and bearer auth schemes
• Supports overriding default headers

Usage

1. Export HAR file

• Open Chrome devtools and go to "Network".

• Go through a flow on a website that triggers the requests you want to capture and reverse engineer. The more varied the requests the better, as a single request might not capture all the possible request and response schemas for a particular endpoint.

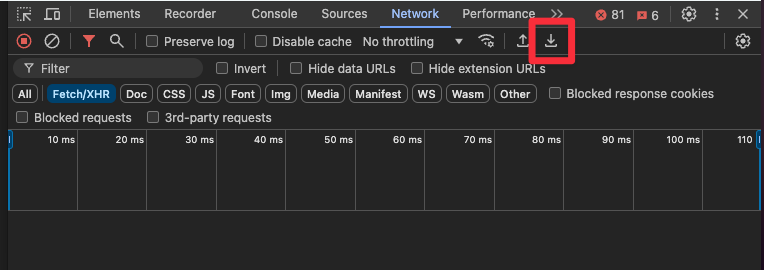

• Click the button shown below to export the HAR file. Don't worry about filtering out requests, that happens later.

• Also compatible with mitmweb exports.



2. Install web2sdk

$ pip install web2sdk

3. Generate an OpenAPI spec and SDK

$ web2sdk --requests-path <path/to/har/or/flow/file> --base-url <https://finic.ai/api/v1> --sdk-name FinicSDK --auth-type bearer

• base-url filters out requests that don't start with the url provided. This should include everything up until the endpoints you want to reverse engineer.
• For example, https://finic.ai/api/v1 will match only requests to the v1 endpiont, but https://finic.ai/api will match requests from v1, v2, and any other paths after /api.
• Generated files will be saved to generated/<sdk_name>.yaml and generated/<sdk_name>.py in the current directory by default.

4. Run your python SDK.

from generated.FinicSDK import FinicSDK

finic = FinicSDK(hostname="finic.ai", token="your_token_here")
finic.get_connectors({})
finic.post_message({ message: "hi there" }, override_headers={ "User-Agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7)" })

• Each method in the generated SDK corresponds to an endpoint
• You can pass in any headers you want. By default, only Authorization and User-Agent headers are included.
• Some methods accept parameters and/or request bodies. Inspect the function to see what arguments it takes.

Other Options

-- auth <basic|bearer>

• Optional, defaults to none. If set, the generated SDK class will expect a username and password for basic auth or a token for bearer auth.

--output

• Optional, defaults to generated/ in the current directory. Specify a directory for the generated .yaml and .py files to be saved.

--interactive

• Run in interactive mode. Not well supported.

🚧 Planned Improvements

• Support for oauth and custom auth schemes. In the mean
• Automatic auth token refresh
• Support for templated API paths (e.g. https://api.claude.ai/api/organizations/{organization_id}/chat_conversations)
• Use LLMs to generate more readable class names, example request payloads, and other tasks that require fuzzy reasoning
• Include a linter/formatter to make generated SDK more readable

Acknowledgements

Web2sdk's includes a modified version of mitmproxy2swagger.
