One-dimensional gravitational N-body code
Project description
wendy
A one-dimensional gravitational N-body code.
Overview
wendy
solves the one-dimensional gravitational N-body problem to machine precision with an efficient algorithm [O(log N) / particle-collision]. Alternatively, it can solve the problem with approximate integration, but with exact forces.
Author
Jo Bovy (University of Toronto): bovy - at - astro - dot - utoronto - dot - ca
Installation
Install the latest release using
pip install wendy
or clone/fork/download the repository and install using
sudo python setup.py install
or locally using
python setup.py install --user
The behavior of the parallel sorting algorithm used when setting sort='parallel'
in the approximate version of the N-body code (approx=True
) is controlled by a few compilation-time variables: PARALLEL_SERIAL_SORT_SWITCH
, which sets the length of an array below which the serial sort is used, PARALLEL_SERIAL_MERGE_SWITCH
, which sets the length of an array below which a serial merge is used (as part of the mergesort
sorting algorithm used), and PARALLEL_SORT_NUM_THREADS
, the number of threads used in the parallel sorting algorithm. By default, these are set to PARALLEL_SERIAL_MERGE_SWITCH=10000
, PARALLEL_SERIAL_MERGE_SWITCH=50000
, and PARALLEL_SORT_NUM_THREADS=32
, which appear to work well. Significant speed-ups can be obtained by optimizing these for your system and specific problem. They can be set to different values by running, e.g.,
export CFLAGS="$CFLAGS -D PARALLEL_SERIAL_SORT_SWITCH=10 -D PARALLEL_SERIAL_MERGE_SWITCH=10 -D PARALLEL_SORT_NUM_THREADS=2"
before compiling the code (if you are trying to change them, make sure to force a re-compilation by removing the build/
directory).
Usage
Use wendy.nbody
to initialize a generator object for initial (x,v) with masses m. The generator then returns the state of the system at equally-spaced time intervals:
g= wendy.nbody(x,v,m,0.05) # delta t = 0.05
next_x, next_v= next(g) # at t=0.05
next_x, next_v= next(g) # at t=0.10
...
The generator initialization with wendy.nbody
has options to (a) solve the problem exactly or not using approx=
, (b) include an external harmonic oscillator potential omega^2 x^2 / 2
with omega=
(both for exact and approximate solutions), and (c) include an arbitrary external force F(x,t)
(using ext_force=
, only for the approximate solution).
Examples

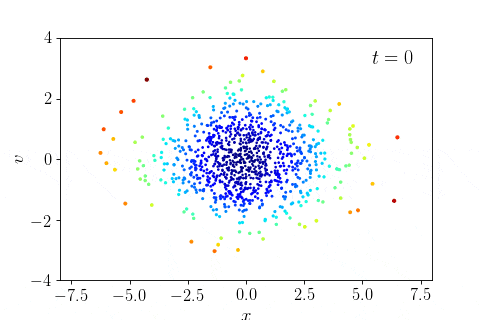

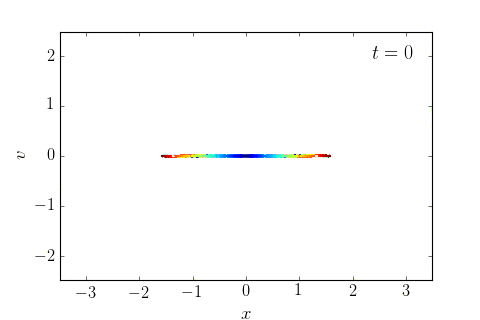

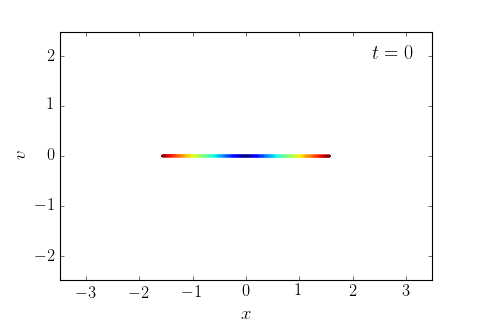

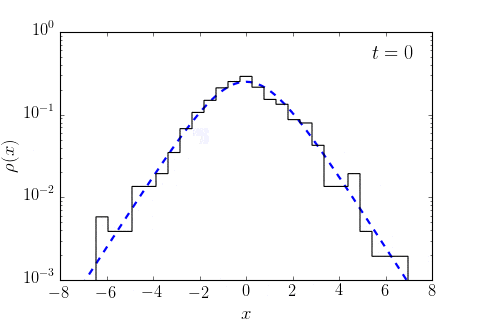

- Phase mixing and violent relaxation in one dimension: example notebook (run locally to see movies, or view on nbviewer)

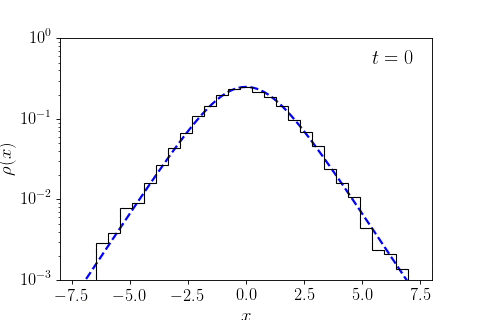

- A self-gravitating, sech2 disk: example notebook (run locally to see movies, or view on nbviewer)

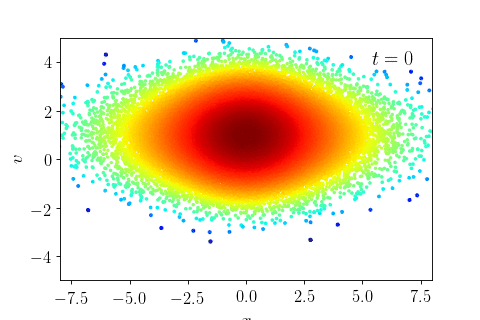

- The Gaia phase-space spiral: example notebook (run locally to see movies, or view on nbviewer)

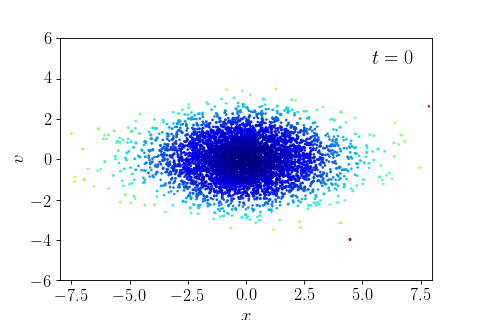

- Adiabatic contraction: example notebook (run locally to see movies, or view on nbviewer)

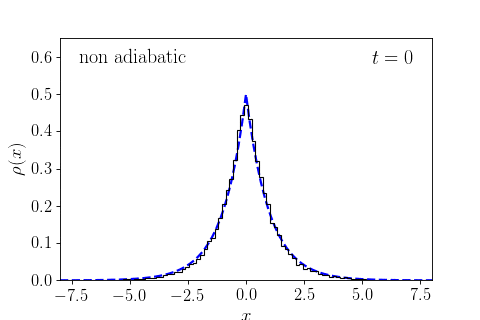

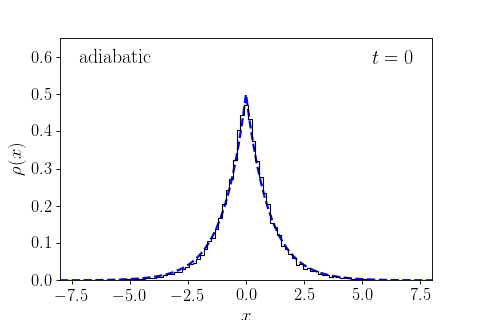

- Adiabatic vs. non-adiabatic energy injection for an exponential disk: example notebook (run locally to see movies, or view on nbviewer)
wendy
scaling with particle number: example notebook (view on nbviewer)
