EPICS IOC record search and meta information tool

Project description

https://img.shields.io/travis/pcdshub/whatrecord.svg https://img.shields.io/pypi/v/whatrecord.svg

EPICS IOC record search and meta information tool.

Spiritual successor of recordwhat.

https://pcdshub.github.io/whatrecord/

What?

Lark grammar-based parsers which parse any of the following into easy-to-use Python dataclasses:

  • EPICS access security files (.acf)

  • EPICS autosave save files (.sav)

  • EPICS V3 database files

  • EPICS V4 database files

  • EPICS msi-style template/substitutions files (.template/.substitutions)

  • EPICS gateway configuration (.pvlist)

  • EPICS sequencer state notation language programs (.st)

  • EPICS StreamDevice protocols (.proto)

All of the above can be easily serialized to JSON for interoperability.

Pseudo-IOC shell interpreter:

  • Reads st.cmd files as if it were an IOC

  • Loads and lints record files (and other supported formats above)

  • Builds inter- and intra- IOC PV relationship graphs

  • Stores context information about where each record/field/etc came from

API server

  • IOC finder (LCLS IOC manager, list of files, or external script)

  • Provides access to all parsed information above

  • Preliminary asyncio-based client to talk with the server

Frontend

  • User-friendly vue.js v3 frontend that communicates with API server

  • Interfaces for:
    • Searching for records

    • Record relationships (processing and links, cross-IOC links)

    • IOC information

    • Gateway configuration overview

    • Duplicate records

    • Optional plugins

Plugins

  • happi devices

  • Simple LDAP search (LCLS hosts, “netconfig”)

  • LCLS-specific epicsArch / logbook DAQ PVs

  • TwinCAT PLC source code (pytmc)

Makefile / build system information

  • Determine build dependencies from a Makefile

  • Recursively inspect sub-dependencies

  • Graph IOC dependency information or output it as JSON

Command-line tools

  • whatrecord lint - lint a database

  • whatrecord parse - parse supported formats

  • whatrecord server - start the API server

  • whatrecord graph - graph PV relationships, SNL diagrams, IOC dependencies

Record?

https://docs.epics-controls.org/en/latest/guides/EPICS_Process_Database_Concepts.html#the-epics-process-database

Requirements

Requirements:

  • Python 3.9

  • aiohttp

  • apischema[graphql]

  • graphviz

  • jinja2

  • lark

Docker

See /docker to set up a Python 3.10-based whatrecord container. A docker-compose configuration for starting up the frontend/backend servers is also provided. Note that the default configuration only indexes the whatrecord-provided IOCs.

Frontend Screenshots

Search for records and view relationships:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_1.png

View StreamDevice protocol information:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_2.png

See where your qsrv pvAccess keys come from:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_3.png

See access security settings:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_4.png

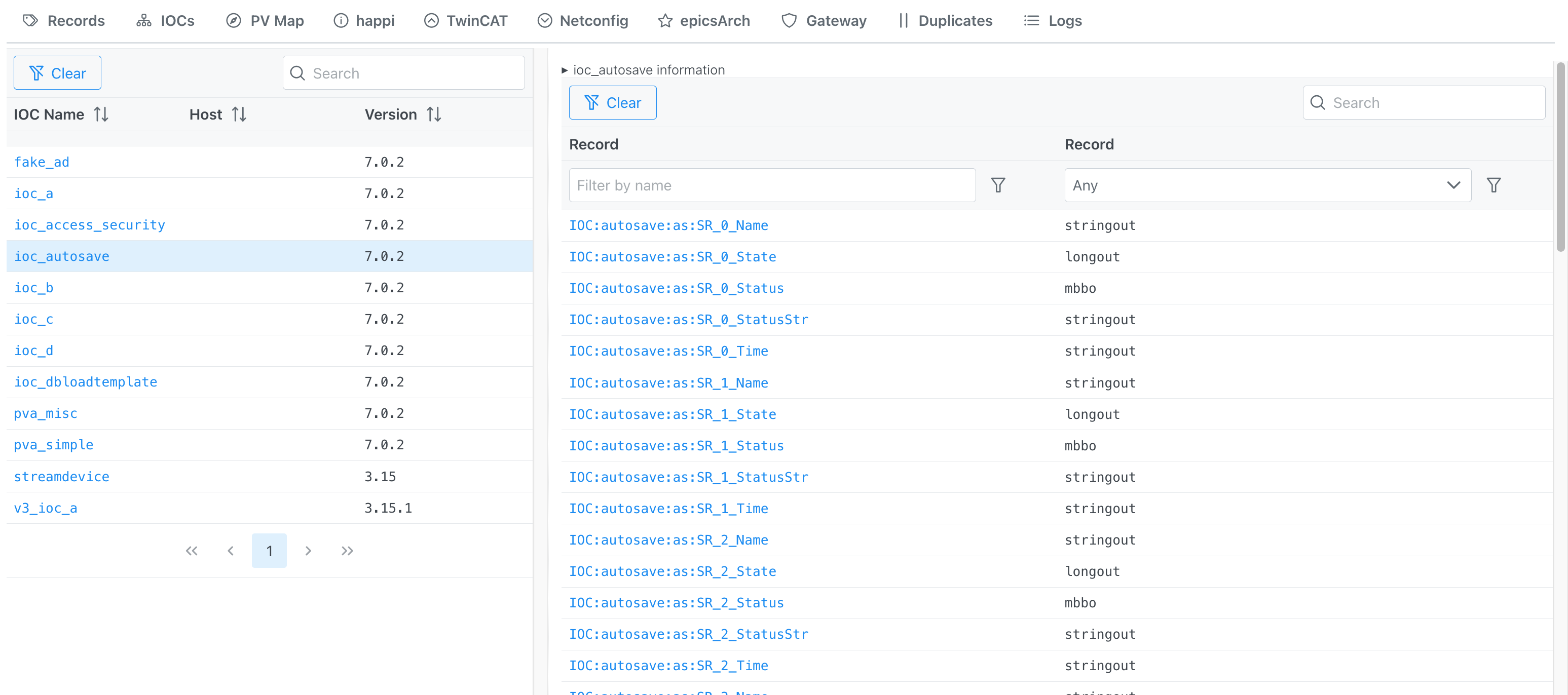

View all of your IOCs in one place and browse their records by type:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_5.png

View inter-IOC record relationships:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_6.png

View all of your ophyd/happi devices and their relevant PVs:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_7.png

View LDAP-provided settings:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_8.png

(LCLS-specific) View epicsArch DAQ PVs:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_9.png

View gateway PVList configurations:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_10.png

View record duplicates:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_11.png

View API server logs:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_12.png

See per-parameter values:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_13.png https://github.com/pcdshub/whatrecord/raw/assets/screenshot_15.png

See database lint:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_14.png

Other Screenshots

Use whatrecord deps --graph to inspect IOCs/modules with make and generate a dependency graph of modules:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_16.png

Use whatrecord graph to graph state notation language .st file logic:

https://github.com/pcdshub/whatrecord/raw/assets/screenshot_17.png https://github.com/pcdshub/whatrecord/raw/assets/screenshot_18.png

Use an external tool like jq to sift through information from whatrecord’s JSON output:

$ whatrecord parse whatrecord/tests/iocs/db/pva/iq.db | jq '.records[] | [.name, .record_type, .fields.OUT.value]'
[
  "$(PREFIX)Rate",
  "ao",
  "$(PREFIX)dly_.ODLY NPP"
]
[
  "$(PREFIX)Delta",
  "ao",
  null
]
...

$ whatrecord parse whatrecord/tests/iocs/db/pva/iq.db | jq '.records[] | [ .name, .info["Q:group"]]'
[
  "$(PREFIX)Rate",
  null
]
[
  "$(PREFIX)Phase:I",
  {
    "$(PREFIX)iq": {
      "phas.i": {
        "+type": "plain",
        "+channel": "VAL"
      }
    }
  }
]
...

Project details
