xbutil-gui 0.0.8

Xilinx xbutil GUI

xbutil-gui

A Python Tkinter GUI for Xilinx Vitis xbutil program

Installation

OS

xbutil-gui has been tested on CentOS 7.8 and Ubuntu 16.04.

Xilinx XRT

Xilinx XRT version 2.8.0 or newer is required on every host with Xilinx Alveo Accelerator Cards.

SSH authentication key

xubtil-gui supports scaning hosts within a cluster. All hosts in the cluster need to have SSH authentication key set up so you can run commands on remote hosts with your username and without password. Follow instructions on the SSH Login without password page to set up SSH authentication key.

Python

This program requires Python 3.6 or newer to run.

Ubuntu 16.04

The default Python on Ubuntu 16.04 is version 3.5. Run the commands below to install Python 3.6

sudo add-apt-repository ppa:deadsnakes/ppa
sudo apt-get update
sudo apt-get install python3.6 python3.6-venv python3.6-tk

Redhat/CentOS 7.8

The default Python on CentOS 7.8 is already version 3.6. You only need to install Python Tkinter.

sudo yum install python36-tkinter

Create and activate a Python3 virtual environment

python3.6 -m venv venv
. venv/bin/activate

Install xbutil GUI as a regular user

pip install xbutil_gui

Install xbutil GUI as a contributor

git clone https://github.com/jimw567/xbutil-gui.git
cd xbutil-gui
pip install -r requirements.txt`
python setup.py develop

Run xbutil-gui

xbutil_gui

Snapshots

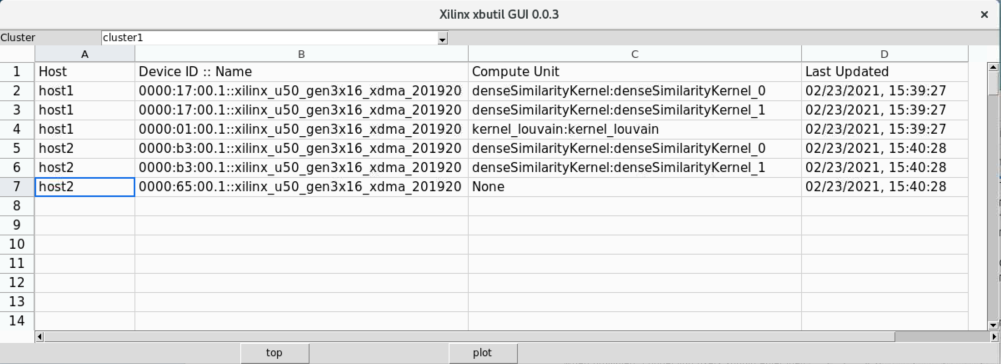

Main window showing all hosts/devices/compute units in a cluster

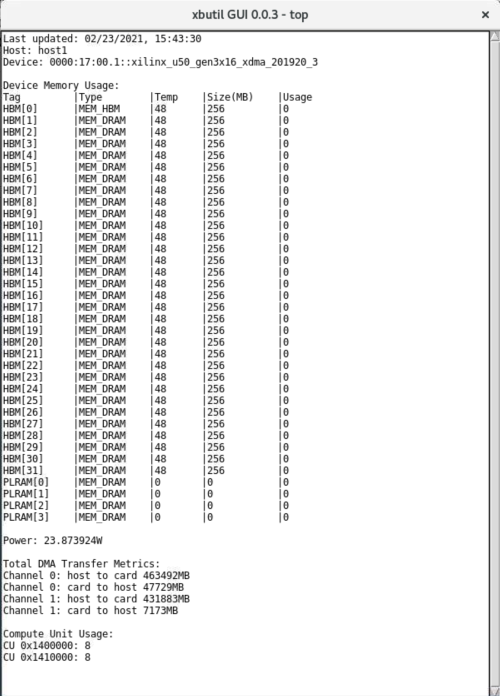

top window

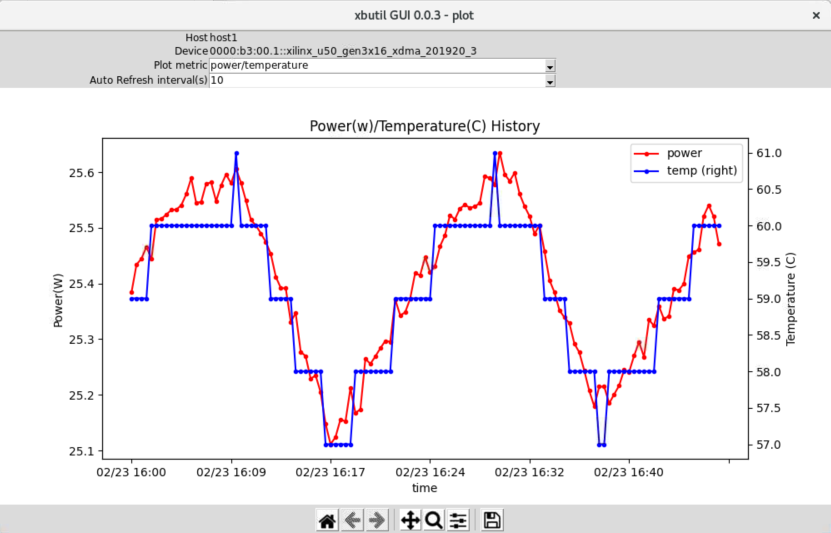

Power/temperature plot

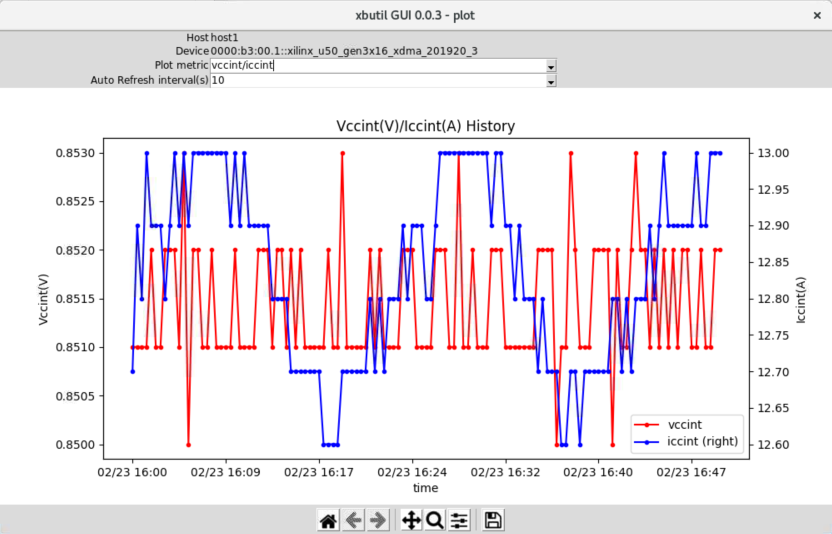

Vccint/Iccint plot

Publish xbutil_gui to PyPI

./scripts/publish-pypi.sh

The following modules may need to be upgraded or installed:

pip install --upgrade pip
pip install twine
