zlsnasdisplay 1.0.1

Eink display manager

ZlsNasDisplay

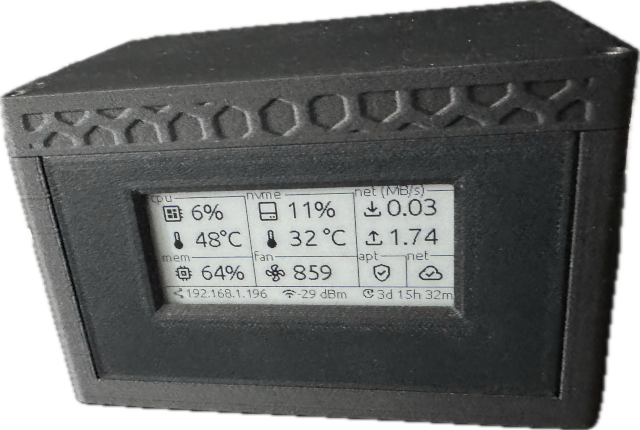

The ZlsNasDisplay application renders various system statistics onto the e-ink display, providing users with real-time insights into the Raspberry Pi-based NAS device's performance and connectivity. Here's a breakdown of the displayed information and their respective update frequencies:

• CPU Load and Temperature
  Displayed Information: The current CPU load percentage and temperature.
  Update Frequency: Updated every 30 seconds.
• Available System Updates
  Displayed Information: The number of available system updates.
  Update Frequency: Checked every 3 hours.
• Network Status Displayed Information: Indicator of internet connectivity status.
  Update Frequency: Checked every 30 seconds.
• Signal Strength
  Displayed Information: The signal strength of the Wi-Fi connection in dBm.
  Update Frequency: Updated every minute.
• Memory Usage
  Displayed Information: The current memory usage percentage.
  Update Frequency: Updated every minute.
• NVMe Disk Usage and Temperature
  Displayed Information: The NVMe disk usage percentage and temperature.
  Update Frequency: Updated every minute.
• Fan Speed
  Displayed Information: The current fan speed in RPM (Revolutions Per Minute).
  Update Frequency: Updated every 10 seconds.
• IP Address
  Displayed Information: The current IP address of the Raspberry Pi.
  Update Frequency: Updated every hour.
• System Uptime
  Displayed Information: The system uptime in days, hours, and minutes.
  Update Frequency: Updated every minute.
• Current Network Traffic
  Displayed Information: The current download and upload speeds in MB/s.
  Update Frequency: Updated every 10 seconds.

Installation

sudo pip3 install zlsnasdisplay

Hardware

Raspberry Pi (5 tested)

Waveshare 2.9" e-ink display

Wiring

All necessary information about the wiring and operation is available on the waveshare wiki

Development

Dependencies

• python: Python version required for the project (>=3.9).
• pillow, gpiozero, schedule, psutil, requests: Python dependencies with their respective versions required for the project.
• mypy, pre-commit, pytest, pytest-cov, ruff, tomli: Development dependencies for linting, testing, and formatting.

Build System

• requires: Poetry core version required for the build system.
• build-backend: Specifies the backend used for building the project.

Mypy Configuration

• check_untyped_defs: Checks untyped function definitions.
• disallow_untyped_defs: Disallows untyped function definitions.
• overrides: Overrides configuration for specific modules.

Pytest Configuration

• minversion: Minimum required version of pytest.
• addopts: Additional options passed to pytest for coverage reporting.

Coverage Reporting

• exclude_lines: Lines excluded from coverage reporting.

Ruff Configuration

• line-length: Maximum line length.
• target-version: Target Python version for compatibility.
• fix: Automatically fix linting issues.
• lint: Configuration for linting rules, select options, and ignored rules.

To install the ZlsNasDisplay project using Poetry, you can follow these steps:

1. Clone the Repository: First, clone the repository containing the project's code from GitHub:

   bashCopy code

   git clone https://github.com/zales/ZlsNasDisplay.git

2. Navigate to the Project Directory: Change your current directory to the root directory of the cloned project:

   bashCopy code

   cd ZlsNasDisplay

3. Install Dependencies: Use Poetry to install the project's dependencies defined in the pyproject.toml file:

   bashCopy code

   poetry install

4. (Optional) Create a Virtual Environment: If you prefer to isolate the project's dependencies, you can create a virtual environment with Poetry:

   bashCopy code

   poetry shell

5. Run the Project: After installing the dependencies, you can run the ZlsNasDisplay project using Poetry. For example, if there's a script defined in the pyproject.toml file under [tool.poetry.scripts], you can execute it as follows:

   bashCopy code

   poetry run python3 zlsnasdisplay
