zookeeper_monitor 0.3.0

Zookeeper's four letters command wrapper and web monitor.

Module lets you call ZooKeeper commands - four letters commands over TCP - https://zookeeper.apache.org/doc/r3.1.2/zookeeperAdmin.html#sc_zkCommands. It also has built-in web monitor. Based on Tornado, compatibile with Python 2.7.x, 3.x and above. It doesn’t require zookeeper, nor zookeeper’s headers (since it doesn’t utilize zkpython).

Installation

It can be installed from pypi or directly from git repository.

pip install zookeeper_monitor

#or

git clone https://github.com/kwarunek/zookeeper_monitor.git
cd zookeeper_monitor/
python setup.py install

Usage

Example:

from zookeeper_monitor import zk

@tornado.gen.coroutine
def some_coroutine()
    host = zk.Host('zookeeper.addr.ip', 2181)
    # you can run each command as a coroutine example:
    # get srvr data
    srvr_data = yield host.srvr()
    # get stat data
    stat_data = yield host.stat()
    # get server state
    ruok = yield host.ruok()
    # stop zookeeper
    yield host.kill()

You can wrap it to sync code if you are not using tornado

from tornado.ioloop import IOLoop

IOLoop.instance().run_sync(some_coroutine)

Web monitor

To run web monitor you need to provide configuration, if you don’t, it will used localhost:2181 by default.

python -m zookeeper_monitor.web

# with configuration file
python -m zookeeper_monitor.web -c /somepath/cluster.json

# to see available options
python -m zookeeper_monitor.web --help

Next you navigate to http://127.0.0.1:8080/ (or whatever you specified).

Configuration

Defining cluster cluster.json (json or yaml)

{
    "name": "brand-new-zookeeper-cluster",
    "hosts": [
        {"addr": "10.1.15.1", "port": 2181, "dc":"eu-west"},
        {"addr": "10.2.31.2", "port": 2181, "dc":"us-east"},
        {"addr": "10.1.12.3", "port": 2181, "dc":"eu-west"}
    ]
}

• name (string) - cluster name.

• hosts (list) - List of hosts running ZooKeeper connected in cluster:

  • addr (string): IP or domain, mandatory

  • port (int): ZooKeeper port, optional, default 2181

  • dc (string): datacenter/location name, optional

Screenshots

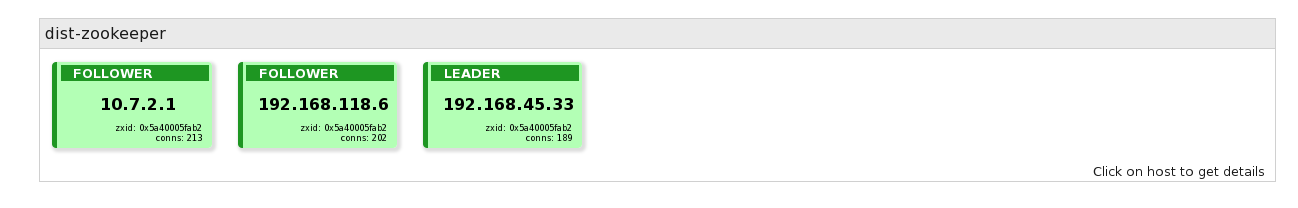

Cluster view

Node stat view

License

MIT

TODO

• more tests

• more stats in webmonitor

• parse zookeeper version

• new commands in zookeeper 3.3 and 3.4

• parse output of dump, reqs

Changelog

0.3.0 - implemented mntr, credits to Robb Wagoner

0.2.5 - implemented with_timeout, handlers get_template, py3.3 gen.Task in Host, css colors

0.2.4 - separate getter template/static dir

0.2.3 - fix import in py3 web

0.2.2 - clean ups: pylint, README, classifiers

0.2.1 - fix package, fix tests

0.2.0 - implement more commands, updated docs

0.1.2 - release - pypi

0.1.1 - clean up

0.1.0 - public standalone

0.0.3 - 0.0.9 - refactor, tests

0.0.2 - working draft

0.0.1 - initial concept
