PyPlaque 0.2.1

Python package for virus plaque analysis based on Plaque2.0

PyPlaque

We introduce PyPlaque, an open-source Python package focusing on flexibility and modularity rather than a bulky graphic user interface. Unlike previous methods, an abstracted architecture using object-oriented programming allows accommodation of various experimental containers and specimen carriers as data structures while focusing on phenotype-specific information. Aligned with the logical flow of experimental design and desired quantifications, it delivers insights at multiple granularity levels, facilitating detailed analysis. Furthermore, similar design is generalisable to diverse datasets in various biological contexts that fit our structural paradigm.

For further details please look at our paper: [https://www.biorxiv.org/content/10.1101/2024.08.07.603274v1]

---

Version

New release v0.2.0

---

Installation

See project's PyPi page https://pypi.org/project/PyPlaque/

pip install PyPlaque

---

Local devloper installation

• Clone repo
• run pip install -e .

---

Documentation

To be added in a separate webpage. Please refer to scripts in the repository now.

---

Usage

Fluorescence Plaques

1. Loading packages

import matplotlib.pyplot as plt
import numpy as np

from PyPlaque.experiment import FluorescenceMicroscopy
from PyPlaque.utils import remove_background, plot_virus_contours
from PyPlaque.view import PlateReadout

np.random.seed(0)

2. Initialising parameters and data

base_dir = '../../../data_backup/samples_fluorescent_plaques/'
exp = FluorescenceMicroscopy(base_dir+'images', base_dir+'masks', params = None)

plate_dirs, plate_mask_dirs = exp.get_individual_plates(folder_pattern=r'^200601')
print(plate_dirs, plate_mask_dirs)
print(exp.get_number_of_plates())

['200601-zplate-g2'] ['200601-zplate-g2']
1

3. Loading and displaying an example image from the nuclei channel
(plate_id indicates which one of the above read plates are chosen for further analysis)

plate_dict_w1 = exp.load_wells_for_plate_nuclei(plate_id=0, additional_subfolders='2020-06-03/2072',
                                                                        file_pattern=r'_A01_s1_w1')
plt.imshow(plate_dict_w1['200601-zplate-g2']['img'][0])

4. Display the nuclei mask that is inferred based on flourescence microscopy image and pararmeters default in exp when we do exp.load_wells_for_plate_nuclei():

_, ax = plt.subplots(figsize=(8, 8))
ax.imshow(plate_dict_w1[plate_dirs[0]]['mask'][0], cmap='gray')
plt.show()

5. Similarly for the virus channel

plate_dict_w2 = exp.load_wells_for_plate_virus(plate_id=0, additional_subfolders='2020-06-03/2072',
                                                file_pattern=r'_A01_s1_w2')

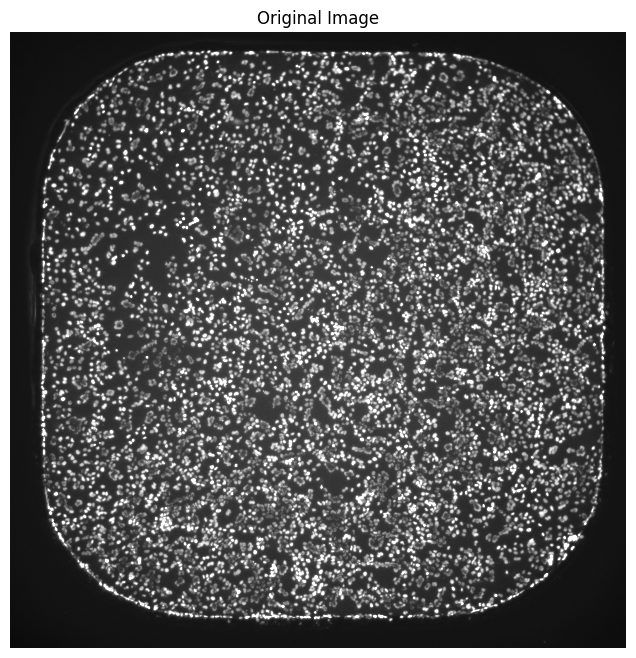

plt.imshow(plate_dict_w2['200601-zplate-g2']['img'][0])

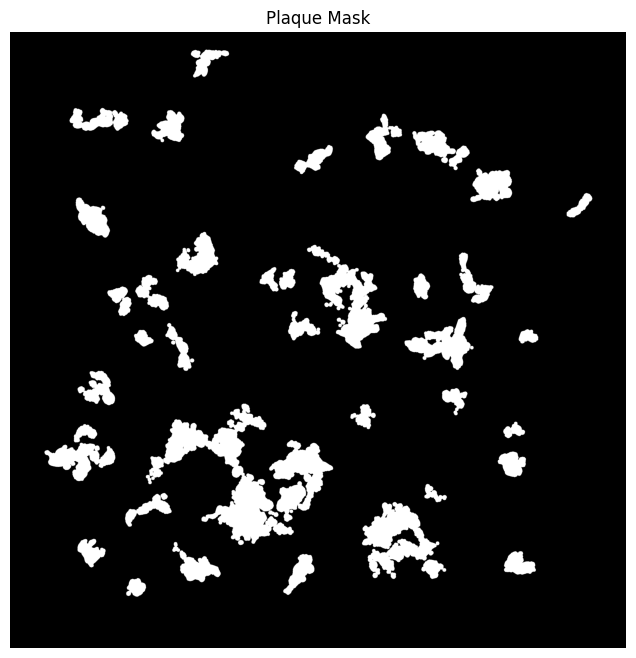

_, ax = plt.subplots(figsize=(8, 8))
ax.imshow(plate_dict_w2[plate_dirs[0]]['mask'][0],cmap='gray')
plt.show()

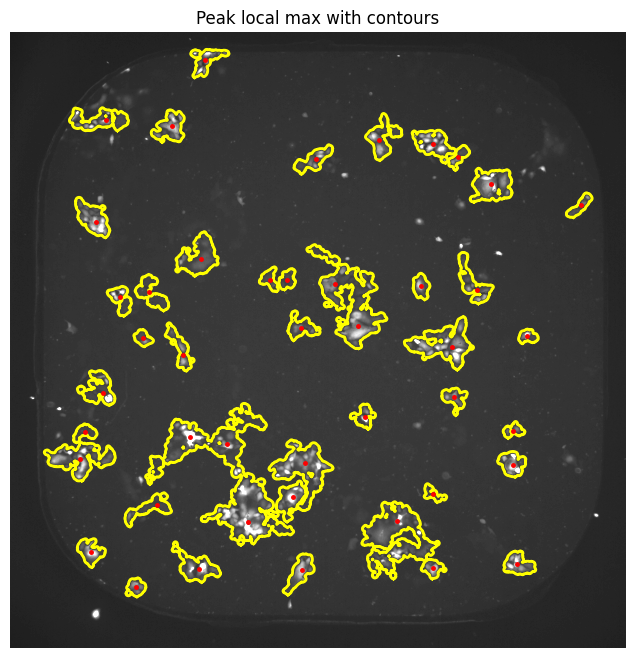

6. We can also plot the contours of the virus and a local maxima for each plaque

plot_virus_contours(img, virus_params=exp.params['virus'])

Crystal Violet Plaques

1. Loading packages

import matplotlib.pyplot as plt
import pandas as pd
from tqdm.auto import tqdm

from PyPlaque.experiment import CrystalViolet
from PyPlaque.specimen import PlaquesMask
from PyPlaque.utils import plot_bbox_plaques_mask, boxplot_quants

2. Initialising parameters and data

base_dir = '../../../data_backup/samples_crystal_violet_plaques/'

exp = CrystalViolet(base_dir+'plaques_image_png/', base_dir+'plaques_mask_png/',
                                        params = None)

plate_dirs, plate_mask_dirs = exp.get_individual_plates(folder_pattern=r'6446$')
print(plate_dirs, plate_mask_dirs)
print(exp.get_number_of_plates())

['IMG_6446'] ['IMG_6446']
1

3. Loading and displaying an example image from the plate
(plate_id indicates which one of the above read plates are chosen for further analysis)

plate_dict = exp.load_well_images_and_masks_for_plate(plate_id=0, additional_subfolders=None,
                                                            all_grayscale=True, file_pattern=None)
plt.figure()

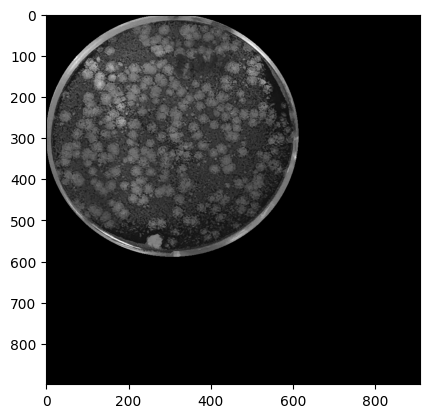

plt.imshow(plate_dict[plate_dirs[0]]['img'][0], cmap='gray')

plt.figure()

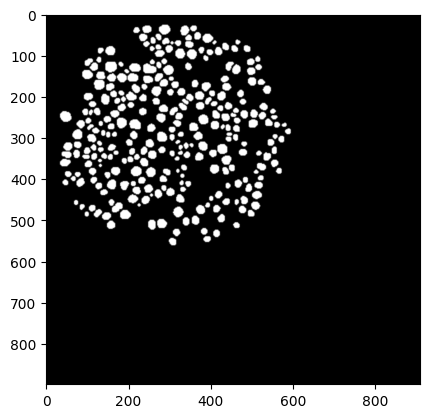

plt.imshow(plate_dict[plate_dirs[0]]['mask'][0],cmap='gray')

4. Display masked plaques based on flourescence microscopy image and mask stored when we ran in exp when we do exp.load_well_images_and_masks_for_plate():

plate_dict = exp.extract_masked_wells(plate_id=0)
i = 0
j = 0
plt.figure()
plt.axis('off')
plt.title(plate_dirs[0]+"-"+str(i)+","+str(j))

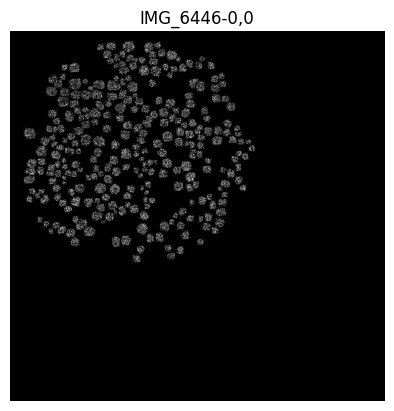

plt.imshow(plate_dict[plate_dirs[0]]['masked_img'][0], cmap='gray')

5. Getting plaque counts

plaques_mask_gt_list = [PlaquesMask(name = str(plate_dict[plate_dirs[0]]['image_name'][i]),
                                plaques_mask = plate_dict[plate_dirs[0]]['mask'][i])
                    for i in tqdm(range(len(plate_dict[plate_dirs[0]]['img'])))]
plaques_count_gt_list = [len(plq_mask.get_plaques()) for plq_mask in tqdm(plaques_mask_gt_list)]

[print(plq_mask.name, " : ", plq_count, "\n")
        for (plq_mask, plq_count) in tqdm(list(zip(plaques_mask_gt_list, plaques_count_gt_list)))]

100%|██████████| 6/6 [00:00<00:00, 127745.30it/s]
100%|██████████| 6/6 [00:01<00:00, 3.48it/s]
100%|██████████| 6/6 [00:00<00:00, 70690.52it/s]
../../../data_backup/samples_crystal_violet_plaques/plaques_image_png/IMG_6446/IMG_6446.png_1.png : 116

../../../data_backup/samples_crystal_violet_plaques/plaques_image_png/IMG_6446/IMG_6446.png_2.png : 143

../../../data_backup/samples_crystal_violet_plaques/plaques_image_png/IMG_6446/IMG_6446.png_3.png : 223

../../../data_backup/samples_crystal_violet_plaques/plaques_image_png/IMG_6446/IMG_6446.png_4.png : 61

../../../data_backup/samples_crystal_violet_plaques/plaques_image_png/IMG_6446/IMG_6446.png_5.png : 3

../../../data_backup/samples_crystal_violet_plaques/plaques_image_png/IMG_6446/IMG_6446.png_6.png : 1

6. Generating and displaying generated mask of plaques in case one isn't available

(simply set read_mask=False in exp.load_well_images_and_masks_for_plate())

exp2 = CrystalViolet(base_dir+'plaques_image_png/', base_dir+'plaques_mask_png/',
                                        params = None) # default values in class, option to update
_, _ = exp2.get_individual_plates(folder_pattern=r'6446$')
plate_dict_no_mask = exp2.load_well_images_and_masks_for_plate(plate_id=0,
                additional_subfolders=None, read_mask=False, all_grayscale=True,
                file_pattern=r'png_1')
print(plate_dict_no_mask[plate_dirs[0]]['image_name'][0])

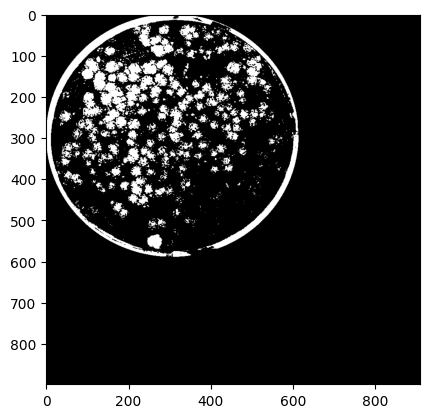

plt.imshow(plate_dict_no_mask[plate_dirs[0]]['mask'][0], cmap='gray')

---

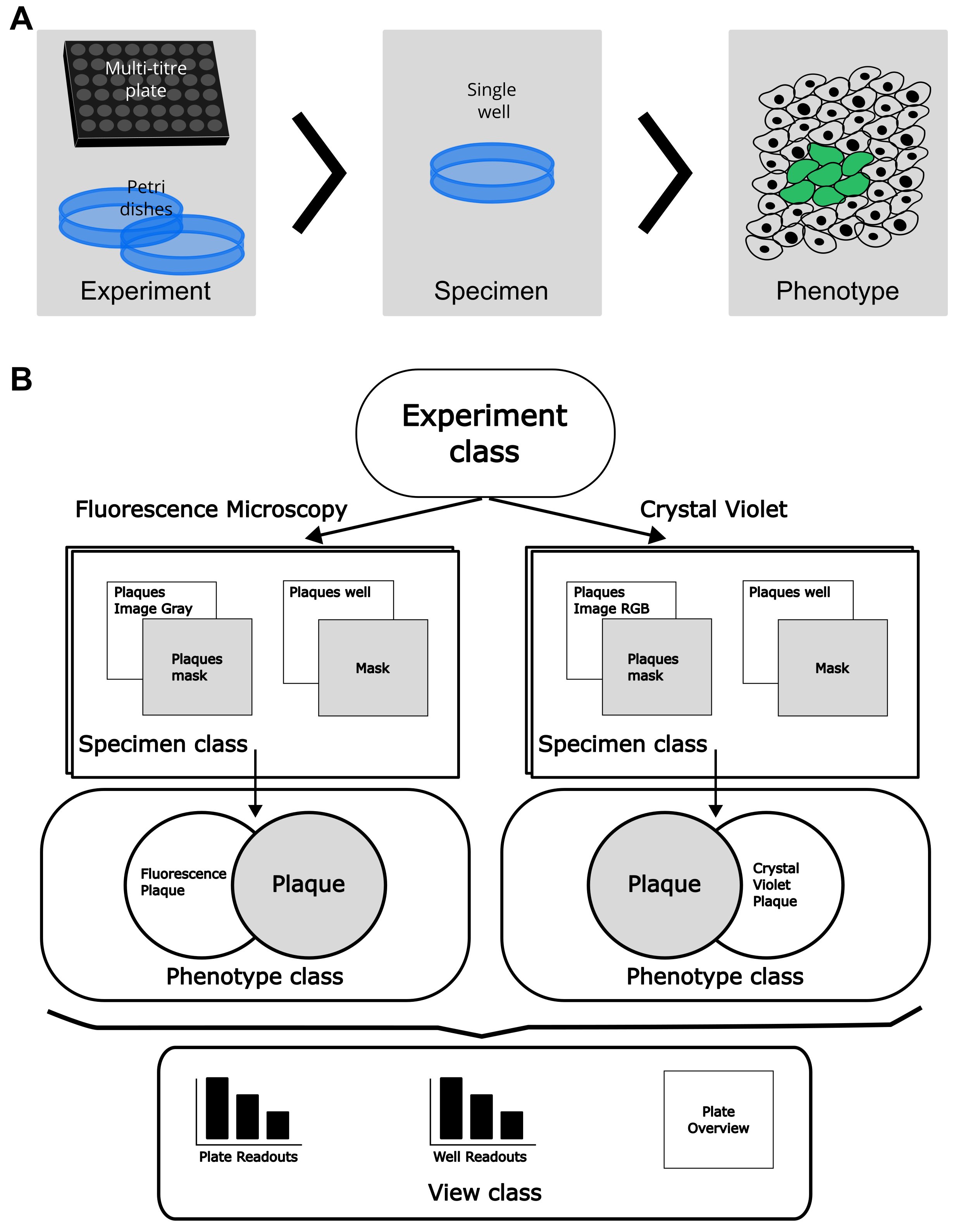

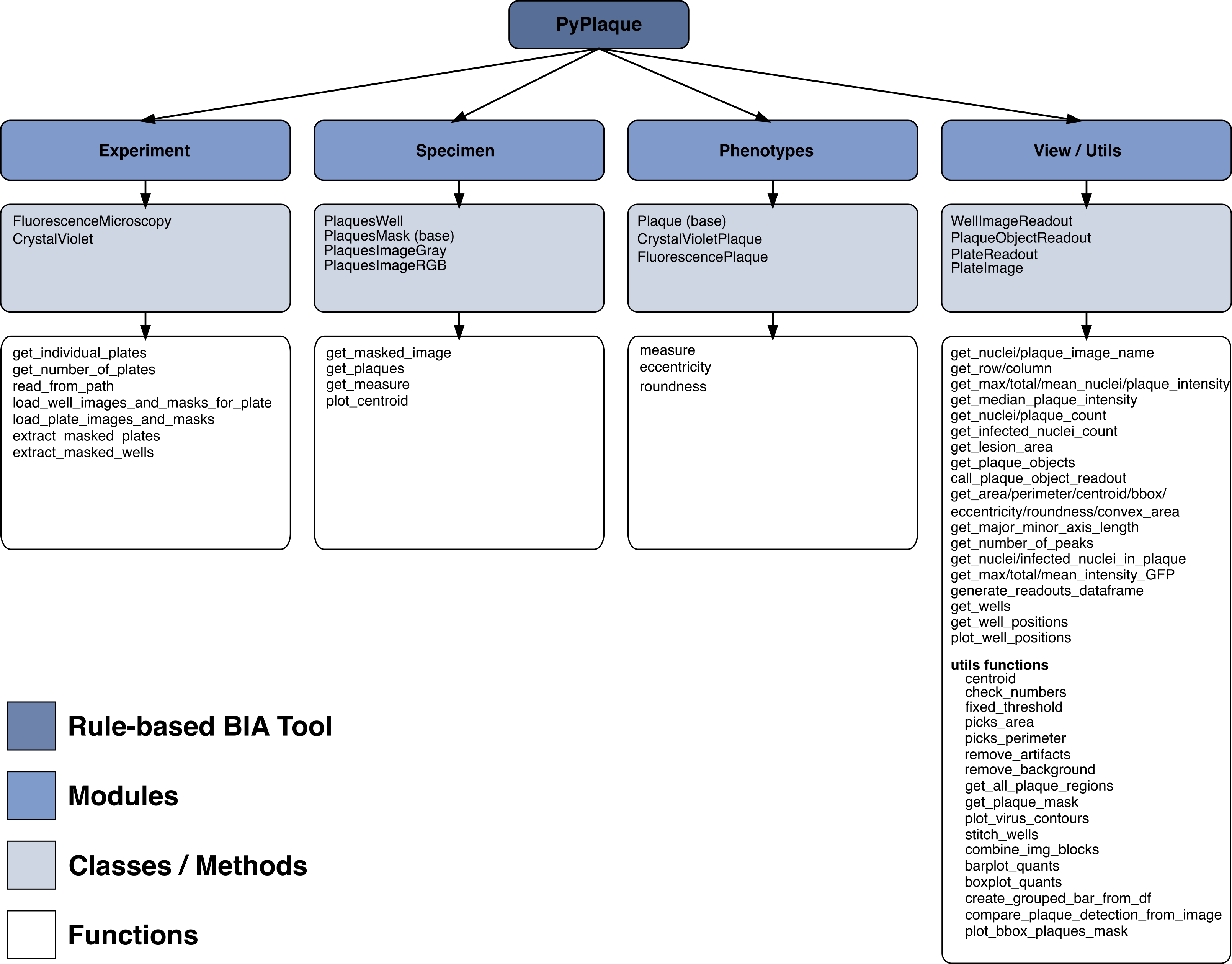

Hierarchical Class Structure

---

Class Types

Experiment

1. CrystalViolet - This class is designed to contain metadata of multiple instances of a multititre plate of Crystal Violet plaques.
2. FluorescenceMicroscopy - This class is designed to contain metadata of multiple instances of a multititre plate of Fluorescence plaques.

Specimen

1. PlaquesImageGray - This class is designed to hold grayscale image data containing multiple plaque phenotypes with a respective binary mask. The class inherits from PlaquesMask.
2. PlaquesImageRGB - The class is designed to hold RGB image data containing multiple plaque phenotypes with a respective binary mask. The class inherits from PlaquesMask.
3. PlaquesMask - This class is designed to hold a binary mask of multiple plaque instances in a well.
4. PlaquesWell - This class is designed to contain a full well of a multititre plate

Phenotypes

1. CrystalVioletPlaque - This class contains a plaque obtained from crystal violet image. Class inherits from Plaque class and is also designed to hold a single virological plaque phenotype.
2. FluorescencePlaque - This class contains a plaque obtained from fluorescence image. Class inherits from Plaque class and is also designed to hold a single virological plaque phenotype.
3. Plaque - This class is designed to hold a single virological plaque phenotype as an object. It encapsulates the properties and behaviors related to a specific plaque, including its mask, centroid coordinates, bounding box, and usage preference for pick measurements.

View

1. WellImageReadout - This class encapsulates metadata related to multiple instances of plaques within a single well of a fluorescence plate.
2. PlaqueObjectReadout - This class encapsulate data related to a single instance of a plaque from a fluorescence plaque well.
3. PlateReadout - This class contains readouts of multiple wells of a single plate of a Fluorescence Plaque.
4. PlateImage - This class encapsulates a full multi-title plate image and its corresponding binary mask. It provides methods to extract individual well images from the plate based on specified criteria, visualize these wells annotated with their positions, and more.

For more information about class attributes and functions please refer to scripts in the repository.

---

For further clarifications or queries, please contact:

1. Trina De (https://orcid.org/0000-0003-1111-9851)
2. Dr. Artur Yakimovich (https://orcid.org/0000-0003-2458-4904)
3. Dr. Vardan Andriasyan (https://orcid.org/0000-0002-9619-6655)
