ULLR

Pronounced "OOH-ler"

A serial <-> MQTT interface for sports timing.

Ullr allows for the two-way exchange of data between serial devices and computers over the internet, using MQTT as an intermediary. This is particularly useful for connecting to faraway devices that aren't on the same LAN. Ullr allows for connecting an arbitrary number of devices to an arbitrary number of computers.

Ullr works for connecting remotely to things like weather stations, sensors, or other devices that send simple data intermittently. It is not designed for high volume devices like modems or printers.

Installation

Python environment

pip install ullr

Windows executable

If you don't have or don't wish to use a Python environment, a Windows executable version is available in the source repository on GitHub.

Get the source

The source code is always available at https://github.com/zhenry9/Ullr.

Configuration

Modify config.ini to suit your needs, or configure interactively using the the software. The web interface is fully featured to alow for the configuration of device and MQTT broker settings.

Usage

Ullr borrows terminology from the original RS232 protocol.

Default

Ullr

This starts Ullr with a web interface on localhost:5000. If Ullr is run without command line options, it will attempt to load devices from the default config file. This will be '~/.config/ullr/config.ini', or '/etc/ullr/config.ini' if run as superuser. If you are running Ullr for the first time or with an empty config file, no devices will be loaded. You can add devices interactively using the web interface.

CLI

ullr --nowebui

This will load Ullr with a command line interface only, whithout the web interface. Configuration can be done interactively from the command line.

Empty

ullr --empty

This will ignore the default config file and start Ullr without any devices loaded. This is useful for fixing bad config files, or creating new ones from scratch.

From file

ullr --file FILENAME

This will attempt to start Ullr by loading the devices specified in an arbitrary config file at FILENAME.

Display help page

Ullr --help

This prints out the help page for command line options.

Virtual COM ports

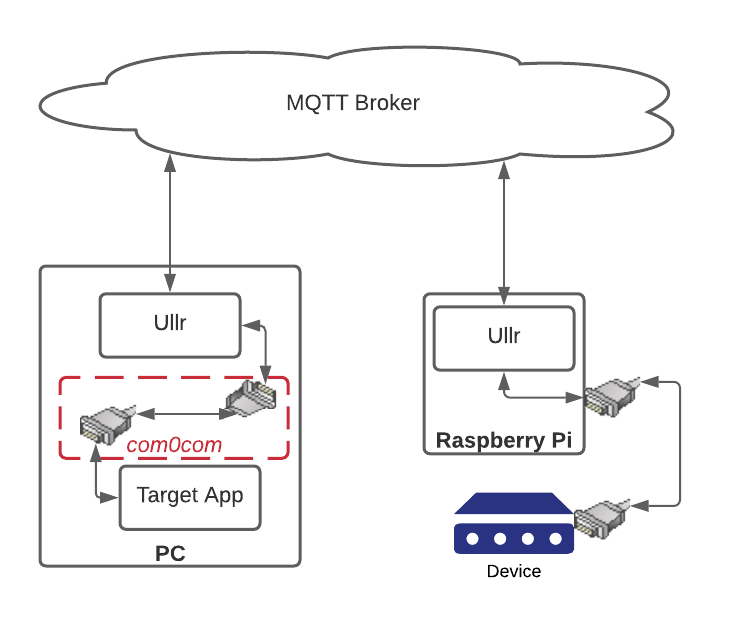

On the computer (DTE) side of the connection you'll need to set up a virtual null modem to allow Ullr to communicate with the target software. This is just a pair of com ports connected to each other. Ullr connects to one port, and your software application connects to the other.

On Windows this can be accomplished with com0com.

In the above example, we could use com0com to create a virtual null modem with ports COM20 and COM21. Ullr would connect to COM20, and the PC software to COM21.

Licensing and Copyright

GNU GPL v3 License Copyright (c) Zach Henry.
