Alan

A programming language for designing Turing machines.

Walkthrough    |    Installation    |    Wiki    |    Citation

Installation

pip install alan

Walkthrough

This section describes a workflow.

For an in-depth guide navigate to the Wiki. Here are some useful links:

• Definition
• Syntax
• Interface

Consider the following example, the definition for a Turing machine that accepts all binary strings that are palindromic:

# This is a definition of a Turing Machine that accepts binary strings that are palindromes
' '
A*
    'X' 'X' < A
    'Y' 'Y' < A
    '0' 'X' > B
    '1' 'Y' > F
    ' ' ' ' > G
B                   # Starting with 0
    '0' '0' > B
    '1' '1' > B
    ' ' ' ' < C
    'X' 'X' < C
    'Y' 'Y' < C
F                   # Starting with 1
    '0' '0' > F
    '1' '1' > F
    ' ' ' ' < E
    'X' 'X' < E
    'Y' 'Y' < E
C
    '0' 'X' < D
    'X' 'X' < D
E
    '1' 'Y' < D
    'Y' 'Y' < D
D
    '0' '0' < D
    '1' '1' < D
    ' ' ' ' > A
    'X' 'X' > A
    'Y' 'Y' > A
G.
    'X' '0' > G
    'Y' '1' > G

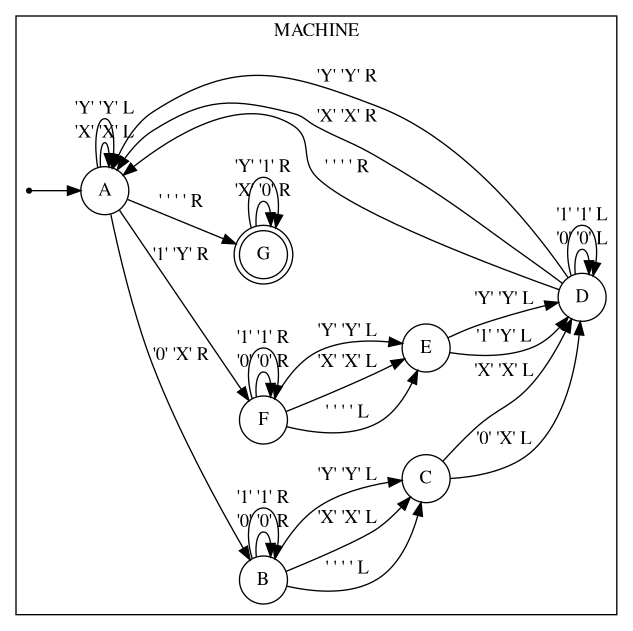

Graph the machine:

alan graph examples/binary-palindrome.aln -f assets/readme/binary-palindrome.png

Run the machine on some inputs:

• alan run examples/binary-palindrome.aln 101


  Accepted
  Initial Tape : 101
  Final Tape   : 10


• alan run examples/binary-palindrome.aln 1010


  Rejected
  Initial Tape : 1010
  Final Tape   : Y010


Animate the computation on some inputs:

• alan run examples/binary-palindrome.aln 101 -a -f assets/readme/binary-palindrome-accepted.gif

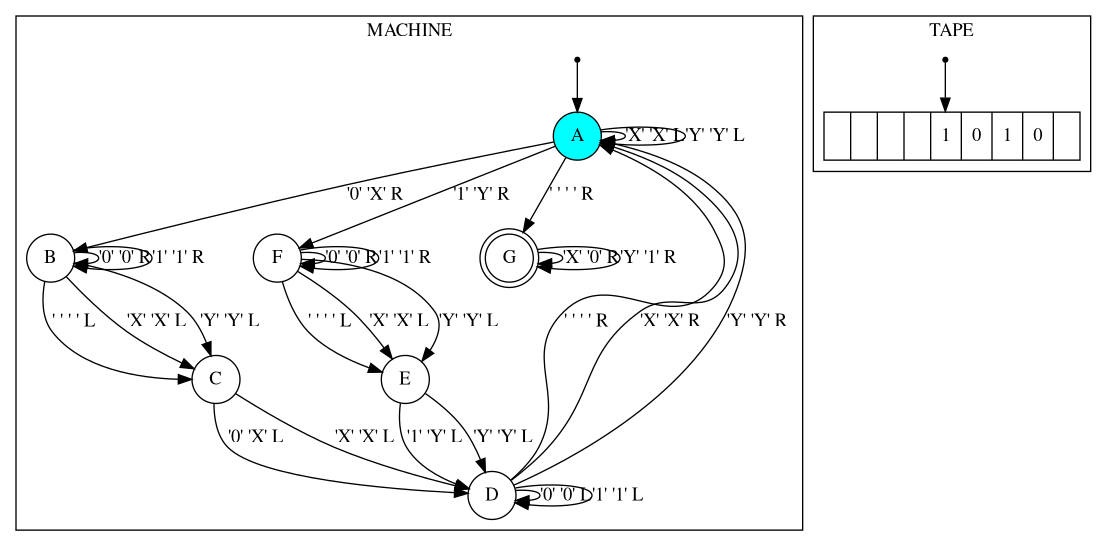

• alan run examples/binary-palindrome.aln 1010 -a -f assets/readme/binary-palindrome-rejected.gif
