anatplot

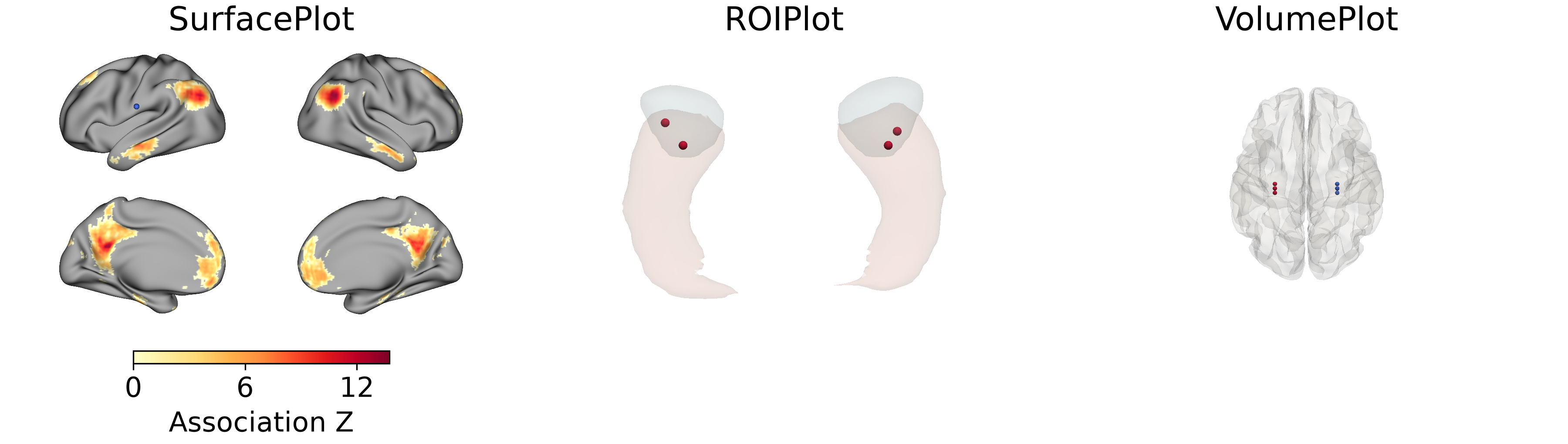

anatplot is a Python package for plotting data on brain surfaces and visualizing anatomical regions in 3D. You can optionally add electrode contacts to any plot, then save a Matplotlib figure or explore and export the 3D scene.

This project is under active development; some features may need further refinement.

Requires Python 3.10 or newer. Install from GitHub:

uv add "git+https://github.com/const7/anatplot.git"
# Or with pip:
pip install "git+https://github.com/const7/anatplot.git"

Quick start

Plot a public Neurosynth default-mode association map and an example electrode contact on inflated cortical surfaces. Dataset helpers download and cache the public data on first use.

import matplotlib.pyplot as plt
import numpy as np

from anatplot import SurfacePlot, datasets

# Fetch surfaces and a map with matching fsLR 32k vertex order.
surfaces = datasets.fetch_surfaces("fsLR", surface="inflated", density="32k")
left, right = datasets.fetch_dmn_map_fslr32k()
association = {
    # Hide this map's zero background so the underlying surface stays visible.
    "left": np.ma.masked_equal(left, 0),
    "right": np.ma.masked_equal(right, 0),
}

# The with block closes the 3D scene and releases graphics resources.
with SurfacePlot(
    **surfaces,
    views=["lateral", "medial"],
    layout="grid",
    window_size=(1000, 600),
    zoom=1.5,
) as plot:
    plot.add_layer(association, cmap="YlOrRd", cbar=True, cbar_label="Association Z")
    # Use the original anatomy's RAS coordinates in millimetres;
    # the fetched projection surfaces transfer contacts to the inflated display.
    plot.add_contacts([[-64, -13, 23]], radius=4, color="royalblue")
    fig = plot.to_figure(figsize=(10, 7))

fig.savefig("surface-map.png", dpi=300)
plt.close(fig)

See the documentation for more.

Acknowledgements

SurfacePlot was inspired by surfplot. Public templates and atlases come from neuromaps, TemplateFlow, Nilearn, and NetNeuroLab. Cite the data used in your figure; see dataset sources.

Contributing

Issues and pull requests are welcome. Please see the contributing guide before getting started.
