brunel 2.6.2

Brunel Visualization For Jupyter/IPython Notebooks

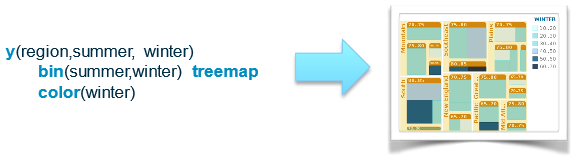

Brunel defines a highly succinct and novel language that produces interactive data visualizations using pandas DataFrame objects. The language is well suited for both data scientists and more aggressive business users. The system interprets the language syntax and produces live visualizations directly within Jupyter notebooks.

• Articles and notes on Brunel can be found in the brunelvis.org blog. Videos are available on YouTube.

• Details about the language can be found in the Brunel Language Tutorial

• Examples can be found in the Brunel Visualization Gallery and the Brunel Visualization Cookbook.

• See the Release Change Log for new features and changes.

Please report any issues on our Github site. Q&A available on Gitter

Dependencies

• Brunel Visualization currently only works in IPython/Jupyter notebooks which must be installed prior to installing Brunel.

• Java 1.7+ must be installed

• It is likely that environment variable JAVA_HOME also needs to be properly set to the location of the Java installation.

Installation

pip install brunel

Note, if after installing the visualizations are not visible try installing using:

pip install brunel --user

Example

Sample code that reads data from a CSV file and creates a simple bar chart of averages using the Brunel magic function:

import pandas as pd
import brunel

cars = pd.read_csv("data/Cars.csv")

%brunel data('cars') x(origin) y(horsepower) mean(horsepower) bar tooltip(#all) :: width=300, height=300
