cbpi4-iSpindle 0.0.13

CraftBeerPi4 iSpindle Sensor Plugin

CraftBeerPi4 iSpindle Sensor Plugin

• Initial Version which has to be considered as beta
  • Data Transfer is working from the SPindle itself and from the TCP server via forward-
  • TCP Server does not require any changes. Only the port needs to be changed from 5000 to 8000

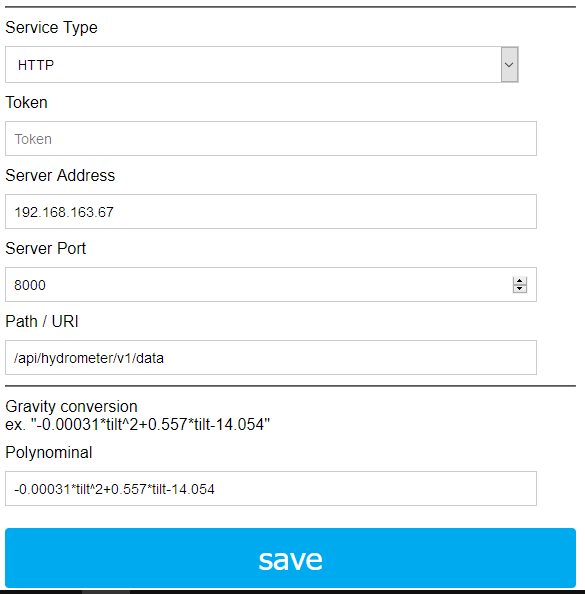

  • The Spindel Connection needs to be changed from CraftbeerPi to HTTP as shown in the image below
  • For Server, please enter the IP address of your CBPi4 Server.
  • Enter 8000 for Port and '/api/hydrometer/v1/data' for path.

• Installation:

  • sudo pip3 install cbpi4-iSpindle (or from the GIT repo)

• Usage:

  • Add Hardware under Sensor and choose iSpindle as Type

• Units are currently not displayed in CBPi4 for Sensors. You need to add that on you own in the Dashboard

• If you want to retrieve multiple parameters from one Spindle, you need to add the Spindle several times as sensor and choose different Types

  • The Sensor name should be different for each of your sensors

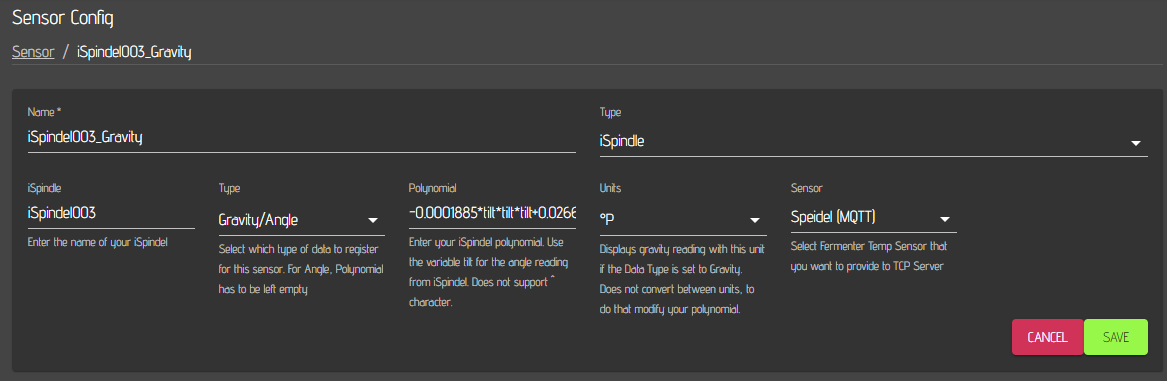

• The settings are shown below.

  • Name: This is the name of your sensor shown in CBPi4. e.g. iSpindleXXX - Angle
  • iSpindle: Name of your Spindle that you entered in the Spindle setup page. This name must match to the Spindle. Otherwise no data will be collected.
  • Type: Temperature, Gravity/Angle, Battery (Choose one type)
    • If Gravity/Angle is choosen and the Polynomial field is left empty, the angle data is stored
  • Polynomial: The polynomial to calculate gravity. '^' is not working. You need to use 'tilt*tilt*tilt' for '^3' and 'tilt*tilt' for '^2'
  • Units: Choose SG, Brix or °P. This has impact on the calculated digits

Changelog:

• 25.06.23: (0.0.13) change logging from 'warning' to 'info'
• 10.06.23: (0.0.12) bump to release
• 06.03.23: (0.0.12.a2) Added DataType for datetime (TEST)
• XX.XX.XX: (0.0.11) ???
• 11.05.22: (0.0.10) Updated README (removed cbpi add)
• 10.05.22: (0.0.9) Removed cbpi dependency
• 16.01.22: (0.0.8) Adaption for cbpi 4.0.1.2
• 13.01.22: (0.0.7) Reduced mqtt traffic -> update only for new value
• 23.11.21: (0.0.6) Added RSSI to available parmeters
• 10.06.21: (0.0.5) Fix to improve UI behavior with respect to frequency of value update
• 17.04.21: Some small fixes
• 15.03.21: Changes to suppoer cbpi >= 4.0.0.31
