clad-body 0.6.1

Anny/MHR body loaders and ISO 8559-1 body measurements

clad-body

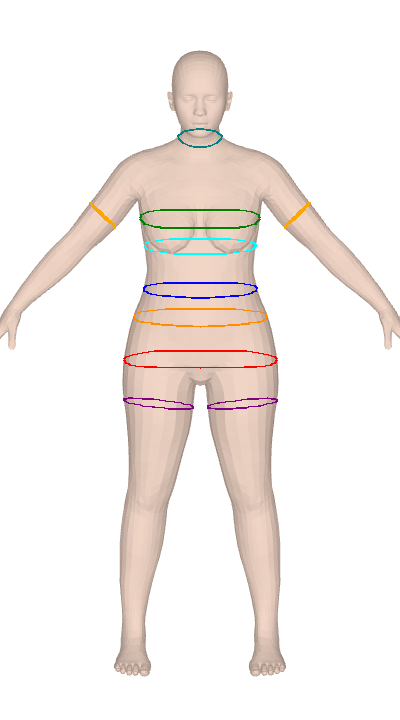

ISO 8559-1 body measurements for Anny and MHR parametric body models. Twelve keys are differentiable through PyTorch autograd for gradient-based body fitting.

Anny and MHR give you a 14–18K vertex mesh and nothing to measure it with. SMPL tooling doesn't port over, and the plane-sweep algorithms look simple until you hit convex-hull tape simulation, contour-fragment merging, and ISO-compliant landmark detection for bust/hip/crotch. clad-body is that work, done once — 25 anthropometric measurements over circumferences, lengths, and body composition (volume, mass, BMI, body fat), calibrated against real scan data. It's used in production at Clad for size-aware virtual try-on.

Also exposed as a REST API at api.clad.you — questionnaire or photo in, GLB + measurements out. Free for now while we work out whether anyone actually wants this; key at clad.you/developers.

All bodies are normalised to the same coordinate convention: Z-up, metres, XY-centred, feet at Z=0, +Y=front.

Install

pip install clad-body

# With Anny body loader (requires torch)
pip install 'clad-body[anny]'

# With MHR body loader (requires pymomentum)
pip install 'clad-body[mhr]'

# With 4-view rendering
pip install 'clad-body[render]'

Quick start

from clad_body.load import load_anny_from_params
from clad_body.measure import measure

body = load_anny_from_params(params)

m = measure(body)                                  # all measurements
m = measure(body, preset="core")                   # 4: height, bust, waist, hip
m = measure(body, preset="standard")               # 9: + thigh, upperarm, shoulder, sleeve, inseam
m = measure(body, preset="tops")                   # garment-relevant subset
m = measure(body, only=["bust_cm", "hip_cm"])       # specific keys
m = measure(body, tags={"type": "circumference", "region": "leg"})  # tag filter

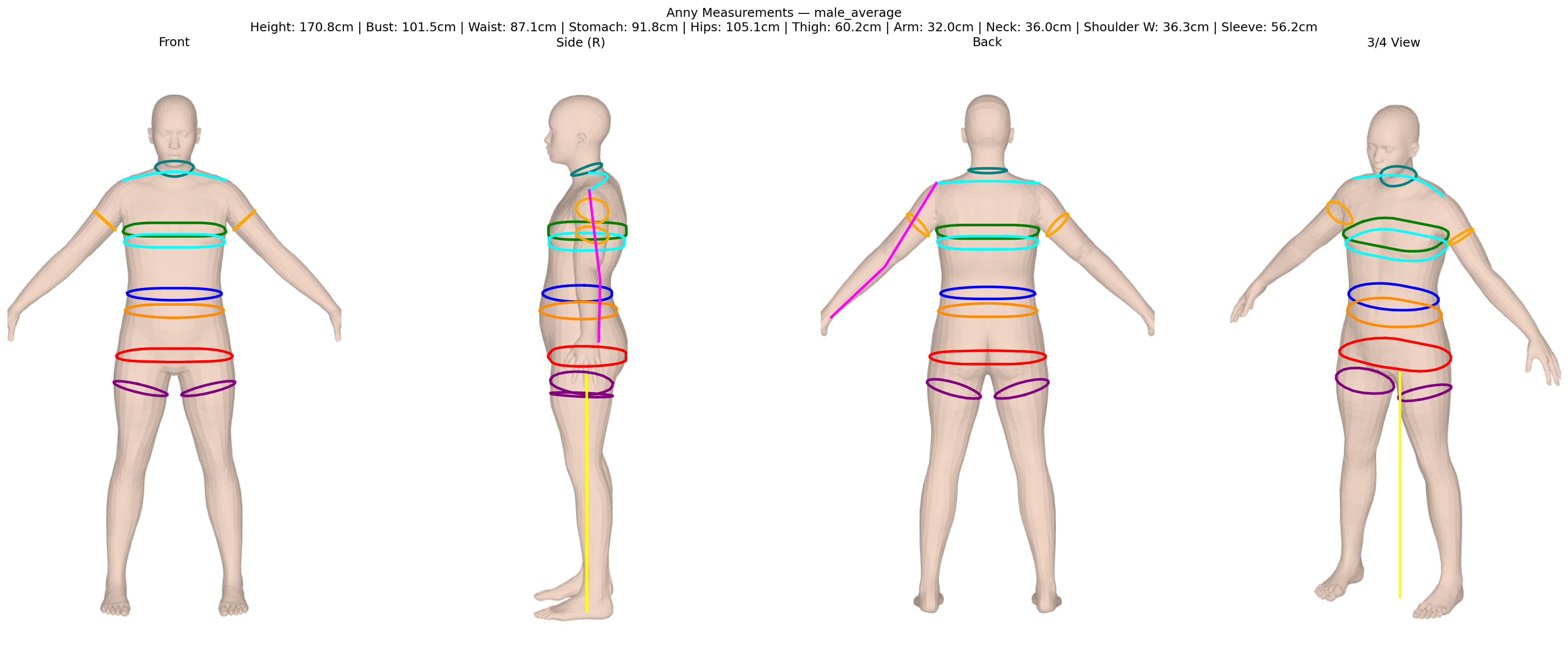

m = measure(body, render_path="body.png")          # with 4-view render

MHR works the same way:

from clad_body.load import load_mhr_from_params
body = load_mhr_from_params("path/to/sam3d_params.json")
m = measure(body)

Differentiable path — measure_grad (Anny only, experimental)

Under active development. API surface and supported keys may change between minor versions. Fifteen keys are differentiable today; more will follow.

For autograd-based optimization of the body mesh, use measure_grad(body) instead of measure(body). Same input, same key names — but the returned values are PyTorch tensors with autograd history, so you can put them directly into a loss and backprop into the Anny phenotype parameters.

Pass requires_grad=True to load_anny_from_params to create the body with gradient-enabled phenotype tensors (stored on body.phenotype_kwargs):

import torch
from clad_body.load import load_anny_from_params
from clad_body.measure import measure_grad

body = load_anny_from_params(initial_params, requires_grad=True)
optimizer = torch.optim.Adam(list(body.phenotype_kwargs.values()), lr=0.01)

for step in range(500):
    optimizer.zero_grad()
    m = measure_grad(body, only=["bust_cm", "waist_cm", "inseam_cm"])
    loss = (m["bust_cm"] - 92.0) ** 2 + (m["waist_cm"] - 78.0) ** 2 + (m["inseam_cm"] - 82.0) ** 2
    loss.backward()
    optimizer.step()

Each measure_grad(body) call re-runs the forward pass using body.phenotype_kwargs, so after optimizer.step() updates the tensors the next iteration measures the new mesh. If you only want to optimize a subset of parameters, load without requires_grad=True and enable it per-tensor: body.phenotype_kwargs["height"].requires_grad_(True).

Supported keys and their calibration error vs the ISO reference that measure() uses:

Key	Error vs ISO
height_cm, waist_cm	exact (same loop / extent)
bust_cm	MAE 0.06 cm, max 0.18 cm
underbust_cm	MAE 0.39 cm, max 1.61 cm
hip_cm	MAE 0.46 cm, max 1.39 cm
stomach_cm	MAE 0.93 cm, P95 2.83 cm, max 3.61 cm (soft-argmin picks a different Z than the reference's 2 mm band scan; residual is inherent Z-choice noise)
inseam_cm	RMS 0.06 cm, max 0.10 cm
sleeve_length_cm	RMS 0.33 cm, max 0.55 cm
shoulder_width_cm	RMS 1.39 cm on 100 random bodies (91 % within ±2 cm). Max 5cm
upperarm_cm	≤ 1 cm
mass_kg	MAE 0.034 kg, P95 0.10 kg, max 0.22 kg (1000 bodies). volume × ρ̂(BF) with the same BF-corrected formula measure() uses (Hodgdon density, Navy/Weltman soft-blended). Residual comes from soft-circ vs plane-sweep waist/hip/neck flowing through log10 in the density formula.
thigh_cm	MAE 0.06 cm, max 0.18 cm (100 random bodies)
knee_cm	MAE 0.24 cm, P95 0.51 cm, max 0.69 cm (100 bodies). Perpendicular slice along femur–tibia bisector at upperleg02.tail (= ISO §3.1.17 kneecap centre on Anny A-pose meshes).
calf_cm	MAE 0.08 cm, P95 0.23 cm, max 0.92 cm (100 bodies). Per-leg Gaussian Z-binning + spread-proxy soft-argmax → perpendicular slice along tibia. Anatomical Gaussian prior (β=2000) at knee_z − 0.30·(knee_z − ankle_z) mirrors numpy's deflated-calf boundary fallback.
neck_cm	MAE 0.20 cm, P95 0.45 cm, max 1.01 cm (999 bodies). Tilted plane perpendicular to neck axis, anchor 0.0102 × body_height below neck02 bone head (ISO §5.3.2 "just below the Adam's apple").

Circumference = convex hull perimeter, not contour perimeter

Both measure() and measure_grad report convex hull circumference, not the raw cross-section perimeter. This matches ISO 8559-1: a real measuring tape bridges across concavities (e.g., cleavage between breasts, armpit crease) rather than dipping into them. The convex hull perimeter is always ≤ the raw contour perimeter — the difference is most visible at the bust on larger cup sizes where the cleavage concavity can shorten the measurement by 1-3 cm compared to following the actual surface.

measure_grad builds a 72-point polygon via differentiable soft edge-plane intersection, then takes its scipy.spatial.ConvexHull perimeter. This is used for bust, underbust, hip, stomach, thigh, knee, calf, and neck — each at its respective anatomical level. For bust/hip/stomach/thigh the cutting plane is horizontal (soft_circumference); for knee, calf, and neck it tilts (soft_circumference_plane) because the limb axis is meaningfully off-vertical and horizontal slicing biases the result. Knee slices perpendicular to the femur–tibia bisector at the bone-anchored kneecap centre. Calf slices perpendicular to the tibia at a soft-argmax-resolved gastrocnemius Z (with a Gaussian prior centred at the anatomical 30 %-from-knee fallback). Neck tilts to perpendicular-to-the-neck-axis (the neck leans ~15-20° forward; horizontal slice would overestimate by 5-6 %). Every measure_grad() call recomputes the hull from scratch (new forward pass → new polygon → new hull). The hull decides which polygon vertices to keep (discrete, like argmax or tensor[mask]) — but the perimeter of those vertices is a plain sum of torch.linalg.norm over their positions, so loss.backward() flows gradients through the kept vertices back to the Anny phenotype params. Dropped vertices (inside the hull, e.g., cleavage or gluteal cleft bins) get zero gradient — correct, since they don't affect the tape measure. The hull indices can change between optimization steps if the body shape changes enough, but the perimeter value is continuous at those transitions so the loss doesn't jump. See clad_body/measure/_soft_circ.py.

For stomach_cm the cutting-plane height is itself differentiable: a soft-argmin over torso vertex Y (most anterior = most negative) in the belly Z-range picks the height of maximum anterior protrusion, and one soft_circumference is taken there. See measure_stomach_soft in the same file. The Z selection can drift by 1–2 cm from the reference's 2 mm band-scan argmax on bodies where multiple vertex clusters have near-identical anterior Y — which translates to ~3 cm of circumference error because the body tapers rapidly in the belly region. This is why stomach_cm has looser tolerance than the other soft-circ keys.

Strictly speaking, stomach_cm is differentiable almost everywhere, with numerically-tiny (~10⁻⁵ cm) step discontinuities where a vertex crosses the hard Z-mask boundary that gates out feet and bust from the belly soft-argmin.

Requesting any other key raises ValueError. There is no silent numpy fallback — it would break gradient flow without warning. For non-differentiable keys use measure().

Parameter sensitivity

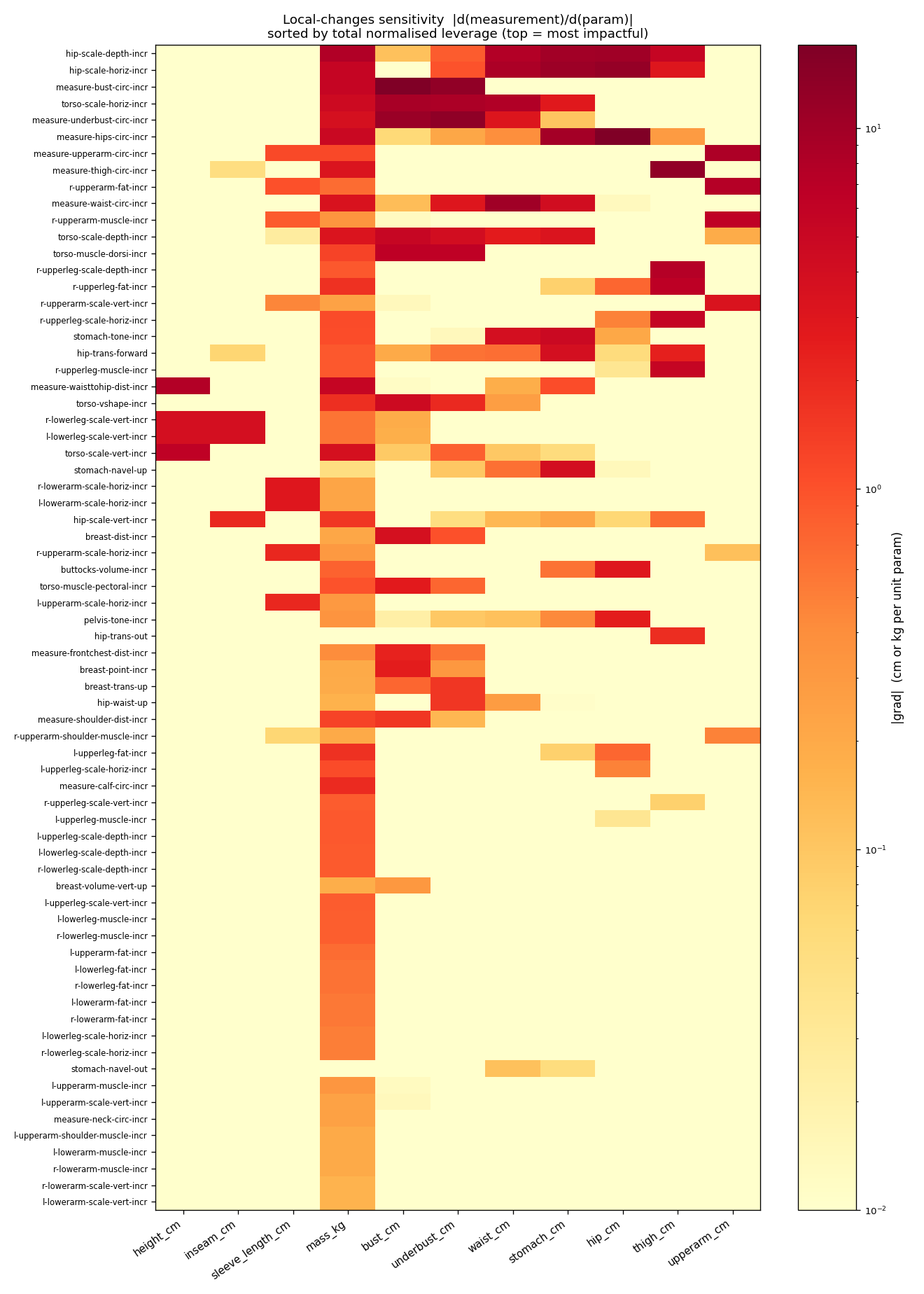

Jacobian heatmap for every Anny local_changes dimension against every supported measurement — |d(measurement)/d(param)| averaged across 6 reference bodies. Darker cells mean the local_change has strong leverage over that measurement; pale cells mean the gradient is near zero and Adam will barely move it. Useful when deciding which params to unfreeze for a given fit target (e.g. optimising bust_cm is pointless without measure-bust-circ-incr or torso-scale-horiz-incr in the active set). Regenerate with python tools/sensitivity_map.py --output <path>.

Public API

Import	What
clad_body.load.load_anny_from_params	Load Anny body from phenotype params
clad_body.load.load_mhr_from_params	Load MHR body from SAM 3D Body params
clad_body.load.AnnyBody, MhrBody	Body dataclasses
clad_body.measure.measure	Measure a body (numpy reporting path, ISO 8559-1)
clad_body.measure.measure_grad	Differentiable measurements for autograd loops (Anny only)
clad_body.measure.REGISTRY	All measurement definitions (dict[str, MeasurementDef])
clad_body.measure.list_measurements	Query measurements by tags
clad_body.measure.MeasurementDef	Measurement definition type

Selection

measure() accepts preset, only, tags, exclude. Precedence: only > preset > tags > default ("all"). exclude is applied last. Only runs computation groups needed for the requested keys.

Introspection

from clad_body.measure import REGISTRY, list_measurements

REGISTRY["bust_cm"].description   # self-measurement instructions
REGISTRY["bust_cm"].iso_ref       # "5.3.4"
REGISTRY["bust_cm"].type          # "circumference"

list_measurements(type="circumference", region="leg")   # [thigh, knee, calf]

Measurement registry

Every measurement is tagged across 5 dimensions. Each carries a human-readable description for self-measurement instructions and i18n key mapping.

Tags

Dimension	Values
type	circumference, length, scalar
standard	iso (ISO 8559-1), tailor (industry standard), derived (computed)
region	neck, torso, abdomen, arm, leg, full_body
tier	core > standard > enhanced > fitted (cumulative)
garments	tops, bottoms, dresses, outerwear, underwear

Tier presets

Preset	Count	Adds
core	4	height, bust, waist, hip
standard	9	thigh, upperarm, shoulder_width, sleeve_length, inseam
enhanced	18	neck, underbust, stomach, mass, volume, bmi, body_fat, belly_depth, back_neck_to_waist
fitted/all	25	knee, calf, wrist, crotch_length, front_rise, back_rise, shirt_length

Full measurement table

Garment codes: Tops, Bottoms, Dresses, Outerwear, Underwear.

Contour	Key	Description	ISO	Type	Std	Region	Tier	Grp	Gar
	height_cm	Vertical distance from floor to top of head. Stand erect, feet together.	5.1.1	scalar	iso	full_body	core	A	all
	bust_cm	Horizontal circumference at the fullest part of the chest/bust. Tape under armpits, across bust prominence, level and snug.	5.3.4	circ	iso	torso	core	A	T,D,O,U
	waist_cm	Horizontal circumference at natural waist, midway between lowest rib and hip bone. Tape at navel height, parallel to floor.	5.3.10	circ	iso	torso	core	A	all
	hip_cm	Horizontal circumference at greatest buttock prominence. Feet together, tape around widest part of hips.	5.3.13	circ	iso	abdomen	core	A	B,D,O,U
	thigh_cm	Horizontal circumference at fullest part of upper thigh, just below gluteal fold. Stand with legs slightly apart.	5.3.20	circ	iso	leg	std	B	B
	upperarm_cm	Circumference at fullest part of upper arm, midway between shoulder and elbow. Arm relaxed, not flexed.	5.3.16	circ	iso	arm	std	B	T,O
	shoulder_width_cm	Distance between left and right shoulder points (acromion), measured across back over C7 vertebra.	5.4.2	length	iso	torso	std	C	T,D,O
	sleeve_length_cm	Distance from shoulder point along outside of slightly bent arm, over elbow, to wrist bone. (ISO §5.4.14 + §5.4.15 outer arm length, computed via plane-slice surface walk on rest pose; differentiable runtime is bone chain + linear correction.)	5.7.8	length	iso	arm	std	C	T,O
	inseam_cm	Distance from crotch point straight down to floor. Stand erect, feet slightly apart.	5.1.15	length	iso	leg	std	E	B
	neck_cm	Circumference just below Adam's apple, perpendicular to neck axis. Comfortably snug.	5.3.2	circ	iso	neck	enh	D	T
	underbust_cm	Horizontal circumference directly below breast tissue, at inframammary crease. Bra band size.	5.3.6	circ	iso	torso	enh	A	T,D,U
	stomach_cm	Horizontal circumference at maximum anterior protrusion of abdomen, usually at/below navel.	--	circ	tailor	abdomen	enh	A	T,B
	mass_kg	Total body mass in kilograms.	5.6.1	scalar	iso	full_body	enh	G	--
	volume_m3	Total body volume in cubic metres, from mesh geometry.	--	scalar	derived	full_body	enh	G	--
	bmi	Body mass index: mass (kg) / height (m)^2.	--	scalar	derived	full_body	enh	G	--
	body_fat_pct	Estimated body fat % via Navy/Weltman equations from circumferences.	--	scalar	derived	full_body	enh	G	--
	belly_depth_cm	How much belly protrudes forward vs underbust/ribcage. Negative = belly prominence.	--	scalar	derived	abdomen	enh	A	T,B
	knee_cm	Horizontal circumference at centre of kneecap. Bend knee slightly (~45 degrees).	5.3.22	circ	iso	leg	fit	B	B
	calf_cm	Maximum horizontal circumference of the calf. Stand with legs slightly apart.	5.3.24	circ	iso	leg	fit	B	B
	wrist_cm	Circumference at wrist, at prominent bone on little finger side (ulnar styloid).	5.3.19	circ	iso	arm	fit	D	T
	crotch_length_cm	Distance from front waist centre, through crotch, to back waist centre. Follow body surface.	5.4.18	length	iso	leg	fit	E	B
	front_rise_cm	Front waist to crotch point, along front body surface. Trouser front panel length.	--	length	tailor	leg	fit	E	B
	back_rise_cm	Back waist to crotch point, along back body surface. Trouser back panel length.	--	length	tailor	leg	fit	E	B
	shirt_length_cm	Side neck point down along front body contour to crotch level. Follow chest/stomach curve.	--	length	tailor	torso	fit	F	T
	back_neck_to_waist_cm	Cervicale (C7) down centre back along body contour to waist level. Tape follows spine curvature.	5.4.5	length	iso	torso	enh	H	T,D,O

Tier codes: core, std (standard), enh (enhanced), fit (fitted). Anny-only: underbust, mass, volume, bmi, body_fat, belly_depth.

Computation groups

Group	Measurements	Cost	Deps
A Core torso	height, bust, waist, hip, stomach, underbust, belly_depth	Cheap	--
B Limb sweeps	thigh, knee, calf, upperarm	Expensive	--
C Joint linear	shoulder_width, sleeve_length (ISO surface walk on re-posed body)	Very expensive	--
D Perpendicular	neck, wrist	Medium	--
E Mesh geometry	inseam (mesh sweep), crotch_length, front_rise, back_rise	Medium	--
F Surface trace	shirt_length	Medium	E
G Body composition	volume, mass, bmi, body_fat	Cheap	D
H Back length	back_neck_to_waist	Cheap	A

Groups B (thigh, knee, calf, upperarm), C (shoulder_width, sleeve_length), D (neck), and E (inseam) have differentiable alternatives in measure_grad — use it for hot-loop optimization instead of calling measure() repeatedly.

Performance

measure() only runs the computation groups needed for the requested keys — use only= or preset= to skip expensive groups:

measure(body)                         # all groups — ~800 ms
measure(body, preset="core")          # group A only — ~100 ms
measure(body, only=["bust_cm"])       # group A only — ~100 ms
measure(body, only=["shoulder_width_cm"])  # groups A + C — ~200 ms

GPU acceleration

measure() accepts a device parameter (None = auto-detect CUDA):

measure(body, only=["bust_cm"], device="cuda")  # GPU forward pass
measure(body, device=None)                       # auto: CUDA if available

Optional extras

Extra	What it enables
[anny]	Anny body loader (requires torch)
[mhr]	MHR body loader (requires pymomentum)
[render]	4-view body renders (requires matplotlib, pyrender)

Without extras, only numpy, scipy, and trimesh are required.

Try it

• Consumer demo — full pipeline (questionnaire → body → virtual try-on) at clad.you/size-aware/size-me.
• REST API — same body model + these measurements behind a bearer-token API at api.clad.you. Swagger UI on the root. Free while we gauge whether it's useful; key management at clad.you/developers.

Background

This library was built for Clad's size-aware virtual try-on pipeline. Read the full story: A 3D Body Scan for Nine Cents — Without SMPL.

License

Apache 2.0 — see LICENSE.
