dnplot 0.4.3

Plotting of data imported by the dnora package

dnplot 💻

dnplot is a tool designed for the visualization of dnora objects, such as 🌬️ wind, 🌊 wave and ocean current data.

Quick Installation 🚀

Ready to dive in? You can easily install dnplot using pip:

$ pip install dnplot

Examples

To quickly visualize the wave data outputted by SWAN to a netcdf file:

import dnplot
from dnora.wavegrid import WaveGrid

data = WaveGrid.from_netcdf('model_output.nc')
point = data.sel(lon=5.25, lat=62.3, method='nearest') # Pick just one point

# The dict could be a dnora ModelRun object containing the data
plot = dnplot.Matplotlib({'wavegrid': data, 'waveseries': point})

# default value for var=["hs", ("tm01", "tm02"), "dirm"]

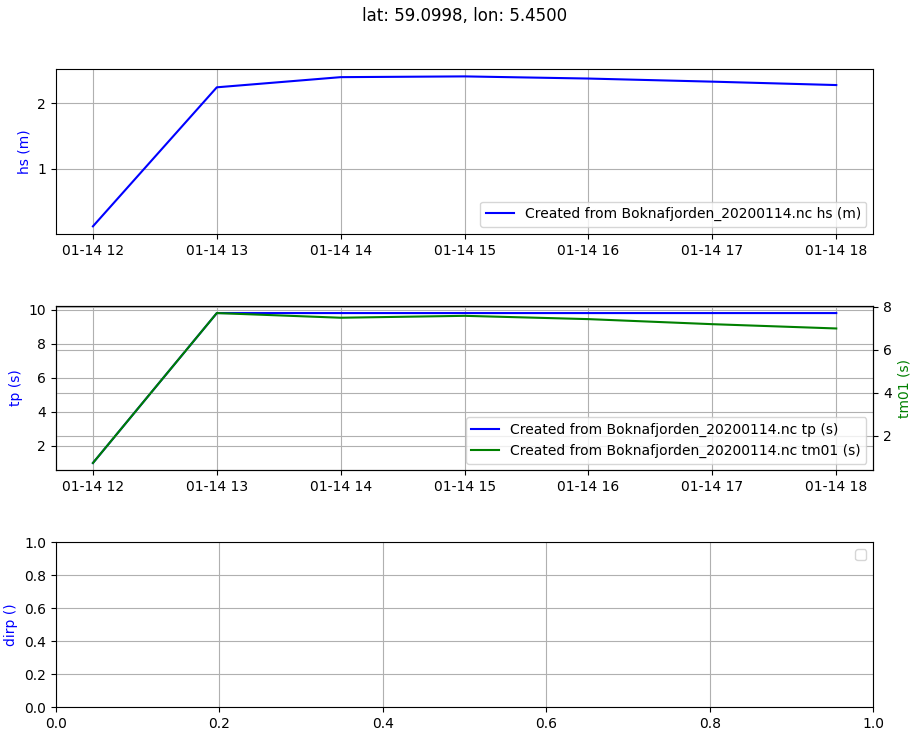

plot.waveseries(var=['hs', ('tp','tm01'), 'dirp'])

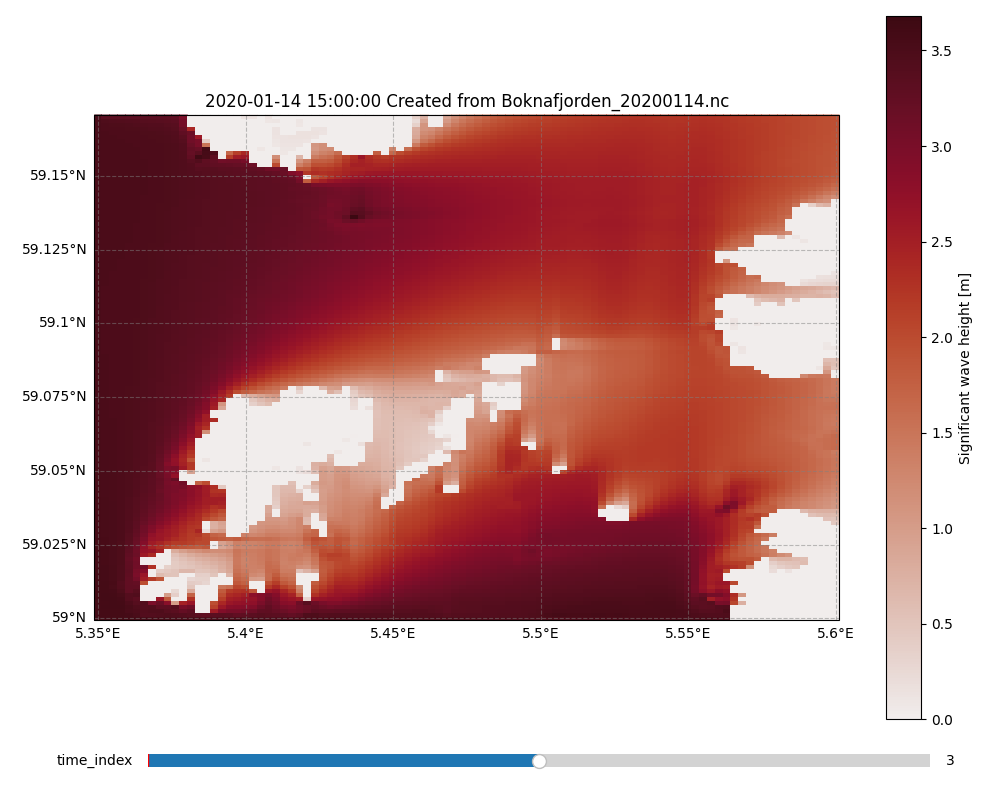

plot.wavegrid('hs', contour=False)

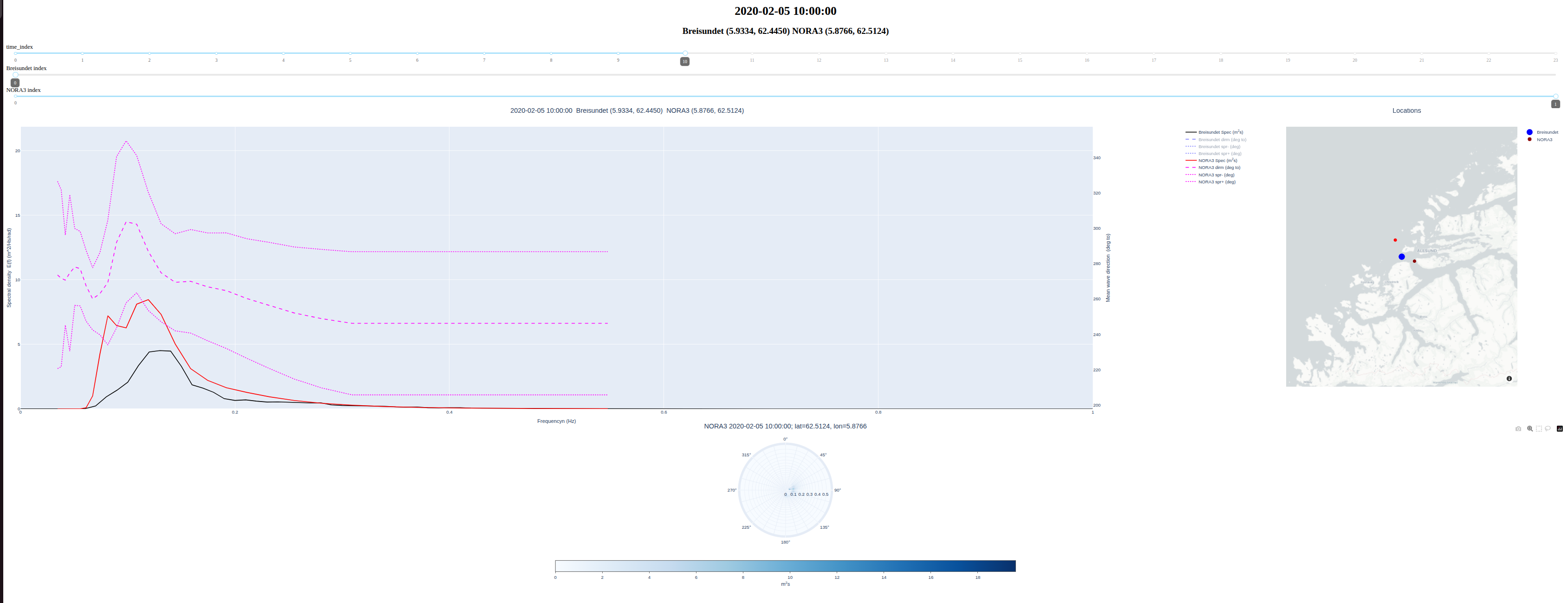

To interactively compare spectra from a model with several locations with buoy measurements:

import dnora as dn
import dnplot

model = dn.modelrun.ModelRun(year=2020)
model.import_spectra(filename="nora3.nc", name="NORA3")
model.spectra_to_1d()

buoy = dn.modelrun.ModelRun(year=2020, month=2, day=5)
buoy.import_spectra1d(filename="spec_E39_D_1h.nc", name="Breisundet")

plot = dnplot.Plotly(buoy, model)
plot.spectra()

Docs 📚

Looking for more details? Our documentation (currently under development) provides information about the package, its features, and how to use it. Explore it here.
