EdgeVox

Offline voice agent framework for robots. Sub-second local voice pipeline. Fully private.

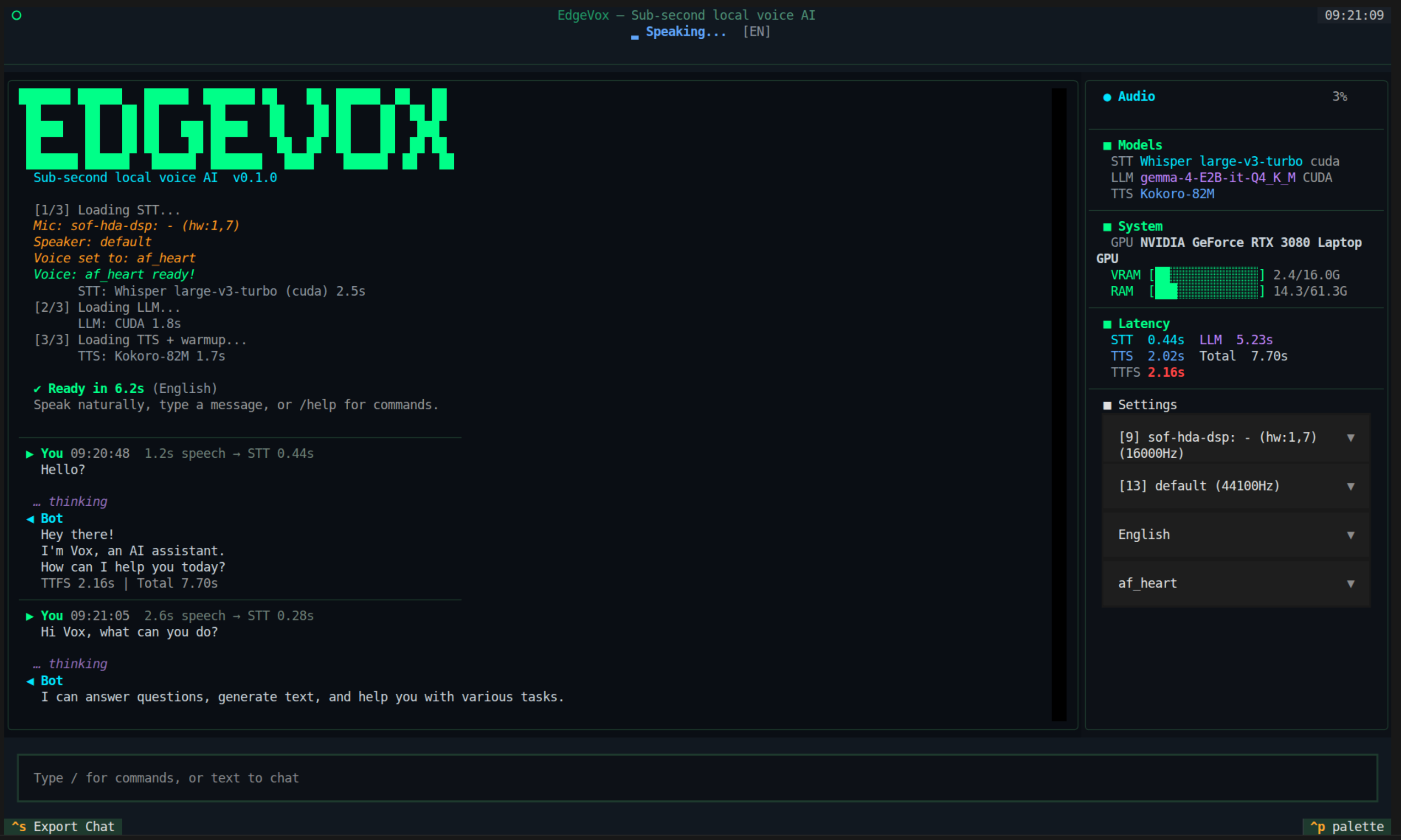

Voice pipeline TUI — streaming STT · LLM · TTS with VAD barge-in	MuJoCo · Franka arm — voice-controlled pick-and-place
Unitree G1 humanoid — procedural gait + ONNX policy slot	RookApp desktop — offline chess partner (Qt + LLMAgent + Stockfish, one Python process)

Agents + Skills + Workflows  |  2D sim (IR-SIM)  |  3D sim (MuJoCo)  |  0.8s voice TTFT  |  16 languages  |  56 voices  |  ROS2-native  |  Ships as a desktop app

Why EdgeVox?

• Voice is the interface — streaming STT → LLM → TTS pipeline hits first audio in ~0.8 s on an RTX 3080, runs on a Jetson Orin Nano, CPU fallback on a laptop.
• Agents are the program model — write @tool and @skill functions in Python; compose them with Sequence, Fallback, Loop, Parallel, and Router workflows; delegate across agents with OpenAI-SDK-style handoffs.
• Robots are the target — cancellable skills with GoalHandle, hard-stop safety monitor that bypasses the LLM, three-tier simulation (stdlib → IR-SIM → MuJoCo), ROS2 bridge.
• Everything is offline — no cloud APIs, no telemetry, no vendor lock. Gemma 4 via llama.cpp, faster-whisper, Kokoro/Piper/Supertonic TTS. Your mic audio never leaves the machine.

30-second demo

2D — IR-SIM (mobile robot navigation)

pip install 'edgevox[sim]'
edgevox-setup                      # downloads ~3 GB of models, one time
edgevox-agent robot-irsim --text-mode

A matplotlib window opens showing a 10×10 apartment with four rooms. Type "go to the kitchen" — the blue robot drives visibly. Say "stop" mid-flight and it halts in ~200 ms (the safety monitor preempts before the LLM is consulted). Swap --text-mode for --simple-ui to drive it by voice.

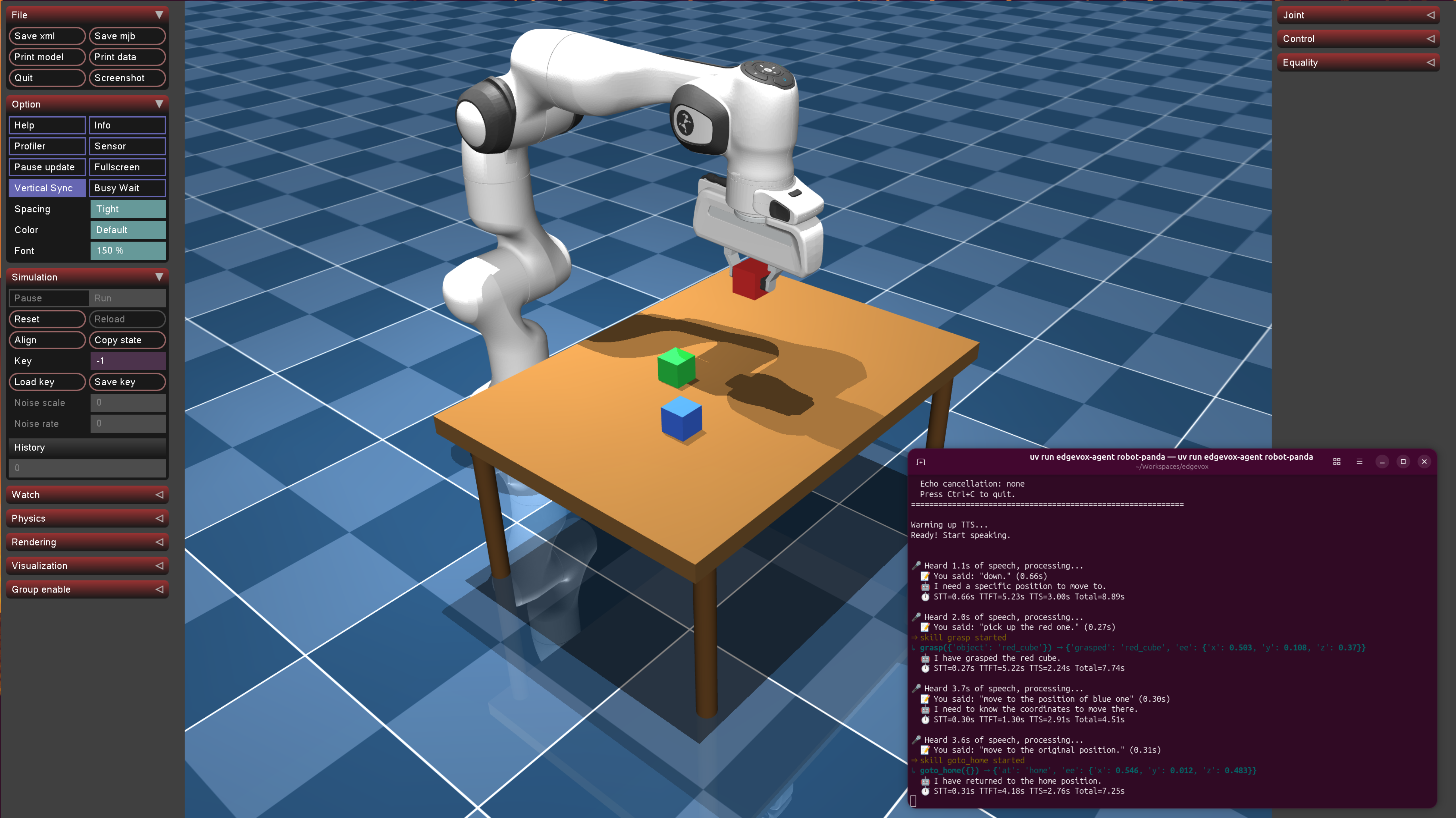

3D — MuJoCo (tabletop arm pick-and-place)

pip install 'edgevox[sim-mujoco]'
edgevox-agent robot-panda --text-mode

A MuJoCo viewer opens with a Franka Panda arm above a table with three colored cubes. Type "pick up the red cube" — the arm moves, grasps, and lifts. Voice commands control move_to, grasp, release, and goto_home skills.

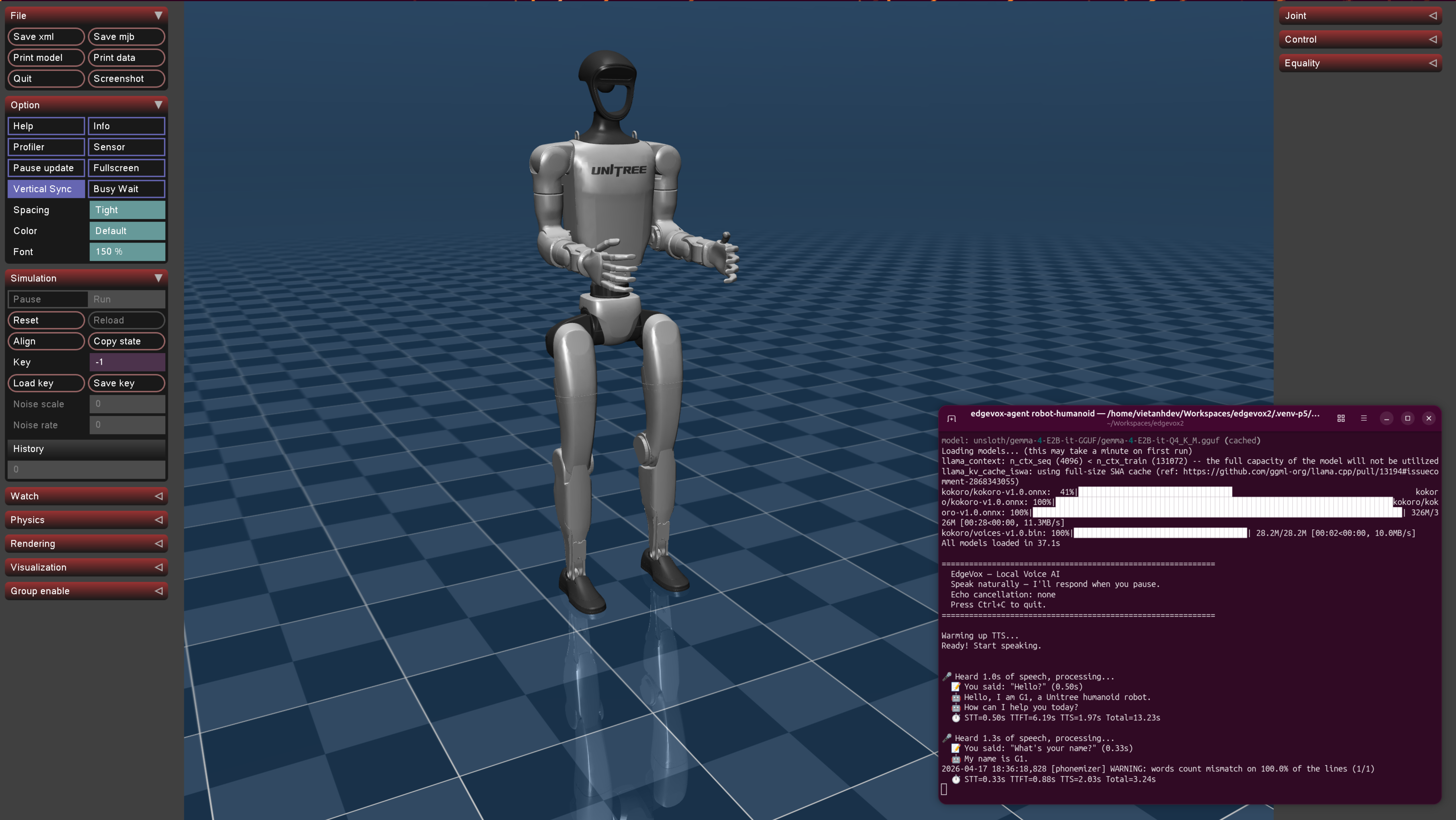

3D — MuJoCo humanoid (Unitree G1 / H1)

pip install 'edgevox[sim-mujoco]'
edgevox-agent robot-humanoid --simple-ui

A Unitree humanoid (auto-fetched from nrl-ai/edgevox-models on first use, ~15 MB) appears in the MuJoCo viewer standing on its home keyframe. Say "walk forward half a meter", "turn left ninety degrees", "stand" — a procedural gait swings the legs + arms while the root advances. Plug in an ONNX walking policy via MujocoHumanoidEnvironment.set_walking_policy(...) for real RL locomotion.

Real robot or external sim via ROS2

source /opt/ros/jazzy/setup.bash
edgevox-agent robot-external --text-mode

Subscribes to odom, optionally scan + camera/image_raw, and publishes cmd_vel + goal_pose. Drives any Gazebo Harmonic world, Isaac Sim (via ROS2 bridge), or a real mobile robot that speaks the standard contract — the same agent code works unchanged.

Features

Agent framework

• @tool / @skill decorators — auto-derive JSON schemas from Python signatures + docstrings
• LLMAgent with per-run history isolation, reentrant, thread-safe
• Workflows: Sequence, Fallback, Loop, Parallel, Router, Supervisor, Orchestrator, Retry, Timeout — behavior-tree-shaped + multi-agent patterns, nestable
• Handoffs — OpenAI-SDK-style "agent-as-return-value" (2 LLM hops per delegation vs smolagents' 3); LangGraph-style state_update writes blackboard keys before the target runs
• Grammar-constrained tool calling — auto-built GBNF from ToolRegistry schemas; tool_choice_policy="required_first_hop" is the canonical SLM loop-break (no malformed JSON, no fabricated tool names)
• Hooks — 6 fire points (on_run_start, before_llm, after_llm, before_tool, after_tool, on_run_end), priority-ordered (Safety 100 → Observability 0), 12 built-ins ship + 3 SLM hardening hooks
• Memory — bi-temporal Fact schema (facts_as_of(t)), JSONMemoryStore + SQLiteSessionStore, Compactor with tokenizer-exact counts, file-based NotesFile
• Artifacts — versioned, indexed, exposable as LLM tools via make_artifact_tools(store)
• Cancellable skills — GoalHandle lifecycle with poll / cancel / feedback, mid-flight preempt in ~200 ms
• SafetyMonitor — stop-word preempt before the LLM is consulted
• EventBus — thread-safe pub/sub for observability, metrics, main-thread scheduling
• SimEnvironment protocol — agent code swaps cleanly between ToyWorld (stdlib), IrSimEnvironment (IR-SIM), and MujocoArmEnvironment (MuJoCo)
• Parallel tool/skill dispatch inside a single turn via ThreadPoolExecutor
• 8 built-in example agents — home, robot, dev, robot-scout, robot-irsim, robot-panda, robot-humanoid, robot-external

Voice pipeline (substrate)

• Sub-second streaming — 0.8 s first-audio on RTX 3080 (VAD 32 ms + faster-whisper + Gemma 4 E2B + Kokoro)
• 16 languages with 56 voices across 4 TTS backends
• Robust voice interrupt — speak over the bot to cut it off; specsub AEC on by default + energy-ratio gate so the bot doesn't hear itself; LLM generation aborted via llama-cpp stopping_criteria (≤40 ms cancellation latency); back-to-back barge-ins re-arm cleanly
• 4 wake words — "Hey Jarvis", "Alexa", "Hey Mycroft", "Okay Nabu"
• 4 interfaces — TUI (Textual), Web UI (FastAPI + Vue), simple CLI, text mode
• ROS2-native — voice-pipeline bridge, TF2 / Nav2 / sensor adapter, edgevox_msgs/action/ExecuteSkill action server, external-sim driver for Gazebo / Isaac / real hardware
• Auto hardware detection — CUDA / Metal / CPU fallback, VRAM-aware GPU-layer selection

Quick Start

# 1. Install uv (fast Python package manager)
curl -LsSf https://astral.sh/uv/install.sh | sh

# 2. Create a virtual environment
uv venv --python 3.12
source .venv/bin/activate

# 3. Install llama-cpp-python (GPU or CPU, your choice)
uv pip install llama-cpp-python \
    --extra-index-url https://abetlen.github.io/llama-cpp-python/whl/cu124
# For Apple Silicon: CMAKE_ARGS="-DGGML_METAL=on" uv pip install llama-cpp-python
# For CPU only:      uv pip install llama-cpp-python

# 4. Install EdgeVox with the sim extra (pulls in ir-sim)
uv pip install -e '.[sim]'

# 5. Download models (~3 GB)
edgevox-setup

# 6a. Run a voice agent with a visible robot
edgevox-agent robot-irsim --text-mode

# 6b. OR run the classic voice pipeline
edgevox

Build your own agent

from edgevox.agents import AgentContext, GoalHandle, ToyWorld, skill
from edgevox.examples.agents.framework import AgentApp
from edgevox.llm import tool


@tool
def set_light(room: str, on: bool, ctx: AgentContext) -> str:
    """Turn a room's light on or off.

    Args:
        room: the room name, e.g. "kitchen".
        on: true to turn on, false to turn off.
    """
    ctx.deps.apply_action("set_light", room=room, on=on)
    return f"{room} light is now {'on' if on else 'off'}"


@skill(latency_class="slow", timeout_s=30.0)
def navigate_to(room: str, ctx: AgentContext) -> GoalHandle:
    """Drive the robot to a named room.

    Args:
        room: target room, e.g. "kitchen", "bedroom".
    """
    return ctx.deps.apply_action("navigate_to", room=room)


AgentApp(
    name="Scout",
    instructions="You are Scout, a terse home robot. Confirm what you did in one sentence.",
    tools=[set_light],
    skills=[navigate_to],
    deps=ToyWorld(),
    stop_words=("stop", "halt", "freeze"),
).run()

Launch with python my_agent.py --text-mode and you have a voice-controllable robot running on a stdlib-only reference sim. Swap ToyWorld() for IrSimEnvironment() and a matplotlib window opens. Full guide: docs/documentation/agents.md.

The five built-in agents are subcommands of edgevox-agent:

Each one supports --text-mode, --simple-ui, or (default) full TUI. Any of them composes with --ros2 to attach the full ROS2 bridge + Nav2 / TF2 / sensor adapter + execute_skill action server.

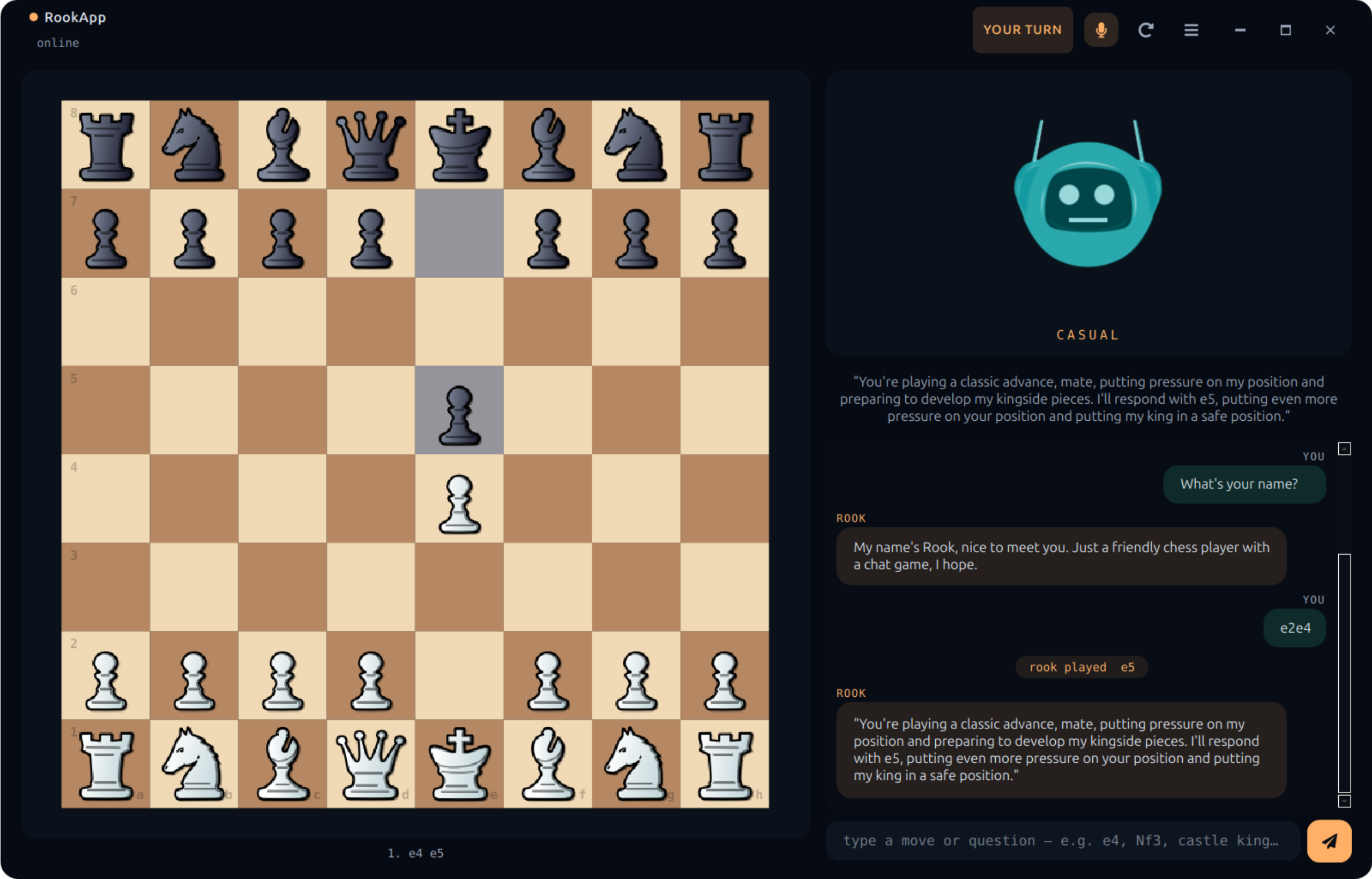

RookApp — desktop chess robot

Voice-controlled offline chess partner built on EdgeVox — a PySide6 desktop app that runs the Qt UI, the LLMAgent, llama-cpp (Llama-3.2-1B Q4_K_M), and Stockfish all in one Python process. No browser, no web server, no Node toolchain. Three personas (casual, grandmaster, trash_talker), six board themes, three piece sets, Kokoro TTS, Whisper STT with barge-in.

# 1. Install the desktop extra (PySide6 + qtawesome + rlottie + pillow)
uv pip install -e '.[desktop]'

# 2. Stockfish on $PATH (GPL — stays out-of-process, app stays MIT)
sudo apt-get install -y stockfish          # Linux
brew install stockfish                     # macOS
# Windows: https://stockfishchess.org/download/

# 3. Download STT + LLM + TTS models (~3 GB, one time)
edgevox-setup

# 4. Launch
edgevox-chess-robot

Flags: --persona {grandmaster,casual,trash_talker}, --user-plays {white,black}, --engine {stockfish,maia}, --stockfish-skill 0..20, --maia-weights PATH, -v. Every flag also reads an EDGEVOX_CHESS_* env var. Piece set, board theme, persona, audio devices, and debug-mode settings live in the in-app ☰ → Settings… dialog. Preferences persist via QSettings. Full guide: docs/documentation/desktop.md.

Simulation tiers

All tiers implement the same SimEnvironment protocol — agent code doesn't change when you swap backends. robot-irsim is Tier 1; robot-panda is Tier 2a; robot-humanoid is Tier 2b; robot-external is Tier 3 and can point at any Gazebo world or real robot that publishes nav_msgs/Odometry and accepts geometry_msgs/Twist.

Voice pipeline

EdgeVox's original identity and the agent framework's substrate. Streaming STT → LLM → TTS with voice interrupt, wake words, 16 languages, TUI and web UIs. Run it without any agent code:

edgevox                         # full TUI (default)
edgevox --web-ui                # browser interface
edgevox --wakeword "hey jarvis"
edgevox-cli                     # simple CLI
edgevox-cli --text-mode         # no microphone needed

Languages & backends

Models are hosted on nrl-ai/edgevox-models (HuggingFace) with fallback to upstream repos.

Full TUI + slash-command reference: docs/documentation/commands.md.

Hardware requirements

ROS2 integration

EdgeVox ships a full ROS2 surface, opt-in with --ros2 on any agent or the voice pipeline. Topics live under a configurable namespace (default /edgevox).

source /opt/ros/jazzy/setup.bash
edgevox --ros2                                      # voice pipeline
edgevox-agent robot-humanoid --simple-ui --ros2     # G1 + voice + ROS2
edgevox-agent robot-external --text-mode            # drive an external ROS2 robot

Published: transcription, response, state (transient-local), audio_level, metrics, bot_token, bot_sentence, wakeword, info, robot_state (sim snapshot), agent_event (JSON stream of tool calls / skill goals / handoffs / safety preempts). With a sim attached, RobotROS2Adapter adds /tf, pose, scan (IR-SIM lidar), image_raw (MuJoCo camera).

Subscribed: tts_request, command, text_input, interrupt, set_language, set_voice, cmd_vel (Nav2 Twist), goal_pose (Nav2 PoseStamped).

Services: list_voices, list_languages, hardware_info, model_info — each an std_srvs/srv/Trigger returning JSON.

Actions: execute_skill (edgevox_msgs/action/ExecuteSkill) — generic skill_name + arguments_json goal so any agent skill is callable by a stock rclpy.action.ActionClient. Build the companion interface package with colcon build --packages-select edgevox_msgs.

Launch files under launch/: edgevox.launch.py, edgevox_irsim.launch.py, edgevox_panda.launch.py. Full reference: docs/documentation/ros2.md.

Architecture

EdgeVox follows the classical robotics three-layer pattern. The agent framework lives only in the deliberative layer; safety reflexes and real-time control never touch the LLM.

flowchart TB
    D["`**Deliberative** — ≤ 1 Hz
LLMAgent · Workflows · Router · Handoff
@tool · @skill (Python functions)`"]
    E["`**Executive** — 10–50 Hz
Skill library · GoalHandle lifecycle · BT-shaped workflows
goal / feedback / cancel`"]
    R["`**Reactive** — ≥ 100 Hz
Motor control · watchdogs · SafetyMonitor
*(bypasses LLM)*`"]
    VP["`**Voice pipeline** — the substrate
Mic → VAD → STT → AgentProcessor → SentenceSplit → TTS → Spk`"]
    OUT["`ROS2 bridge · IR-SIM (Tier 1) · MuJoCo arm (Tier 2a) · Unitree G1/H1 (Tier 2b) · External ROS2 / Gazebo (Tier 3)`"]
    D --> E --> R
    R --> VP
    VP --> D
    VP --> OUT
    classDef deliberative fill:#e8f0fe,stroke:#1a73e8,color:#0b3d91
    classDef executive    fill:#fef7e0,stroke:#f9ab00,color:#7a4f01
    classDef reactive     fill:#fce8e6,stroke:#d93025,color:#8a1d15
    classDef substrate    fill:#e6f4ea,stroke:#34a853,color:#0d652d
    classDef out          fill:#f1f3f4,stroke:#5f6368,color:#202124
    class D deliberative
    class E executive
    class R reactive
    class VP substrate
    class OUT out

The LLM never enters the reactive layer. Safety reflexes bypass it. Skills expose intents (navigate_to(room)), not control (set_speed(mps)). Every other design choice flows from this rule.

Model sizes

• M1 Air (8 GB): whisper-small + Q4_K_M = 3.4 GB
• PC with GPU: whisper-large-v3-turbo + Q4_K_M = 5.8 GB

Documentation

• Agents & Tools guide — full agent framework reference: tools vs skills, workflows, safety monitor, simulation tiers, threading model, anti-patterns
• Architecture — streaming pipeline deep-dive
• Quick start
• TUI commands
• ROS2 guide — bridge topics, services, execute_skill action, TF2 / Nav2 / sensor interop, launch files

Harness architecture

In-depth docs for each subsystem of the agent harness:

• Agent loop — six-fire-point loop, parallel dispatch, handoff short-circuit, cancel-token plumbing
• Hooks — fire points, payloads, priority scale, built-ins, SLM hardening
• Memory — MemoryStore / SessionStore / Compactor / NotesFile, bi-temporal facts
• Multi-agent — Blackboard, Supervisor, Orchestrator, BackgroundAgent (OTP restart policies)
• Interrupt & barge-in — cancel_token to llama-cpp stopping_criteria, AEC defaults, repeatable interrupts
• Tool calling — parser chain, GBNF grammar-constrained decoding, tool_choice_policy

Full site: EdgeVox Docs (VitePress). Run locally:

cd docs && npm run dev

License

MIT
