fdiff 3.0.0

An OpenType table diff tool for fonts

An OpenType table diff tool for fonts

About

fdiff is a Python command line comparison tool for assessment of granular differences in the OpenType table data between font files. The tool provides cross-platform support for local and remote font diffs on macOS, Windows, and GNU/Linux systems with a Python v3.6+ interpreter.

Looking for a high-level overview of OpenType table differences rather than low-level changes? Check out Just van Rossum's fbdiff tool.

What it does

• Takes two font file path arguments (or URL for remote fonts) for the font comparison
• Dumps OpenType table data in the fontTools library TTX format (XML)

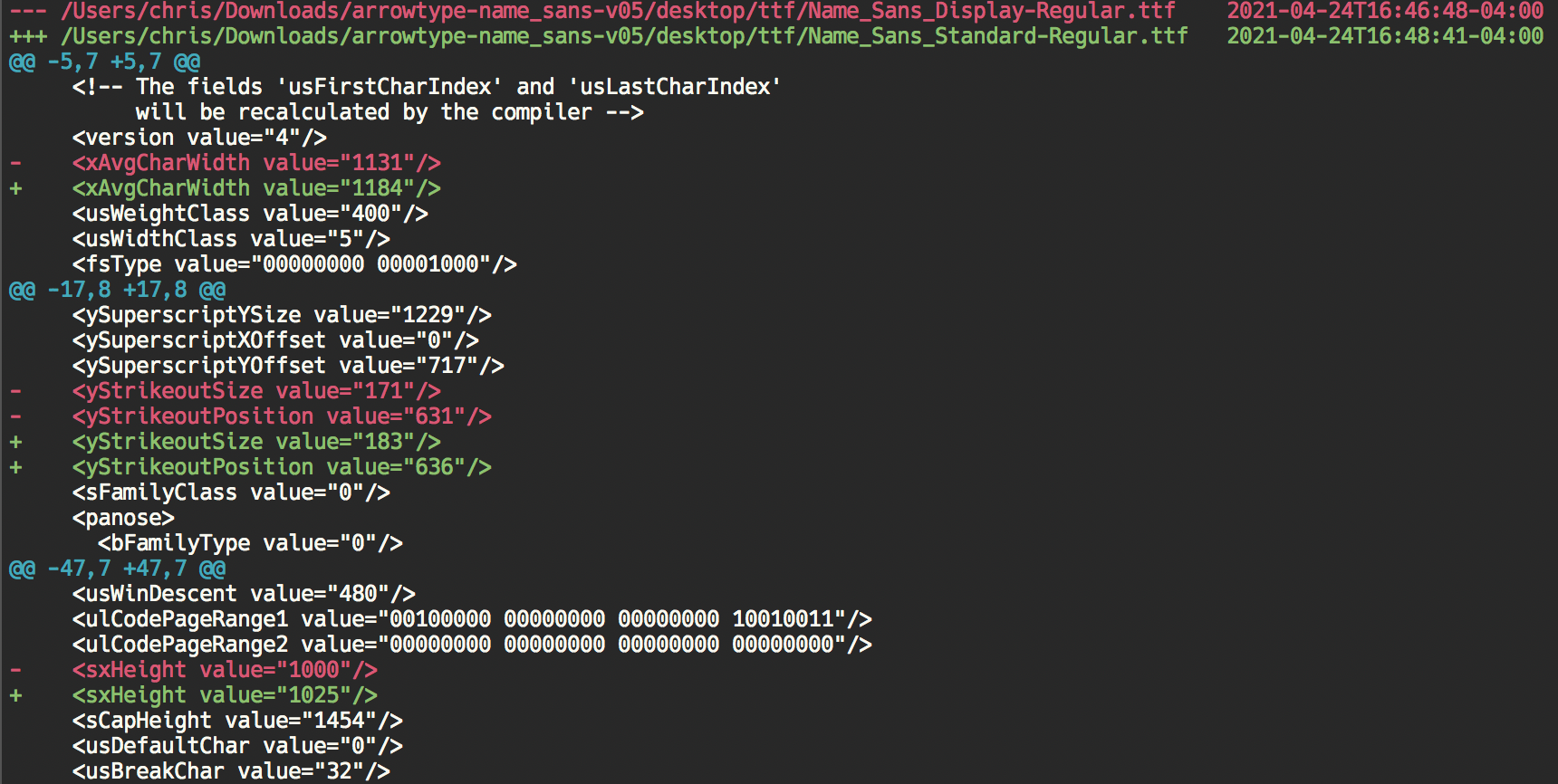

• Compares the OpenType table data across the two files using the unified diff format with 3 lines of surrounding context

Optional Features

• Filter OpenType tables with the --include or --exclude options
• Modify the number of context lines displayed in the diff with the -l or --lines option
• Display the first n lines of the diff output with the --head option
• Display the last n lines of the diff output with the --tail option
• Execute the diff with an external diff tool using the --external option

Run fdiff --help to view all available options.

Contents

• Installation
• Usage
• Issues
• Contributing
• Acknowledgments
• License

Installation

fdiff requires a Python 3.6+ interpreter.

Installation in a Python3 virtual environment is recommended.

Use any of the following installation approaches:

pip install from PyPI

$ pip3 install fdiff

pip install from source

$ git clone https://github.com/source-foundry/fdiff.git
$ cd fdiff
$ pip3 install -r requirements.txt .

Developer install from source

The following approach installs the project and associated optional developer dependencies, so that source changes are available without the need for re-installation.

$ git clone https://github.com/source-foundry/fdiff.git
$ cd fdiff
$ pip3 install --ignore-installed -r requirements.txt -e ".[dev]"

Usage

Local font files

$ fdiff [OPTIONS] [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

Remote font files

fdiff supports GET requests for publicly accessible remote font files. Replace the file path arguments with URL:

$ fdiff [OPTIONS] [PRE-FONT FILE URL] [POST-FONT FILE URL]

fdiff works with any combination of local and remote font files. For example, to compare a local post font file with a remote pre font file to assess local changes against a font file that was previously pushed to a remote, use the following syntax:

$ fdiff [OPTIONS] [PRE-FONT FILE URL] [POST-FONT FILE FILE PATH]

⭐ Tip: Remote git repository hosting services (like Github) support access to files on different git branches by URL. Use these repository branch URL to compare fonts across git branches in your repository.

Options

Filter OpenType tables

To include only specified tables in your diff, use the --include option with a comma-separated list of table names:

$ fdiff --include head,post [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

To exclude specified tables in your diff, use the --exclude option with a comma-separated list of table names:

$ fdiff --exclude glyf,OS/2 [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

Do not include spaces between the comma-separated table name values!

Change number of context lines

To change the number of lines of context above/below lines that have differences, use the -l or --lines option with an integer value for the desired number of lines. The following command reduces the contextual information to a single line above and below lines with differences:

$ fdiff -l 1 [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

Display the first n lines of output

Use the --head option followed by an integer for the number of lines at the beginning of the output. For example, the following command displays the first 20 lines of the diff:

$ fdiff --head 20 [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

Display the last n lines of output

Use the --tail option followed by an integer for the number of lines at the end of the output. For example, the following command displays the last 20 lines of the diff:

$ fdiff --tail 20 [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

Use an external diff tool

Please Note: This feature has not been tested across all supported platforms. Please report any issues that you come across on the project issue tracker.

By default, fdiff performs diffs with Python source. If you run into performance issues with this approach, you can use compiled diff executables that are available on your platform. fdiff will dump the ttx files and run the command that you provide on the command line passing the pre and post font ttx dump file paths as the first and second positional arguments to your command.

For example, you may run the diff -u command on GNU/Linux or macOS like this:

$ fdiff --external="diff -u" [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

fdiff supports built-in color formatting and OpenType table filtering when used with external diff tools. The context line, head, and tail options are not supported with the use of external diff tools.

Disable color diffs

ANSI escape code colored diffs are performed by default in terminal environments.

To view a diff without ANSI escape codes in your terminal, include the --nocolor option in your command:

$ fdiff --nocolor [PRE-FONT FILE PATH] [POST-FONT FILE PATH]

Other Options

Use fdiff -h to view all available options.

Issues

Please report issues on the project issue tracker.

Contributing

Contributions are warmly welcomed. A development dependency environment can be installed in editable mode with the developer installation documentation above.

Please use the standard Github pull request approach to propose source changes.

Source file linting

Python source files are linted with flake8. See the Makefile test-lint target for details.

Testing

The project runs continuous integration testing on the GitHub Actions service with the pytest toolchain. Test modules are located in the tests directory of the repository.

Local testing by Python interpreter version can be performed with the following command executed from the root of the repository:

$ tox -e [PYTHON INTERPRETER VERSION]

Please see the tox documentation for additional details.

Test coverage

Unit test coverage is executed with the coverage tool. See the Makefile test-coverage target for details.

Acknowledgments

fdiff is built with the fantastic fontTools free software library and performs text diffs of binary font files using dumps of the TTX OpenType table data serialization format as defined in the fontTools library.
