fpocketR 1.3.4

fpocketR is a modified version of fpocket 4.0 and is optimized for finding, characterizing, and visualizing drug-like RNA-ligand binding pockets.

fpocketR

A CLI tool optimized to find, characterize, and visualize drug-like RNA-ligand binding pockets in RNA structures (static or dynamic).

fpocketR is an RNA-specific wrapper for fpocket 4.0

Documentation: fpocketR ReadTheDocs

Contents

• System Requirements
• Installation
  • Recommended: Conda + pip
  • Testing your installation
  • Alternative: Conda Constructor Installer
• Quick Start
  • Activate the fpocketR Environment
  • Basic Structure Analysis
  • Secondary Structure Visualization
  • Multistate Analysis
  • Apo/Holo Analysis
  • Additional Arguments
• Demonstration Workflows
• Usage
• Copyright
• Acknowledgements

System Requirements

• Supported platforms: Linux (x86_64), MacOS (Intel/x86_64)
• Not supported: ARM-based MacOS (M1/M2) and native Windows
• Experimental: fpocketR may work on ARM MacOS with fpocket 4.2.1+. WARNING: We had observed that newer version of fpocket (>4.0.3) led to changes in predicted pockets which we have not validated.
• Windows users: Use WSL2 (Windows Subsystem for Linux) to run fpocketR. Follow the install instructions using the WSL2 linux terminal.

Installation

Recommended: Conda + pip

1. Install Conda
   If you don’t have conda, follow the official installation guide.

2. Create and activate a new environment with fpocket and Python 3.11

   conda create -n fpocketR -c conda-forge fpocket=4.0.3 python=3.11 pymol-open-source=2.5
   conda activate fpocketR


3. Install fpocketR and dependencies from PyPI

   pip install fpocketr


   This will install all required Python dependencies.
   Note: The fpocket binary is installed via conda, not pip.

Testing your installation

After installing, you can verify your setup by running the test suite:

1. Make sure you have installed the testing tools:

   pip install 'fpocketR[test]'


2. Find the fpocketR install location:

   python -c "import fpocketR; print(fpocketR.__file__)"


3. Run pytest in the fpocketR source directory:

   pytest /path/to/fpocketR/
   # or, if you are in the source directory:
   pytest


If all tests pass, your installation is working correctly.

Notes:

• For Windows users, use WSL (Windows Subsystem for Linux) for best compatibility. Guide to installing WSL and Ubuntu
• For MacOS users: fpocketR is not compatible with arm-based M1/M2 processors (only Intel/x86).

Quick Start

Run fpocketR from the command line to analyze RNA structures and visualize ligand binding pockets.

Activate the fpocketR Environment

Activate your environment after installing fpocketR and its dependencies:

conda activate fpocketR

Tip: For a full list of options, run:

python -m fpocketR --help

Basic Structure Analysis

Analyze a local PDB file or fetch by PDB ID using the -pdb argument:

python -m fpocketR -pdb 3e5c.pdb
# or
python -m fpocketR -pdb 3e5c

Example output:

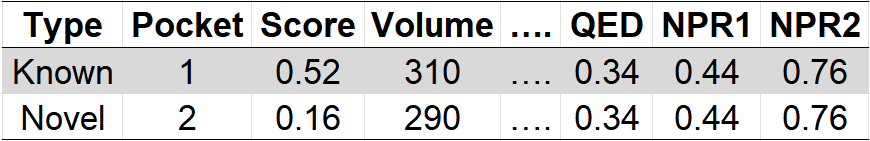

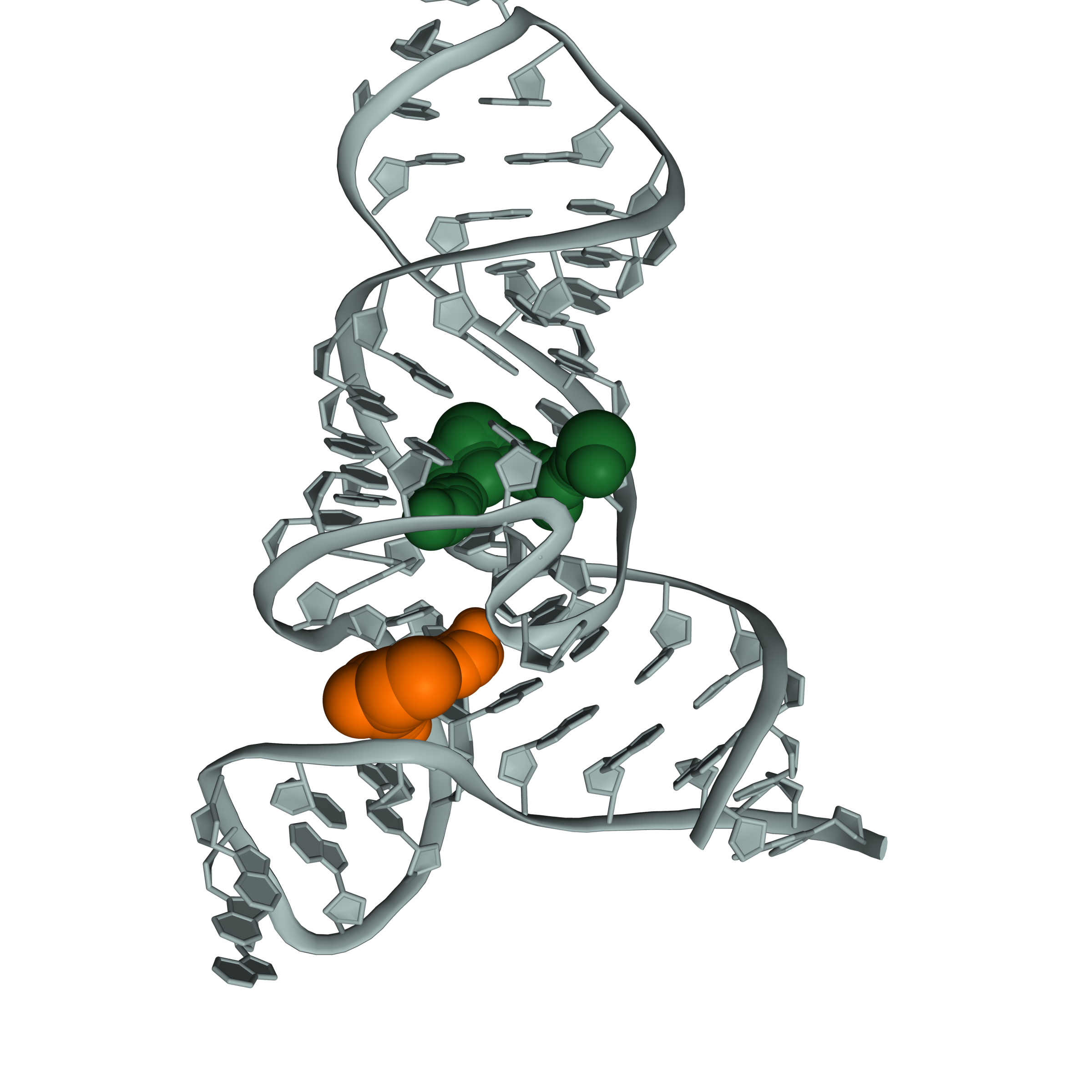

Tertiary structure	Pocket characteristics

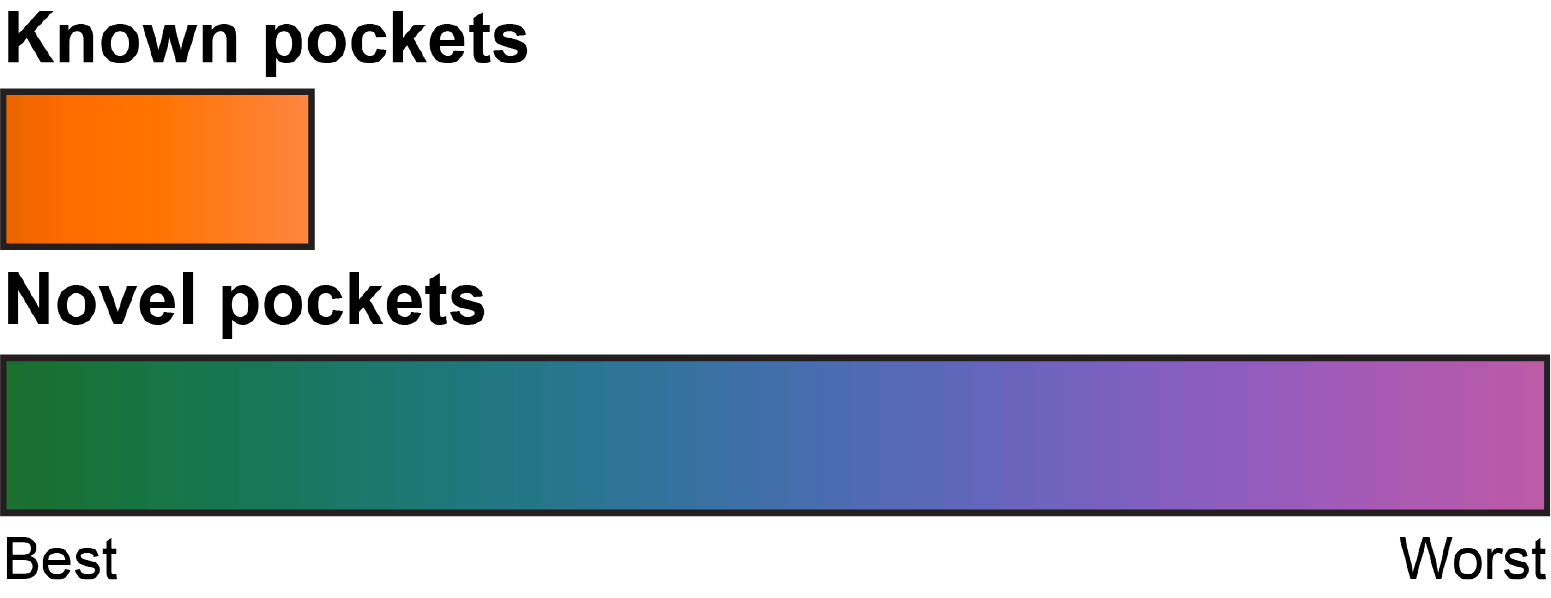

Pocket color legend:

Secondary Structure Visualization

Add a secondary structure diagram using the -ss argument:

python -m fpocketR -pdb 2l1v.pdb -ss 2l1v.nsd

Example output:

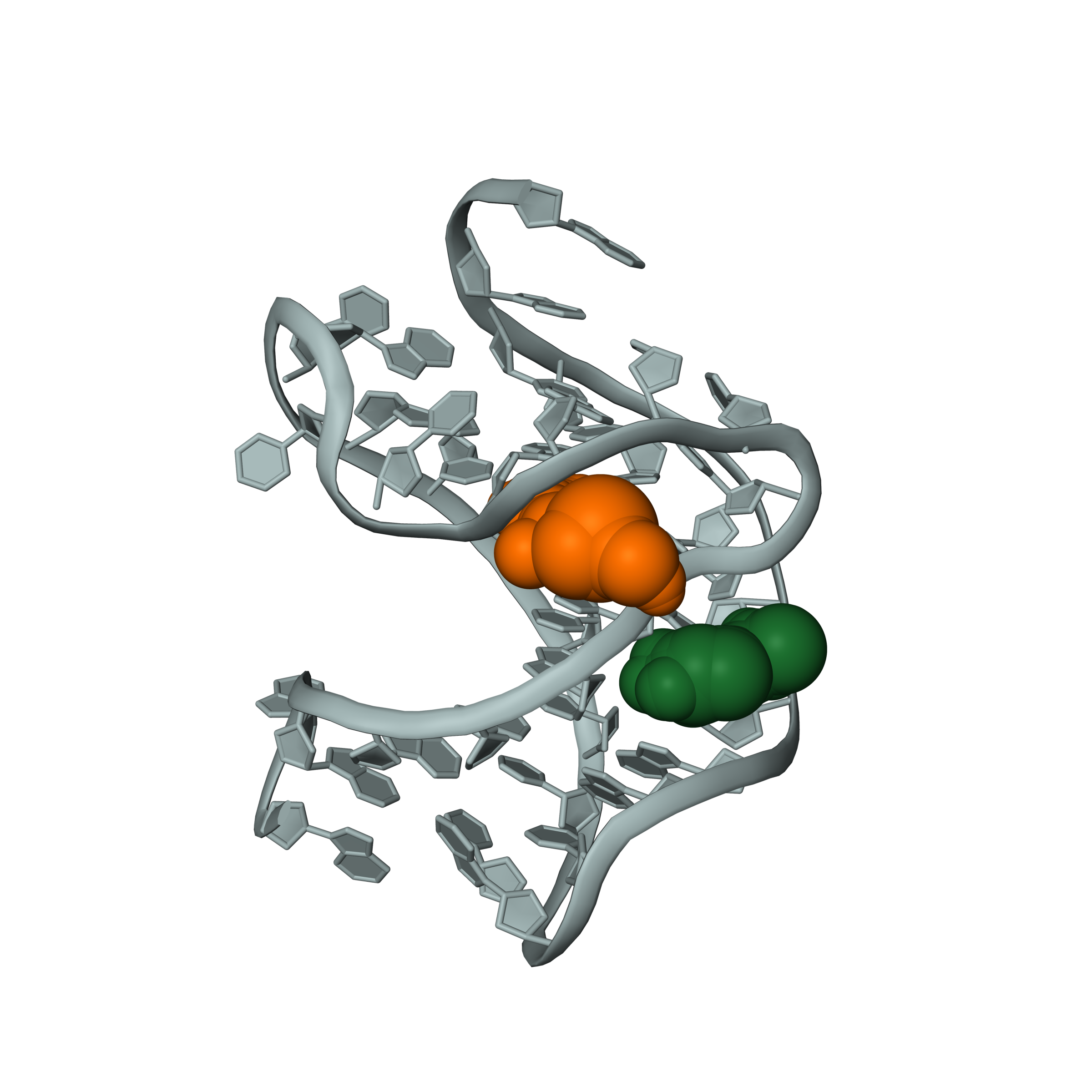

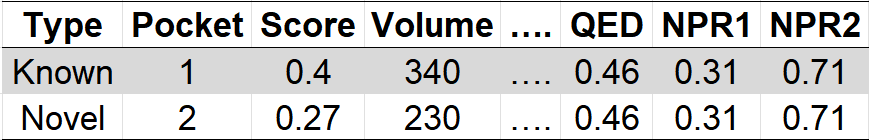

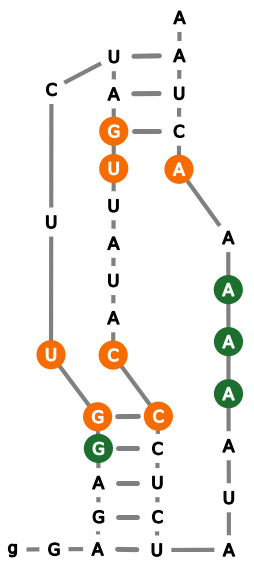

Tertiary structure	Secondary structure	Pocket characteristics

Multistate Analysis

Analyze all NMR or Cryo-EM states using the --state 0 argument:

python -m fpocketR -pdb 2l1v.pdb -ss 2l1v.nsd --state 0

Example output:

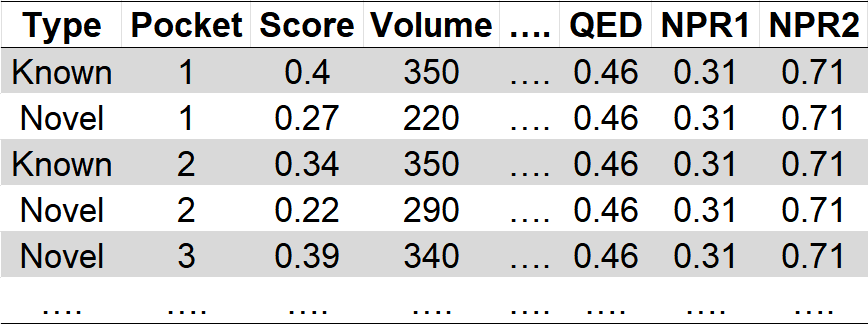

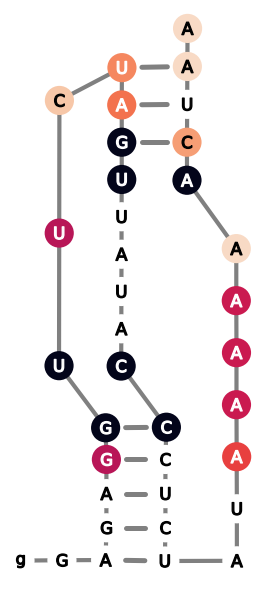

Tertiary structure (pocket density)	Secondary structure (pocket density)	Pocket summary (all states)

Apo/Holo Analysis

Align ligand-bound (holo) and ligand-free (apo) structures for direct comparison using the --alignligand argument:

python -m fpocketR -pdb 8f4o_apo.pdb --alignligand 2gdi_holo.pdb --knownnt 19,20,42,43

Example output:

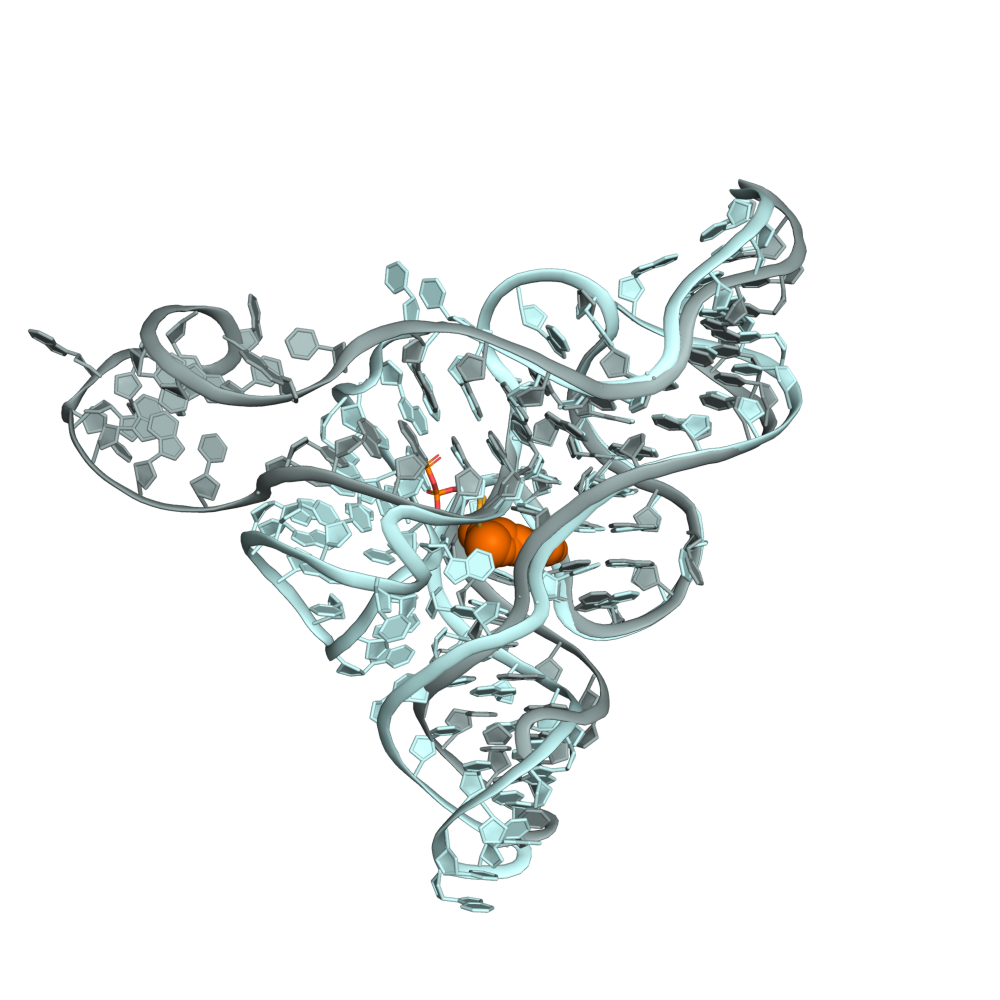

Apo structure and pocket	Apo and holo structures aligned

Additional Arguments

Customize analysis with optional arguments:

• Select RNA chain: -c (--chain)
• Select ligand: -l (--ligand)
• Set raytracing resolution (lower = faster): -dpi (--dpi)
• Specify output path: -o (--out)

python -m fpocketR -pdb 2gdi_holo.pdb --chain Y --ligand TPP --dpi 10 --out ./TPP_RS

Example output:

• Output files and figures add to custom directory: ./TPP_RS/2gdi_holo_clean_out/.

Tertiary structure (low resolution)

Demonstration Workflows

For advanced usage and batch processing, see the example workflows in the /fpocketR/demo folder:

• Batch submission using Bash scripts
• Batch submission using Snakemake
• Multistate analysis on modeled RNA structures from CASP

Each demo includes step-by-step instructions and sample files to help you automate fpocketR analyses for large datasets or complex workflows.

Usage

Full list of arguments for fpocketR.

Option / Argument	Type	Description
Input options
-pdb, --pdb (Required)	str	Path to a .pdb file, .cif file, or 4 character PDB identification code.
-ss, --ss	str	Path to an .ss or other secondary structure file for generating secondary structure figures.
fpocket parameter options
-m	float	Minimum radius for an a-sphere (Default: 3.0).
-M	float	Maximum radius for an a-sphere (Default: 5.70).
-i	int	Minimum number of a-spheres per pocket (Default: 42).
-D	float	A-sphere clustering distance for forming pockets (Default: 1.65).
-A	int	Number of electronegative atoms required to define a polar a-sphere (Default: 3).
-p	float	Maximum ratio of apolar a-spheres in a pocket (Default: 0.0).
Output options
-o, --out	str	Path to the output parent directory (Default: "./fpocketR_out").
-n, --name	str	Output filename prefix and output subdirectory name (Default: "{PDB}_clean_out").
-y, --yes	bool	Answers yes to user prompts for overwriting files (Default: False).
Analysis settings
-s, --state	int	Specify the NMR states/model to analyze. 0 for all (Default: None).
-c, --chain	str	Specify a chain from the input .pdb file (Default: <first_rna_chain>).
-l, --ligand	str	PDB ligand identification code (2-3 characters).
-lc, --ligandchain	str	Chain containing ligand from the input .pdb file (Default: <--chain input>).
-nt, --knownnt	list[int]	List residue IDs of nucleotides in known pocket (e.g. 1,2,3) (Default: None).
-off, --offset	int	Offset between starting nucleotide of RNA sequence and starting nucleotide of PDB structure (automatic).
-qf, --qualityfilter	float	Minimum fpocket score for pocket (Default: 0.0).
Figure settings
-dpi, --dpi	int	Figure resolution in dpi (Default: 300).
-z, --zoom	float	Zoom buffer (Å) for creating 3D figures (Default: 5.0).
-cp, --connectpocket	bool	Visually connects pockets in 2D figures (Default: False).
-al, --alignligand	str | bool	Align structure with pocket prediction (target structure) to an RNA structure with a ligand (mobile structure).   If str: path to a .pdb file, .cif file, or 4 character PDB identification of the mobile structure.   If bool: input PDB file is used as the mobile structure.

TIP: To see all these options in your terminal, run:

python -m fpocketR --help

How to Cite fpocketR

If you use fpocketR in your research, please cite:

1. S.D. Veenbaas, J.T. Koehn, P.S. Irving, N.N. Lama, & K.M. Weeks, Ligand-binding pockets in RNA and where to find them, Proc. Natl. Acad. Sci. U.S.A. 122 (17) e2422346122, https://doi.org/10.1073/pnas.2422346122 (2025).
2. Veenbaas, S. D., Felder, S., & Weeks, K. M. fpocketR: A platform for identification and analysis of ligand-binding pockets in RNA. BioRxiv, 2025.03.25.645323, https://doi.org/10.1101/2025.03.25.645323 (2025).

Copyright

Copyright (c) 2025, Seth Veenbaas

Acknowledgements

Special thanks to psirving for helpful feedback and contributions.

Project based on the Computational Molecular Science Python Cookiecutter version 1.11.
