gcmon 0.2.0

GC Monitor

gcmon - zero-overhead GC monitoring for Python

A package for monitoring Python garbage collection events and exporting statistics in various formats.

Why gcmon?

Python's garbage collector can introduce unpredictable pauses in applications. The standard library provides gc.get_stats() for aggregate collection counters and gc.callbacks for per-event hooks, but both run inside the target process: callbacks add execution overhead that distorts timing, while gc.get_stats() only exposes cumulative counters with no per-pause resolution. Neither can monitor a process without modifying its code.

gcmon reads GC statistics directly from a target process's memory via the _remote_debugging CPython extension, with zero in-process overhead and without pausing the target process — no code changes or runtime modification required.

Use it to profile GC pause times in production services, debug memory leaks, or integrate GC metrics into benchmarks.

Features

• Real-time GC monitoring - Track garbage collection events in running Python processes without in-process overhead
• Multiple export formats - Chrome Trace Event, JSONL file, and JSONL to stdout
• CLI - Monitor processes or run scripts with GC monitoring
• Pyperf hook integration - Seamlessly integrate with pyperf benchmarks

Alternatives Comparison

Approach	In-process?	Per-pause resolution	Zero code change	Overhead
gc.callbacks	Yes	Yes	No	No — distorts timing
gc.get_stats()	Yes	No — cumulative only	No	Minimal
tracemalloc	Yes	N/A — allocations, not GC	No	High
memray	Yes (partial¹)	N/A — allocations, not GC	Partial (attach mode)	Moderate
py-spy	No	N/A — CPU profiling only	Yes	Low
austin	No	Partial²	Yes	Minimal
gcmon	No	Yes	Yes	Yes — zero in-process cost

¹ memray's attach mode avoids modifying code but still injects an allocator into the target process. ² austin's -g flag tags frames during GC activity but provides no per-pause timing or heap data.

How It Works

gcmon runs outside the target process. It reads GC statistics directly from the process's memory via the _remote_debugging CPython C extension (available in CPython 3.15+), which uses platform-specific memory access APIs.

For the pyperf hook integration, gcmon uses an external process model:

1. The hook spawns the gcmon CLI as a separate process
2. The external process reads the target process memory directly
3. Results are written to a temporary JSON file
4. The hook reads the JSON and injects metrics into pyperf metadata

This provides zero in-process overhead during benchmarks, crash isolation (gcmon crashes don't affect the target), and clean separation of concerns.

Limitations

The monitoring and monitored processes must use the exact same Python version and build. gcmon reads GC statistics directly from the target process's in-memory data structures. The layout of these structures varies between Python versions (fields, offsets, sizes), so mismatched binaries are rejected by _remote_debugging to prevent undefined behavior or crashes.

Installation

pip install gcmon

# With stats support (see Statistics below)
pip install gcmon[stats]

Quick Start

# Monitor a running process by PID (default Chrome Trace format)
gcmon 12345

# Run a Python script with GC monitoring
gcmon run -s my_script.py

# Monitor with custom output and statistics output
gcmon 12345 -o trace.json --stats

Example: Chrome Trace Output

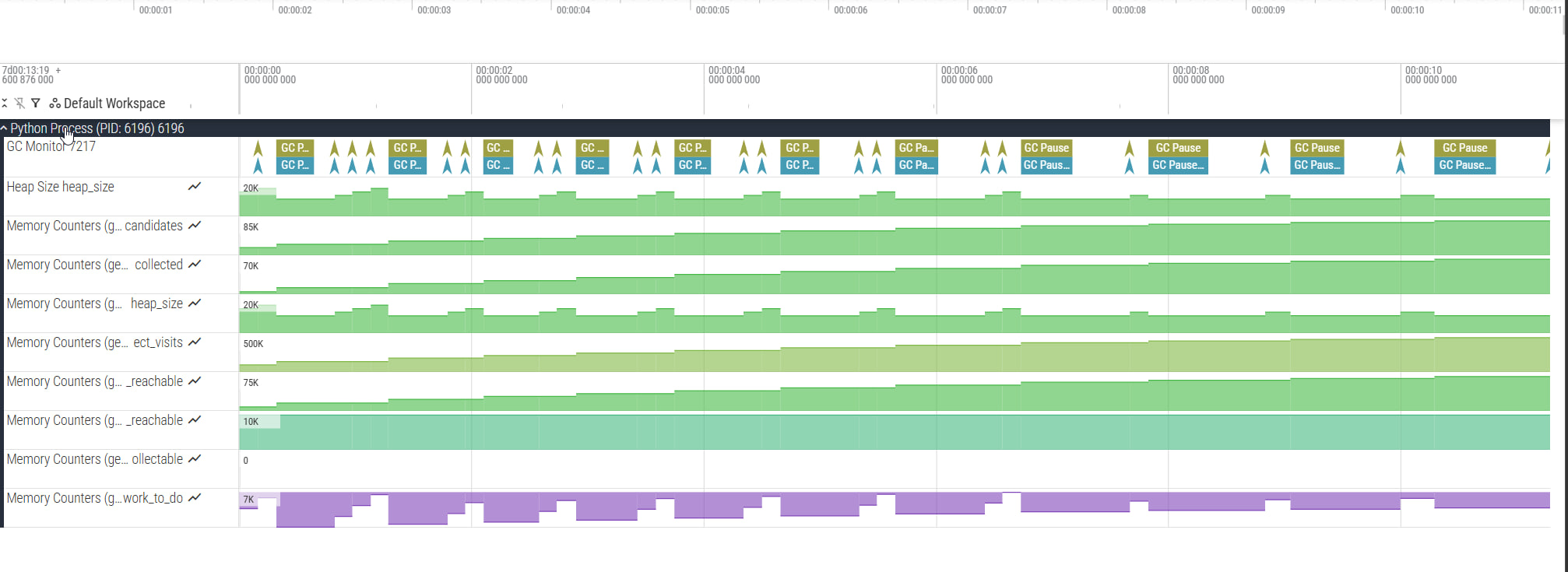

Example: GC monitoring data visualized in Chrome Trace viewer showing:

• GC Pause events (top row with markers)
• Heap Size over time (green area chart)
• Memory Counters

This visualization helps you:

• Identify GC pause patterns - See when and how long GC pauses occur
• Track memory growth - Monitor heap size changes over time
• Analyze collection efficiency - Compare GC-related counters
• Debug memory issues - Spot memory leaks or inefficient collection patterns

Example: JSONL Output

With --format jsonl (writes to file) or --format stdout (writes to terminal), each line is a JSON object representing one GC event:

{"pid": 12345, "tid": 0, "gen": 0, "iid": 1, "ts_start": 1700000000000000, "ts_stop": 1700000000001500, "heap_size": 1048576, "collections": 42, "collected": 120, "uncollectable": 0, "candidates": 300, "duration": 1.5}
{"pid": 12345, "tid": 0, "gen": 1, "iid": 2, "ts_start": 1700000000200000, "ts_stop": 1700000000235000, "heap_size": 2097152, "collections": 3, "collected": 85, "uncollectable": 1, "candidates": 150, "duration": 3.5}

Field	Description
pid	Process ID of the monitored target
gen	GC generation (0, 1, or 2)
iid	Interpreter ID (0 for the main interpreter)
ts_start, ts_stop	Event timestamps (nanoseconds)
heap_size	Heap size at event time (bytes)
collections	Cumulative collection count for this generation
collected	Objects collected in this event
uncollectable	Objects that could not be collected
candidates	Candidate objects for collection
duration	Pause duration (milliseconds)

For incremental GC events, additional fields (increment_size, alive_size, ts_mark_alive_*, ts_fill_increment_*, ts_deduce_unreachable_*) are included.

When to Use

Use gcmon when you want to:

• Profile GC pause times in production or staging without modifying application code
• Measure GC impact on latency-sensitive services (APIs, real-time systems)
• Correlate GC activity with benchmark results via the pyperf hook
• Track heap size trends over time across running processes
• Debug intermittent latency spikes suspected to be GC-related

Use something else when you need to:

• Per-object allocation tracking — use tracemalloc
• Object reference graph inspection — use objgraph
• Allocation profiling — use memray
• CPU profiling and flame graphs — use py-spy or austin
• Coarse GC activity tagging in CPU profiles — use austin with -g (no per-pause timing or heap data)
• In-process GC callbacks (e.g., triggering actions on collection) — use gc.callbacks
• Cumulative collection counters without per-pause detail — use gc.get_stats()
• Monitor across different Python builds — gcmon requires the exact same binary (see Limitations)

CLI Usage

The gcmon command uses subcommands (monitor, run). If no subcommand is given, monitor is used by default.

monitor

Monitor a running process by PID.

# Monitor a process until interrupted (Chrome format)
gcmon 12345
# or:
gcmon monitor 12345

# Monitor with custom output file
gcmon 12345 -o gc_trace.json

# Monitor for a specific duration with verbose output
gcmon 12345 -d 30 -v

# High-frequency monitoring
gcmon 12345 --output trace.json --rate 0.01

run

Run a Python script or module with GC monitoring enabled.

Important: All options and arguments after -s/--script or -m/--module are passed verbatim to the target — they are not interpreted by gcmon. Place gcmon options before the target.

# Run a script
gcmon run -s my_script.py

# Run a module (like python -m)
gcmon run --stats --table-format md -m test test_gc -v

# Pass arguments to the script; everything after -s goes to the target
gcmon run -s benchmark.py --iterations 1000 --verbose

# Run a module with GC monitoring options
gcmon run --format jsonl -o trace.jsonl --stats -m http.server 8000

You must specify exactly one of -s/--script or -m/--module.

Options

Option	Applies to	Description	Default
pid (required)	monitor	Process ID to monitor	-
-s, --script <path>	run	Python script path to run	-
-m, --module <name>	run	Module name to run (like python -m)	-
-o, --output	both	Output file path for trace data	gcmon.json (chrome), gcmon.jsonl (JSONL)
-r, --rate	both	Polling rate in seconds	0.1
-d, --duration	both	Monitoring duration in seconds	Until interrupted / script exits
-v, --verbose	both	Enable verbose output (-v for INFO, -vv for DEBUG)	0
--format	both	Output format: chrome (Chrome Trace Event), jsonl (JSONL to file), or stdout (JSONL to stdout)	chrome
--flush-threshold	both	Number of events to buffer before flushing (JSONL format)	100
--stats	both	Show statistics table at end of monitoring (see Statistics)	False
--table-format	both	Table format: plain or markdown/md	plain

Environment Variables

All CLI options can be overridden via environment variables. CLI flags take precedence.

Variable	Equivalent flag	Description	Default
GCMON_OUTPUT	-o, --output	Output file path for trace data	gcmon.json (chrome), gcmon.jsonl (JSONL)
GCMON_RATE	-r, --rate	Polling rate in seconds	0.1
GCMON_DURATION	-d, --duration	Monitoring duration in seconds	Until interrupted / script exits
GCMON_VERBOSE	-v, --verbose	Verbose level (integer or truthy value)	0
GCMON_FORMAT	--format	Output format: chrome, jsonl, or stdout	chrome
GCMON_FLUSH_THRESHOLD	--flush-threshold	Number of events to buffer before flushing (JSONL format)	100
GCMON_STATS	--stats	Enable statistics table (1, true, yes, on)	False
GCMON_TABLE_FORMAT	--table-format	Table format: plain, md, or markdown	plain

Statistics

Use --stats to display a statistics table at the end of monitoring. The table reports GC pause durations (p50, p90, p95, p99) and counts per generation, broken down by process.

Example Output

$ gcmon 12345 --stats --table-format md

| PID   | Metric           | Count |     Sum |     Avg |     P50 |     P90 |     P95 |     P99 |
|-------|------------------|-------|---------|---------|---------|---------|---------|---------|
| Total | GC Pause(0)      |    42 |  35.200 |   0.838 |   0.720 |   1.500 |   1.800 |   2.400 |
|       | GC Pause(1)      |    18 |  72.000 |   4.000 |   3.500 |   6.800 |   7.500 |  10.200 |
|       | GC Pause(2)      |     5 | 125.000 |  25.000 |  22.000 |  38.000 |  42.000 |  50.000 |
|       |                  |       |         |         |         |         |         |         |
| 12345 | GC Pause(0)      |    42 |  35.200 |   0.838 |   0.720 |   1.500 |   1.800 |   2.400 |
|       | GC Pause(1)      |    18 |  72.000 |   4.000 |   3.500 |   6.800 |   7.500 |  10.200 |
|       | GC Pause(2)      |     5 | 125.000 |  25.000 |  22.000 |  38.000 |  42.000 |  50.000 |

Values shown in milliseconds. Metrics are reported per GC generation (0, 1, 2).

Without [stats] extra

By default, statistics are computed from an in-memory buffer of up to 1024 samples. Percentiles are calculated exactly by sorting the buffered values. Once the buffer is full, older samples are discarded. This is sufficient for short monitoring sessions but may lose data during long runs.

With [stats] extra

Install the optional ddsketch dependency for high-accuracy, memory-efficient statistics:

pip install gcmon[stats]

This installs DDSketch, which:

• Tracks all samples without a fixed buffer limit
• Computes approximate quantiles with 0.1% relative accuracy
• Uses constant memory regardless of monitoring duration

For long-running processes or high-frequency polling, the [stats] extra is recommended.

Pyperf Hook Integration

The gcmon package provides a pyperf hook for automatic GC metrics collection during benchmarks.

Usage

# Run benchmark with GC monitoring
python my_benchmark.py --hook=gcmon

# Or using pyperf directly
pyperf timeit --hook=gcmon my_benchmark.py

# Save results with GC metrics
python my_benchmark.py --hook=gcmon -o benchmark_results.json

GC Metrics Collected

The hook collects and reports the following GC metrics in pyperf metadata:

• gc_pause_gen_0_p99, gc_pause_gen_1_p99, gc_pause_gen_2_p99 - P99 GC pause duration by generation (microseconds)
• gc_pause_gen_0_sum, gc_pause_gen_1_sum, gc_pause_gen_2_sum - Total GC pause time by generation (microseconds)
• gc_pause_gen_0_count, gc_pause_gen_1_count, gc_pause_gen_2_count - Number of GC pauses by generation
• gc_heap_size_p99 - P99 heap size across all samples (bytes)

How It Works

For the pyperf hook integration, gcmon uses an external process model:

1. The hook spawns the gcmon CLI as a separate process
2. The external process reads the target process memory directly
3. Results are written to a temporary JSONL file
4. The hook reads the JSONL and injects metrics into pyperf metadata

This provides zero in-process overhead during benchmarks, crash isolation (gcmon crashes don't affect the target), and clean separation of concerns.

Example: Perfetto Trace Viewer for Pyperf Benchmarks

When you run a pyperf benchmark with the gcmon hook and export the results in Chrome Trace format, you can visualize the GC activity alongside the benchmark execution in Perfetto:

Example: Pyperf benchmark trace visualized in Perfetto showing:

• Multiple benchmark worker processes running in parallel
• GC Monitor process tracking memory events
• Timeline view of benchmark execution with GC activity

This visualization helps you:

• Correlate GC activity with benchmark performance - See how GC pauses affect benchmark timing
• Identify performance outliers - Spot runs affected by GC pauses
• Analyze parallel benchmark execution - Monitor multiple worker processes simultaneously
• Debug benchmark variability - Understand sources of timing variation between runs

To generate traces for Perfetto:

export GCMON_PYPERF_HOOK_OUTPUT="gcmon_{bench_name}.jsonl"
# Run benchmark with GC monitoring and JSONL output
python my_benchmark.py --hook=gcmon --inherit-environ=GCMON_PYPERF_HOOK_OUTPUT -p 5

# Open in Perfetto UI (https://ui.perfetto.dev)

--inherit-environ is needed because pyperf isolates worker environments by default; it tells pyperf to pass GCMON_PYPERF_HOOK_OUTPUT from the parent shell to worker subprocesses so the hook writes to the intended file.

Environment Variables

Variable	Description	Default
GCMON_PYPERF_HOOK_OUTPUT	Output path for the combined GC trace file (JSONL). Supports {bench_name} and {pid} substitution.	gcmon_{bench_name}_combined_{pid}.jsonl
GCMON_PYPERF_HOOK_TEMP_DIR	Directory for temporary JSONL files written during monitoring.	System temp directory
GCMON_PYPERF_HOOK_VERBOSE	Enable verbose logging from the hook. Accepts 1, yes, on, or true (case-insensitive).	Disabled

License

MIT License - see LICENSE for details.

Contributing

Bug reports and pull requests are welcome at GitHub.
