gpmtop

See what your NVIDIA GPU is bound by, live.

nvidia-smi and nvitop tell you the GPU is "98% utilized". That number only means some kernel was running, not that the GPU was doing useful work. gpmtop reads the GPU's hardware activity counters (GPM), shows where you sit on a speed-of-light map, and tells you what to fix.

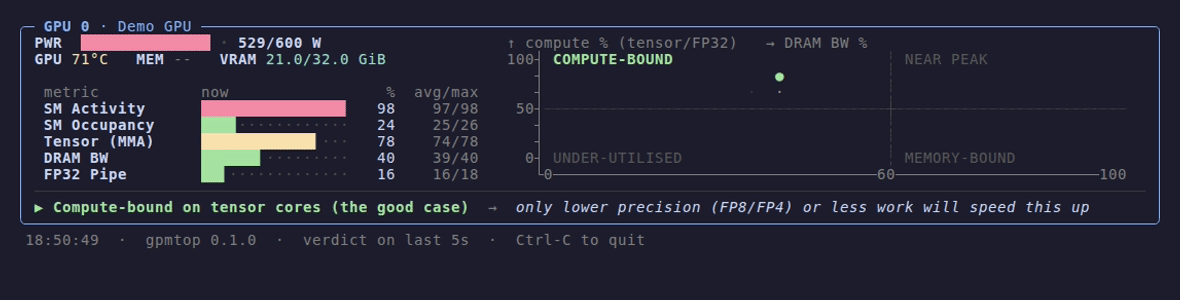

_{Recorded with gpmtop --demo, played at 2× speed.}

Install

pipx install gpmtop        # or: uv tool install gpmtop
gpmtop
gpmtop --demo              # no GPU? replay synthetic data

You need Linux, nvidia-smi on your PATH, Python 3.9+, and a GPU and driver that support GPM (see Requirements).

Reading the map

The map plots two numbers, both as a percentage of the hardware's peak:

• x: DRAM bandwidth. How close you are to the memory limit.
• y: compute. Whichever of the tensor-core pipe or the FP32 pipe is busier.

The bright dot is the current second. The fading trail is the last 30 seconds, so a dot jumping between regions means the job alternates between two states.

Under the map, a verdict line gives the diagnosis. It uses the last 5 seconds:

The thresholds are rules of thumb. They're constants at the top of src/gpmtop/__init__.py if you want to tune them.

Honest caveats

• This is not a roofline. GPM reports how busy each pipe is, not FLOPs or bytes, so arithmetic intensity can't be computed. The map shows how close you are to each limit, like the Speed of Light section in Nsight Compute.
• "Tensor 80%" means the tensor pipe was busy 80% of the time. It does not mean 80% of peak FLOPs. Precision and tile efficiency also matter.
• Samples are 1-second averages over many kernels. Use gpmtop to find which problem you have, then use Nsight Systems or Nsight Compute to find where it is.
• SM Occupancy isn't used in the verdicts. Efficient GEMMs often run at low occupancy by design, so a low value isn't a problem on its own.

Options

gpmtop --metrics 2,3,5,10,12   # GPM metric IDs, see `nvidia-smi dmon -h`
gpmtop --history 60            # window for avg/max, in samples (default 300)

The map needs metric 10 (DRAM) and at least one of 5 (tensor) or 12 (FP32).

Requirements

GPM needs a recent NVIDIA GPU and driver. It is confirmed on an RTX 5090 (Blackwell) with driver 580. It should also work on Hopper (H100/H200), but that is untested. If your GPU doesn't support GPM, gpmtop tells you after a few seconds. Reports of other GPUs that work (or don't) are welcome in an issue.

License

MIT
