Project Horus HAB Telemetry Demodulators

Project Horus's Telemetry Demodulator Library

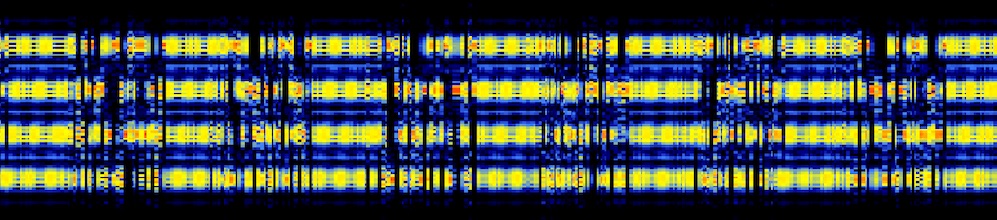

Above: Spectrogram of the Horus Binary 4-FSK modem signal.

What is it?

This repository contains:

• libhorus - A C library containing a high performance 2/4-FSK-demodulator (originally developed as part of the Codec2 project by David Rowe), along with Golay and LDPC forward-error correction algorithms.
• horus_demod - A command-line version of the 4-FSK demodulator, now implemented using Python and CFFI.
• horusdemodlib - A Python library which wraps libhorus, and provides additional functions to decode telemetry into formats suitable for uploading to the Habhub tracker and other services.
• horusbinaryv3 - ASN.1 specification, python tools and example C library for working with the binary format for Horus Binary v3

In particular, this library provides a decoder for the 'Horus Binary' telemetry system, which is the primary tracking system used in Project Horus's High-Altitude Balloon launches.

The modem in this library can also decode the standard UKHAS RTTY telemetry used on many other high-altitude balloon flights.

For the latest information on how and why to use this library, please visit the wiki pages.

If you're looking for a way to decode telemetry from a Horus Binary (or even an old-school RTTY) High-Altitude Balloon payload, read the guides available here.

Authors

Written by:

• Python Library - Mark Jessop [e-mail]
• FSK Modem - David Rowe
• FSK Modem Python Wrapper and Horus v3 ASN.1 Encoding - xssfox

HorusDemodLib Python Library

The horusdemodlib Python library contains decoders for the different Project Horus telemetry formats, including:

• Horus Binary v1 (Legacy 22-byte Golay-encoded format)
• Horus Binary v2 (Golay-encoded 32-byte format)
• Horus Binary v3 (Golay-encoded 32/48/64/96/128-byte formats, with ASN.1 encoded packets)

It also contains a wrapper around the C library (mentioned above), which contains the Horus modem demodulators.

The easiest way to install horusdemodlib is within a virtual environment ('venv') using pip:

First make sure pip is available on your system. Many platforms will have it installed already (try running pip in a terminal). On debian-based systems this can be installed with sudo apt-get install python3-pip. You may also need to install the python venv library, e.g. sudo apt-get install python3-venv

Note that we only support Python 3.9 or newer.

Clone this repository (while we'll be installing horusdemodlib from PyPi, we need some scripts and configuration files from here):

$ git clone https://github.com/projecthorus/horusdemodlib/
$ cd horusdemodlib

Create a virtual environment and then enter it by running:

$ python3 -m venv venv
$ . venv/bin/activate

Now install this library by running:

$ pip install horusdemodlib

If you want to install directly from this repository, you can run:

$ pip install -e .

Running Decoders

At this point it's time to head over to the wiki pages for the latest setup steps.

Updating

If you have installed horusdemodlib via pypi, then you can run (from within your venv, if you are using one):

$ pip install -U horusdemodlib

This will also install any new dependencies.

If you have installed 'directly', then you will need to run:

$ git stash
$ git pull
$ pip install -e .

HorusDemodLib C Library

This contains the demodulator portions of horuslib, which are written in C. This does not typically need to be installed, as the python packages now build and include the C libraries using CFFI.

If you have a reason to, and really want to install it, you can compile and install the library using the below commands. Be aware that this will install the horus_demod utility which may conflict with the python version of this.

Building

The library can be built and installed using:

$ git clone https://github.com/projecthorus/horusdemodlib.git
$ cd horusdemodlib && mkdir build && cd build
$ cmake ..
$ make

The libraries and internal utilites can be installed systemwide with sudo make install.

Refer to the install guide for a more complete guide, including what dependencies are required.

Testing

Unit tests for the various demodulators can be run using:

$ cd build
$ ctest

Updates

In most cases, you can update this library by running:

$ git stash
$ git pull

and then following the build steps above from the cd horusdemodlib line.

API Reference

The main demodulator API is horus_api.h. An example of it in use in a C program is available in horus_demod.c

A Python wrapper is also available (via the horusdemodlib Python library which is also part of this repository). An example of its use is available here.
