indipyserver

Server for the INDI protocol, written in Python

This package provides an IPyServer class used to serve the INDI protocol on a port.

INDI - Instrument Neutral Distributed Interface.

See https://en.wikipedia.org/wiki/Instrument_Neutral_Distributed_Interface

indipyserver can be installed from Pypi:

https://pypi.org/project/indipyserver/

Drivers controlling instrumentation can be written using the indipydriver package. This server takes such drivers, and opens a port to which an INDI client can connect.

You would create a script something like:

import asyncio
from indipyserver import IPyServer
import ... your own modules creating driver1, driver2 ...

server = IPyServer(driver1, driver2, host="localhost", port=7624, maxconnections=5)
asyncio.run(server.asyncrun())

A connected client can then control all the drivers. The above illustrates multiple drivers can be served.

Note, the default host 'localhost' will only allow client connections from the localhost. If you want the port to allow external connections use a host name of '0.0.0.0'.

Any INDI client can be used to connect to this port, an associated client 'indipyterm' is available.

The server can be shutdown using CTRL-C or by calling the server.shutdown() method.

Third party drivers

IPyServer can also run third party INDI drivers created with other languages or tools, using an add_exdriver method to include executable drivers.

For example, using drivers available from indilib:

import asyncio
from indipyserver import IPyServer

server = IPyServer(host="localhost", port=7624, maxconnections=5)

server.add_exdriver("indi_simulator_telescope")
server.add_exdriver("indi_simulator_ccd")
asyncio.run(server.asyncrun())

Please note: The author has no relationship with indilib, these indipyserver and indipydriver packages are independently developed implementations. However they were developed with reference to the INDI version 1.7 specification, and are intended to interwork with other implementations that also meets that spec.

Networked instruments

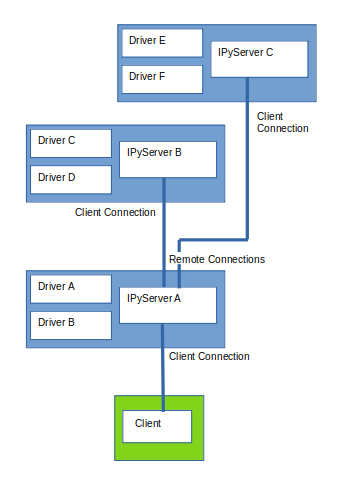

IPyServer also has an add_remote method which can be used to add connections to remote servers, creating a tree network of servers:

import asyncio
from indipyserver import IPyServer
import ... your own modules creating DriverA, DriverB ...

server = IPyServer(DriverA, DriverB, host="localhost", port=7624, maxconnections=5)

server.add_remote(host="nameofserverB", port=7624, blob_enable=True)
server.add_remote(host="nameofserverC", port=7624, blob_enable=True)

asyncio.run(server.asyncrun())

With such a layout, the client can control all the instruments.

Drivers made with indipydriver, third party executable drivers and remote connections can all be served together.

Further documentation can be found at:

https://indipyserver.readthedocs.io/en/latest/index.html

Associated packages by the same author are:

indipydriver

Package with classes used to create INDI drivers.

https://github.com/bernie-skipole/indipydriver

https://pypi.org/project/indipydriver

https://indipydriver.readthedocs.io

indipyweb

Web server and INDI client, connects to an INDI serving port, and serves client pages for connected browsers.

https://github.com/bernie-skipole/indipyweb

https://pypi.org/project/indipyweb

indipyterm

A terminal INDI client.

https://github.com/bernie-skipole/indipyterm

https://pypi.org/project/indipyterm/
