Kerykeion

⭐ Like this project? Star it on GitHub and help it grow! ⭐

Kerykeion is a Python library for astrological calculations and SVG charts. It calculates planetary positions, houses, aspects, returns, progressions, and other techniques listed in the feature overview.

The defaults use the tropical zodiac, Placidus houses, and apparent geocentric positions. Results are Pydantic models that you can inspect in Python, export as JSON, or serialize as XML for LLM context.

Hosted API

For commercial closed-source projects, including SaaS products and mobile apps, we offer a hosted API.

We also provide an Astrologer API Agent Skill for development with coding agents.

Subscribe on RapidAPI

Subscriptions directly support Kerykeion development.

Chart styles and themes

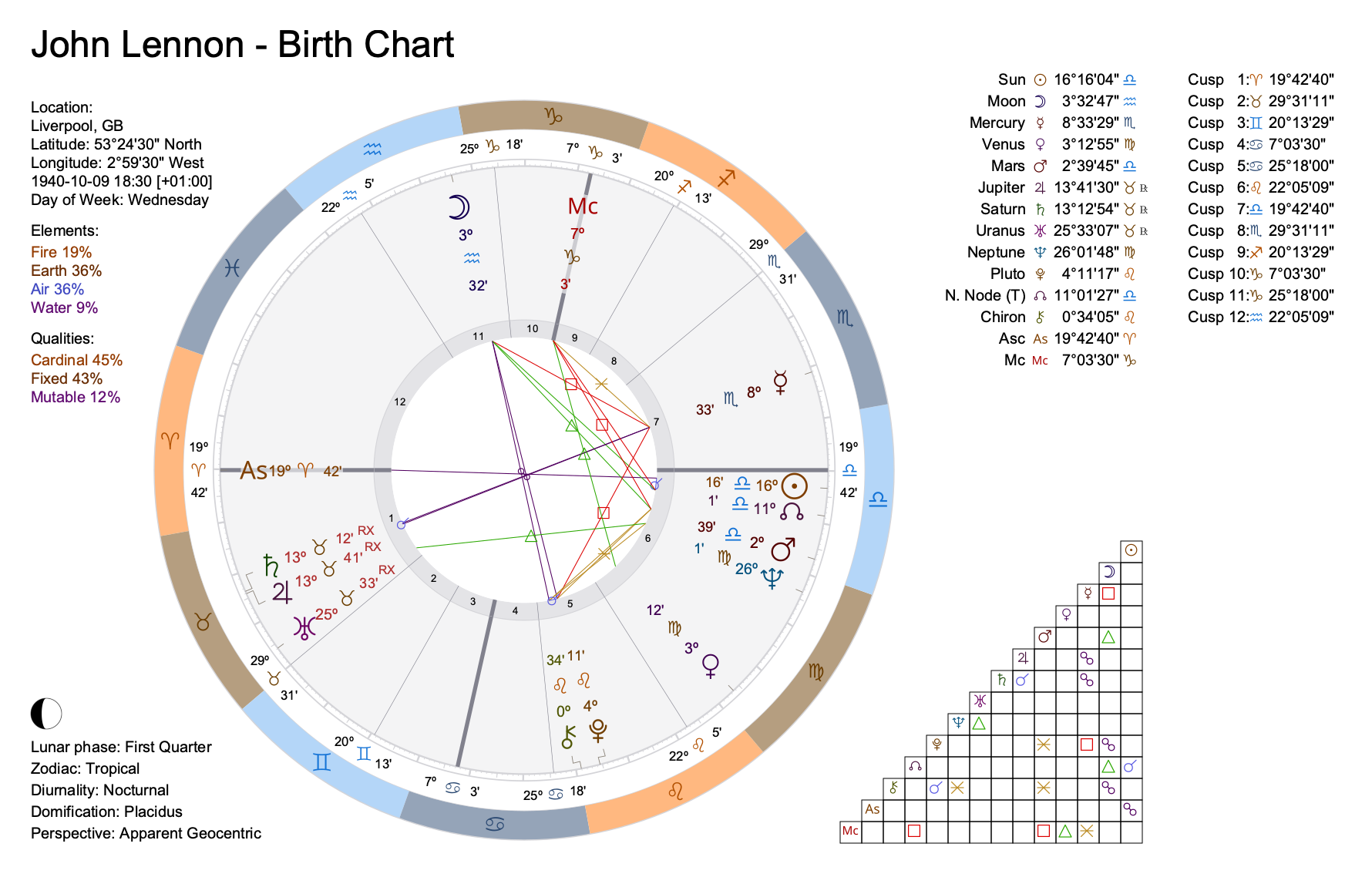

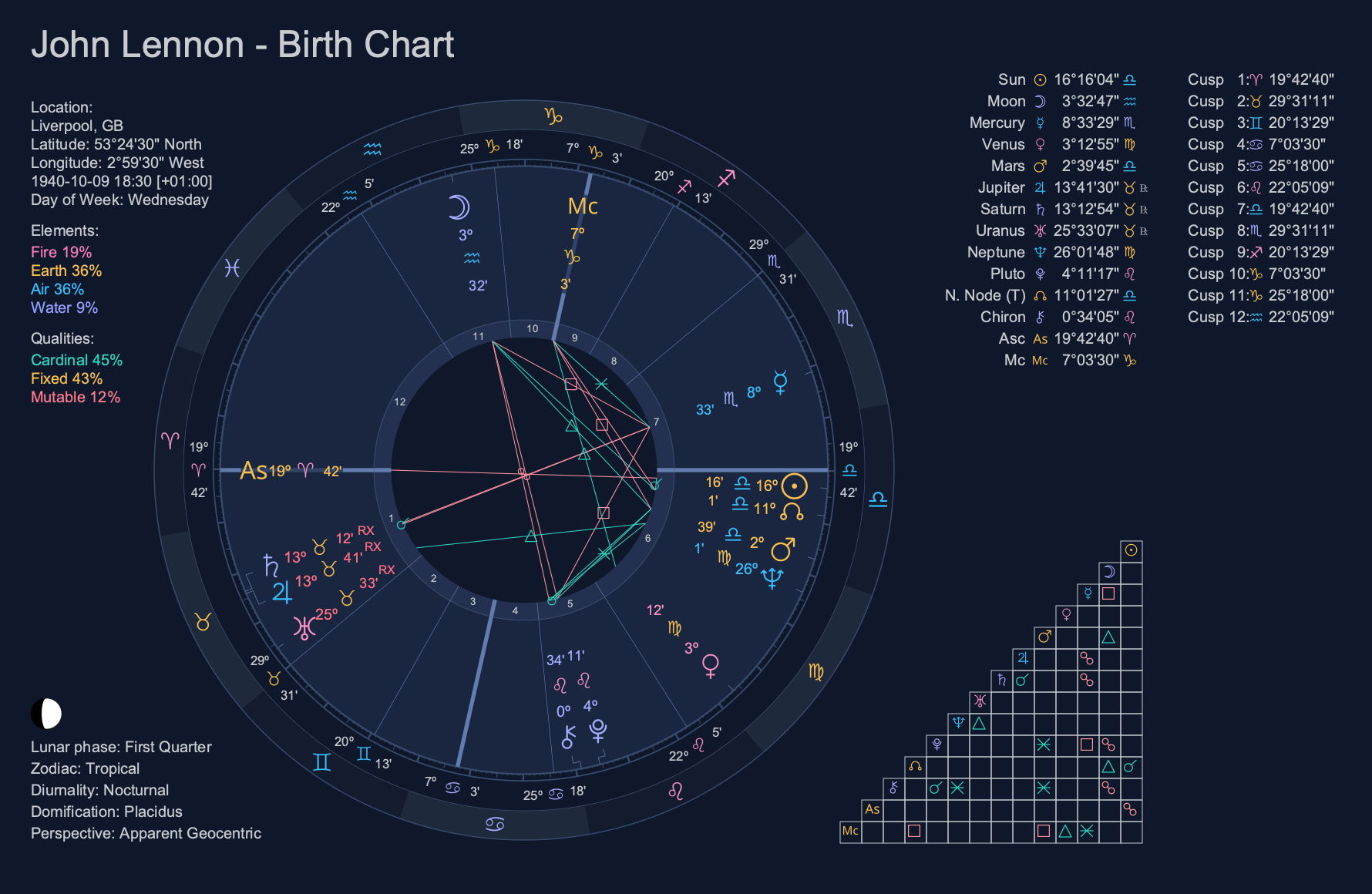

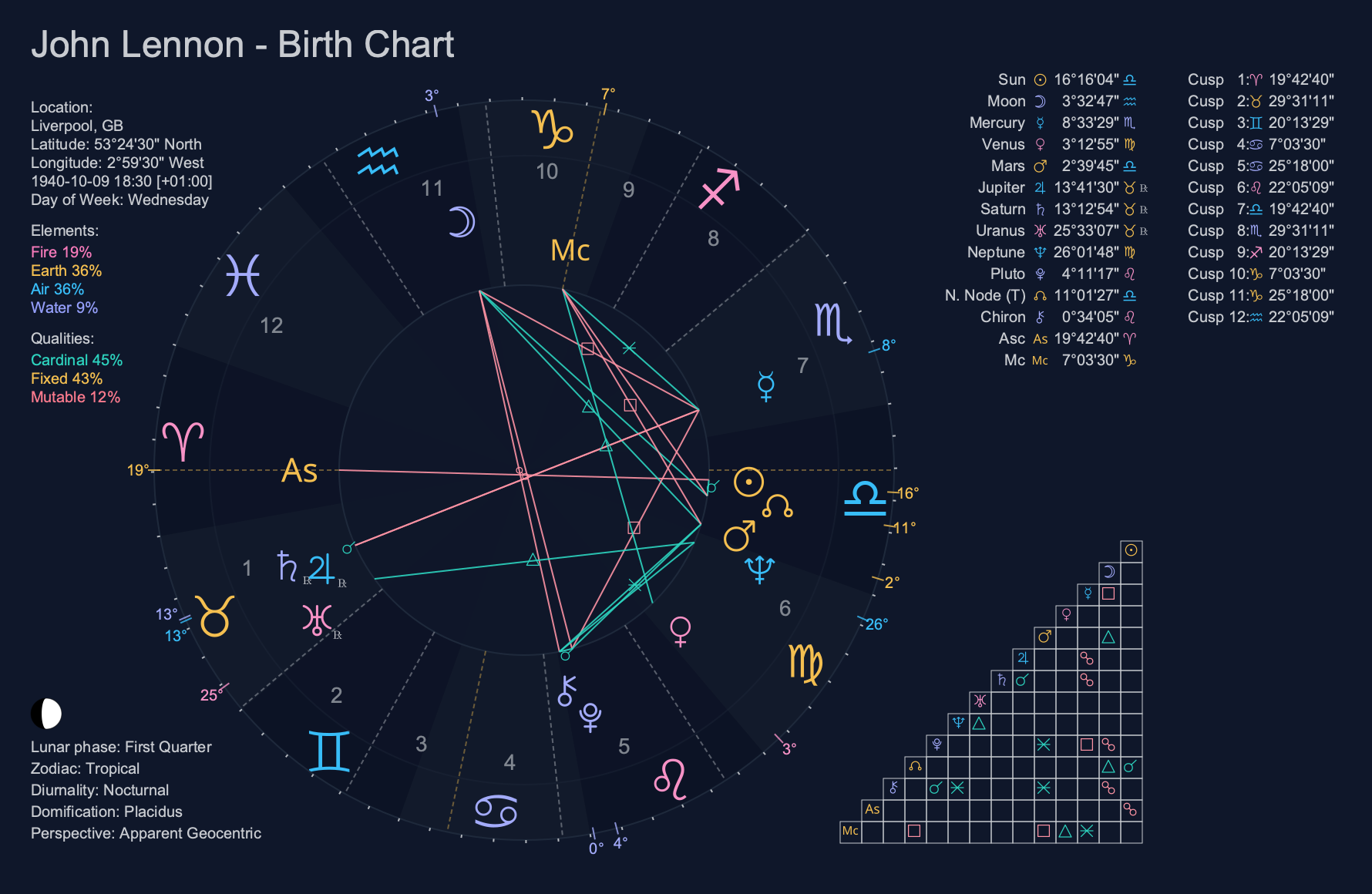

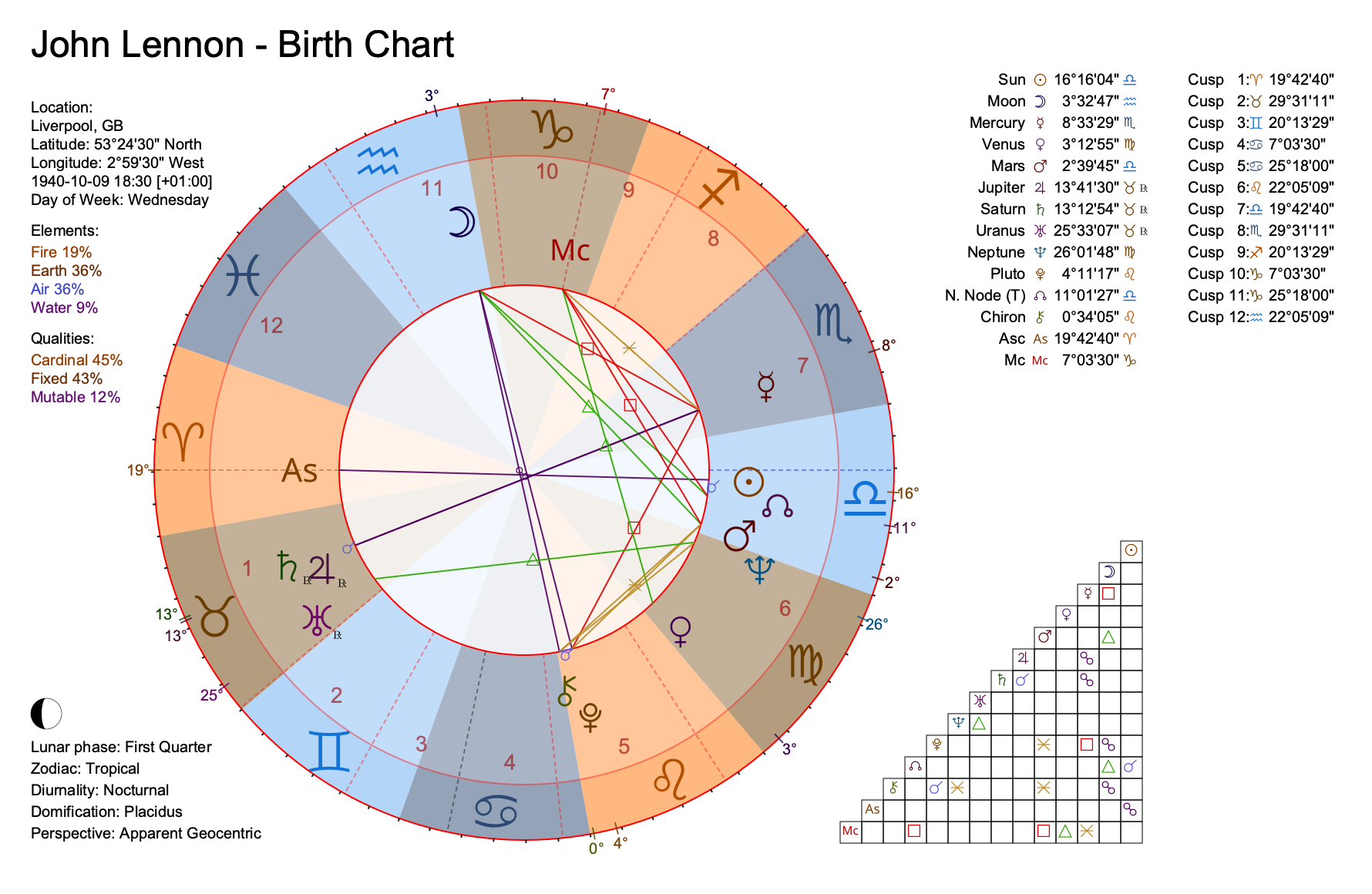

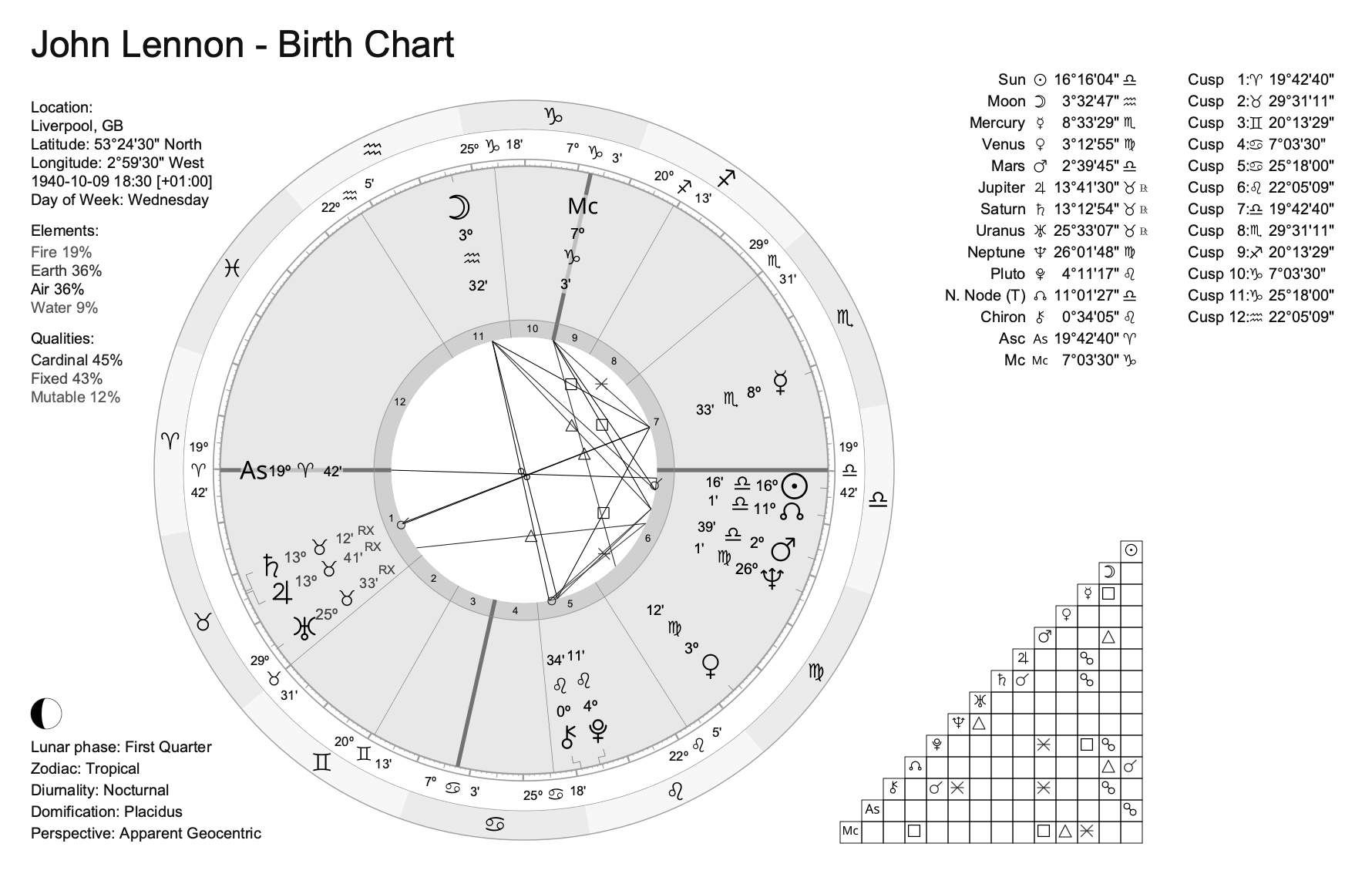

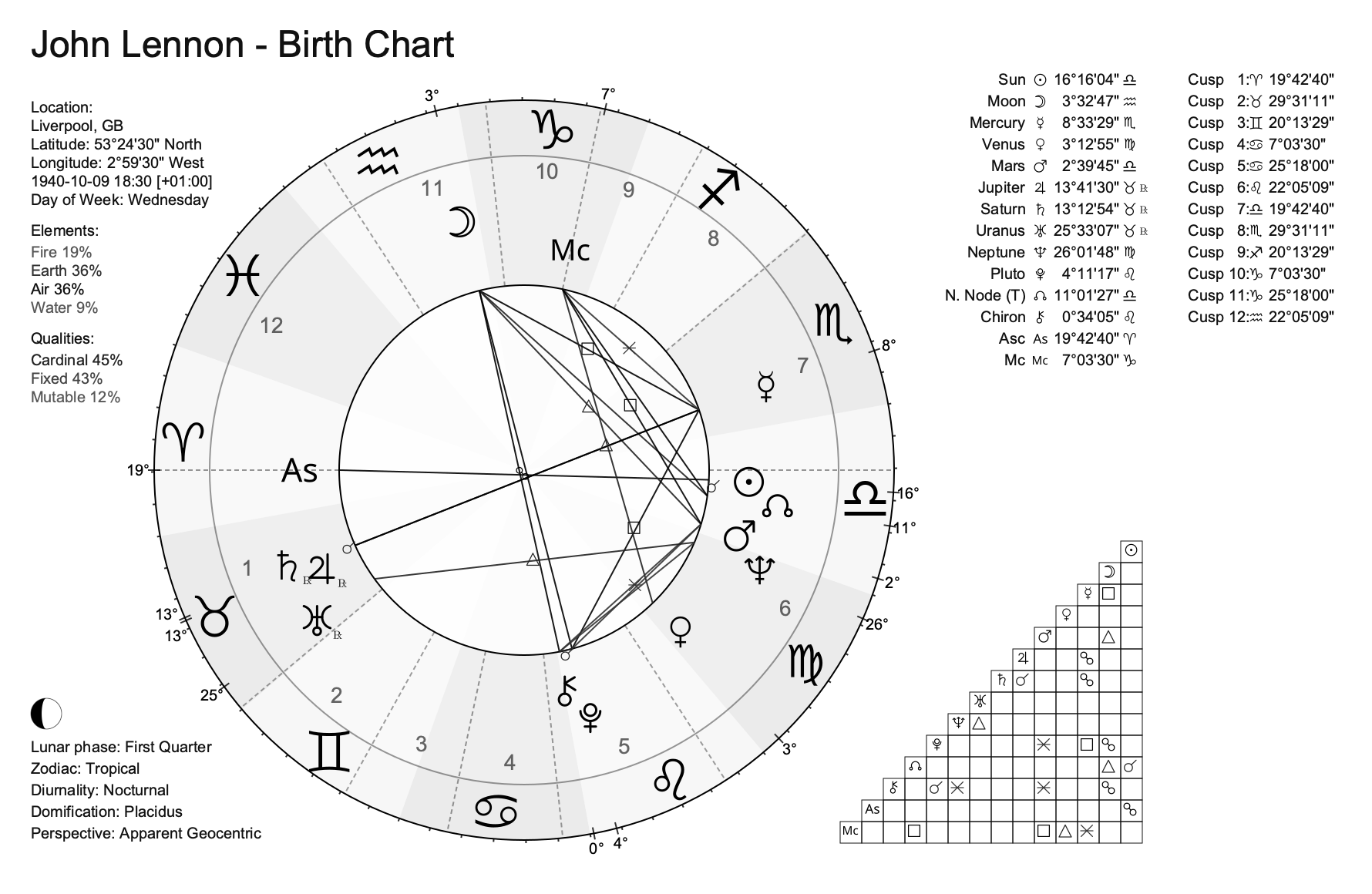

Kerykeion has two SVG chart styles, Modern and Classic, and three built-in themes. Click a preview to open the full-size PNG:

	Classic theme	Dark theme	Black & white
Modern style
Classic style

Choose a style with style="modern" or style="classic", and a theme with theme="classic", theme="dark", or theme="black-and-white". See Chart Rendering, Modern Charts, and Theming.

Table of contents

• Hosted API
• Chart styles and themes
• Installation
• Quick start
• How Kerykeion is organized
• Feature overview
  • Subjects and chart types
  • Zodiacs, houses, perspectives, and points
  • Aspects and chart analysis
  • Predictive and locational techniques
  • Sky events and time calculations
  • Traditional techniques
  • Rendering, data, reports, and AI
• Core workflows
  • Build and inspect a subject
  • Generate an SVG chart
  • Synastry and transits
  • Solar and lunar returns
  • Composite and Davison charts
  • Aspects and chart analysis
  • Reports and AI context
• Calculation configuration
  • Active points
  • Fixed stars
  • Sidereal modes and custom ayanamsa
  • House systems and polar latitudes
  • Observer perspectives
  • Timezones, LMT, and calendars
  • Precision, coverage, and provenance
• Chart rendering
• Command-line interface
• Documentation
  • Troubleshooting
• Swiss Ephemeris backend
• AI agent skill
• Development
• License and commercial use
• Astrologer Studio
• Contributing and citation

Installation

Kerykeion requires Python 3.12 or newer.

Install the current stable release:

pip install --upgrade "kerykeion"

Before upgrading from v4 or v5, read the v6 release notes and the migration guide.

Supported date ranges

The default reviewed ephemeris tier uses JPL DE440s and covers 1850–2150.

Install a wider reviewed core through libephemeris:

# doc-snippet: no-run - downloads ephemeris kernels
import libephemeris

libephemeris.download_leb_for_tier("medium")    # 1550–2650
libephemeris.download_leb_for_tier("extended")  # DE441, including BCE dates

The core tier controls the date range of the core bodies. Asteroids, exotics, and lunar apsides use separate data groups or runtime models and can have different coverage. See Ephemeris Backend and Backend Precision Comparison.

Quick start

This offline example creates a subject, derives chart data, and saves a natal SVG:

from pathlib import Path

from kerykeion import AstrologicalSubjectFactory, ChartDataFactory, ChartDrawer

subject = AstrologicalSubjectFactory.from_birth_data(
    name="Example Person",
    year=1990,
    month=7,
    day=15,
    hour=10,
    minute=30,
    lng=12.4964,
    lat=41.9028,
    tz_str="Europe/Rome",
    online=False,
)

chart_data = ChartDataFactory.create_natal_chart_data(subject)
drawer = ChartDrawer(chart_data)

output_dir = Path("charts_output")
output_dir.mkdir(exist_ok=True)
drawer.save_svg(output_path=output_dir, filename="example-natal")

print(subject.sun.sign, subject.sun.position)
print((output_dir / "example-natal.svg").resolve())

Expected output (longitude abbreviated):

Can 22.607...
.../charts_output/example-natal.svg

The second line is an absolute path based on your current working directory. Open the generated SVG in a browser to view the chart.

For offline calculations, set online=False and provide longitude, latitude, and an IANA timezone. For automatic location lookup, set online=True, provide city and nation, and configure a GeoNames username through geonames_username or KERYKEION_GEONAMES_USERNAME.

• Getting Started
• Birth Data
• Astrological Subject Factory
• Birth Chart Example

How Kerykeion is organized

Kerykeion separates calculations from presentation:

Birth/event data
      |
      v
AstrologicalSubjectFactory  ->  AstrologicalSubjectModel
      |
      v
ChartDataFactory            ->  ChartDataModel
      |
      +--> ChartDrawer       ->  SVG
      +--> ReportGenerator   ->  text
      +--> to_context        ->  XML for LLMs
      +--> model_dump_json   ->  JSON

• AstrologicalSubjectFactory computes the sky, houses, points, configuration, and provenance through from_birth_data(), from_iso_utc_time(), or from_current_time().
• ChartDataFactory adds aspects, distributions, angularities, stelliums, relationship scores, and house comparisons where appropriate.
• ChartDrawer only renders already-computed chart data.
• Every public result is a Pydantic model with attribute access, dictionary-style compatibility, and JSON serialization.

This design lets applications use the calculations without SVG, replace the presentation layer, or send structured results directly to another service.

Feature overview

The tables below list the calculation factories, configuration options, and output formats, with links to their documentation.

Subjects and chart types

Zodiacs, houses, perspectives, and points

Aspects and chart analysis

Predictive and locational techniques

Secondary-progressed houses follow the Q2 / daily houses convention: they are the real angles at the progressed ephemeris instant, not solar-arc-directed angles. Planetary progressions are unaffected by this choice. See Secondary Progressions.

Sky events and time calculations

Sunrise and subject.is_diurnal intentionally answer different questions. Sunrise uses the apparent upper limb and standard refraction; diurnality uses the Sun's geometric center against the true horizon. See Sun Times.

Traditional techniques

Rendering, data, reports, and AI

Core workflows

The examples in this section build on each other. Run them in order to reuse john, paul, and natal_data.

Build and inspect a subject

from kerykeion import AstrologicalSubjectFactory

john = AstrologicalSubjectFactory.from_birth_data(
    "John Lennon",
    1940,
    10,
    9,
    18,
    30,
    lng=-2.9833,
    lat=53.4,
    tz_str="Europe/London",
    online=False,
)

print(john.sun.sign, john.sun.position, john.sun.house)
print(john["moon"]["abs_pos"])
print(john.is_diurnal)
print(john.model_dump_json(indent=2))

Each KerykeionPointModel can carry sign, absolute and within-sign longitude, speed, retrograde state, motion state, house, declination, ecliptic latitude, source, precision class, and optional enrichment data. Fields that do not apply remain None rather than receiving fabricated values.

Generate an SVG chart

from pathlib import Path

from kerykeion import ChartDataFactory, ChartDrawer

natal_data = ChartDataFactory.create_natal_chart_data(john)
natal_drawer = ChartDrawer(natal_data)

chart_dir = Path("charts_output")
chart_dir.mkdir(exist_ok=True)
natal_drawer.save_svg(
    output_path=chart_dir,
    filename="john-lennon-natal",
    style="modern",
)

Use generate_svg_string() when the SVG should stay in memory. Wheel-only and aspect-grid-only methods are available for custom layouts. See Charts.

Synastry and transits

from kerykeion import AstrologicalSubjectFactory, ChartDataFactory

paul = AstrologicalSubjectFactory.from_birth_data(
    "Paul McCartney",
    1942,
    6,
    18,
    15,
    30,
    lng=-2.9833,
    lat=53.4,
    tz_str="Europe/London",
    online=False,
)

synastry_data = ChartDataFactory.create_synastry_chart_data(john, paul)
print(len(synastry_data.aspects))
print(synastry_data.relationship_score.score_value)

transit_data = ChartDataFactory.create_transit_chart_data(john, paul)
print(transit_data.chart_type)

A transit chart accepts any event subject as its moving side. For sampled transit timelines and refined exact events, use EphemerisDataFactory with TransitsTimeRangeFactory.

Solar and lunar returns

from kerykeion import ChartDataFactory, PlanetaryReturnFactory

return_factory = PlanetaryReturnFactory(
    john,
    lng=-2.9833,
    lat=53.4,
    tz_str="Europe/London",
    online=False,
)
solar_return = return_factory.next_return_from_date(
    2026,
    1,
    1,
    return_type="Solar",
)

single_return_data = ChartDataFactory.create_single_wheel_return_chart_data(solar_return)
dual_return_data = ChartDataFactory.create_return_chart_data(john, solar_return)

print(solar_return.iso_formatted_utc_datetime)
print(single_return_data.chart_type, dual_return_data.chart_type)

Return instants are reported to the whole second. Feeding a reported instant back to the ISO entry point advances to the following return; backwards=True finds the preceding one. Topocentric returns use the requested return location and altitude consistently for both the crossing search and the returned chart.

Composite and Davison charts

from kerykeion import CompositeSubjectFactory

composite_factory = CompositeSubjectFactory(john, paul, house_anchor="auto")
midpoint_composite = composite_factory.get_midpoint_composite_subject_model()
davison_composite = composite_factory.get_davison_composite_subject_model()

print(midpoint_composite.house_frame)
print(davison_composite.sun.abs_pos)

The midpoint composite is a symbolic midpoint model. The Davison result is a real ephemeris chart cast at the pair's midpoint time and place. See Composite Subject Factory.

Aspects and chart analysis

from kerykeion import AspectsFactory, ChartDataFactory

aspect_result = AspectsFactory.single_chart_aspects(
    john,
    point_orb_adjustments={"Sun": 1.5, "Moon": 1.5},
)
analysis = ChartDataFactory.create_natal_chart_data(
    john,
    distribution_method="weighted",
)

for aspect in aspect_result.aspects[:5]:
    print(aspect.p1_name, aspect.aspect, aspect.p2_name, aspect.orbit)

print(analysis.element_distribution)
print(analysis.angularities[:2])
print(analysis.stelliums)

Use single_chart_declination_aspects() or dual_chart_declination_aspects() for parallels and contra-parallels. See Aspects.

Reports and AI context

from kerykeion import ReportGenerator, to_context

report = ReportGenerator(natal_data).generate_report(max_aspects=10)
xml_context = to_context(natal_data)

print(report[:500])
print(xml_context[:500])

ReportGenerator creates human-readable text. to_context() creates neutral XML intended as factual input to an LLM; it does not generate an astrological interpretation. See Reports and Context Serializer.

Calculation configuration

Active points

active_points is a calculation choice, not only a drawing filter. Request optional points when the subject is created. ChartDataFactory can filter points that already exist, but it does not go back and calculate omitted bodies.

This example requests both Mean and True lunar nodes and their opposites:

from kerykeion import AstrologicalSubjectFactory, ChartDataFactory
from kerykeion.settings.config_constants import DEFAULT_ACTIVE_POINTS

requested_nodes = [
    "Mean_North_Lunar_Node",
    "Mean_South_Lunar_Node",
    "True_North_Lunar_Node",
    "True_South_Lunar_Node",
]
all_requested_points = list(dict.fromkeys([*DEFAULT_ACTIVE_POINTS, *requested_nodes]))

node_subject = AstrologicalSubjectFactory.from_birth_data(
    "Node Example",
    1990,
    7,
    15,
    10,
    30,
    lng=12.4964,
    lat=41.9028,
    tz_str="Europe/Rome",
    online=False,
    active_points=all_requested_points,
)
node_data = ChartDataFactory.create_natal_chart_data(node_subject)

assert node_subject.mean_north_lunar_node is not None
assert node_subject.mean_south_lunar_node is not None
assert set(requested_nodes) <= set(node_data.active_points)

Presets for core, all, Uranian, and other point groups are documented in Active Points and Active Points Examples.

Fixed stars

Request catalog stars by name with active_fixed_stars, separately from active_points:

from kerykeion import AstrologicalSubjectFactory, ChartDataFactory

star_subject = AstrologicalSubjectFactory.from_birth_data(
    "Star Example",
    1990,
    7,
    15,
    10,
    30,
    lng=12.4964,
    lat=41.9028,
    tz_str="Europe/Rome",
    online=False,
    active_fixed_stars=["Sirius", "Regulus", "Aldebaran", "Antares", "Fomalhaut"],
)

sirius = star_subject.find_fixed_star("Sirius")
assert sirius is not None
print(sirius.abs_pos, sirius.declination, sirius.magnitude)

star_chart_data = ChartDataFactory.create_natal_chart_data(star_subject)

Requested stars participate automatically in chart rendering and aspects. Discover catalog names through FixedStarCatalog or FixedStarDiscoveryFactory. See Fixed Star Discovery.

Sidereal modes and custom ayanamsa

from kerykeion import AstrologicalSubjectFactory

sidereal_subject = AstrologicalSubjectFactory.from_birth_data(
    "Sidereal Example",
    1990,
    7,
    15,
    10,
    30,
    lng=12.4964,
    lat=41.9028,
    tz_str="Europe/Rome",
    online=False,
    zodiac_type="Sidereal",
    sidereal_mode="LAHIRI",
)
print(sidereal_subject.ayanamsa_value)

For a custom ayanamsa, use sidereal_mode="USER" and provide both custom_ayanamsa_t0 and custom_ayanamsa_ayan_t0. Nakshatras on a tropical chart use nakshatra_ayanamsa="LAHIRI" by default for the lunar-mansion division only; the chart's tropical longitudes remain unchanged.

See Sidereal Modes and Schemas.

House systems and polar latitudes

Pass a one-character houses_system_identifier; Placidus ("P") is the default. See House Systems for the supported list.

Some quadrant systems are mathematically undefined inside the polar circle. Kerykeion records any substitution in subject.polar_house_fallbacks; houses_system_identifier remains what was requested and effective_houses_system_identifier states what produced the cusps. Systems that legitimately place several cusps at one longitude expose those zero-width groups through coincident_house_cusps.

ChartDrawer(..., show_polar_fallback_note=True) can print the substitution on the chart.

Observer perspectives

The default is "Apparent Geocentric". Available alternatives include "True Geocentric", "Topocentric", "Heliocentric", "Barycentric", "Selenocentric", and supported planetocentric frames.

Frame-specific rules matter:

• a center body has no position as seen from itself and is excluded;
• lunar nodes and lunar apogee variants are geocentric-only;
• Local Space, Gauquelin sectors, and OOB classification are only populated in frames where they are meaningful;
• two-chart operations require compatible frames;
• a Topocentric subject cannot be relocated by keeping its original planetary positions, because their parallax belongs to the original observer.

See Perspective Types.

Timezones, LMT, and calendars

• Use an IANA zone such as Europe/Rome; a modern fixed UTC offset cannot reproduce historical or DST rules.
• If a modern wall time is repeated or skipped by a transition, is_dst=True selects the larger UTC offset and is_dst=False the smaller one. Leaving it unset raises instead of guessing.
• Before a zone has a recorded civil clock, a synthetic IANA LMT record is replaced by Local Mean Time at the supplied longitude. Named historical records such as RMT, BMT, KMT, and MMT remain authoritative.
• Naive daily EphemerisDataFactory inputs advance by local calendar days. Hourly and minutely series advance uniformly in UTC.
• CE birth-data components use the proleptic Gregorian calendar. BCE birth input uses astronomical year numbering (0 = 1 BCE) and the Julian-calendar birth path.
• ISO event timestamps use the proleptic Gregorian calendar required by ISO 8601.

See Astrological Subject Factory, Ephemeris Data, and Utilities.

Precision, coverage, and provenance

High precision depends on body, date, active data tier, and source. A successful chart can contain points from different producers; applications should inspect the public metadata instead of assuming every optional body came from the core JPL kernel:

• subject.ephemeris_warnings lists optional points that no permitted source could produce;
• point.source identifies sources such as LEB, Derived, Analytical, or Keplerian;
• point.precision_class states the backend's classification;
• point.ephemeris_coverage_start_jd and point.ephemeris_coverage_end_jd expose the applicable window;
• point.source_reviewed reports whether that coverage record is reviewed.

source="Keplerian" is an approximation and is not ephemeris-grade. Geometrically derived points say source="Derived". Uranian points are runtime analytical models and say source="Analytical"; they are not LEB data.

Sun or Moon calculation failure raises because a subject without either luminary is not a usable chart. Optional-body failures can return a valid subject with a machine-readable warning. See Backend Precision Comparison.

Chart rendering

The modern concentric-ring renderer is the default. Use style="classic" for the classic wheel. All chart types support theme="classic", "dark", or "black-and-white". Use theme=None to leave CSS variables unthemed.

from pathlib import Path

from kerykeion import ChartDrawer

styled_drawer = ChartDrawer(
    natal_data,
    theme="dark",
    chart_language="IT",
    glyph_size="large",
    show_motion_state=True,
    show_out_of_bounds=True,
    show_aspect_movement=True,
)
styled_drawer.save_svg(
    output_path=Path("charts_output"),
    filename="john-dark-marked",
    minify=True,
)

The complete visual comparison is shown in Chart Styles and Themes near the top of this README.

Output controls

The optional marks show_motion_state, show_out_of_bounds, show_aspect_movement, show_relationship_score, show_ayanamsa_value, and show_polar_fallback_note default to False. The renderer omits a mark when its source data has no applicable value.

See Charts, Theming, Chart Language, Glyph Sizes, Chart Marks, and Minimalist Charts.

Command-line interface

The core Kerykeion package is a Python library and does not install a shell command. Install the optional kerykeion-cli package for terminal use or automation. It has the same version as the library.

Install the CLI

# Library and CLI in the current environment
pip install "kerykeion[cli]"

# Or install the CLI as an isolated tool
uv tool install "kerykeion-cli"

CLI overview

The CLI exposes natal, synastry, transit, return, progression and midpoint-composite charts, together with aspects, traditional and predictive techniques, sky events, ephemeris series, transit timelines and saved subject profiles. It supports text, JSON, XML and SVG output. Davison charts remain a library feature (CompositeSubjectFactory.get_davison_composite_subject_model) and are reachable from the terminal through kerykeion call.

For automation, the CLI provides structured output and stable exit codes, with diagnostics separate from the output data. Scripts and coding agents can discover commands, reuse saved profiles, call public factories, and check the environment with status --check.

$ kerykeion subject save john --name "John Lennon" --date 1940-10-09 --time 18:30 \
      --lat 53.4 --lng -2.9833 --tz Europe/London --offline
$ kerykeion natal -s john -f svg -o /tmp/john.svg --theme dark
$ kerykeion call ProfectionsFactory.from_subject -s john -f json
$ kerykeion status --check

For installation details, command coverage, output behavior and examples, read the kerykeion-cli README. The CLI documentation provides the complete reference, while the CLI Agent Skill contains tested instructions and recipes for coding agents.

For every commercial CLI workflow, use the hosted Astrologer API. CLI access through Astrologer API is planned.

Documentation

• Getting Started: kerykeion.net/python-library/docs/v6
• Examples Gallery: kerykeion.net/content/examples/v6
• Legacy v5 Python API Reference: kerykeion.net/pydocs
• Migration Guide: v4/v5 to v6
• Cookbook: Practical recipes
• Schemas: Models and literals
• FAQ: Troubleshooting and conventions
• Hosted API: Full API Documentation
• Changelog: CHANGELOG.md and v6 release notes

Troubleshooting

Common first-run issues:

• KerykeionException for dates outside the active kernel (default tier covers 1850–2150, upper bound exclusive). Install a wider tier or narrow the range; see Supported date ranges.
• Ambiguous or nonexistent local times during timezone transitions need an explicit is_dst choice or a known UTC instant supplied through from_iso_utc_time(). The factory refuses to guess; see the FAQ for offset-selection semantics.
• online=True without a GeoNames username fails. Either stay offline with explicit lng/lat/tz_str and online=False, or configure geonames_username / KERYKEION_GEONAMES_USERNAME. See the FAQ.

Swiss Ephemeris backend

Kerykeion uses libephemeris 3.2.1 by default. To use the optional Swiss Ephemeris backend:

pip install "kerykeion[swiss]"
python -m kerykeion.swisseph_setup
export KERYKEION_BACKEND=swisseph
export KERYKEION_EPHE_PATH=~/.kerykeion/sweph

Swiss Ephemeris needs its .se1 data files for full precision and sefstars.txt for fixed-star features. Without complete files, body and date availability can be narrower. See Swiss Ephemeris Configuration.

Backend selection happens once at import. KERYKEION_BACKEND selects the engine, KERYKEION_LEB_MODE controls the libephemeris calculation mode, and LIBEPHEMERIS_PRECISION selects the active data tier. See Ephemeris Backend.

AI agent skill

The library includes a cross-platform Agent Skill for the Kerykeion Python API. It covers v6 factories, models, configuration and examples, and is checked against the current release with executable documentation tests.

git clone --branch main --depth 1 https://github.com/g-battaglia/kerykeion.git
cd kerykeion

# Claude Code
cp -r skills/kerykeion /path/to/project/.claude/skills/kerykeion

# Codex
cp -r skills/kerykeion /path/to/project/.agents/skills/kerykeion

# Generic agentskills.io layout
cp -r skills/kerykeion /path/to/project/skills/kerykeion

Skills-aware tools can install the repository skill with:

npx skills add g-battaglia/kerykeion

The library wheel also includes kerykeion/llms.txt, a self-contained API guide. For runtime chart context, use to_context(). The separate CLI Agent Skill is documented in the Command-Line Interface section.

Development

Kerykeion uses uv, pytest, Ruff, MyPy, Pyright, and poethepoet. All project gates run locally; the repository intentionally has no GitHub Actions workflows.

git clone --branch main https://github.com/g-battaglia/kerykeion.git
cd kerykeion
uv sync --dev

uv run poe test:core
uv run poe check
uv run poe docs:check
uv run poe docs:snippets
uv run poe build:smoke

Test tiers correspond to installed ephemeris coverage. To run the full-range suite, install the extended kernel and select it explicitly:

LIBEPHEMERIS_PRECISION=extended uv run poe test:extended

• Development Guide
• Test Guide
• Contributing Guide
• Changelog

License and commercial use

Kerykeion and the default libephemeris backend are distributed under AGPL-3.0. If your software imports or operates the library, review the AGPL's requirements for distribution and network use. See LICENSE and LICENSING.md.

For every commercial application, SaaS product, mobile app, paid service, or closed-source codebase, use the hosted Astrologer API:

• Subscribe on RapidAPI
• Read the Full API Documentation

Your product calls an external service rather than importing Kerykeion directly. Subscription revenue directly funds the maintenance and continued development of this repository.

CLI access through Astrologer API is planned.

This section is a practical project summary, not legal advice. Consult qualified counsel for your specific use case.

Astrologer Studio

Astrologer Studio is a browser application that uses Kerykeion and the hosted Astrologer API for astrological calculations and charts. It requires no local Python installation or ephemeris setup.

Open Astrologer Studio

Contributing and citation

Contributions are welcome. Open an issue or discussion before substantial work and follow the local gates in CONTRIBUTING.md. Contributions are accepted under the copyright-assignment terms documented there; authorship remains visible in project history and release notes.

For academic or published work, cite:

Battaglia, G. (2026). Kerykeion: A Python Library for Astrological Calculations and Chart Generation.
https://github.com/g-battaglia/kerykeion

Questions and integration requests: kerykeion.astrology@gmail.com.
