MISP-maltego 1.4.7

Maltego transform for interacting with a MISP Threat Sharing community and with MITRE ATT&CK.

This is a Maltego MISP integration tool allowing you to view (read-only) data from a MISP instance. It also allows browsing through the MITRE ATT&CK entities. (no MISP connection needed)

This user guide should help you through the installation of MISP-Maltego, and should guide you how to use it through a few use-cases. As this is a collaborative project, do not hesitate to propose changes, write other use-cases or raise feature requests for missing features.

Quick start

Currently supported MISP elements are : Event, Attribute, Object (incl relations), Tag, Taxonomy, Galaxy (incl relations).

Once installed you can start by creating a MISPEvent entity, then load the Machine EventToAll or the transform EventToAttributes.

Alternatively initiate a transform on an existing Maltego entity. The currently supported entities are: AS, DNSName, Domain, EmailAddress, File, Hash, IPv4Address, NSRecord, Person, PhoneNumber, URL, Website

For MITRE ATT&CK pivoting, feel free to start with an Attack Technique, Software, Threat Actor, or MISPGalaxy. Create your entity, enter a keyword such as %gama% and use the Search in MISP transform to get started.

Installation

Transform Hub

Open the Transform Hub, locate ATT&CK - MISP and press the Install button.

Your transforms will go through Paterva's servers and ours. See the Transform Hub Disclaimer for more information.

• ATT&CK transforms do not require a MISP server or API key to be configured.
• MISP transforms requires your MISP server to be reachable from the internet! To enter your MISP server URL and key click Details on the Transform Hub item and then Settings at the bottom right.

Local Transform Installation

If you trust nobody, or just want to connect to your local MISP server you can install everything as local transforms.

These instructions have been tested on Ubuntu 18.04 LTS, but should be similar on other systems.

1. Download and install Maltego
2. Install using pip: sudo pip3 install MISP-maltego
3. Generate the Maltego bundle: canari create-profile MISP_maltego
4. Import this bundle in Maltego.
   1. Open Maltego
   2. Click on the home button (Maltego icon, top-left corner).
   3. Click on 'Import'
   4. Click on 'Import Configuration'.
   5. Load the MISP_maltego.mtz file and follow the prompts.
5. Edit $HOME/.canari/MISP_maltego.conf and enter your misp_url and misp_key

Custom Entities

MISP-Maltego tries to use as much as possible the default Paterva entities, or the most popular from the community. It however comes with a few custom entities:

• MISPEvent: A representation of an Event on MISP, containing Attributes (MISP) / Entities (Maltego)
• MISPObject: A way to group associated attributes in a structured way.
• MISPGalaxy: A Tag containing much more metadata. Please refer to the MISP Galaxy for more information. MITRE ATT&CK is for example completely available through MISPGalaxy entities (see use-cases for an example)
• Attack Technique: Attack patterns or techniques, see MITRE ATT&CK for more information.
• Threat Actor: Threat actor or intrusion sets.
• Software: Software is a generic term for custom or commercial code, operating system utilities, open-source software, or other tools used to conduct behavior modeled in ATT&CK.

Use Cases

Transform on existing data

In this use case we will be using already existing entities and will initiate a transform using MISP. The currently supported entities are: AS, DNSName, Domain, EmailAddress, File, Hash, IPv4Address, NSRecord, Person, PhoneNumber, URL, Website.

Example:

• create an entity domain with the value 1dnscontrol.com.
• right click and choose Local Transforms > MISP_maltego > Domain To Event

• continue loading transforms on the MISP Event

Transform from MISP Event ID

While MISP already has a graphing capability we would like to use the power of Maltego to look at the data and expand the work.

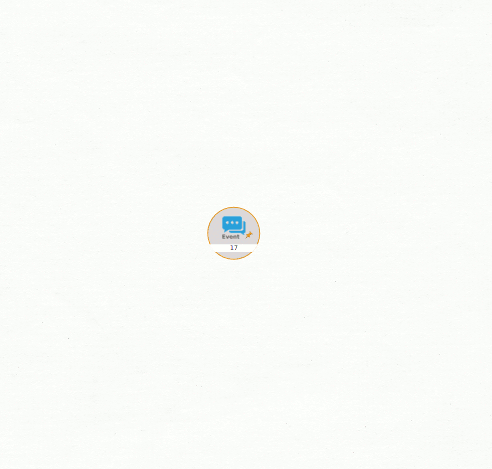

• Create a MISP Event and give it an event id, or UUID
• One manual way is to right click and choose Local Transforms > MISP_maltego > Event To Attributes
  • Notice the event is transformed to Attributes, Objects, Tags, Galaxies and related MISP Events
  • You can now further transform on an Object > Object To Attributes and see the content of the object

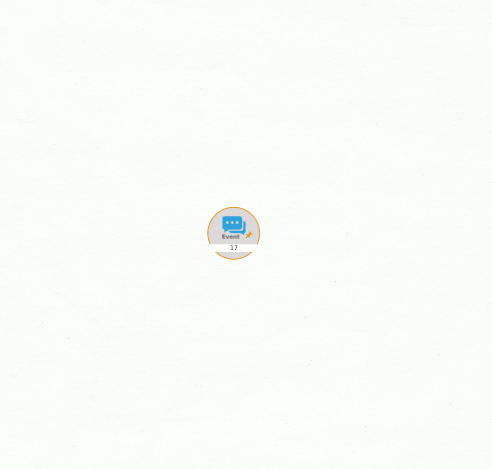

• Alternatively you can also use the Maltego Machine to speed up things.
  • Click on the MISP Event and in the left menu choose Event to All in the Machines section.
  • Notice that the whole event, objects and such will get expanded with data from your MISP instance.
• You can now further transform on any data.

Which data is already in MISP?

If you use MISP as central database it can be quite convenient to know which data is present in MISP, and which data is not; especially after using a number of other transforms. To permit this MISP-Maltego will always add a green bookmark to all the data that is present in MISP.

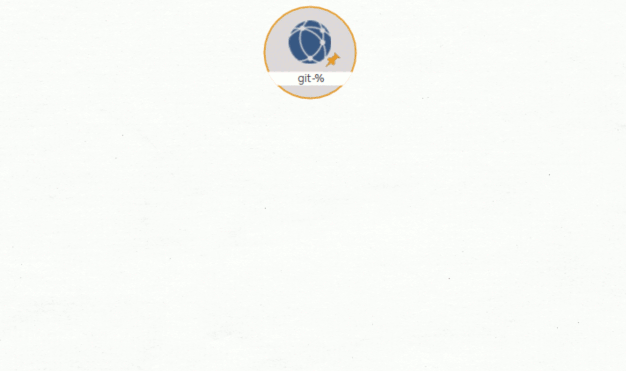

Searching in MISP using keywords

As with the MISP attribute search through the MISP Web UI you can use % wildcards at the front and end to specify the substring. You might be tempted to always use %keyword%, but bare in mind how databases indexes work; a search for keyword% will always be much faster than %keyword.

Transform from Galaxy

Galaxies are actually tags with much more contextual data. Examples are threat actors, malware families, but also the whole MITRE ATT&CK data is available as Galaxy. All this data comes from the MISP Galaxy repository. Today the integration is not done using a MISP server because of limitations in MISP. You might encounter Galaxies when transforming from MISP Events or Attributes. An alternative use-case is by starting immediately from a Galaxy. There are 3 ways to manually create a good Galaxy Entity.

1. Using a find capability (see below)
2. Create the Galaxy and set the UUID. You can find the UUIDs in the MISP Galaxy repository.
3. Create the Galaxy with the right tag name; for example: misp-galaxy:

To use the magical search feature:

• Create a MISP Galaxy and type the keyword as value.
• Run the Galaxy To Relation transform, notice the search results will appear as connected entities
• Remove the non-relevant entities, including the your search-keyword

Visualize MITRE ATT&CK

Apply the same steps for MITRE ATT&CK browsing:

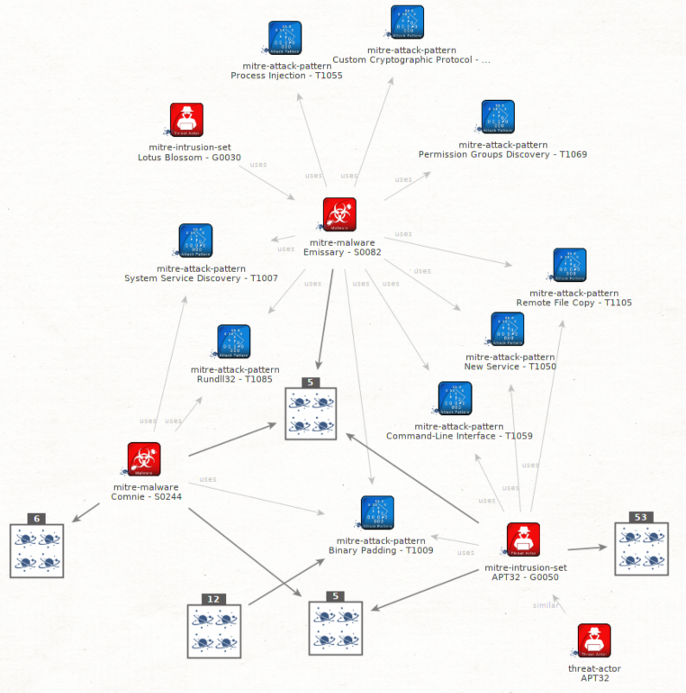

You might end up with such a graph:

Visualise common ATT&CK patterns

Having access to a large amount of Threat information through MISP Threat Sharing communities gives you outstanding opportunities to aggregate this information and take the process of trying to understand how all this data fits together telling a broader story to the next level. We are transforming technical data or indicators of compromise (IOCs) into cyber threat intelligence. This is where the analytical challenge begins. [read more]

Massively large MISP event? Think before you transform.

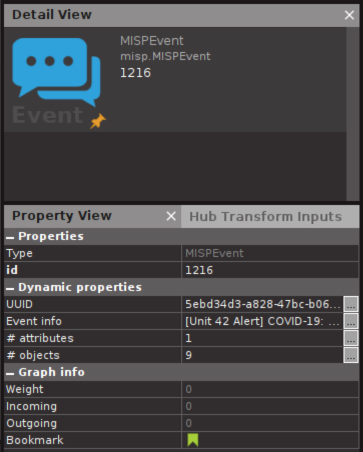

In some communities such as the COVID-19 MISP some events contain tens of thousands attributes. Loading all the attributes from these events might not be a good idea if you do not have Maltego XL. You can see the amount of attributes and objects in the Event properties, so you can think before you click:

License

This software is licensed under GNU Affero General Public License version 3

• Copyright (C) 2018 Christophe Vandeplas

Note: Before being rewritten from scratch this project was maintained by Emmanuel Bouillon. The code is available in the v1 branch.

The logo is CC-BY-SA and was designed by Françoise Penninckx

The icons in the intelligence-icons folder are from intelligence-icons licensed CC-BY-SA - Françoise Penninckx, Brett Jordan
