openapi cli tool

Project description


Build Status


OpenAPI (Swagger 3.x) CLI Tool.

  • Supports multiple file extensions (json|yaml|yml).
  • Can list up defined API paths.
  • Display an API specification which is resolved ($ref).
  • Bundle multi-file into one (output to json|yaml|html).
  • OAS interactive scaffolding.


Python 2.7, 3.4 <=.


With pip:

$ pip install openapi-cli-tool

Clone the repository and execute the Python installation command on your machine.

$ pip -r requirements.txt install
$ python install

Then openapi-cli-tool command is installed.


$ openapi-cli-tool --help
Usage: openapi-cli-tool [OPTIONS] COMMAND [ARGS]...

  --help  Show this message and exit.

  bundle    Bundle multiple files into one.
  list      List up API paths in a file or directory.
  resolve   Display `$ref` resolved API specification.
  scaffold  Interactively create a simple OpenAPI Specification.


Bundle multi-file specifications into one, regardless of file extension (json|yaml|yml).

$ openapi-cli-tool bundle --help
Usage: openapi-cli-tool bundle [OPTIONS] FILE_PATHS

  Bundle multiple files into one.

  -f, --file TEXT  Load common objects such as info and servers from a
                   specific file. Default is a file which is the top of list
                   command result.
  -t, --type TEXT  Export data type. {json|yaml|html}  [default: json]
  --help           Show this message and exit.


$ openapi-cli-tool bundle -t html file1.json file2.yaml` > ./specification.html

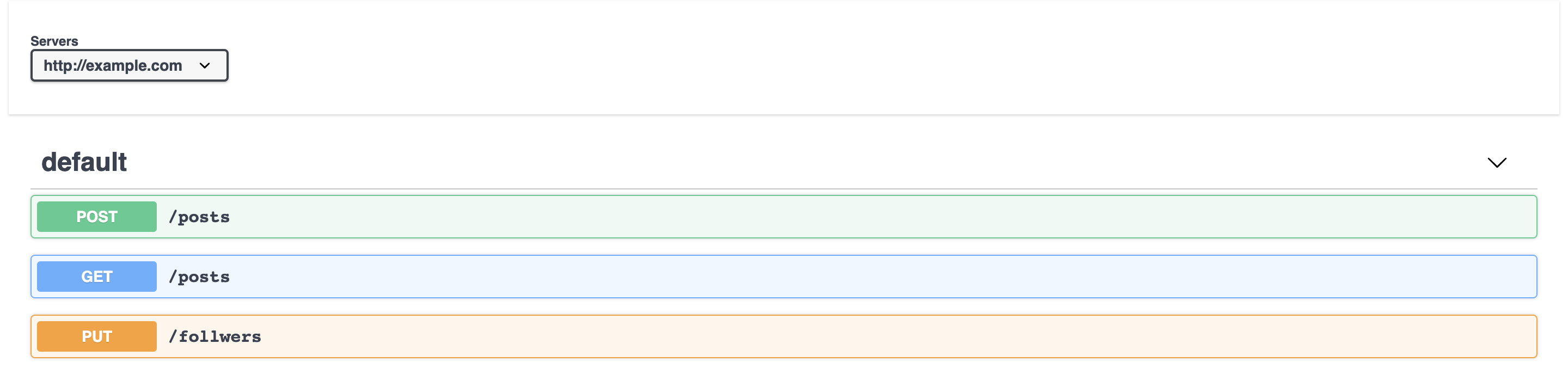

In the html file, an unpkg version of swagger-ui is embedded. Rendered screenshot below:



List up API paths from a file/directory regardless of the file extension (json|yaml|yml).

$ openapi-cli-tool list `find ./spec`

Method    Path       File
--------  ---------  ------------------------------------------
PUT       /avatar    ./tests/resources/spec/sample.yml
GET       /follwers  ./tests/resources/spec/folder1/sample2.yaml
POST      /follwers  ./tests/resources/spec/folder1/sample2.yaml
PUT       /follwers  ./tests/resources/spec/folder1/sample2.yaml
POST      /pets      ./tests/resources/spec/sample.yml
GET       /posts     ./tests/resources/spec/folder1/sample.json
POST      /posts     ./tests/resources/spec/folder1/sample.json
GET       /users     ./tests/resources/spec/folder1/sample.json
POST      /users     ./tests/resources/spec/folder1/sample.json


Display an API specification which is resolved from a multi-file API specification via $ref pointers.

Usage: openapi-cli-tool resolve [OPTIONS] METHOD PATH FILE_PATHS

  Display `$ref` resolved API specification.

  -t, --type TEXT  Export data type. {json|yaml}  [default: json]
  --help           Show this message and exit.


$ openapi-cli-tool resolve post /cats `find ./tests/resources/spec`


Interactively input information of your API.
A simple OpenAPI Specification is generated from your prompt.

$ openapi-cli-tool scaffold

Please enter title [""]: sample
Please enter version [v1.0]:
Please enter license [Apache 2.0]:
Please enter server url []:
Please enter path [/]: /example
Please enter method for /example [get|post|put|delete|head|option|trace]: get
Please enter description for get /example [""]: sample get endpoint
Please enter response code for get /example [200]:
