robotframework-trace 1.2.0

Alternative CLI for Robot Framework

Alternative RobotFramework CLI Frontend

A lightweight Robot Framework CLI Frontend that provides real-time progress updates directly on the command-line during test execution. The main design intention is that you shouldn't need to open the HTML files directly to debug failing tests - the information you need should be on the CLI, in as concise and intuitive a format as possible.

Features

• Provides a new robot-trace front-end, which is a drop-in replacement for robot.
• Provides a new pabot-trace front-end, which is a drop-in replacement for pabot (if you have it installed - there is no need to install this package if you don't).
• Provides a new rebot-trace command, which can be used to generate matching traces from an output.xml file.
• Displays test execution progress in the CLI.
• Provides a clear and concise overview of running tests.
• Provides a full, intuitive trace of any failing tests.
• Configurable output.

Robot Usage

The listener supports three different usage models:

1. As a separate command-line tool

This is the easiest and recommended usage model.

Installation

pip install robotframework-trace

Usage

robot-trace path/to/tests

Details

You don't need to remember any extra arguments to pass to Robot - the runner automatically passes the correct arguments to Robot and bases its own command line from the arguments you pass to Robot. This gives a drop-in replacement for any existing robot command lines.

The robot-trace command is a very thin wrapper on top of robot - it passes all arguments it receives straight through, while adding additional arguments to ensure the listener output works properly.

Robot's standard --consolewidth and --consolecolors arguments control the listener's output; their behavior matches Robot's documentation.

robot-trace also introduces its own custom arguments that are consumed (matching Robot's argument parsing conventions regarding case insensitivity and hyphenation) before passing the command line to Robot:

• --verbose: Sets the listener verbosity to DEBUG verbosity. Traces from all tests are printed.
• --quiet: Sets the listener verbosity to QUIET verbosity. Only traces from failing tests are printed. Passing tests that raise warnings or errors are not printed.
• --consoleprogress <value>: Controls where the progress box is printed. Valid values are AUTO, STDOUT, STDERR, NONE (to suppress it). Defaults to AUTO, which will print to stdout or stderr if they haven't been redirected, or suppress it otherwise.
• --tracesubprocesses: Traces all lines printed by subprocesses (e.g. via the Run Process keyword) as 'TRACE' level messages. Note that this only emits them to the console log, not any of the output files.

2. As a module-based Robot listener

If you want to keep using robot directly, you can use the listener as a module.

Installation

pip install robotframework-trace

Usage

When calling the listener directly, ensure you call Robot with --console=none to avoid Robot's default console markers getting interleaved.

robot --listener robot_trace --console=none path/to/tests

Details

The listener supports the following arguments:

• verbosity=<value>: takes a string value to set the listener's verbosity. Valid values are DEBUG (print traces from all tests), NORMAL (print traces from failing, warning, and erroring tests), QUIET (print traces from failing tests). Defaults to NORMAL.
• colors=<value>: takes a string value to control whether or not the output is colorized. Valid values are AUTO, ON, ANSI, OFF. Values behave the same as Robot's --consolecolors argument. Defaults to AUTO.
• console_progress=<value>: Controls where the progress box is printed. Valid values are AUTO, STDOUT, STDERR, NONE (to suppress it). Defaults to AUTO, which will print to stdout or stderr if they haven't been redirected, or suppress it otherwise.
• trace_subprocesses=<value>: Traces all lines printed by subprocesses (e.g. via the Run Process keyword) as 'TRACE' level messages. Note that this only emits them to the console log, not any of the output files. Valid values are True or False. Defaults to False.
• width=<value>: Controls the width of the progress box. Defaults to 120.

3. As a single-file Robot listener

If you don't want to install the package, the listener is implemented as a single file which you can deploy standalone. This is useful for minimal setups or for embedding the listener in your own projects, but you lose the ability to update via pip.

Installation

Copy robot_trace/RobotTrace.py to your project directory.

Usage

Usage is identical to option 2, except using the file not the module:

robot --listener RobotTrace.py --console=none path/to/tests

Related options

You may also consider calling robot or robot-trace with:

• --maxerrorlines=10000 to avoid truncating all but the longest error messages.
• --maxassignlength=10000 to avoid truncating all but the longest variables.

Example Output

Pabot Usage

For pabot, due to the complexity of the tool and the lack of comprehensive API entrypoints, the listener supports a single usage model:

As a separate command-line tool

Installation

pip install robotframework-trace

Usage

pabot-trace path/to/tests

Details

You don't need to remember any extra arguments to pass to pabot - the runner automatically passes the correct arguments to pabot and bases its own command line from the arguments you pass to pabot. This gives a drop-in replacement for any existing pabot command lines.

The pabot-trace command is a thin wrapper on top of pabot - it passes all arguments it receives straight through, while adding additional arguments to ensure the listener output works properly.

All arguments match those of robot-trace - see the Robot Usage section for details.

Example Output

Rebot Usage

A separate rebot-trace application is also provided. Despite its name, it is not a wrapper around rebot, but rather a separate application that can be used to process Robot Framework result files (in a similar manner to rebot). Thus there is a single usage model:

As a separate command-line tool

Installation

pip install robotframework-trace

Usage

rebot-trace path/to/output.xml

Details

rebot-trace supports the following command line arguments:

• --verbose: Sets the listener verbosity to DEBUG verbosity. Traces from all tests are printed (matching robot-trace behavior).
• --quiet: Sets the listener verbosity to QUIET verbosity. Only traces from failing tests are printed. Passing tests that raise warnings or errors are not printed (matching robot-trace behavior).

The traces output are identical to those output by robot-trace and pabot-trace, with the following exceptions:

• Any messages logged to the console are not output.
• The --trace-subprocesses argument is unsupported.

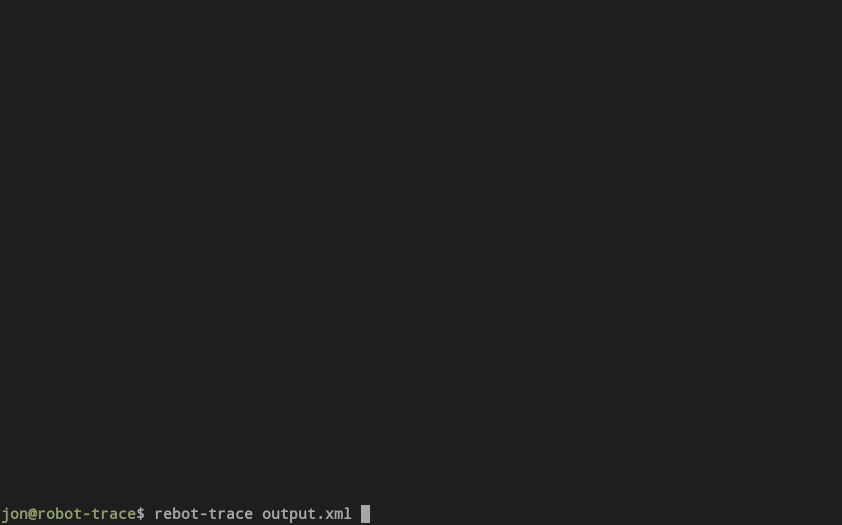

Example Output

Redirected Output

You can also redirect the output to a file to get the same output without the live progress reporting:

$ robot-trace tests/example | cat
TEST FAILED: Example.Nested Keywords Failing.Nested Failing Test Case
═════════════════════════════════════════════════════════════════════
▶ Level One Keyword()
  ▶ BuiltIn.Log('In the level one keyword')
    I In the level one keyword
    ✓ PASS     0s
  ▶ Level Two Keyword()
    ▶ BuiltIn.Log('In the level two keyword')
      I In the level two keyword
      ✓ PASS     0s
    ▶ Level Three Keyword()
      ▶ BuiltIn.Log('In the level three keyword')
        I In the level three keyword
        ✓ PASS     0s
      ▶ BuiltIn.Fail('This keyword failed')
        F This keyword failed
        ✗ FAIL     0s
      ✗ FAIL     0s
    ✗ FAIL     0s
  ✗ FAIL     0s

RUN COMPLETE: 14 tests, 14 completed (13 passed, 0 skipped, 1 failed).

Failing test:
- Example.Nested Keywords Failing.Nested Failing Test Case

Total elapsed:  5s.

Requirements

• Python 3.6+
• Robot Framework 5.0+
• (Optional) pabot 5.0+

The script has no dependencies beyond the standard library. On Windows to get colorized output, you need to install the colorama package, however the script will work without it.

The script has no direct dependency on robotframework itself, but obviously it doesn't do much without it installed.

Contributing

Contributions, bugs, and feature requests are welcome! Please see the Contributing Guide for details on how to build the project locally and submit changes.

License

This project is licensed under the MIT License. See the LICENSE file for details.
