wgfrontend

A simple web frontend for configuring peers within a WireGuard configuration file to thus administer road warrior clients.

There are already a lot of user interfaces for administering WireGuard configuration files available. However, many of them have a bunch of dependencies, require root privileges to operate, or are a hassle to set up. "wgfrontend" provides a user interface that can be easily installed by just installing a package from Python's package repository PyPi (i.e. using pip).

This little tool is independent of the Towalink site connectivity solution (see https://towalink.readthedocs.io).

Features

• Web frontend for adding, modifying, and deleting WireGuard peers
• Config files for WireGuard peers can be downloaded
• Config files for WireGuard peers are shown as QR Code
• Assistant for initial set-up
• Web frontend has responsive design
• Web frontend does not run with root privileges
• Simple installation

Installation

Install using PyPi:

pip3 install wgfrontend

Note: In the case you get an error regarding the imaging library needed for generating QR Codes, try to install it via the operating system packages:

# For Alpine:
apk add py3-pillow
# For Debian:
apt install python3-pil

Quickstart

After installing "wgfrontend" as shown above, just execute the tool with root permissions to get started:

wgfrontend

An interactive set-up assistant queries for the needed configuration data and sets up the environment. Once everything is configured, "wgfrontend" drops root privileges and runs a small web server on port 8080 to serve the web frontend.

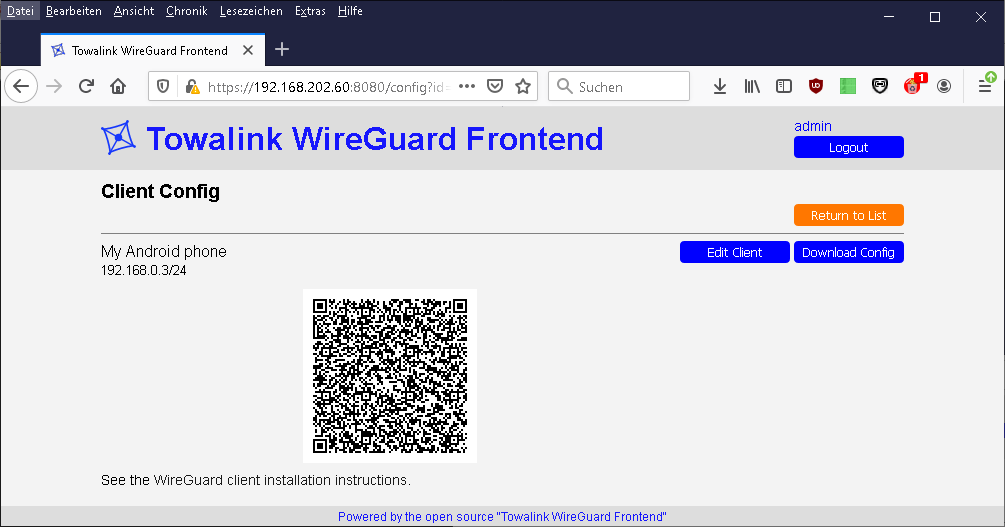

Screenshots

See additional screenshots in the "screenshots" folder.

Details

The wgfrontend configuration file

The interactive set-up assistant creates a configuration file with the desired information. It is located at "/etc/wgfrontend/wgfrontend.conf".

Here is an example:

### Config file of the Towalink WireGuard Frontend ###
[general]
# The WireGuard config file to read and write
wg_configfile = /etc/wireguard/wg_rw.conf

# The command to be executed when the WireGuard config has changed
on_change_command = "sudo /etc/init.d/wgfrontend_interface restart"

# The interface to bind to for the web server
socket_host = 0.0.0.0

# The port to bind to for the web server
socket_port = 8080

# The system user to be used for the frontend
user = wgfrontend

[users]
admin = dc524e423d9762830649d4d9e18f4b47a56c92f96646104dd06c71b26b54f732e8318d5b60a6b2b01b4f269407771496e879c9bf65ca9ef4f55a243ff358fc8dfea0bd9d30d766320857093eb95022822f71b098215f26f6d2644033d956bfdd

Add an additional frontend user

Create a password hash using the following command:

wgfrontend-password

Using this, you can add another user to the [users] section in the wgfrontend configuration file.

A note on security

Don't expose the web frontend to the Internet without another layer of protection.

The wgfrontend web server does not run with root permissions. That's a start and better than many other WireGuard frontends. But the web server user has the permission to write to a WireGuard configuration file. This file may reference scripts that are run with root permissions when wg-quick is run. In case of a vulnerability in wgfrontend, this can be abused for privilege escalation. Thus add an additional safeguard layer of protection.

Reporting bugs

In case you encounter any bugs, please report the expected behavior and the actual behavior so that the issue can be reproduced and fixed.

Developers

Clone repository

Clone this repo to your local machine using https://github.com/towalink/wgfrontend.git

Install the module temporarily to make it available in your Python installation:

pip3 install -e <path to directory with setup.py>

License

• AGPL3 license
• Copyright 2020 © Dirk Henrici.
• WireGuard is a registered trademark of Jason A. Donenfeld.
