x509sak 0.0.4

X.509 Swiss Army Knife is a toolkit atop OpenSSL to ease generation of CAs and aid white-hat pentesting

x509sak

X.509 Swiss Army Knife (x509sak) is a toolkit written in Python that acts as a boilerplate on top of OpenSSL to ease creation of X.509 certificates, certificate signing requests and CAs. It can automatically find CA chains and output them in a specifically desired format, graph CA hierarchies and more.

The tool is used similarly to OpenSSL in its syntax. The help page is meant to be comprehensive and self-explanatory. These are the currently available commands:

$ ./x509sak.py
Error: No command supplied.
Syntax: ./x509sak.py [command] [options]

Available commands:

version: x509sak v0.0.2

Options vary from command to command. To receive further info, type
    ./x509sak.py [command] --help
    buildchain         Build a certificate chain
    graph              Graph a certificate pool
    findcrt            Find a specific certificate
    createca           Create a new certificate authority (CA)
    createcsr          Create a new certificate signing request (CSR) or
                       certificate
    signcsr            Make a certificate authority (CA) sign a certificate
                       signing request (CSR) and output the certificate
    revokecrt          Revoke a specific certificate
    createcrl          Generate a certificate revocation list (CRL)
    genbrokenrsa       Generate broken RSA keys for use in penetration testing
    genbrokendsa       Generate broken DSA parameters for use in penetration
                       testing
    dumpkey            Dump a key in text form
    examinecert        Examine an X.509 certificate
    forgecert          Forge an X.509 certificate
    scrape             Scrape input file for certificates, keys or signatures
    hashpart           Hash all substrings of a file and search for a
                       particular hash value

Dependencies

x509sak requires Python3, pyasn1 and pyasn1_modules support. It also relies on OpenSSL. If you want graph support, then you also need to install the Graphviz package as well. Note that pyasn1_modules inside the Ubuntu tree (up until 3'2018, Ubuntu Artful MATE, v0.0.7-0.1) is broken and you'll need to use a newer version (0.2.1 works). In later Ubuntu versions (Bionic) this is already included by default:

# apt-get install openssl python3-pyasn1 python3-pyasn1-modules graphviz

If you want to run all the tests, you should also have SoftHSM2, OpenSC and the PKCS#11 OpenSSL engine driver installed to be able to do PKCS#11 testing:

# apt-get install opensc softhsm2 libengine-pkcs11-openssl

Using x509sak with hardware tokens

x509sak works nicely with hardware tokens such as the NitroKey HSM. It does not allow key generation for these devices, but can use the pre-generated keys for CA management. For example, let's say you used a tool like nitrotool to generate an ECC keypair that is called "my_secure_key". You now want a CA that's based off that key. Quite an easy task:

$ ./x509sak.py createca -w "pkcs11:object=my_secure_key;type=private" -s "/CN=My Secure CA" my_secure_ca
Enter PKCS#11 token PIN for UserPIN (SmartCard-HSM): 123456

You enter your Pin, hit return and it's done! The CA has been created:

$ openssl x509 -in my_secure_ca/CA.crt -text -noout
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            c3:86:c2:43:4b:2d:62:12
        Signature Algorithm: ecdsa-with-SHA256
        Issuer: CN = My Secure CA
        Validity
            Not Before: Jul 14 10:47:49 2018 GMT
            Not After : Jul 14 10:47:49 2019 GMT
        Subject: CN = My Secure CA
        Subject Public Key Info:
            Public Key Algorithm: id-ecPublicKey
                Public-Key: (256 bit)
                pub:
                    04:8a:8f:c7:99:3b:b1:cf:63:5f:c7:c8:87:50:80:
                    26:4d:22:96:9f:2f:67:f8:ea:f6:f2:1b:96:e4:e2:
                    4b:af:15:fe:79:77:52:50:d1:f6:a3:20:7b:ca:ce:
                    5e:bc:25:5e:30:2d:1a:71:cb:8f:ff:79:46:4f:ec:
                    58:04:e1:f7:f0
                ASN1 OID: prime256v1
                NIST CURVE: P-256
        X509v3 extensions:
            X509v3 Basic Constraints: critical
                CA:TRUE
            X509v3 Key Usage: critical
                Digital Signature, Certificate Sign, CRL Sign
            X509v3 Subject Key Identifier:
                9B:4E:14:4E:0D:C5:23:D9:06:06:06:7D:39:8F:3C:88:1D:66:35:55
    Signature Algorithm: ecdsa-with-SHA256
         30:45:02:20:79:a2:91:1e:ca:2d:18:5b:26:59:14:b1:f1:0c:
         2f:0f:41:d8:ab:bc:02:2f:e9:c2:dc:97:c1:19:67:9e:c7:8d:
         02:21:00:ef:73:02:6a:a4:ad:e8:f0:ef:49:02:cf:34:08:b7:
         2e:fa:82:16:47:8c:44:7f:bb:ad:f0:c0:be:7a:e6:e1:81

It's similarly easy to create certificates off this hardware-backed CA:

$ ./x509sak.py createcsr -s "/CN=Software Key Client" -t tls-client -c my_secure_ca client.key client.crt
Enter PKCS#11 token PIN for UserPIN (SmartCard-HSM):

Again, with one command you've created the client certificate:

$ openssl x509 -in client.crt -text -noout
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 1 (0x1)
        Signature Algorithm: ecdsa-with-SHA256
        Issuer: CN = My Secure CA
        Validity
            Not Before: Jul 14 10:50:19 2018 GMT
            Not After : Jul 14 10:50:19 2019 GMT
        Subject: CN = Software Key Client
        Subject Public Key Info:
            Public Key Algorithm: id-ecPublicKey
                Public-Key: (384 bit)
                pub:
                    04:5a:68:1b:f2:ea:29:71:23:39:66:bd:b7:6a:9c:
                    0c:69:8d:a9:e8:7f:93:a8:32:21:d7:f2:93:e8:52:
                    c5:83:65:7b:13:62:04:9f:64:c6:54:fd:24:8a:64:
                    d2:49:cd:8d:27:61:b3:41:44:d3:89:51:39:78:29:
                    b2:ff:1a:3a:b6:e0:74:c6:15:92:26:f9:42:2b:0d:
                    04:74:1b:3d:13:f8:78:53:a5:be:6f:13:04:01:05:
                    f7:40:4b:6a:89:4c:54
                ASN1 OID: secp384r1
                NIST CURVE: P-384
        X509v3 extensions:
            X509v3 Authority Key Identifier:
                keyid:9B:4E:14:4E:0D:C5:23:D9:06:06:06:7D:39:8F:3C:88:1D:66:35:55

            X509v3 Basic Constraints: critical
                CA:FALSE
            X509v3 Extended Key Usage:
                TLS Web Client Authentication
            X509v3 Key Usage: critical
                Digital Signature, Key Encipherment, Key Agreement
            Netscape Cert Type:
                SSL Client
            X509v3 Subject Key Identifier:
                0C:1F:31:4C:BA:E2:C6:33:65:9D:ED:DA:FC:16:29:27:E0:95:AF:E2
    Signature Algorithm: ecdsa-with-SHA256
         30:44:02:20:3f:84:40:bb:50:2e:7c:8c:3b:2f:51:80:f9:20:
         a7:bb:7d:17:58:c6:44:70:20:eb:74:46:5a:ae:95:4e:9e:81:
         02:20:0c:98:35:63:8d:2f:1b:ad:32:d4:06:2f:c8:e7:2c:8a:
         79:b7:5a:e0:21:51:63:0b:39:82:9f:ff:8d:ee:c3:e2

For simplicity, you can specify either a full pkcs11-URI according to RFC7512 or you can use certain abbreviations that make it easier. All of the following work for a key that's named 'my key' and that has ID 0xabcd:

pkcs11:object=my%20key;type=private
pkcs11:id=%ab%cd;type=private
label=my key
id=0xabcd
id=43981

The latter variants (label=..., id=...) will automatically be converted to pkcs11 URIs internally.

buildchain

The "buildchain" command is useful if you want to have a complete (or partial) certificate chain from a given leaf certificate and a bundle of CAs. x509sak will figure out which of the CAs are appropriate (if any) and generate a chain in the order you want (root to leaf or leaf to root) including the certs you want (e.g., all certificates, all except root cert, etc.). This is useful if you have, for example, a webserver certificate and want to automatically find the chain of trust that you can use to deploy on your webserver.

usage: ./x509sak.py buildchain [-s path] [--inform {pem,der}]
                               [--order-leaf-to-root] [--allow-partial-chain]
                               [--dont-trust-crtfile]
                               [--outform {rootonly,intermediates,fullchain,all-except-root,multifile,pkcs12}]
                               [--private-key filename]
                               [--pkcs12-legacy-crypto]
                               [--pkcs12-no-passphrase | --pkcs12-passphrase-file filename]
                               [-o file] [-v] [--help]
                               crtfile

Build a certificate chain

positional arguments:
  crtfile               Certificate that a chain shall be build for, in PEM
                        format.

optional arguments:
  -s path, --ca-source path
                        CA file (PEM format) or directory (containing
                        .pem/.crt files) to include when building the chain.
                        Can be specified multiple times to include multiple
                        locations.
  --inform {pem,der}    Specifies input file format for certificate. Possible
                        options are pem, der. Default is pem.
  --order-leaf-to-root  By default, certificates are ordered with the root CA
                        first and intermediate certificates following up to
                        the leaf. When this option is specified, the order is
                        inverted and go from leaf certificate to root.
  --allow-partial-chain
                        When building the certificate chain, a full chain must
                        be found or the chain building fails. When this option
                        is specified, also partial chain matches are
                        permitted, i.e., not going up to a root CA. Note that
                        this can have undesired side effects when no root
                        certificates are found at all (the partial chain will
                        then consist of only the leaf certificate itself).
  --dont-trust-crtfile  When there's multiple certificates in the given
                        crtfile in PEM format, they're by default all added to
                        the truststore. With this option, only the leaf cert
                        is taken from the crtfile and they're not added to the
                        trusted pool.
  --outform {rootonly,intermediates,fullchain,all-except-root,multifile,pkcs12}
                        Specifies what to write into the output file. Possible
                        options are rootonly, intermediates, fullchain, all-
                        except-root, multifile, pkcs12. Default is fullchain.
                        When specifying multifile, a %d format must be
                        included in the filename to serve as a template;
                        typical printf-style formatting can be used of course
                        (e.g., %02d).
  --private-key filename
                        When creating a PKCS#12 output file, this private key
                        can also be included. By default, only the
                        certificates are exported.
  --pkcs12-legacy-crypto
                        Use crappy crypto to encrypt a PKCS#12 exported
                        private key.
  --pkcs12-no-passphrase
                        Do not use any passphrase to protect the PKCS#12
                        private key.
  --pkcs12-passphrase-file filename
                        Read the PKCS#12 passphrase from the first line of the
                        given file. If omitted, by default a random passphrase
                        will be generated and printed on stderr.
  -o file, --outfile file
                        Specifies the output filename. Defaults to stdout.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

graph

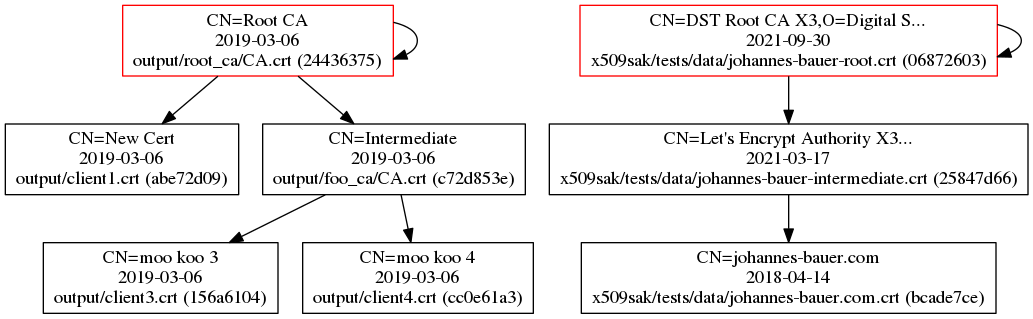

The graph utility can be used to plot multiple certificates and their certificate hierarchy. Some metadata is displayed within the graph as well. Here's an example of some certificates that I've plotted:

usage: ./x509sak.py graph [-c {certtype,expiration,keytype,sigtype}]
                          [--abbreviate-to charcnt] [-l text]
                          [-f {dot,png,ps,pdf}] -o file [-v] [--help]
                          crtsource [crtsource ...]

Graph a certificate pool

positional arguments:
  crtsource             Certificate file (in PEM format) or directory
                        (containting PEM-formatted .pem or .crt files) which
                        should be included in the graph.

optional arguments:
  -c {certtype,expiration,keytype,sigtype}, --color-scheme {certtype,expiration,keytype,sigtype}
                        Color scheme to use when coloring the certificates.
                        Can either color by expiration date, by certificate
                        type (client/server/CA/...), key type (RSA/ECC/etc),
                        signature type (used hash function) or overall
                        security level. Defaults to expiration.
  --abbreviate-to charcnt
                        Abbreviate each line to this amount of characters.
                        Defaults to 30 characters.
  -l text, --label text
                        Label that is printed in the certificate nodes. Can be
                        given multiple times to specify multiple lines.
                        Substitutions that are supported are derhash,
                        filebasename, filename, subject, subject_rfc2253,
                        valid_not_after. Defaults to ['%(filebasename)s
                        (%(derhash)s)', '%(subject)s', '%(valid_not_after)s'].
  -f {dot,png,ps,pdf}, --format {dot,png,ps,pdf}
                        Specifies the output file format. Can be one of dot,
                        png, ps, pdf. When unspecified, the file extension out
                        the output file is used to determine the file type.
  -o file, --outfile file
                        Specifies the output filename. Mandatory argument.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

findcrt

When looking for a bunch of certificates (some of which might be in PEM format) by their authoritative hash (i.e., the SHA256 hash over their DER-representation), findcrt can help you out. You specify a bunch of certificates and the hash prefix you're looking for and x509sak will show it to you.

usage: ./x509sak.py findcrt [-h hash] [-v] [--help] crtsource [crtsource ...]

Find a specific certificate

positional arguments:
  crtsource             Certificate file (in PEM format) or directory
                        (containting PEM-formatted .pem or .crt files) which
                        should be included in the search.

optional arguments:
  -h hash, --hashval hash
                        Find only certificates with a particular hash prefix.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

createca

Creating a CA structure that can be used with "openssl ca" is tedious. The "createca" command does exactly this for you in one simple command. The created OpenSSL config file directly works with "openssl ca" for manual operation but can also be used with other x509sak commands (e.g., creating or revoking certificates). x509sak takes care that you have all the necessary setup files in place (index, serial, etc.) and can just as easily create intermediate CAs as it can create root CAs.

usage: ./x509sak.py createca [-g keyspec | -w pkcs11uri]
                             [--pkcs11-so-search path]
                             [--pkcs11-module sofile] [-p capath] [-s subject]
                             [-d days] [-h alg] [--serial serial]
                             [--allow-duplicate-subjects]
                             [--extension key=value] [-f] [-v] [--help]
                             capath

Create a new certificate authority (CA)

positional arguments:
  capath                Directory to create the new CA in.

optional arguments:
  -g keyspec, --gen-keyspec keyspec
                        Private key specification to generate. Examples are
                        rsa:1024 or ecc:secp256r1. Defaults to ecc:secp384r1.
  -w pkcs11uri, --hardware-key pkcs11uri
                        Use a hardware token which stores the private key. The
                        parameter gives the pkcs11 URI, e.g.,
                        'pkcs11:object=mykey;type=private'
  --pkcs11-so-search path
                        Gives the path that will be searched for the "dynamic"
                        and "module" shared objects. The "dynamic" shared
                        object is libpkcs11.so, the "module" shared object can
                        be changed by the --pkcs11-module option. The search
                        path defaults to
                        /usr/local/lib:/usr/lib:/usr/lib/x86_64-linux-
                        gnu:/usr/lib/x86_64-linux-
                        gnu/openssl-1.0.2/engines:/usr/lib/x86_64-linux-
                        gnu/engines-1.1.
  --pkcs11-module sofile
                        Name of the "module" shared object when using PKCS#11
                        keys. Defaults to opensc-pkcs11.so.
  -p capath, --parent-ca capath
                        Parent CA directory. If omitted, CA certificate will
                        be self-signed.
  -s subject, --subject-dn subject
                        CA subject distinguished name. Defaults to /CN=Root
                        CA.
  -d days, --validity-days days
                        Number of days that the newly created CA will be valid
                        for. Defaults to 365 days.
  -h alg, --hashfnc alg
                        Hash function to use for signing the CA certificate.
                        Defaults to sha384.
  --serial serial       Serial number to use for root CA certificate.
                        Randomized by default.
  --allow-duplicate-subjects
                        By default, subject distinguished names of all valid
                        certificates below one CA must be unique. This option
                        allows the CA to have duplicate distinguished names
                        for certificate subjects.
  --extension key=value
                        Additional certificate X.509 extension to include on
                        top of the default CA extensions. Can be specified
                        multiple times.
  -f, --force           By default, the capath will not be overwritten if it
                        already exists. When this option is specified the
                        complete directory will be erased before creating the
                        new CA.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

createcsr

The "createcsr" command can (as the name suggests) create CSRs, but also can directly generate CRTs that are signed by a previously created CA. The advantage over using OpenSSL manually is that the API is quite simple to configure the certificate manually for most cases (e.g., webserver certificates with X.509 Subject Alternative Name set), but also is flexible enough for custom stuff by including your custom extensions directly into the extension file configuration used by OpenSSL.

usage: ./x509sak.py createcsr [-g keyspec] [-k {pem,der,hw}] [-s subject]
                              [-d days] [-h alg]
                              [-t {rootca,ca,tls-server,tls-client}]
                              [--san-dns FQDN] [--san-ip IP]
                              [--extension key=value] [-f] [-c capath] [-v]
                              [--help]
                              in_key_filename out_filename

Create a new certificate signing request (CSR) or certificate

positional arguments:
  in_key_filename       Filename of the input private key or PKCS#11 URI (as
                        specified in RFC7512 in case of a hardware key type.
  out_filename          Filename of the output certificate signing request or
                        certificate.

optional arguments:
  -g keyspec, --gen-keyspec keyspec
                        Private key specification to generate for the
                        certificate or CSR when it doesn't exist. Examples are
                        rsa:1024 or ecc:secp256r1.
  -k {pem,der,hw}, --keytype {pem,der,hw}
                        Private key type. Can be any of pem, der, hw. Defaults
                        to pem.
  -s subject, --subject-dn subject
                        Certificate/CSR subject distinguished name. Defaults
                        to /CN=New Cert.
  -d days, --validity-days days
                        When creating a certificate, number of days that the
                        certificate will be valid for. Defaults to 365 days.
  -h alg, --hashfnc alg
                        Hash function to use for signing when creating a
                        certificate. Defaults to the default hash function
                        specified in the CA config.
  -t {rootca,ca,tls-server,tls-client}, --template {rootca,ca,tls-server,tls-client}
                        Template to use for determining X.509 certificate
                        extensions. Can be one of rootca, ca, tls-server, tls-
                        client. By default, no extensions are included except
                        for SAN.
  --san-dns FQDN        Subject Alternative DNS name to include in the
                        certificate or CSR. Can be specified multiple times.
  --san-ip IP           Subject Alternative IP address to include in the
                        certificate or CSR. Can be specified multiple times.
  --extension key=value
                        Additional certificate X.509 extension to include on
                        top of the extensions in the template and by the SAN
                        parameters. Can be specified multiple times.
  -f, --force           Overwrite the output file if it already exists.
  -c capath, --create-crt capath
                        Instead of creating a certificate signing request,
                        directly create a certificate instead. Needs to supply
                        the CA path that should issue the certificate.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

signcsr

The signcsr command allows you to turn a CSR into a certificate by signing it by a CA private key.

usage: ./x509sak.py signcsr [-s subject] [-d days] [-h alg]
                            [-t {rootca,ca,tls-server,tls-client}]
                            [--san-dns FQDN] [--san-ip IP]
                            [--extension key=value] [-f] [-v] [--help]
                            capath in_csr_filename out_crt_filename

Make a certificate authority (CA) sign a certificate signing request (CSR) and
output the certificate

positional arguments:
  capath                Directory of the signing CA.
  in_csr_filename       Filename of the input certificate signing request.
  out_crt_filename      Filename of the output certificate.

optional arguments:
  -s subject, --subject-dn subject
                        Certificate's subject distinguished name. Defaults to
                        the subject given in the CSR.
  -d days, --validity-days days
                        Number of days that the newly created certificate will
                        be valid for. Defaults to 365 days.
  -h alg, --hashfnc alg
                        Hash function to use for signing. Defaults to the
                        default hash function specified in the CA config.
  -t {rootca,ca,tls-server,tls-client}, --template {rootca,ca,tls-server,tls-client}
                        Template to use for determining X.509 certificate
                        extensions. Can be one of rootca, ca, tls-server, tls-
                        client. By default, no extensions are included except
                        for SAN.
  --san-dns FQDN        Subject Alternative DNS name to include in the
                        certificate. Can be specified multiple times.
  --san-ip IP           Subject Alternative IP address to include in the CRT.
                        Can be specified multiple times.
  --extension key=value
                        Additional certificate X.509 extension to include on
                        top of the extensions in the template and by the SAN
                        parameters. Can be specified multiple times.
  -f, --force           Overwrite the output certificate file if it already
                        exists.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

revokecrt

With revokecrt it's possible to easily revoke a certificate that you've previous generated. Simply specify the CA and the certificate that you want to revoke and you're set.

usage: ./x509sak.py revokecrt [-v] [--help] capath crt_filename

Revoke a specific certificate

positional arguments:
  capath         CA which created the certificate.
  crt_filename   Filename of the output certificate.

optional arguments:
  -v, --verbose  Increase verbosity level. Can be specified multiple times.
  --help         Show this help page.

createcrl

The createcrl command does what it suggests: It creates a CRL for a given CA that is valid for a specified duration and that's signed with a given hash function.

usage: ./x509sak.py createcrl [-d days] [-h alg] [-v] [--help]
                              capath crl_filename

Generate a certificate revocation list (CRL)

positional arguments:
  capath                CA which should generate the CRL.
  crl_filename          Filename of the output CRL.

optional arguments:
  -d days, --validity-days days
                        Number of days until the CRLs 'nextUpdate' field will
                        expire. Defaults to 30 days.
  -h alg, --hashfnc alg
                        Hash function to use for signing the CRL. Defaults to
                        sha256.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

genbrokenrsa

With genbrokenrsa it is possible to generate deliberately malformed or odd RSA keys. For example, RSA keys with a custom value for the public exponent e, or RSA keys which have a very small exponent d (e.g, 3) and a correspondingly large exponent e. Note that keys generated by this tool are exclusively for testing purposes and may not, under any circumstances, be used for actual cryptographic applications. They are not secure.

usage: ./x509sak.py genbrokenrsa [-d path] [-b bits] [-e exp] [--switch-e-d]
                                 [--accept-unusable-key]
                                 [--carmichael-totient] [--generator file]
                                 [--gcd-n-phi-n | --close-q]
                                 [--q-stepping int] [-o file] [-f] [-v]
                                 [--help]

Generate broken RSA keys for use in penetration testing

optional arguments:
  -d path, --prime-db path
                        Prime database directory. Defaults to . and searches
                        for files called primes_{bitlen}.txt in this
                        directory.
  -b bits, --bitlen bits
                        Bitlength of modulus. Defaults to 2048 bits.
  -e exp, --public-exponent exp
                        Public exponent e (or d in case --switch-e-d is
                        specified) to use. Defaults to 0x10001. Will be
                        randomly chosen from 2..n-1 if set to -1.
  --switch-e-d          Switch e with d when generating keypair.
  --accept-unusable-key
                        Disregard integral checks, such as if gcd(e, phi(n))
                        == 1 before inverting e. Might lead to an unusable key
                        or might fail altogether.
  --carmichael-totient  By default, d is computed as the modular inverse of e
                        to phi(n), the Euler Totient function. This computes d
                        as the modular inverse of e to lambda(n), the
                        Carmichael Totient function, instead.
  --generator file      When prime database is exhausted, will call the prime
                        generator program as a subprocess to generate new
                        primes. Otherwise, and the default behavior, is to
                        fail.
  --gcd-n-phi-n         Generate a keypair in which gcd(n, phi(n)) != 1 by
                        specially constructing the prime q. This will lead to
                        a size disparity of p and q and requires 3-msb primes
                        as input.
  --close-q             Use a value for q that is very close to the value of p
                        so that search starting from sqrt(n) is
                        computationally feasible to factor the modulus. Note
                        that for this, the bitlength of the modulus must be
                        evenly divisible by two.
  --q-stepping int      When creating a close-q RSA keypair, q is chosen by
                        taking p and incrementing it repeatedly by a random
                        int from 2 to (2 * q-stepping). The larger q-stepping
                        is therefore chosen, the further apart p and q will
                        be. By default, q-stepping is the minimum value of 1.
  -o file, --outfile file
                        Output filename. Defaults to broken_rsa.key.
  -f, --force           Overwrite output file if it already exists instead of
                        bailing out.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

genbrokendsa

Similar to the previous command, this can be used to create DSA domain parameters that are insecure and/or undesirable (e.g., because the generator is not verifiable).

usage: ./x509sak.py genbrokendsa [-d path] [--generator file] [-o file] [-f]
                                 [-v] [--help]
                                 L_bits N_bits

Generate broken DSA parameters for use in penetration testing

positional arguments:
  L_bits                Bitlength of the modulus p, also known as L.
  N_bits                Bitlength of q, also known as N.

optional arguments:
  -d path, --prime-db path
                        Prime database directory. Defaults to . and searches
                        for files called primes_{bitlen}.txt in this
                        directory.
  --generator file      When prime database is exhausted, will call the prime
                        generator program as a subprocess to generate new
                        primes. Otherwise, and the default behavior, is to
                        fail.
  -o file, --outfile file
                        Output filename. Defaults to broken_dsa.key.
  -f, --force           Overwrite output file if it already exists instead of
                        bailing out.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

dumpkey

The dumpkey facility can be used to dump the public/private key parameters of a given PEM keyfile into Python-code for further processing.

usage: ./x509sak.py dumpkey [-t {rsa,ecc,eddsa}] [-p] [-v] [--help]
                            key_filename

Dump a key in text form

positional arguments:
  key_filename          Filename of the input key file in PEM format.

optional arguments:
  -t {rsa,ecc,eddsa}, --key-type {rsa,ecc,eddsa}
                        Type of private key to import. Can be one of rsa, ecc,
                        eddsa, defaults to rsa. Disregarded for public keys
                        and determined automatically.
  -p, --public-key      Input is a public key, not a private key.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

examinecert

Using the examinecert facility you can plausibilize certificates and check them for all kinds of errors that can happen. It also gives a security estimate of the used algorithms and highlights things that are unusual. For example, RSA with large exponents is something that is entirely safe, but definitely unusual. Missing key usage flags or important extensions will also be reported along with standards violations (mainly RFC5280) -- it also gives you the exact location of the RFC (including section) that has been violated.

usage: ./x509sak.py examinecert [-p {ca,tls-server,tls-client}] [-n fqdn]
                                [-f {ansitext,text,json}]
                                [-i {pemcrt,dercrt,json,host}] [-r pemfile]
                                [--no-automatic-host-check] [--fast-rsa]
                                [--include-raw-data] [--pretty-json]
                                [-o filename] [-v] [--help]
                                filename/uri [filename/uri ...]

Examine an X.509 certificate

positional arguments:
  filename/uri          Filename of the input certificate or certificates in
                        PEM format.

optional arguments:
  -p {ca,tls-server,tls-client}, --purpose {ca,tls-server,tls-client}
                        Check if the certificate is fit for the given purpose.
                        Can be any of ca, tls-server, tls-client, can be
                        specified multiple times.
  -n fqdn, --server-name fqdn
                        Check if the certificate is valid for the given
                        hostname.
  -f {ansitext,text,json}, --out-format {ansitext,text,json}
                        Determine the output format. Can be one of ansitext,
                        text, json, defaults to ansitext.
  -i {pemcrt,dercrt,json,host}, --in-format {pemcrt,dercrt,json,host}
                        Specifies the type of file that is read in. Can be
                        either certificate files in PEM or DER format, a pre-
                        processed JSON output from a previous run or a
                        hostname[:port] combination to query a TLS server
                        directly (port defaults to 443 if omitted). Valid
                        choices are pemcrt, dercrt, json, host, defaults to
                        pemcrt.
  -r pemfile, --parent-certificate pemfile
                        Specifies a parent CA certificate that is used to run
                        additional checks against the certificate.
  --no-automatic-host-check
                        By default, when the input format is a given hostname,
                        the server name is assumed as well and the purpose is
                        assumed to be a TLS server. When this option is
                        specified, these automatic checks are omitted.
  --fast-rsa            Skip some time-intensive number theoretical tests for
                        RSA moduli in order to speed up checking. Less
                        thorough, but much faster.
  --include-raw-data    Add the raw data such as base64-encoded certificate
                        and signatures into the result as well.
  --pretty-json         Prettyfy any generated JSON output.
  -o filename, --output filename
                        Specify the output file. Defaults to stdout.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

forgecert

With the forgecert tool you can forge a certificate chain. The input PEM file must begin with a self-signed root certificate and each following certificate must descend from its predecessor. The functionality is rather simplistic currently. The purpose is to create certificates which look and feel like their "original" counterparts, but are obviously fakes. This is for white hat testing of implementations.

usage: ./x509sak.py forgecert [--key_template path] [--cert_template path]
                              [-r] [-f] [-v] [--help]
                              crt_filename

Forge an X.509 certificate

positional arguments:
  crt_filename          Filename of the input certificate or certificates PEM
                        format.

optional arguments:
  --key_template path   Output template for key files. Should contain '%d' to
                        indicate element in chain. Defaults to
                        'forged_%02d.key'.
  --cert_template path  Output template for certificate files. Should contain
                        '%d' to indicate element in chain. Defaults to
                        'forged_%02d.crt'.
  -r, --recalculate-keyids
                        By default, Subject Key Identifier and Authority Key
                        Identifier X.509 extensions are kept as-is in the
                        forged certificates. Specifying this will recalculate
                        the IDs to fit the forged keys.
  -f, --force           Overwrite key/certificate files.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

scrape

With the scrape tool you can analyze binary blobs or whole disks and search them for PEM or DER-encoded blobs. This is interesting if, for example, you're doing firmware analysis. DER analysis is quite slow because for every potential sequence beginning (0x30), decoding of all supported schema is attempted. It can be sped up if you're only looking for a particular data type instead of all of them. In contrast, scanning for PEM data is much faster because PEM markers have a much smaller false positive rate. For every occurrence that is found inside the analyzed file, the contents are written to a own file in the output directory.

usage: ./x509sak.py scrape [--no-pem] [--no-der] [-i class] [-e class]
                           [--extract-nested] [--keep-original-der]
                           [--allow-non-unique-blobs]
                           [--disable-der-sanity-checks] [--outmask mask]
                           [-w filename] [-o path] [-f] [-s offset]
                           [-l length] [-v] [--help]
                           filename

Scrape input file for certificates, keys or signatures

positional arguments:
  filename              File that should be scraped for certificates or keys.

optional arguments:
  --no-pem              Do not search for any PEM encoded blobs.
  --no-der              Do not search for any DER encoded blobs.
  -i class, --include-dertype class
                        Include the specified DER handler class in the search.
                        Defaults to all known classes if omitted. Can be
                        specified multiple times and must be one of crt,
                        dsa_key, dsa_sig, ec_key, pkcs12, pubkey, rsa_key.
  -e class, --exclude-dertype class
                        Exclude the specified DER handler class in the search.
                        Can be specified multiple times and must be one of
                        crt, dsa_key, dsa_sig, ec_key, pkcs12, pubkey,
                        rsa_key.
  --extract-nested      By default, fully overlapping blobs will not be
                        extracted. For example, every X.509 certificate also
                        contains a public key inside that would otherwise be
                        found as well. When this option is given, any blobs
                        are extracted regardless if they're fully contained in
                        another blob or not.
  --keep-original-der   When finding DER blobs, do not convert them to PEM
                        format, but leave them as-is.
  --allow-non-unique-blobs
                        For all matches, the SHA256 hash is used to determine
                        if the data is unique and findings are by default only
                        written to disk once. With this option, blobs that
                        very likely are duplicates are written to disk for
                        every occurrence.
  --disable-der-sanity-checks
                        For DER serialization, not only is it checked that
                        deserialization is possible, but additional checks are
                        performed for some data types to ensure a low false-
                        positive rate. For example, DSA signatures with short
                        r/s pairs are discarded by default or implausible
                        version numbers for EC keys. With this option, these
                        sanity checks will be disabled and therefore
                        structurally correct (but implausible) false-positives
                        are also written.
  --outmask mask        Filename mask that's used for output. Defaults to
                        scrape_%(offset)07x_%(type)s.%(ext)s and can use
                        printf-style substitutions offset, type and ext.
  -w filename, --write-json filename
                        Write the stats with detailed information about
                        matches into the given filename.
  -o path, --outdir path
                        Output directory. Defaults to scrape.
  -f, --force           Overwrite key/certificate files and proceed even if
                        outdir already exists.
  -s offset, --seek-offset offset
                        Offset to seek into file. Supports hex/octal/binary
                        prefixes and SI/binary SI (k, ki, M, Mi, etc.)
                        suffixes. Defaults to 0.
  -l length, --analysis-length length
                        Amount of data to inspect at max. Supports
                        hex/octal/binary prefixes and SI/binary SI (k, ki, M,
                        Mi, etc.) suffixes. Defaults to everything until EOF
                        is hit.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

hashpart

The hashpart facility allows the user to have all substrings of a file hashed with different hash algorithms in a brute-force manner. So for example, if you have a three-byte file "ABC" then the strings "A", "AB", "ABC", "BC" and "C" would be hashed by all selected hash functions. A search parameter allows you to have the tool only print those hexadecimal hash values which have a substring match. This makes sense when you for example have a hash value of a blob contained inside a larger blob but are unsure which hash function was used starting from which offset and which length the hash is computed over. A simple example is that you know the Subject Key Identifier (SKI) of a DER-encoded certificate and want to bruteforce the offsets over which it is calculated.

usage: ./x509sak.py hashpart [-h alg] [-o offset] [--max-offset offset]
                             [-a length] [-l length] [-s hexpattern] [-v]
                             [--help]
                             filename

Hash all substrings of a file and search for a particular hash value

positional arguments:
  filename              File that should be hashed.

optional arguments:
  -h alg, --hash-alg alg
                        Hash function(s) that should be tried. Can be
                        specified multiple times and defaults to all available
                        hash functions. Can be any of blake2b, blake2s, md4,
                        md5, md5-sha1, ripemd160, sha1, sha224, sha256,
                        sha384, sha3_224, sha3_256, sha3_384, sha3_512,
                        sha512, sha512_224, sha512_256, shake_128, shake_256,
                        sm3, whirlpool, all, but defaults to md5, sha1,
                        sha256, sha384, sha512. Special value 'all' means all
                        supported functions.
  -o offset, --seek-offset offset
                        Offset to seek into file. Supports hex/octal/binary
                        prefixes and SI/binary SI (k, ki, M, Mi, etc.)
                        suffixes. Defaults to 0.
  --max-offset offset   Largest offset to consider. By default, this is end-
                        of-file. Supports hex/octal/binary prefixes and
                        SI/binary SI (k, ki, M, Mi, etc.) suffixes.
  -a length, --variable-hash-length length
                        For hash functions which have a variable output
                        length, try all of these hash lenghts. Length is given
                        in bits and must be a multiple of 8. Can be supplied
                        multiple times. Defaults to 128, 256, 384.
  -l length, --analysis-length length
                        Amount of data to inspect at max. Supports
                        hex/octal/binary prefixes and SI/binary SI (k, ki, M,
                        Mi, etc.) suffixes. Defaults to everything until EOF
                        is hit.
  -s hexpattern, --search hexpattern
                        Hexadecimal pattern that is expected in the hashing.
  -v, --verbose         Increase verbosity level. Can be specified multiple
                        times.
  --help                Show this help page.

License

GNU GPL-3. Thanks to the x509test project for the excellent testsuite of broken certificates (included in the x509sak/tests/data/certs/google/ subdirectory).
