A lightweight, easy-to-use, and extensible automation testing framework.
Project description
简介
xbot 是一个 轻量、易用、可扩展 的自动化测试框架。
安装
使用 pip 进行安装:
pip install xbot.framework
安装成功后即可调用 xbot 命令:
$ xbot --help
usage: xbot [-h] [-d DIRECTORY] [-b TESTBED] [-s TESTSET] [-f {verbose,brief}] [-v] {init,run}
positional arguments:
{init,run}
optional arguments:
-h, --help show this help message and exit
-d DIRECTORY, --directory DIRECTORY
directory to init (required by `init` command)
-b TESTBED, --testbed TESTBED
testbed filepath (required by `run` command)
-s TESTSET, --testset TESTSET
testset filepath (required by `run` command)
-f {verbose,brief}, --outfmt {verbose,brief}
output format (option for `run` command, options: verbose/brief, default: brief)
-v, --version show program's version number and exit
快速上手
初始化工程目录:
$ xbot init -d ./testproj
Initialized ./testproj
工程目录结构如下:
./testproj ├── README.md ├── lib # 测试库目录 │ ├── __init__.py │ ├── testbed.py # 测试床基类 │ └── testcase.py # 测试用例基类 ├── requirements.txt ├── testbeds # 测试床目录 │ └── testbed_example.yml ├── testcases # 测试用例目录 │ ├── __init__.py │ └── examples │ ├── __init__.py │ ├── nonpass │ │ ├── __init__.py │ │ ├── tc_eg_nonpass_error_clsname.py │ │ ├── tc_eg_nonpass_error_syntax.py │ │ ├── tc_eg_nonpass_fail_setup_with_failfast_false.py │ │ ├── tc_eg_nonpass_fail_setup_with_failfast_true.py │ │ ├── tc_eg_nonpass_fail_step_with_failfast_false.py │ │ ├── tc_eg_nonpass_fail_step_with_failfast_true.py │ │ ├── tc_eg_nonpass_skip_excluded.py │ │ ├── tc_eg_nonpass_skip_not_included.py │ │ └── tc_eg_nonpass_timeout.py │ └── pass │ ├── __init__.py │ ├── tc_eg_pass_create_dirs_and_files.py │ └── tc_eg_pass_get_values_from_testbed.py └── testsets # 测试套目录 └── testset_example.yml
测试床示例(testbeds/testbed_example.yml):
# 测试床文件中配置测试环境信息,必须是 YAML 格式,具体字段信息自定义。
# 测试用例中可通过 self.testbed.get() 获取信息。
example:
key1: value1
key2:
key2-1: value2-1
key2-2: value2-2
key3:
- value3-1
- value3-2
- value3-3
测试套示例(testsets/testset_example.yml):
# 测试套文件中主要配置待执行用例列表以及用于筛选用例的 tag。
tags:
include: # 0 个或多个
- tag1 # 包含 tag1 的用例会被执行
exclude: # 0 个或多个,优先级大于 include
- tag2 # 包含 tag2 的用例不会被执行
paths:
- testcases/examples/pass/tc_eg_pass_get_values_from_testbed.py
- testcases/examples/pass/tc_eg_pass_create_dirs_and_files.py
# 自动解析目录及子目录下的所有 .py 文件(__init__.py 除外)
- testcases/examples/nonpass/
执行测试(测试工程目录下执行命令):
$ xbot run -b testbeds/testbed_example.yml -s testsets/testset_example.yml
(1/11) PASS 0:00:01 tc_eg_pass_get_values_from_testbed
(2/11) PASS 0:00:01 tc_eg_pass_create_dirs_and_files
(3/11) ERROR 0:00:00 tc_eg_nonpass_error_clsname
(4/11) ERROR 0:00:00 tc_eg_nonpass_error_syntax
(5/11) FAIL 0:00:01 tc_eg_nonpass_fail_setup_with_failfast_false
(6/11) FAIL 0:00:01 tc_eg_nonpass_fail_setup_with_failfast_true
(7/11) FAIL 0:00:01 tc_eg_nonpass_fail_step_with_failfast_false
(8/11) FAIL 0:00:01 tc_eg_nonpass_fail_step_with_failfast_true
(9/11) SKIP 0:00:00 tc_eg_nonpass_skip_excluded
(10/11) SKIP 0:00:00 tc_eg_nonpass_skip_not_included
(11/11) TIMEOUT 0:00:03 tc_eg_nonpass_timeout
report: /Users/wan/CodeProjects/xbot.framework/testproj/logs/testbed_example/2024-06-03_16-48-37/report.html
执行完成后会在测试工程下根据测试床名称和时间戳生成日志目录保存 html 格式的用例日志和测试报告。

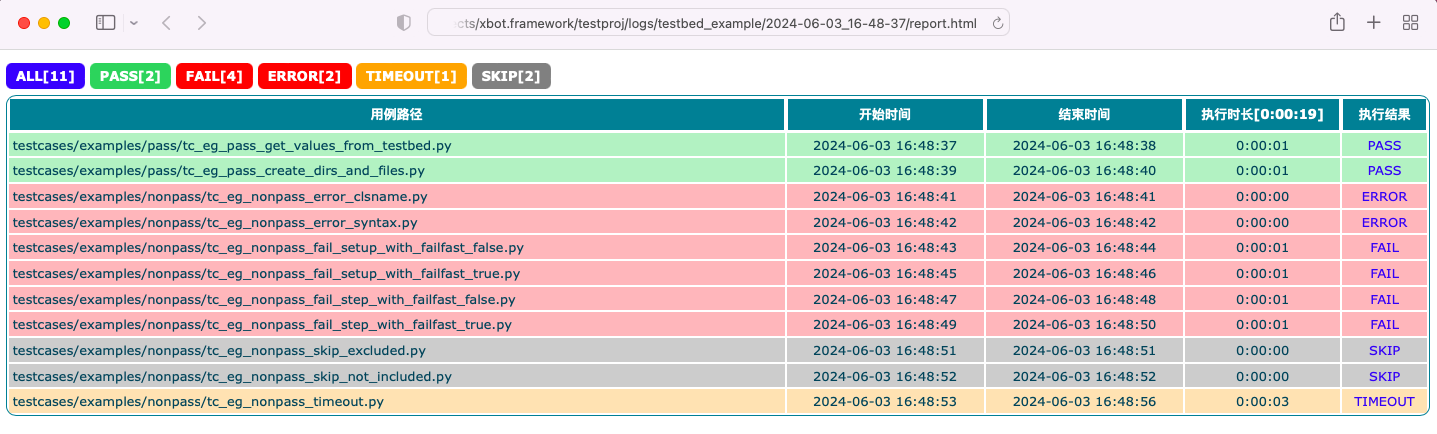

测试报告:

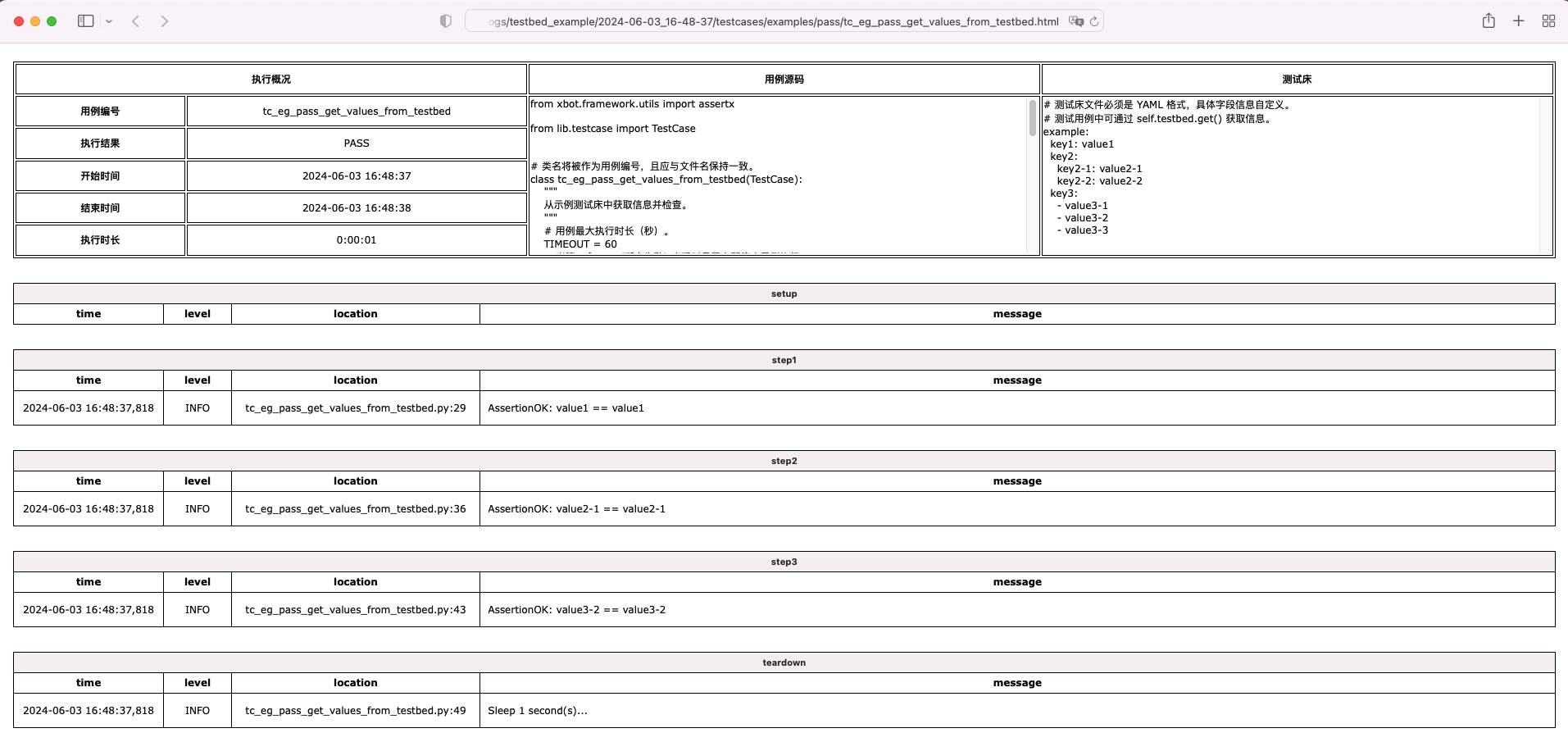

用例日志:
用例开发
测试用例存放在工程目录的 testcases 子目录下,以下为 testcases/examples/pass/tc_eg_pass_create_dirs_and_files.py 用例内容:
import os
import tempfile
import shutil
from xbot.framework.utils import assertx
from lib.testcase import TestCase
class tc_eg_pass_create_dirs_and_files(TestCase):
"""
测试创建目录和文件。
"""
TIMEOUT = 60
FAILFAST = True
TAGS = ['tag1']
def setup(self):
"""
创建一个临时工作目录。
"""
self.workdir = tempfile.mkdtemp()
self.info('Created workdir: %s', self.workdir)
def step1(self):
"""
在临时工作目录下下创建子目录 `dir`,并检查是否创建成功。
"""
self.dir1 = os.path.join(self.workdir, 'dir1')
os.mkdir(self.dir1)
assertx(os.path.exists(self.dir1), '==', True)
def step2(self):
"""
在 `dir1` 下创建空文件 `file1`,并检查是否创建成功。
"""
self.file1 = os.path.join(self.dir1, 'file1')
open(self.file1, 'w').close()
assertx(os.path.exists(self.file1), '==', True)
def step3(self):
"""
写入 `hello world` 到 `file1` 中,并检查是否写入成功。
"""
with open(self.file1, 'w') as f:
f.write('hello world')
with open(self.file1, 'r') as f:
assertx(f.read(), '==', 'hello world')
def teardown(self):
"""
删除临时工作目录。
"""
shutil.rmtree(self.workdir)
self.info('Removed workdir: %s', self.workdir)
self.sleep(1)
用例 必须 继承自 TestCase 基类;
用例 必须 在 setup 方法内实现预置步骤,如无具体步骤则写 pass;
用例 必须 在 teardown 方法内实现清理步骤,如无具体步骤则写 pass;
测试步骤以 step1, step2, ... 这样的方式命名,末尾数字为执行顺序;
TIMEOUT 属性定义测试用例最大执行时长(单位:秒),超过该时长将被强制结束且置结果为 TIMEOUT;
FAILFAST 属性为 True 时,当某个测试步骤失败时,则会跳过后续测试步骤立即执行清理步骤;
TAGS 属性定义用例 标签,可用于测试套中对待执行测试用例列表进行筛选;
测试库开发
测试库存放在工程目录的 lib 子目录下,根据业务开发所需测试库放入该目录下,然后在测试用例中导入使用即可。
