ARParser 0.2

Python library for the Android binary XML ( AXML ) file format.

ARParser

Androguard's axml

This is a library for handling the AXML file format. "AXML" is the informal common name for the compiled binary XML data format used in Android app files. The Android Open Source Project does not seem to have named the format, other than referring to is as "binary XML" or "compiled XML". So AXML stands for Android XML. The file format is based on compiling XML source into a binary format based on protobuf. There are a number of different Android XML file types that are compiled to AXML, these are generically known as Android Resources. All of these files are included in the APK's ZIP package with the file extension .xml even though they are actually AXML and not XML.

Some specific data files, like String Resources and Style Resources, are instead compiled into a single file resources.arsc in its own data format, known as ASRC. AXML files often refer to values that are in resources.arsc.

The entry point for an app is the "app manifest" defines the essential data points that every app must have, like Package Name and Version Code, and includes lots of other metadata that describe the app. Every Android app file (APK) must include AndroidManifest.xml, which in the APK is the compiled binary AXML format, not XML, despite the file extension. The source code files for the binary app manifest file are also called AndroidManifest.xml, but they are actually XML. There can be multiple source files, but there is only ever one single compiled binary AndroidManifest.xml that is valid in the APK.

https://developer.android.com/guide/topics/manifest/manifest-intro#reference

Installation Method

💢 Requirement PKG 💢

termux-setup-storage && pkg update -y && pkg upgrade -y && pkg install python libxslt -y && pip install click pygments rich lxml

👉🏻 To install ARParser, Run only any one cmd from the Installation Method

💢 PYPI ( Just Testing ) 💢

pip install ARParser

1st. Method

💢 For Latest Commit ( From Main  Branch )  💢

pip install --force-reinstall https://github.com/TechnoIndian/ARParser/archive/refs/heads/main.zip

Or

pip install --force-reinstall https://github.com/TechnoIndian/ARParser/archive/refs/heads/main.tar.gz

Or

curl -Ls https://github.com/TechnoIndian/Tools/releases/download/Tools/ARParser.sh | bash

2nd. Method

pkg install python git && pip install --force-reinstall git+https://github.com/TechnoIndian/ARParser.git

Uninstall ARParser

pip uninstall ARParser

Usage

AXMLPrinter

├➢ AXMLPrinter ( Support APK & XML )

ARParser axml -i AndroidManifest.xml

Or

ARParser axml AndroidManifest.xml

With APK

ARParser axml Apk_Path.apk

├➢ ID2Name, Default is ID ( @7F140004 𒁍 @xml/network_security_config | _attr_01010003 𒁍 android:name )

ARParser axml Apk_Path.apk -n

├➢ ResParser ( Res AXML Parse )

ARParser axml Apk_Path.apk -r res/xml/xyz.xml

ID2Name

ARParser axml Apk_Path.apk -r res/xml/xyz.xml -n

Mode Help ( --help )

ARParser axml --help

ARSCParser

├➢ Public XML ( Default )

ARParser arsc Apk_Path.apk

├➢ hex ID ( Resolve 𒁍 locale and package )

ARParser arsc Apk_Path.apk -id 7f060008

├➢ Locale ( en-rIN, en-rGB, zh-rCN etc. )

ARParser arsc Apk_Path.apk -l en-rIN

├➢ Type [string|strings|bool|id|color|dimen|integer|public]

ARParser arsc Apk_Path.apk -t string

Mode Help ( --help )

ARParser arsc --help

Current status

• Passing androguard tests for axml and arsc.

Structure

axml/
├── axml/
│   ├── __init__.py       # Expose the public API (parse_axml, AXMLParser, AXMLPrinter)
│   ├── apk.py            # input APK_Path.apk, AndroidManifest.xml, resources.arsc
│   ├── cli.py            # Command Helper
│   ├── main.py           # Script Execution
│   ├── constants.py      # All constants (chunk types, flag values...)
│   ├── exceptions.py     # Custom exceptions (like ResParserError)
│   ├── stringblock.py    # The StringBlock class and its helper functions (_decode8, _decode16...)
│   ├── parser_arsc.py    # The resources parser class and related parsing functions
│   ├── parser_axml.py    # The AXMLParser class and related parsing functions
│   ├── printer.py        # The AXMLPrinter class for converting parsed AXML into an ElementTree
│   └── formatters.py     # Helper functions like format_value and any formatting utilities
│   ├── resources
│   │   ├── __init__.py
│   │   ├── public.json
│   │   ├── public.py
│   │   └── public.xml
├── tests/
│   └── test_*.py    # Unit tests for each module
├── setup.py              # Packaging file
├── pyproject.toml        # Build configuration
└── README.md             # Project description and usage instructions

Goals

• Write tests early approach, so we can immediately verify breaking changes.
• Expose a clean public API
• Standalone capabilities for axml parsing
• Provide basic documentation

Coding style

• Follow PEP 257 guidelines using the reStructuredText (reST) format for all docstrings.

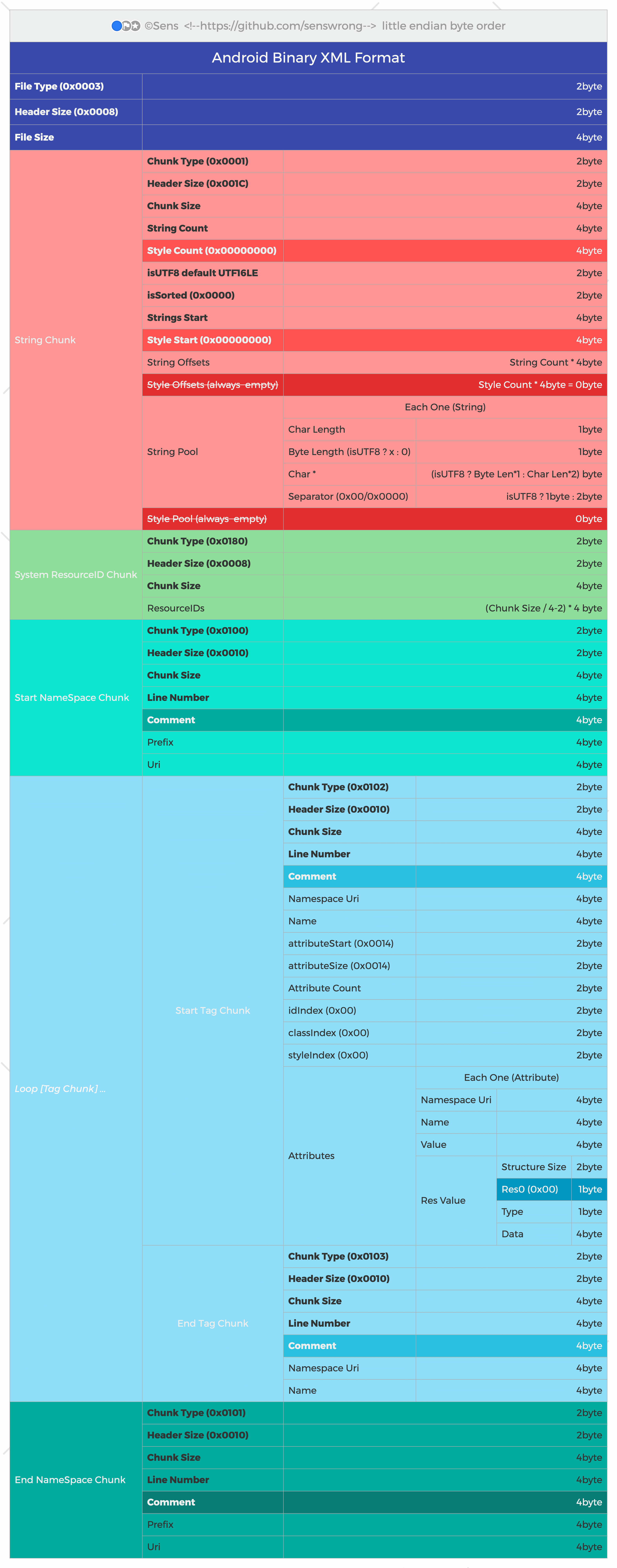

AXML binary format

Some references about the binary AXML format:

• aapt2 compiles XML to protobuf-based AXML
• aapt2 source code
• aapt source code
• The binary format for AndroidManifest.xml is defined in ApkInfo.proto.

🇮🇳 Welcome By Techno India 🇮🇳

Credit

• axml compiles XML to protobuf-based AXML
• androguard compiles XML to protobuf-based AXML
