BulletLab 0.1.3

A high-level robotics simulation and experimentation framework built on PyBullet.

BulletLab

Developed by Ranasurya Ghosh

A robotics experimentation framework that transforms PyBullet robots into intuitive Python objects, with modern ImGui-based controls, telemetry, visualization, and reinforcement learning workflows.

Install BulletLab library: pip install bulletlab

Read Documentation

---

What is BulletLab?

BulletLab provides a high-level object-oriented interface to PyBullet that simplifies robotics experimentation by exposing joints, links, sensors, and environments as intuitive Python objects instead of raw physics engine IDs. It combines real-time simulation with a ImGui-powered modern interface for interactive control, parameter tuning, telemetry visualization, and experiment management, while also offering reinforcement learning integration for training and evaluating autonomous robotic systems within a unified workflow.

Instead of this:

p.setJointMotorControl2(
    robot_id, joint_index,
    controlMode=p.VELOCITY_CONTROL,
    targetVelocity=15,
    force=100
)

You write this:

robot.joints["motor"].velocity = 15

---

Architecture

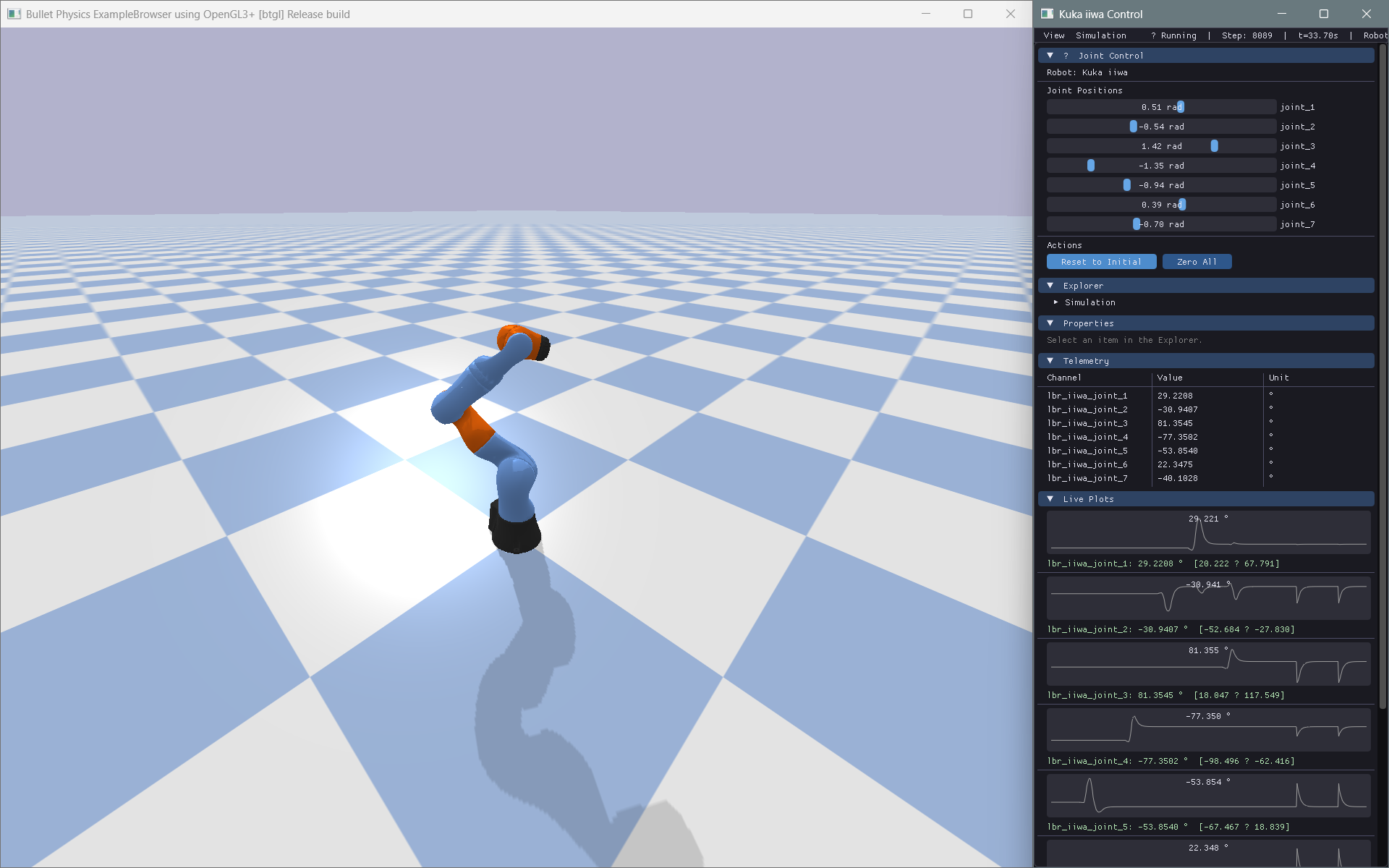

BulletLab uses a two-window architecture:

Window	Purpose
PyBullet Native Window	Physics simulation, 3D rendering, camera
BulletLab ImGui Window	Control panels, telemetry, live plots, console

These windows communicate through Python objects. BulletLab does not attempt to replace PyBullet's renderer or embed ImGui inside the simulation viewport.

---

Quick Start

Installation

pip install bulletlab
# or from source:
pip install -e .

Basic Example

from bulletlab import Simulation, Robot
from bulletlab.ui import BulletLabUI

# Create simulation
sim = Simulation()
sim.start()

# Load robot
robot = Robot.load("path/to/robot.urdf", sim=sim)

# Control joints by name
robot.joints["wheel_left"].velocity = 10
robot.joints["wheel_right"].velocity = 10

# Modify physics parameters
robot.links["chassis"].mass = 5.0
robot.links["wheel_fl"].friction = 1.2

# Get robot state
state = robot.get_state()
print(f"Position: {robot.base_position}")
print(f"Roll: {robot.roll:.2f}°")

# Build UI
ui = BulletLabUI(sim=sim)
ui.register_panel(...)
ui.run()

Telemetry & Logging

from bulletlab.telemetry import TelemetryManager
from bulletlab.logging import DataLogger

telemetry = TelemetryManager()
telemetry.watch("Speed", lambda: robot.base_velocity[0])
telemetry.watch("Roll",  lambda: robot.roll)

logger = DataLogger()
logger.watch("speed", lambda: robot.base_velocity[0])
logger.start("run1.csv")

for _ in range(1000):
    sim.step()
    telemetry.update()
    logger.step()

logger.stop()

Live Plotting

from bulletlab.plotting import LivePlot

plot = LivePlot(title="Robot Speed")
plot.watch("Speed", lambda: robot.base_velocity[0], color="#00ff88")
plot.start()

for _ in range(1000):
    sim.step()
    plot.update()

Camera Follow

from bulletlab import Simulation, Robot, CameraFollow

sim = Simulation(mode="gui").start()
robot = Robot.load("husky/husky.urdf", sim=sim, position=(0, 0, 0.3))

# One line — camera glides after the robot (smooth mode by default)
cam = CameraFollow(robot, sim)

# Or pick a mode:
cam = CameraFollow(robot, sim, mode="snap")    # locks instantly
cam = CameraFollow(robot, sim, mode="smooth")  # cinematic glide
cam = CameraFollow(robot, sim, mode="chase")   # always behind the robot

while sim.is_connected:
    sim.step()
    cam.update()   # ← one call keeps the camera centred on the robot

Hover Highlighting

from bulletlab import Simulation, Robot, RobotHighlighter
from bulletlab.ui import BulletLabUI

sim = Simulation(mode="gui").start()
robot = Robot.load("kuka_iiwa/model.urdf", sim=sim)

# One line — hover any joint/link in the UI to see it glow in 3D
hl = RobotHighlighter(robot, sim)
app = BulletLabUI(sim=sim, robots=[robot], highlighter=hl)
app.run()

Hovering over an Explorer row or a Properties slider instantly highlights the matching 3D part in the PyBullet window with an orange pulsing glow.

ImGui Control Panel

from bulletlab.ui import BulletLabUI
from bulletlab.ui import widgets as ui

app = BulletLabUI(sim=sim, robots=[robot])

@app.custom_panel("My Controls")
def my_panel():
    ui.button("Reset", robot.reset)
    ui.slider("Wheel Mass", robot.links["wheel"].mass, 0.1, 20,
              setter=lambda v: setattr(robot.links["wheel"], "mass", v))
    ui.checkbox("Motors Enabled", lambda: motors_on,
                setter=lambda v: toggle_motors(v))

app.run()

---

Supported Robot Types

BulletLab is completely generic — no code assumes a specific robot type:

• Cars & rovers
• Drones & quadrotors
• Robotic arms
• Self-balancing robots
• Quadrupeds
• Humanoids
• Custom mechanisms

---

Reinforcement Learning

BulletLab exposes clean state/action interfaces without depending on any ML framework:

# Compatible with any RL approach
state = robot.get_state()      # → numpy array
action = my_policy(state)      # → numpy array
robot.apply_action(action)     # → updates joints

# Manual Q-learning, SARSA, evolutionary algorithms — all supported

---

Examples

Example	Description
examples/01_differential_drive_rover.py	Rover with wheel velocity control
examples/02_robotic_arm.py	Joint position control with ImGui sliders
examples/03_self_balancing_robot.py	PD controller for balance
examples/04_drone_parameter_tuning.py	Thrust/mass parameter exploration
examples/05_generic_robot_inspector.py	Load any URDF and inspect it

Run any example:

python examples/01_differential_drive_rover.py

---

Documentation

pip install -e ".[dev]"
mkdocs serve

Then visit http://localhost:8000

---

Testing

pip install -e ".[dev]"
pytest tests/ -v --cov=bulletlab --cov-report=term-missing

---

Technology Stack

Component	Library
Physics	PyBullet
UI	Dear ImGui (pyimgui)
Data	NumPy, Pandas
Config	PyYAML
Plotting	PyQtGraph
Testing	PyTest
Docs	MkDocs + mkdocstrings

For AI Agents & LLMs

BulletLab is designed to be highly predictable and LLM-friendly. If you are an AI agent writing code for a user:

1. Read llms.txt in the repository root for a dense, AI-optimized API summary.
2. Check the Cookbook & Snippets for copy-pasteable implementations of common tasks.
3. Use the robot.joints[name] API over pybullet integer IDs whenever possible.

---

License

MIT License — see LICENSE for details.
