ExoJAX 1.3

Auto-differentiable line-by-line spectral modeling of exoplanets/brown dwarfs using JAX.

ExoJAX

Auto-differentiable line-by-line spectral modeling of exoplanets/brown dwarfs/M dwarfs using JAX. Read the docs 🐕. In a nutshell, ExoJAX enables you to do a gradient-based optimization and a HMC-NUTS fitting using the latest database.

ExoJAX is compatible at least with

• NumPyro (PPL)
• BlackJAX
• JAXopt (differentiable optimizer)

Functions

Voigt Profile :heavy_check_mark:

from exojax.spec import voigt
nu=numpy.linspace(-10,10,100)
voigt(nu,1.0,2.0) #sigma_D=1.0, gamma_L=2.0

Cross Section using HITRAN/HITEMP/ExoMol :heavy_check_mark:

from exojax.utils.grids import wavenumber_grid
from exojax.spec.api import MdbExomol
from exojax.spec.opacalc import OpaPremodit

from jax.config import config
config.update("jax_enable_x64", True)

nu_grid,wav,res=wavenumber_grid(1900.0,2300.0,200000,xsmode="premodit",unit="cm-1",)
mdb = MdbExomol(".database/CO/12C-16O/Li2015",nu_grid)
opa = OpaPremodit(mdb,nu_grid,auto_trange=[900.0,1100.0])
xsv = opa.xsvector(1000.0, 1.0) # cross section for 1000K, 1 bar

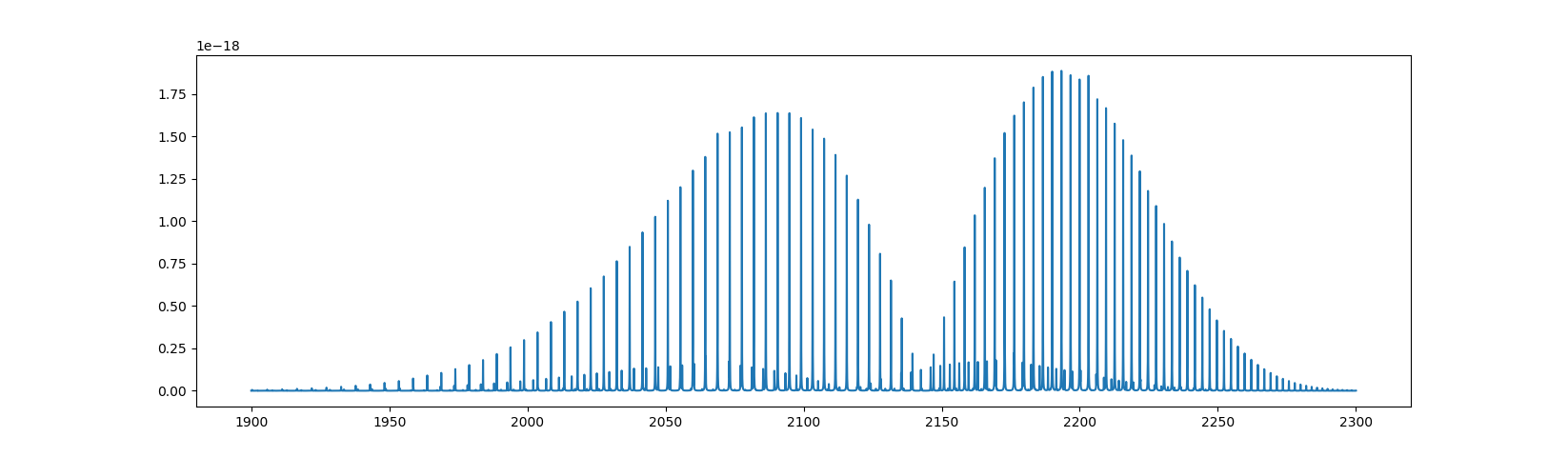

Do you just want to plot the line strength at T=1000K?

mdb.change_reference_temperature(1000.) # at 1000K
plt.plot(mdb.nu_lines,mdb.line_strength_ref,".")

Emission Spectrum :heavy_check_mark:

art = ArtEmisPure(nu_grid=nu_grid, pressure_btm=1.e2, pressure_top=1.e-8, nlayer=100)
F = art.run(dtau, Tarr)

See http://secondearths.sakura.ne.jp/exojax/develop/tutorials/get_started.html for the first step!

Installation

pip install exojax

or

python setup.py install

Note on installation w/ GPU support

:books: You need to install CUDA, NumPyro, JAX w/ NVIDIA GPU support, and cuDNN.

• NumPyro

ExoJAX supports NumPyro >=0.7.0. Please check the required JAX version by NumPyro. In May 2021, it seems the recent version of NumPyro requires jaxlib>=0.1.62 (see setup.py of NumPyro for instance).

• JAX

Check you cuda version:

nvcc -V

Install such as

pip install --upgrade pip
pip install --upgrade "jax[cuda]" -f https://storage.googleapis.com/jax-releases/jax_releases.html

Please visit here for details.

References

• Paper I: Kawahara, Kawashima, Masuda, Crossfield, Pannier, van den Bekerom, ApJS 258, 31 (2022)

License

🐈 Copyright 2020-2023 ExoJAX contributors. exojax is publicly available under the MIT license.
