FRIdata 0.1.0

Generate sequences, coordinates, distograms, and embeddings from protein structures at scale.

FRIdata

Imagine regularly downloading new releases of protein databases (PDB, UniProt, AFDB, ESMAtlas, etc.) and having to process them efficiently while avoiding redundant computations. It's a surprisingly frustrating problem.

FRIdata (free data) is a protein data generation and storage workflow that produces non-redundant protein derivatives, e.g.:

• 3D coordinates and distograms
• Sequences and protein language model embeddings (ESM-2, ESM-C, gLM-2, etc.)
• HTML reports showing data dependencies Leveraging Dask, it is highly efficient and scalable

In deepFRI2 training, we use FRIdata to manage different releases of the Gene Ontology Annotation (GOA) database, stratified by annotation quality.

Full documentation may be found here.

The repository is currently under active development. If you run into installation problems, find a bug, or would like to propose an improvement, please raise an issue or write directly to p.szczerbiak[at]sanoscience.org.

Generate sequences, coordinates, distograms, and embeddings from protein structures at scale. Supports PDB, AFDB, ESMatlas, and local/custom inputs. Full API reference: docs/index.html.

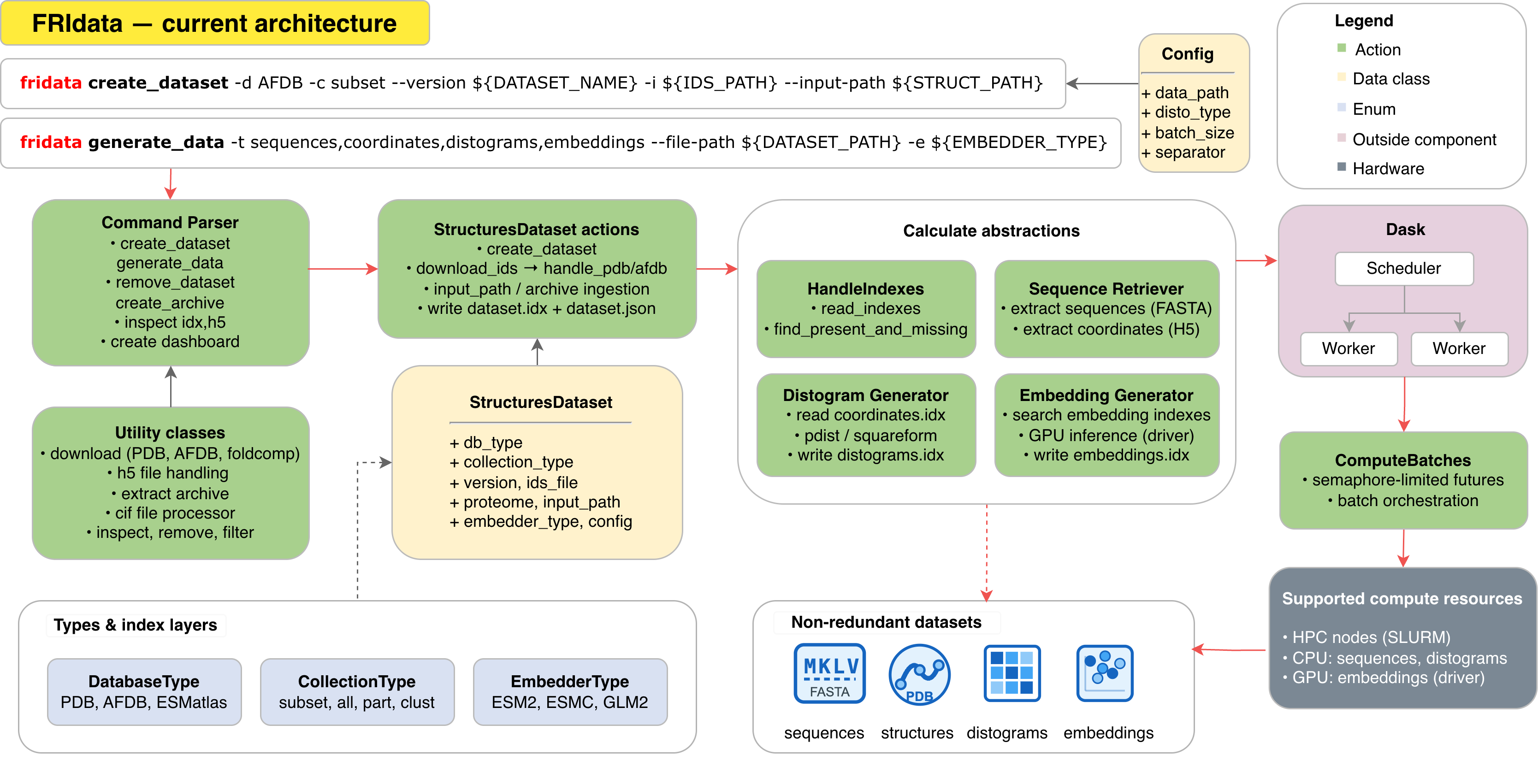

How FRIdata works

Every dataset is defined by a database type (-d, --db) and a collection type (-c, --collection), plus optional --proteome and --version. Together they determine the dataset name (for example AFDB-subset--test) and how structures are resolved.

Use -t / --type to choose what to generate in a run: sequences, coordinates, distograms, embeddings, or all.

Database type (-d, --db)

Where structures come from.

Value	Meaning
PDB	RCSB PDB structures (download by ID)
AFDB	AlphaFold Database
ESMatlas	ESM Atlas
other	Local or custom files via --input-path or archives

Collection type (-c, --collection)

How much of that source to include.

Value	Meaning
all	Full database collection
part	AFDB proteome partition (requires --proteome; foldcomp-based)
clust	AFDB cluster partition (requires --proteome; foldcomp-based)
subset	User-defined ID list via -i / --ids (optionally --input-path for local structures)

Installation

FRIdata is a pure-pip project (Python >= 3.10). No conda/mamba required.

The core install covers sequences, coordinates and distograms. Embedding generation needs the heavier torch/esm/transformers stack, which lives in an optional embeddings extra so the default install stays small.

Quick start (recommended)

The setup script creates a virtualenv, installs FRIdata with its dev extras, and installs a PyTorch build matched to your GPU driver:

git clone https://github.com/Tomasz-Lab/FRIdata.git
cd FRIdata
./scripts/setup_env.sh            # GPU (auto-detected); use --cpu for CPU-only
source .venv/bin/activate

Options: --cpu (CPU-only PyTorch), --skip-pytorch (core install, no embeddings), -p/--path DIR (virtualenv location, default .venv).

Manual installation

python -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip

# Core only (sequences / coordinates / distograms):
pip install -e .

# ...or with embedding support (torch/esm/transformers from PyPI):
pip install -e ".[embeddings]"

On Linux the default PyPI torch wheel is CUDA-enabled. For a specific CUDA version or CPU-only wheels, use the helper after installing:

./scripts/install_pytorch.sh          # auto-detect CUDA from the driver
./scripts/install_pytorch.sh --cpu    # force CPU-only build

Install from PyPI

Once released, FRIdata can be installed without cloning the repo:

pip install fridata                 # core
pip install "fridata[embeddings]"   # with embedding support

Running tests

pytest ./tests

Usage examples

Running on AFDB structures locally

Requires having a directory with AFDB structures and a text file containing list of AFDB IDs with \n delimeter. Assuming all steps from Installation succeeded

FRIDATA_PATH="<repository path>"
AFDB_PATH="<AFDB structures directory path>"
IDS_PATH="<AFDB IDs file path>"

cd ${FRIDATA_PATH}

EMBEDDER_TYPE=esm2_t33_650M_UR50D

# (MACOS only) Fix for OpenMP multiple runtime error
export KMP_DUPLICATE_LIB_OK=TRUE

PYTHONPATH='.' python3 -u ${FRIDATA_PATH}/fridata.py \
 generate_data \
 -t sequences,coordinates,distograms,embeddings \
 -d AFDB \
 -c subset \
 --version test  \
 -i ${IDS_PATH} \
 --input-path ${AFDB_PATH} \
 -e ${EMBEDDER_TYPE}

For subset runs with --input-path, new datasets store canonical keys as {line_from_ids_file}_{chain} (for example A0A2K6V5L6_A), not the full AlphaFold CIF filename stem. The dataset’s input_structures.idx maps each canonical key to the source structure filename. Older datasets created before this convention may still use long AF-style keys.

Running as a CLI tool

Assuming all Installation steps succeeded.

0. Go into FRIdata directory

cd <path into FRIdata>

1. Install as a CLI tool

python3 -m pip install -e .

2. Now FRIdata can be run as a CLI tool

fridata <...>

(Use ids_file tokens (e.g. plain UniProt) plus chain as the canonical dataset index keys)

Running on HPC

Running FRIdata on HPC differs on CPU and GPU nodes. This instruction set is valid for HPC hosted in PLGrid infrastructure. Running on other infrastructures may require additional adjustments.

Prerequisites:

• Having active grant valid on the HPC
• Having a full list of mandatory ENV vars set (ideally in .bashrc):
  • DEEPFRI_PATH: should always refer to a parent directory of this repo
  • IDS_PATH: path to a text file with AFDB indexes listed
  • AFDB_PATH: path to AFDB structures (can be empty directory - structures will be fetched there)
  • DATA_PATH: path to the parent diretory of all generated output data
  • Optional ENV vars with default values:
    • COMMON_SLURM_PATH: path to common_slurm.sh, defaults to $DEEPFRI_PATH/FRIdata/scripts/hpc/common_slurm.sh
    • LAUNCH_WORKER_SLURM_PATH: path to launch_worker_slurm.sh, defaults to $DEEPFRI_PATH/FRIdata/scripts/hpc/launch_workers_slurm.sh
    • MEMORY_LIMIT: memory limit per Dask worker, defaults to 288GiB
    • IP_INTERFACE: network unix interface, where dask workers are connected. Defaults to ens1f0
    • VENV_PATH: path to the FRIdata virtualenv, defaults to $DEEPFRI_PATH/.venv
• Have a Python module available (module avail python — the scripts try python/python3; adjust the candidate list in scripts/hpc/*.sh if your cluster names it differently)
• Have installed module gcc

Steps:

1. Download the repo

git clone https://github.com/Tomasz-Lab/FRIdata.git
cd FRIdata

2. Update run permissions

chmod u+x -R scripts/hpc/cpu

3. Run initialize_slurm.sh to create the virtualenv (at VENV_PATH, default $DEEPFRI_PATH/.venv) and install dependencies. Add the --cpu flag on CPU clusters.

./scripts/hpc/initialize_slurm.sh [--cpu]

4. Schedule sbatch script into the HPC with all the args specified. Operations to be chosen are: sequences, coordinates, embeddings

For CPU:

sbatch --cpus-per-task=<cpus> --time=<HH:MM:SS> --nodes=<nodes> --account=<grant name> scripts/hpc/run_slurm.sh sequences,coordinates

For GPU:

sbatch --gres=gpu[:gpu-number] --time=<HH:MM:SS> --account=<grant name> --nodes=1 --partition=<partition name> --cpus-per-task=<cpus> scripts/hpc/run_slurm.sh embeddings
