PyADRecon-ADWS 0.5.7

Python Active Directory Reconnaissance Tool (ADRecon port) using ADWS with NTLM support.

A Python3 implementation of PyADRecon using ADWS instead of LDAP for Pentesters, Red and Blue Teams

PyADRecon is a tool which gathers information about MS Active Directory and generates an XSLX + HTML report to provide a holistic picture of the current security state of the target AD environment.

[!TIP] Queries Active Directory Web Services (ADWS) over TCP/9389 instead of LDAP to fly under the EDR radar.

Table of Contents

• Installation
• Usage
• Docker
• Collection Modules
• HTML Dashboard
• Known Limitations
• Acknowledgements
• License

Installation

# stable release from pypi
pipx install pyadrecon-adws

# latest commit from github
pipx install git+https://github.com/l4rm4nd/PyADRecon-ADWS

Then verify installation:

pyadrecon_adws --version

[!TIP] For Windows, may read this. Only NTLM authentication works on Windows atm.

Usage

usage: pyadrecon_adws.py [-h] [--version] [--generate-excel-from CSV_DIR] [-d DOMAIN] [-u USERNAME] [-p PASSWORD]
                         [-dc DOMAIN_CONTROLLER] [--port PORT] [--auth {ntlm,kerberos}] [--spn SPN]
                         [--workstation WORKSTATION] [-c COLLECT] [--only-enabled] [--page-size PAGE_SIZE]
                         [--dormant-days DORMANT_DAYS] [--password-age PASSWORD_AGE] [-o OUTPUT] [--no-excel]
                         [-v]

PyADRecon-ADWS # Active Directory Reconnaissance using ADWS

options:
  -h, --help            show this help message and exit
  --version             show program's version number and exit
  --generate-excel-from CSV_DIR
                        Generate Excel report from existing CSV files (standalone mode)
  --generate-dashboard-from CSV_DIR
                        Generate HTML dashboard from existing CSV files (standalone mode)
  -d, --domain DOMAIN   Domain name (e.g., example.com)
  -u, --username USERNAME
                        Username (DOMAIN\user or [e-mail])
  -p, --password PASSWORD
                        Password or LM:NTLM hash (will prompt if not provided)
  -dc, --domain-controller DOMAIN_CONTROLLER
                        Domain controller hostname or IP
  --port PORT           ADWS port (default: 9389)
  --auth {ntlm,kerberos}
                        Authentication method: ntlm or kerberos (default: ntlm)
  --spn SPN             Service Principal Name override (default: HTTP/dc.fqdn)
  --workstation WORKSTATION
                        NTLM authentication workstation name (default: empty string, bypasses userWorkstations restrictions)
  -c, --collect COLLECT
                        Comma-separated modules to collect (default: all)
  --only-enabled        Only collect enabled users/computers
  --page-size PAGE_SIZE
                        ADWS query page size (default: 256)
  --dormant-days DORMANT_DAYS
                        Users/Computers with lastLogon older than X days are dormant (default: 90)
  --password-age PASSWORD_AGE
                        Users with pwdLastSet older than X days have old passwords (default: 180)
  -o, --output OUTPUT   Output directory (default: PyADRecon-Report-<timestamp>)
  --no-excel            Skip Excel export
  --no-dashboard        Skip interactive HTML dashboard generation
  -v, --verbose         Enable verbose output

Examples:
  # Basic usage with NTLM authentication
  pyadrecon_adws.py -dc 192.168.1.1 -u admin -p password123 -d DOMAIN.LOCAL

  # With Kerberos authentication (only works on Linux with gssapi atm)
  pyadrecon.py -dc dc01.domain.local -u admin -p password123 -d DOMAIN.LOCAL --auth kerberos

  # Only collect specific modules
  pyadrecon_adws.py -dc 192.168.1.1 -u admin -p pass -d DOMAIN.LOCAL --collect users,groups,computers

  # Output to specific directory
  pyadrecon_adws.py -dc 192.168.1.1 -u admin -p pass -d DOMAIN.LOCAL -o /tmp/adrecon_output

  # Generate Excel report from existing CSV files (standalone mode)
  pyadrecon_adws.py --generate-excel-from /path/to/CSV-Files -o report.xlsx

Docker

There is also a Docker image available on GHCR.IO.

docker run --rm -v /etc/krb5.conf:/etc/krb5.conf:ro -v /etc/hosts:/etc/hosts:ro -v ./:/tmp/pyadrecon_output ghcr.io/l4rm4nd/pyadrecon-adws:latest -dc dc01.domain.local -u admin -p password123 -d DOMAIN.LOCAL -o /tmp/pyadrecon_output

Collection Modules

As default, PyADRecon-ADWS runs all collection modules. They are referenced to as default or all.

Though, you can freely select your own collection of modules to run:

Icon	Meaning
🛑	Requires administrative domain privileges (e.g. Domain Admins)
✅	Requires regular domain privileges (e.g. Authenticated Users)
💥	New collection modul in beta state. Results may be incorrect.

Forest & Domain

• forest ✅
• domain ✅
• trusts ✅
• sites ✅
• subnets ✅
• schema or schemahistory ✅

Domain Controllers

• dcs or domaincontrollers ✅

Users & Groups

• users ✅
• userspns ✅
• groups ✅
• groupmembers ✅
• protectedgroups ✅💥
• krbtgt ✅
• asreproastable ✅
• kerberoastable ✅

Computers & Printers

• computers ✅
• computerspns ✅
• printers ✅

OUs & Group Policy

• ous ✅
• gpos ✅
• gplinks ✅

Passwords & Credentials

• passwordpolicy ✅
• fgpp or finegrainedpasswordpolicy 🛑
• laps 🛑
• bitlocker 🛑💥

Managed Service Accounts

• gmsa or groupmanagedserviceaccounts ✅💥
• dmsa or delegatedmanagedserviceaccounts ✅💥
  • Only works for Windows Server 2025+ AD schema

Certificates

• adcs or certificates ✅💥
  • Detects ESC1, ESC2, ESC3, ESC4 and ESC9

DNS

• dnszones ✅
• dnsrecords ✅

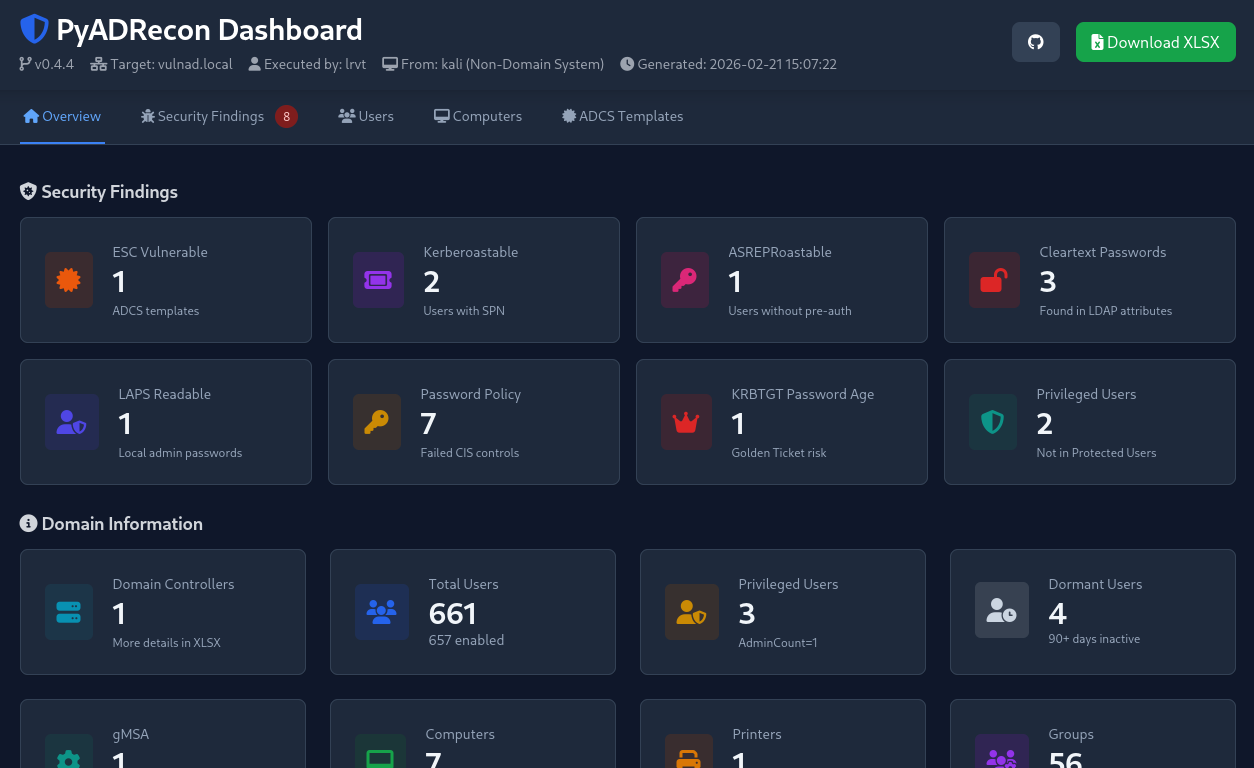

HTML Dashboard

PyADRecon-ADWS automatically generates an HTML dashboard containing key statistics and security findings when all collection modules are executed.

If needed, you can disable dashboard creation during initial data collection using --no-dashboard. The dashboard can later be generated from existing CSV files with --generate-dashboard-from <CSV_DIR>.

[!CAUTION] This is a beta feature. Displayed data may be falsely parsed or reported as issue. Take it with a grain of salt!

Known Limitations

Multi-Domain Forests – Security Descriptors

Show details

When querying child domains in a multi-domain forest, ADWS returns incomplete security descriptors for forest-wide objects like certificate templates.

Issue:

• Certificate template ACLs (enrollment rights, write permissions) may not show principals from the child domain itself
• Only parent domain principals will appear in enrollment rights
• This is an ADWS protocol limitation, not a PyADRecon-ADWS bug

Example:

• Querying from child domain (child.domain.local): Shows parent domain principals only
• Querying from parent domain (domain.local): Shows all principals including child domain

Solution:

• For complete certificate template ACL data, connect to the forest root domain controller instead of a child DC

Multi-Domain Forests – LDAP Referrals

Show details

When querying a child domain in a multi-domain forest, ADWS may return LDAP referrals for objects that reside in a different naming context (for example, the forest root domain).

Issue:

• Queries for forest-root objects (e.g., Enterprise Admins, Schema Admins, or root-domain users/groups) may return LDAP referrals
• PyADRecon does not chase LDAP referrals
• Referred objects are therefore not collected automatically

Solution:

• To ensure complete forest-wide enumeration, run PyADRecon separately against:
  • The child domain
  • The forest root domain
• Combine results manually if full forest visibility is required

Acknowledgements

Many thanks to the following folks:

• S3cur3Th1sSh1t for a first Claude draft of PyADRecon using LDAP
• Sense-of-Security for the original ADRecon script in PowerShell
• dirkjanm for the original ldapdomaindump script
• mverschu for his port of ldapdomaindump using ADWS (adwsdomaindump). PyADRecon-ADWS heavily makes use of the ldap-to-adws wrapper.
• Forta for the awesome impacket suite
• Anthropic for Claude LLMs

License

PyADRecon-ADWS is released under the MIT License.

The following third-party libraries are used:

Library	License
openpyxl	MIT
impacket	Apache 2.0
adwsdomaindump ADWS Wrapper	MIT

Please refer to the respective licenses of these libraries when using or redistributing this software.
